FRONT WIPER AND WASHER SYSTEM

WW-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

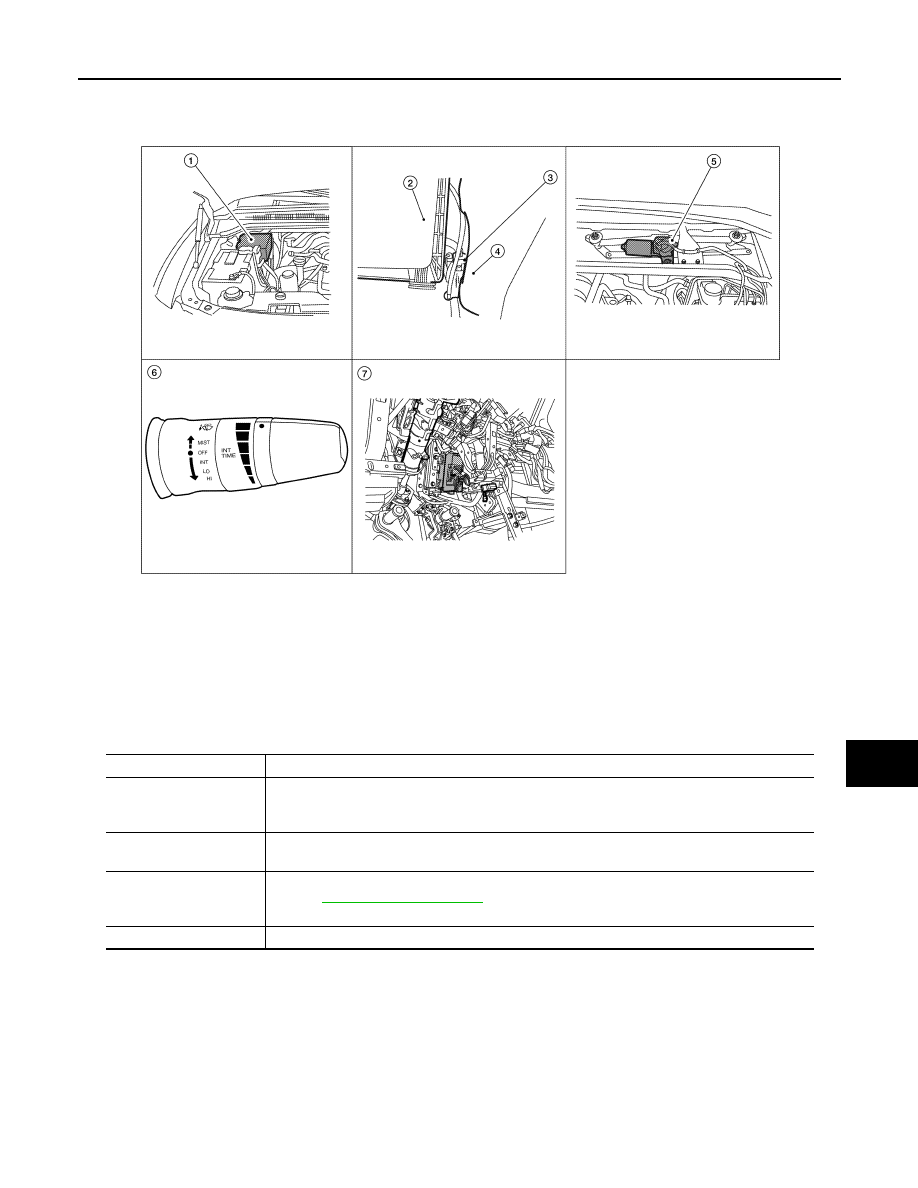

Component Parts Location

INFOID:0000000006164519

Component Description

INFOID:0000000006164520

1.

IPDM E/R E121, E122, E124

2.

Air cleaner case

3.

Front washer motor E105

4.

Washer fluid reservoir

5.

Front wiper motor E23
(view with cowl top removed)

6.

Combination switch (wiper and washer
switch) M28

7.

BCM M18, M20 (view with instru-
ment panel removed)

ALLIA0848ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Requests (with CAN communication) the front wiper relay and the front wiper high relay ON to

IPDM E/R.

IPDM E/R

• Controls the integrated relay according to the request (with CAN communication) from BCM.
• Performs the auto stop control of the front wiper.

Combination switch
(Wiper and washer
switch)

Refer to

WW-4, "System Description"

.

Combination meter

Transmits the vehicle speed signal to BCM with CAN communication.

WW-8

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006627254

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

WIPER

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

WW-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER : CONSULT-III Function (BCM - WIPER)

INFOID:0000000006627255

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

* : Initial setting

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

IGN SW CAN [On/Off]

Indicates ignition switch ON signal received from IPDM E/R on CAN communication line.

FR WIPER HI [On/Off]

Indicates condition of front wiper operation of combination switch.

FR WIPER LOW [On/Off]

FR WIPER INT [On/Off]

FR WASHER SW [On/Off]

INT VOLUME [1 - 7]

FR WIPER STOP [On/Off]

Indicates front wiper motor auto stop signal received from IPDM E/R on CAN communica-
tion line.

VEHICLE SPEED [km/h/mph]

Indicates vehicle speed signal received from combination meter on CAN communication
line.

Test Item

Description

FR WIPER

This test is able to check front wiper operation [Off/INT/Lo/Hi].

Support Item

Setting

Description

WIPER SPEED SETTING

Off*

Front wiper intermittent time linked with wiper dial position.

On

Front wiper intermittent time linked with vehicle speed and wiper dial position.

WW-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000006627256

AUTO ACTIVE TEST

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.

• Oil pressure low/coolant pressure high warning indicator

• Oil pressure gauge

• Rear window defogger

• Front wipers

• Tail, license and parking lamps

• Front fog lamps

• Headlamps (Hi, Lo)

• A/C compressor (magnetic clutch)

Operation Procedure

1. Close the hood and front door RH, and lift the wiper arms from the windshield (to prevent windshield dam-

age due to wiper operation).

NOTE:

When auto active test is performed with hood opened, sprinkle water on windshield before hand.

2. Turn ignition switch OFF.
3. Turn the ignition switch ON and, within 20 seconds, press the front door switch LH 10 times. Then turn the

ignition switch OFF.

4. Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test

starts.

5. After a series of the following operations is repeated 3 times, auto active test is completed.
NOTE:

When auto active test mode has to be cancelled halfway through test, turn ignition switch OFF.

CAUTION:

• If auto active test mode cannot be actuated, check door switch system. Refer to

DLK-27, "KING CAB

: Description"

 (King Cab) or

DLK-28, "CREW CAB : Description"

 (Crew Cab).

• Do not start the engine.

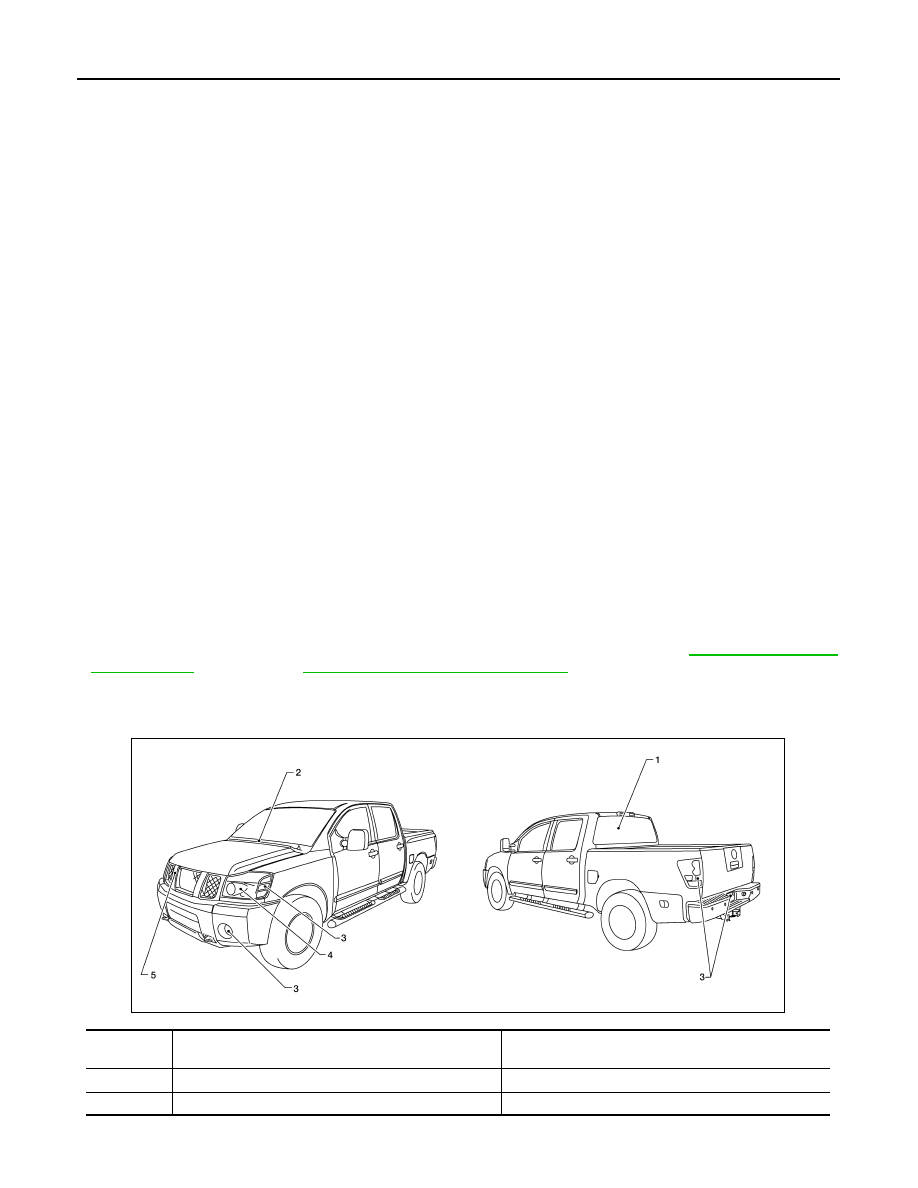

Inspection in Auto Active Test Mode

When auto active test mode is actuated, the following 6 steps are repeated 3 times.

Operation
sequence

Inspection Location

Operation

1

Rear window defogger (Crew Cab only)

10 seconds

2

Front wipers

LO for 5 seconds

→ HI for 5 seconds

AWMIA1111ZZ
