REMOVAL AND INSTALLATION

WT-49

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

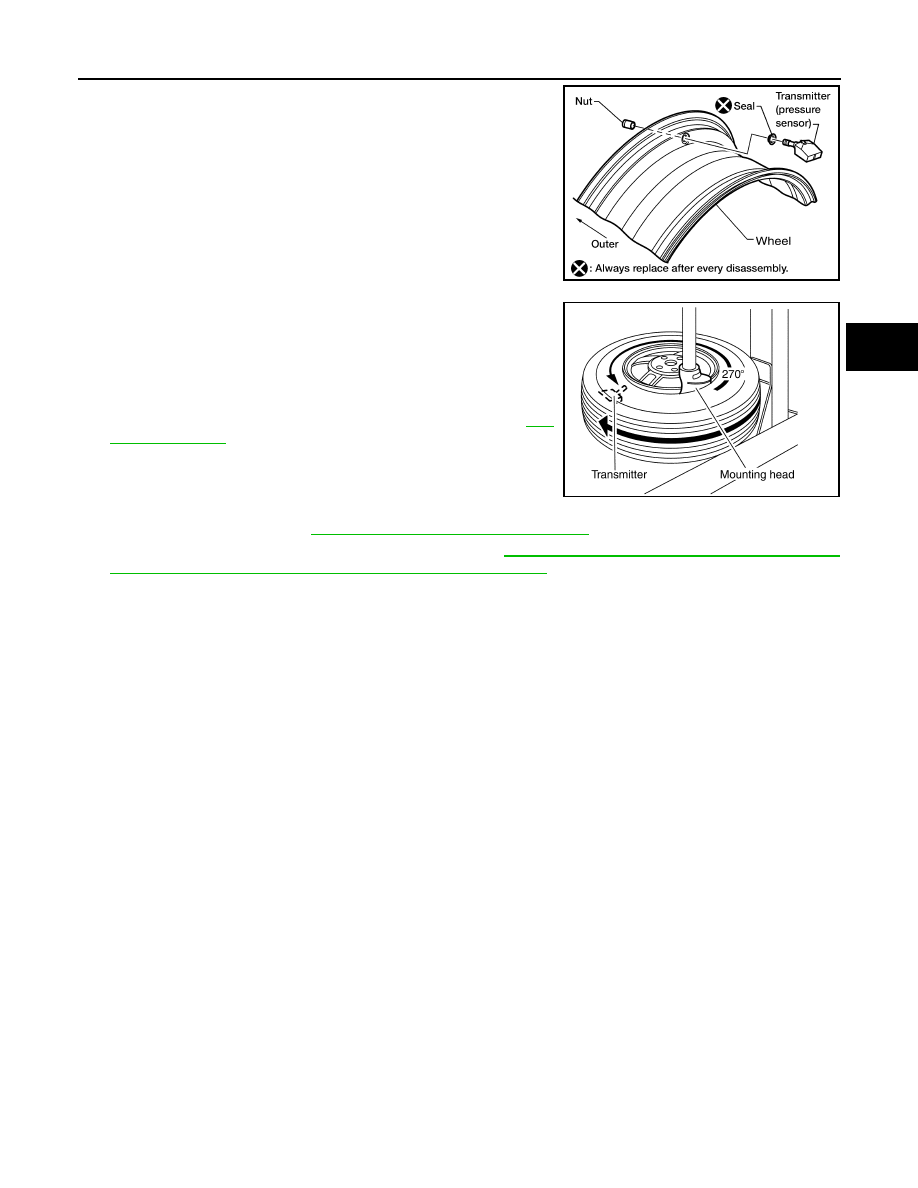

2. Mount transmitter on rim and slowly tighten transmitter nut to

specification.

CAUTION:

Do not over tighten transmitter nut.

3. Place wheel on turntable of tire machine. Ensure that transmitter

is 270 degrees from mounting/dismounting head.

NOTE:

Do not touch transmitter with mounting head.

4. Lubricate tire well, and install second side of tire as normal.

Ensure that tire does not rotate relative to rim.

5. Inflate tire and balance wheel and tire assembly. Refer to

WT-

46, "Adjustment"

.

6. Install wheel and tire assembly in appropriate wheel position on

vehicle.

NOTE:

If replacing the transmitter, then transmitter wake up operation

must be performed. Refer to

WT-5, "Transmitter Wake Up Operation"

.

7. Adjust neutral position of steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

Transmitter nut

: 7.7 N·m (0.79 kg-m, 68 in-lb)

WEIA0137E

WEIA0046E

WT-50

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000006179326

Tire

INFOID:0000000006179327

Unit: kPa (kg/cm

2

, psi)

Wheel type

Aluminum

Steel

Inside

Outside

Maximum radial
runout limit

Lateral mm (in)

0.3 (0.012) or less

1.0 (0.039) or less

0.9 (0.035) or less

Radial mm (in)

0.3 (0.012) or less

0.8 (0.031) or less

0.4 (0.016) or less

Maximum allowable
imbalance

Dynamic
(at rim flange)

Less than 5 g (0.18 oz) (per side)

Static (at rim flange)

Less than 10 g (0.35 oz)

Tire size

Air pressure

Conventional tire

Spare tire

P265/70R18

240 (2.4, 35)

240 (2.4, 35)

P275/70R18

240 (2.4, 35)

240 (2.4, 35)

P275/60R20

240 (2.4, 35)

240 (2.4, 35)

WW-1
