Nissan Titan A60. Manual - part 99





AV

DIAGNOSIS SYSTEM (BLUETOOTH CONTROL UNIT)

AV-221

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

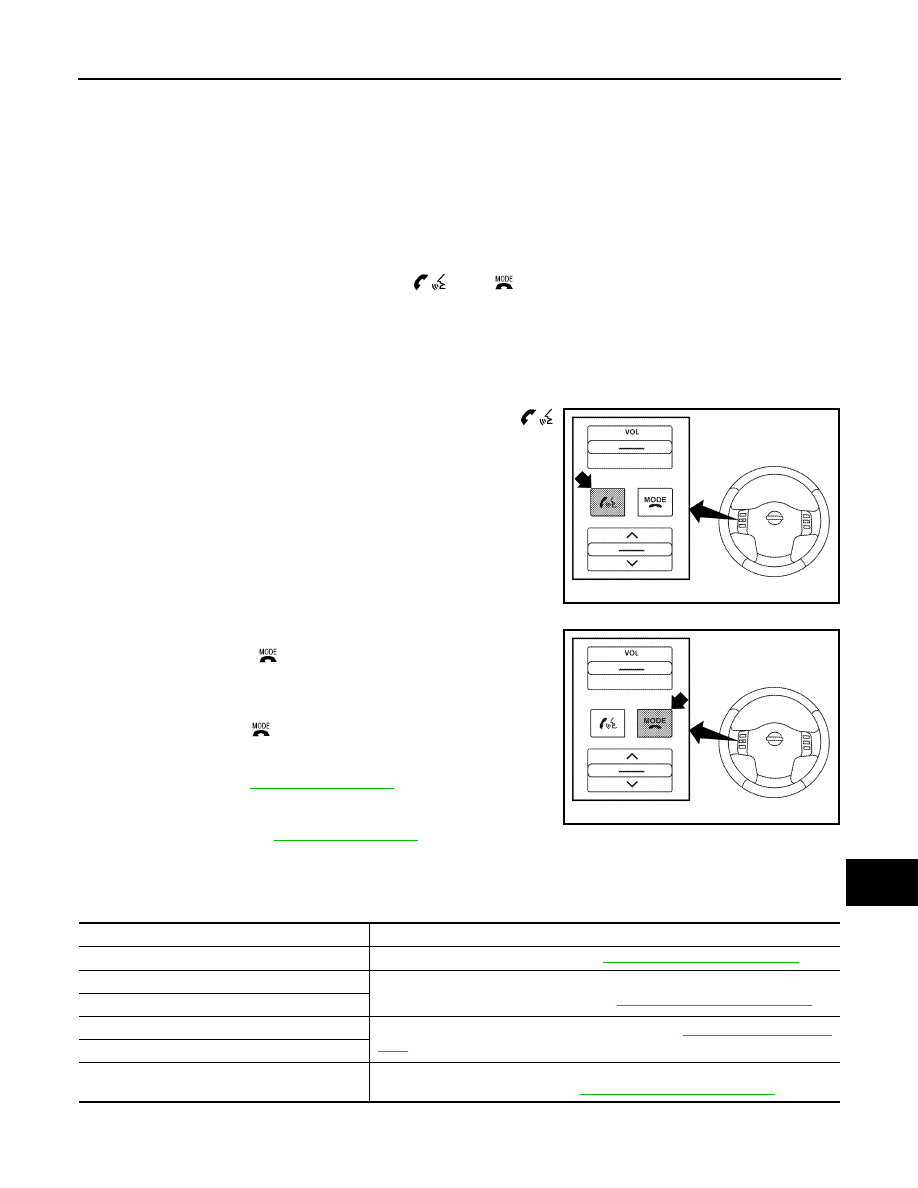

DIAGNOSIS SYSTEM (BLUETOOTH CONTROL UNIT)

Diagnosis Description

INFOID:0000000006166573

The Bluetooth control unit has two diagnostic checks. The first diagnostic check is performed automatically

every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-

cian using the steering wheel audio control switches prior to trouble diagnosis.

BLUETOOTH CONTROL UNIT INITIALIZATION CHECKS

• Internal control unit failure

• Bluetooth antenna connection open or shorted
• Steering wheel audio control switches [SEND(

)/END( )] stuck closed

• Vehicle speed pulse count

• Microphone connection test (with playback to operator)

• Bluetooth inquiry check

OPERATION PROCEDURE

1. Turn ignition switch to ACC or ON.

2. Wait for the Bluetooth system to complete initialization. This may take up to 10 seconds.
3. Press and hold the steering wheel audio control switch

button for at least 5 seconds. The Bluetooth system will begin to

play a verbal prompt.

4. While the prompt is playing, press and hold the steering wheel

audio control switch   button until you hear the “Diagnostics

mode” prompt. The Bluetooth system will sound a 5 second

beep.

5. While the beep is sounding, press and hold the steering wheel

audio control switch

 button again until you hear prompts.

6. The Bluetooth system has now entered into the diagnostic

mode. Results of the diagnostic checks will be verbalized to the

technician. Refer to

AV-221, "Work Flow"

.

7. After the failure records are reported, an interactive microphone

test will be performed. Follow the voice prompt. If the micro-

phone test fails refer to

AV-221, "Work Flow"

.

8. Self-diagnosis mode is complete when the voice prompt says “All diagnostic functions completed”.

Work Flow

INFOID:0000000006166574

ALNIA0448GB

ALNIA0449GB

Failure Message

Action

“Internal failure”

Replace Bluetooth control unit. Refer to

AV-343, "Removal and Installation"

.

“Bluetooth antenna open”

1.

Inspect harness connection.

2.

Replace Bluetooth antenna. Refer to

AV-342, "Removal and Installation"

.

“Bluetooth antenna shorted”

“Phone/Send for Hands Free System is stuck”

Check steering wheel audio control switches. Refer to

AV-258, "Diagnosis Proce-

dure"

.

“Phone/End for the Hands Free System is stuck”

“Microphone test” (failed interactive test)

1.

Inspect harness between Bluetooth control unit and microphone.

2.

Replace microphone. Refer to

AV-341, "Removal and Installation"

.

AV-222

< DTC/CIRCUIT DIAGNOSIS >

[PREMIUM WITH NAVIGATION]

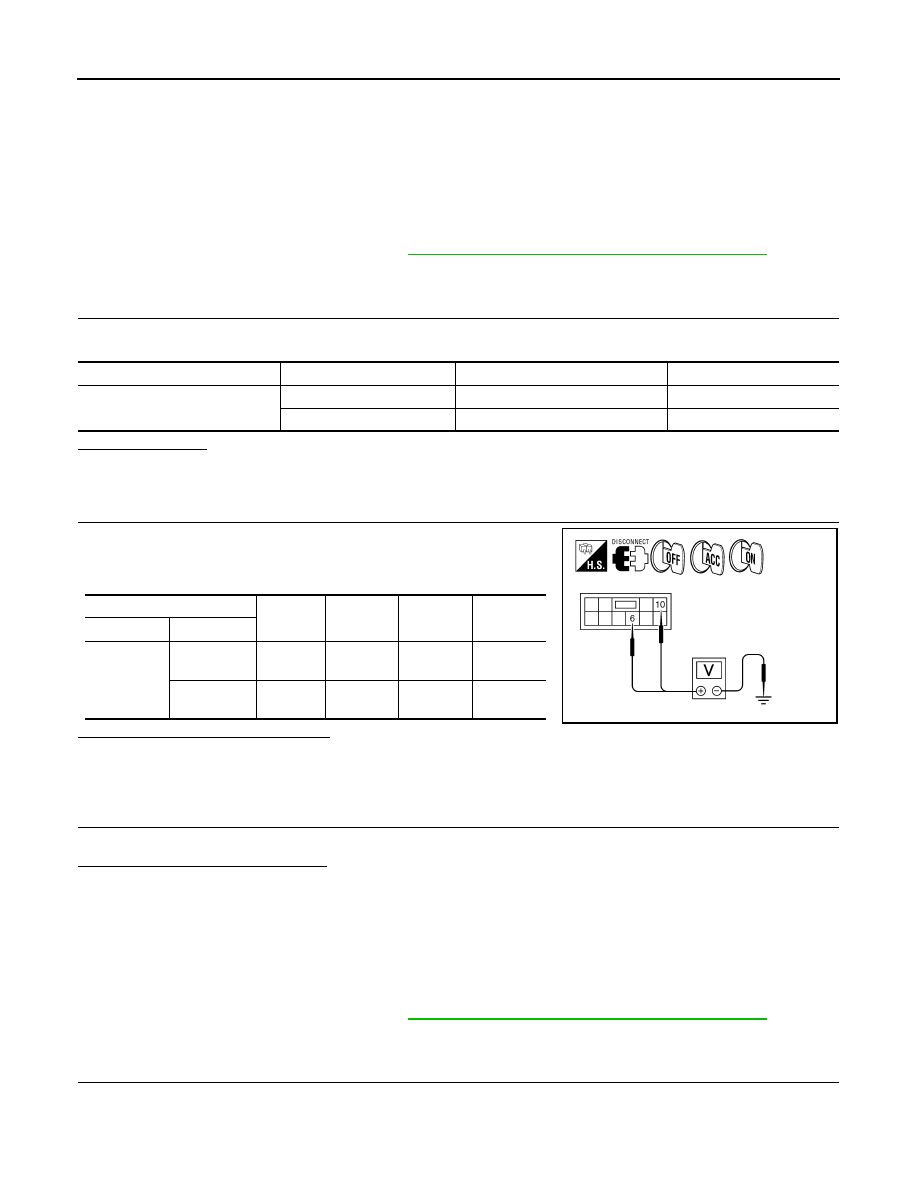

POWER SUPPLY AND GROUND CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

AUDIO UNIT
AUDIO UNIT : Diagnosis Procedure

INFOID:0000000006166575

Regarding Wiring Diagram information, refer to

AV-285, "Wiring Diagram - With Navigation System"

.

1.

CHECK FUSES

Check that the following fuses of the audio unit are not are not blown.

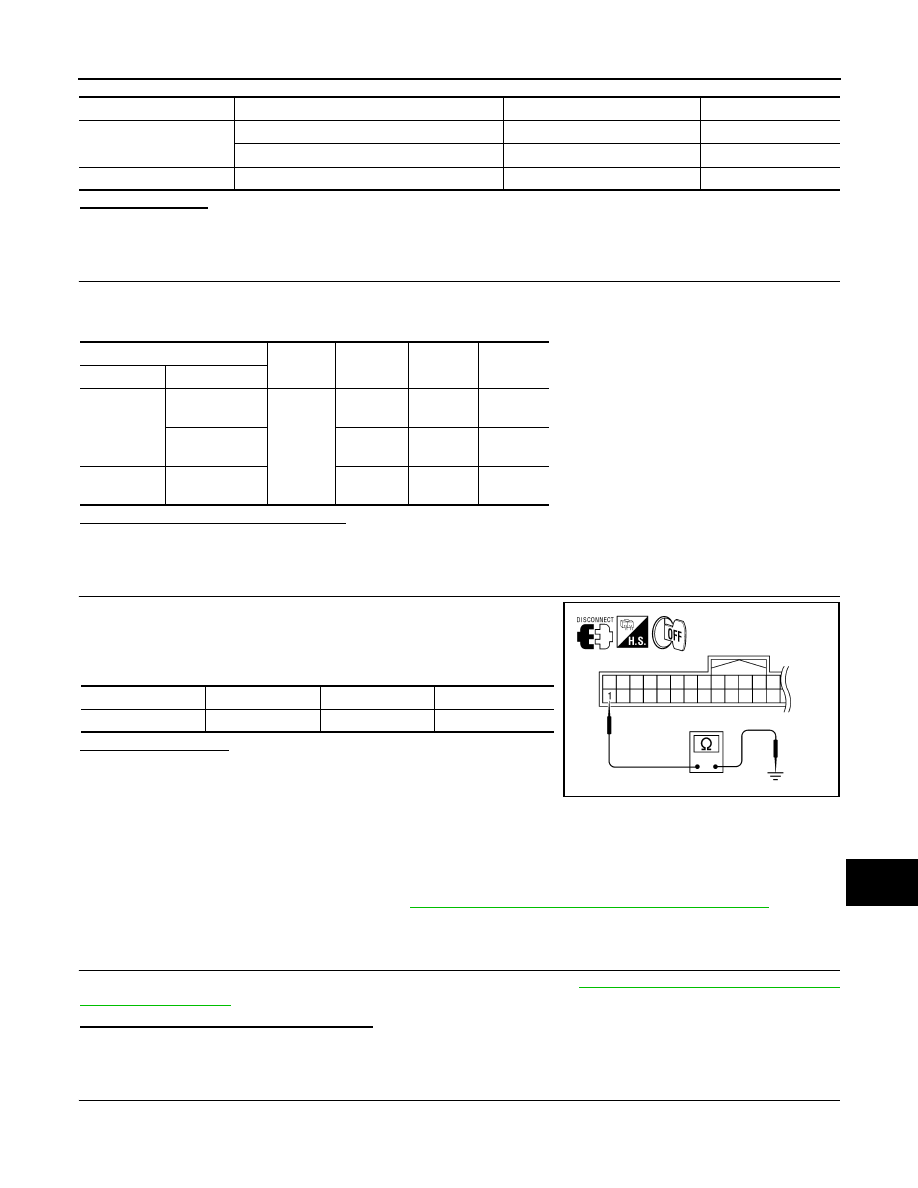

Are the fuses OK?

YES

>> GO TO 2.

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

POWER SUPPLY CIRCUIT CHECK

1. Disconnect audio unit connector M43.

2. Check voltage between the audio unit connector M43 and

ground.

Are the voltage results as specified?

YES

>> GO TO 3.

NO

>> • Check connector housing for disconnected or loose terminals.

• Repair harness or connector.

3.

GROUND CIRCUIT CHECK

Inspect audio unit case ground.
Does case ground pass inspection?

YES

>> Inspection End.

NO

>> Repair audio unit case ground.

NAVI CONTROL UNIT
NAVI CONTROL UNIT : Diagnosis Procedure

INFOID:0000000006166576

Regarding Wiring Diagram information, refer to

AV-285, "Wiring Diagram - With Navigation System"

.

1.

CHECK FUSE

Make sure the following fuses of the NAVI control unit are not blown.

Unit

Terminals

Signal name

Fuse No.

Audio unit

6

Battery power

31

10

Ignition switch ACC or ON

4

(+)

(-)

OFF

ACC

ON

Connector

Terminal

M43

6

Ground

0V

Battery
voltage

Battery
voltage

10

Ground

Battery
voltage

Battery
voltage

Battery
voltage

ALNIA0695GB

AV

POWER SUPPLY AND GROUND CIRCUIT

AV-223

< DTC/CIRCUIT DIAGNOSIS >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Are the fuses OK?

YES

>> GO TO 2.

NO

>> If fuse is blown, be sure to eliminate cause of blown fuse before installing new fuse.

2.

CHECK POWER SUPPLY CIRCUIT

1. Disconnect NAVI control unit connectors B151 and B152.

2. Check voltage between connectors and ground.

Are the voltage readings as specified?

YES

>> GO TO 3.

NO

>> Check harness for open between NAVI control unit and fuse.

3.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between the following NAVI control unit con-

nector B151 and ground.

Is continuity present?

YES

>> Inspection End.

NO

>> Repair or replace harness.

DISPLAY UNIT
DISPLAY UNIT : Diagnosis Procedure

INFOID:0000000006166577

Regarding Wiring Diagram information, refer to

AV-285, "Wiring Diagram - With Navigation System"

.

1.

 CHECK POWER SUPPLY AND GROUND CIRCUIT FOR DISPLAY CONTROL UNIT

Check power supply and ground circuit for display control unit. Refer to

AV-224, "DISPLAY CONTROL UNIT :

Diagnosis Procedure"

.

Did the power/ground supply check good?

YES

>> GO TO 2.

NO

>> Repair malfunctioning part.

2.

 CHECK POWER SUPPLY CIRCUIT FOR DISPLAY UNIT

Connector

Terminal

Signal name

Fuse No.

B151

2

Battery 31

5

ACC/ON 4

B152

63

ON/START 12

(+)

(–)

OFF

ACC

ON

Connector

Terminal

B151

2

Ground

Battery
voltage

Battery
voltage

Battery
voltage

5

0V

Battery
voltage

Battery
voltage

B152

63

0V

0V

Battery
voltage

Connector

Terminal

Continuity

B151

1

Ground

Yes

WKIA4207E

AV-224

< DTC/CIRCUIT DIAGNOSIS >

[PREMIUM WITH NAVIGATION]

POWER SUPPLY AND GROUND CIRCUIT

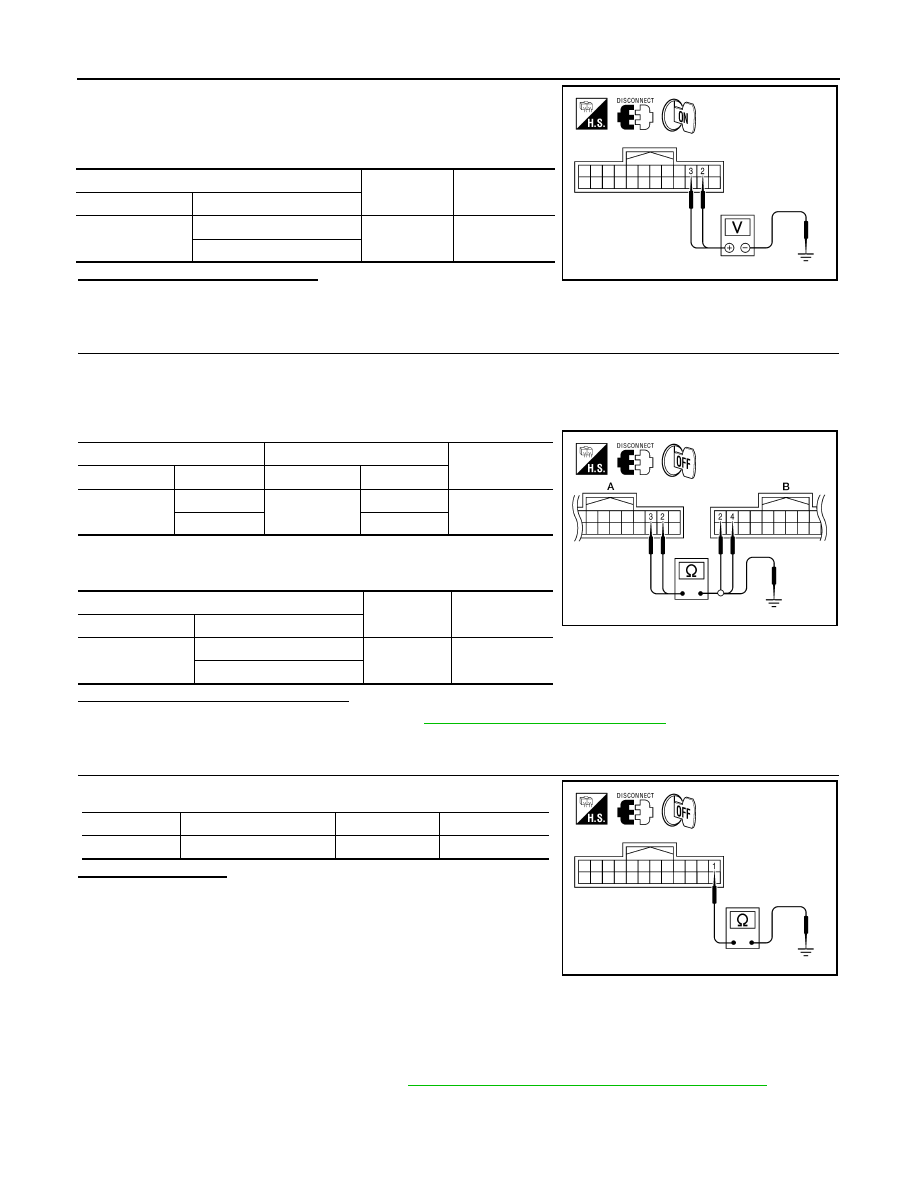

1. Disconnect display unit connector M93.

2. Turn ignition switch ON.

3. Check voltage between display unit harness connector M93 ter-

minals 2, 3 and ground.

Are voltage readings as specified?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK HARNESS

1. Turn ignition switch OFF.

2. Disconnect display control unit connector M94.

3. Check continuity between display unit harness connector M93 (A) terminals 2, 3 and display control unit

harness connector M94 (B) terminals 2, 4 .

4. Check continuity between display unit connector M93 and

ground.

Are continuity test results as specified?

YES

>> Replace display control unit. Refer to

AV-327, "Removal and Installation"

 .

NO

>> Repair harness.

4.

CHECK GROUND CIRCUIT

Check continuity between display unit and ground as follows.

Is continuity present?

YES

>> Inspection End.

NO

>> Repair harness.

DISPLAY CONTROL UNIT
DISPLAY CONTROL UNIT : Diagnosis Procedure

INFOID:0000000006166578

Regarding Wiring Diagram information, refer to

AV-285, "Wiring Diagram - With Navigation System"

.

(+)

(-)

Value (Approx.)

Connector

Terminal

M93

2

Ground

9V

3

AWNIA1567ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

M93

2

M94

2

Yes

3

A

Continuity

Connector

Terminal

M93

2

Ground

No

3

AWNIA1568ZZ

Connector

Terminal

Continuity

M93

1

Ground

Yes

AWNIA1569ZZ
