Nissan Titan A60. Manual - part 55

AV

HANDS-FREE PHONE SYSTEM

AV-45

< SYSTEM DESCRIPTION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

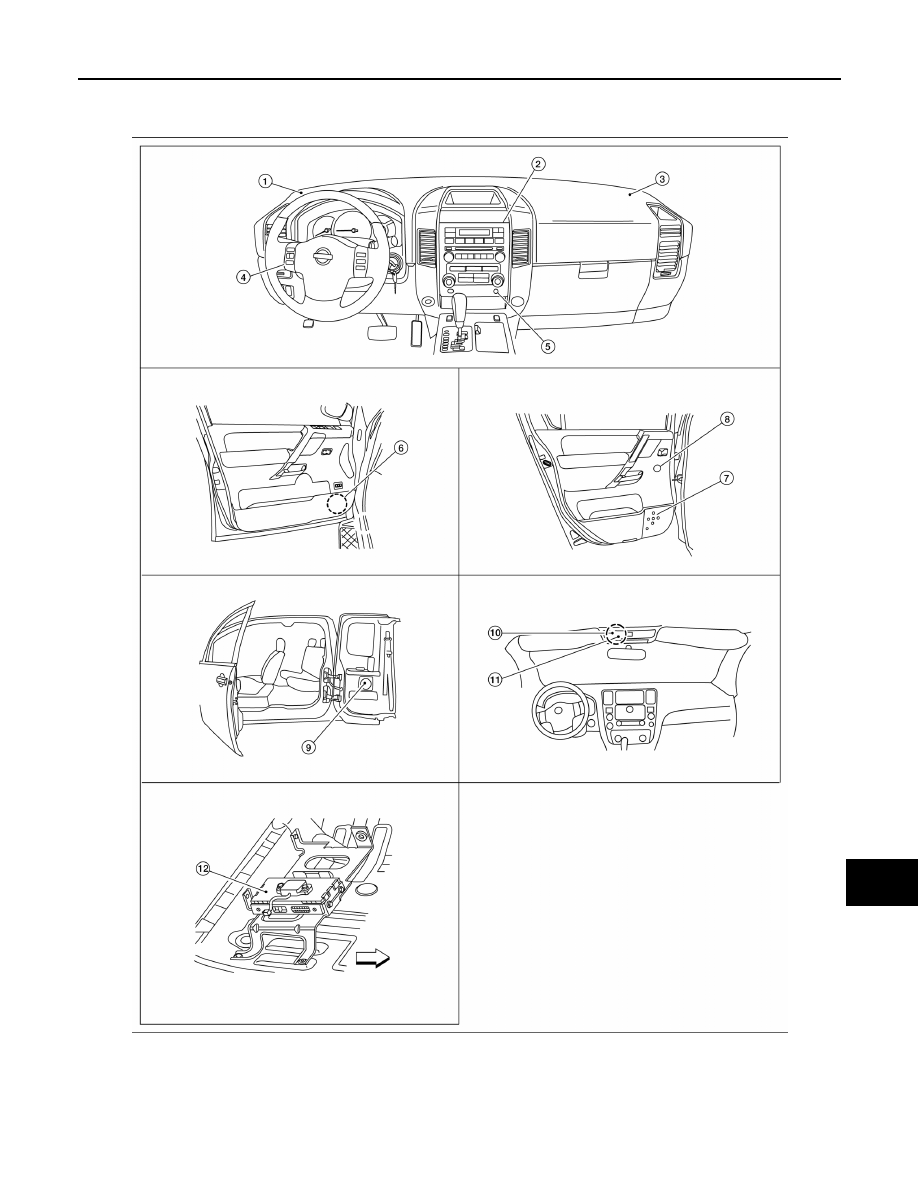

Component Parts Location

INFOID:0000000006706838

1.

Front tweeter LH M109

2.

Audio unit M165, M166, M167

3.

Front tweeter RH M111

4.

Steering wheel audio control switch-
es

5.

Aux jack M104

6.

Front door speaker
LH D12
RH D112

AWNIA2289ZZ

AV-46

< SYSTEM DESCRIPTION >

[MID AUDIO]

HANDS-FREE PHONE SYSTEM

Component Description

INFOID:0000000006706831

7.

Rear door speaker (crew cab)
LH D207
RH D307

8.

Rear door tweeter (crew cab)
LH D208
RH D308

9.

Rear door speaker (king cab)
LH B76
RH B159

10. Microphone R109

11. Bluetooth ON indicator R105

12. Bluetooth control unit B142, B143

(view with passenger front seat re-
moved)

Part name

Description

Audio unit

• Receives telephone voice signal from Bluetooth control unit
• Sends telephone voice and voice guidance signals to the speakers

Front door speaker

Receives telephone voice and voice guidance signals from the audio unit

Front tweeter

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to Bluetooth control unit

Bluetooth control unit

Controls hands-free phone functions

Bluetooth antenna

Sends telephone voice signal to Bluetooth control unit

Bluetooth ON indicator

Controlled by the Bluetooth control unit

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-47

< SYSTEM DESCRIPTION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV SWITCH
AV SWITCH : Component Function Check

INFOID:0000000006166464

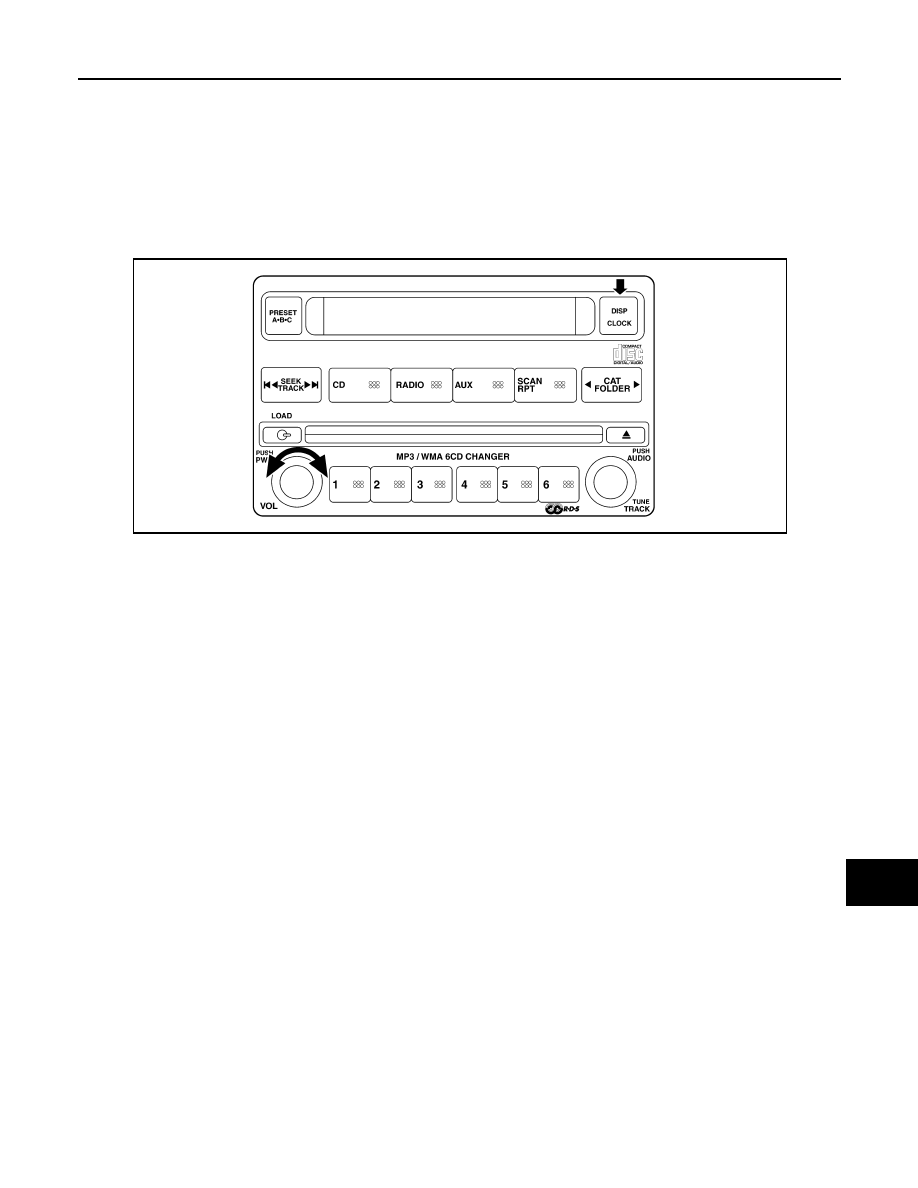

STARTING THE SELF-DIAGNOSIS MODE

1. Turn ignition switch from OFF to ACC.

2. Press and hold the “DISP/CLOCK” switch and turn the volume control dial clockwise or counterclockwise

for 30 clicks or more.

Then the self-diagnosis operates. A single beep indicates self-diagnosis mode is active.

3. Initially, all display segments will be illuminated.

4. Press each switch. When each switch is pressed, its name and communication code will be displayed

NOTE:

CD player LOAD and EJECT buttons are not included in this test and will not change the display when

pressed.

DIAGNOSIS FUNCTION

• It can check for continuity of the switches by sounding the beep when each audio unit switch and steering

switch is pressed.

• It can check for continuity of harness between audio unit switch and steering switch.

EXITING THE SELF-DIAGNOSIS MODE

Turn ignition switch OFF. Then the self-diagnosis ends.

WKIA5819E

AV-48

< SYSTEM DESCRIPTION >

[MID AUDIO]

DIAGNOSIS SYSTEM (BLUETOOTH CONTROL UNIT)

DIAGNOSIS SYSTEM (BLUETOOTH CONTROL UNIT)

Diagnosis Description

INFOID:0000000006706832

The Bluetooth control unit has two diagnostic checks. The first diagnostic check is performed automatically

every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-

cian using the steering wheel audio control switches prior to trouble diagnosis.

BLUETOOTH CONTROL UNIT INITIALIZATION CHECKS

• Internal control unit failure

• Bluetooth antenna connection open or shorted
• Steering wheel audio control switches [SEND(

)/END( )] stuck closed

• Vehicle speed pulse count

• Microphone connection test (with playback to operator)

• Bluetooth inquiry check

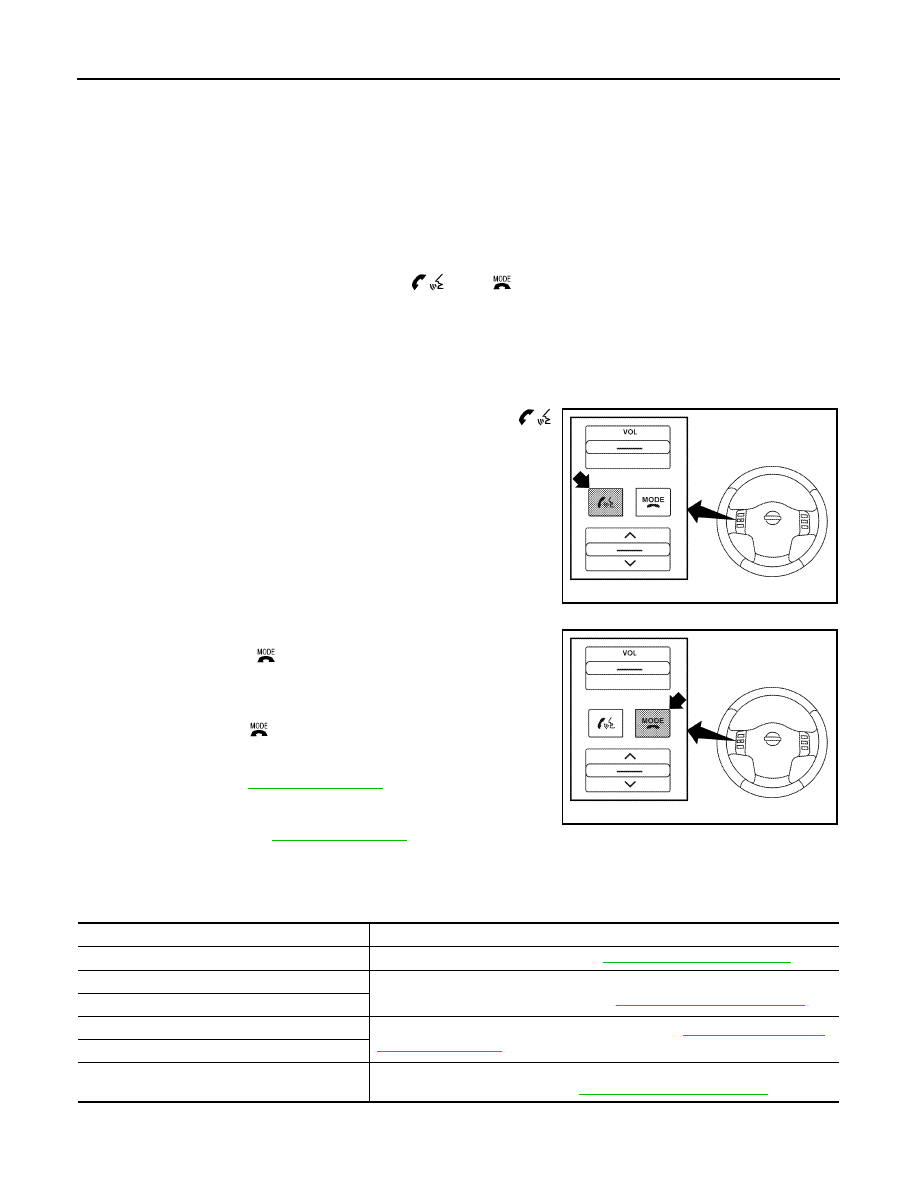

OPERATION PROCEDURE

1. Turn ignition switch to ACC or ON.

2. Wait for the Bluetooth system to complete initialization. This may take up to 10 seconds.
3. Press and hold the steering wheel audio control switch

button for at least 5 seconds. The Bluetooth system will begin to

play a verbal prompt.

4. While the prompt is playing, press and hold the steering wheel

audio control switch   button until you hear the “Diagnostics

mode” prompt. The Bluetooth system will sound a 5 second

beep.

5. While the beep is sounding, press and hold the steering wheel

audio control switch   button again until you hear prompts.

6. The Bluetooth system has now entered into the diagnostic

mode. Results of the diagnostic checks will be verbalized to the

technician. Refer to

AV-48, "Work Flow"

.

7. After the failure records are reported, an interactive microphone

test will be performed. Follow the voice prompt. If the micro-

phone test fails refer to

AV-48, "Work Flow"

.

8. Self-diagnosis mode is complete when the voice prompt says “All diagnostic functions completed”.

Work Flow

INFOID:0000000006706833

ALNIA0448GB

ALNIA0449GB

Failure Message

Action

“Internal failure”

Replace Bluetooth control unit. Refer to

AV-95, "Removal and Installation"

.

“Bluetooth antenna open”

1.

Inspect harness connection.

2.

Replace Bluetooth antenna. Refer to

AV-94, "Removal and Installation"

.

“Bluetooth antenna shorted”

“Phone/Send for Hands Free System is stuck”

Check steering wheel audio control switches. Refer to

AV-61, "Diagnosis Proce-

dure (With Bluetooth)"

.

“Phone/End for the Hands Free System is stuck”

“Microphone test” (failed interactive test)

1.

Inspect harness between Bluetooth control unit and microphone.

2.

Replace microphone. Refer to

AV-93, "Removal and Installation"

.
