Nissan Titan A60. Manual - part 54

AV

AUDIO SYSTEM

AV-41

< SYSTEM DESCRIPTION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

AUDIO SYSTEM

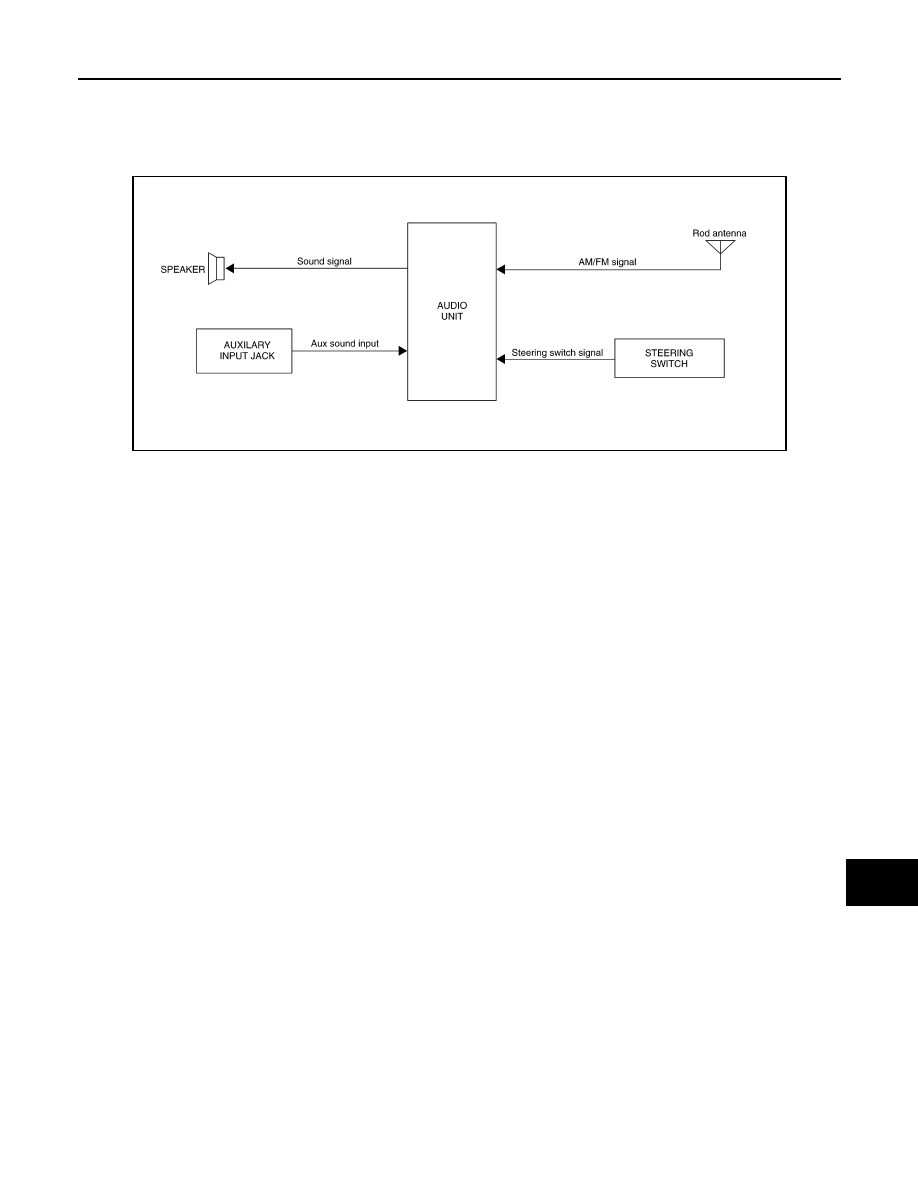

System Diagram

INFOID:0000000006166460

System Description

INFOID:0000000006166461

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Rod antenna

• Steering wheel audio control switches

• Front door speakers

• Front tweeters

• Rear door speakers

• Rear door tweeters (crew cab)

When the audio system is on, radio signals are received by the rod antenna. The audio unit then sends audio

signals to the front door speakers, front tweeters, rear door speakers and rear door tweeters (crew cab).

Refer to Owner's Manual for audio system operating instructions.

AWNIA1558GB

AV-42

< SYSTEM DESCRIPTION >

[MID AUDIO]

AUDIO SYSTEM

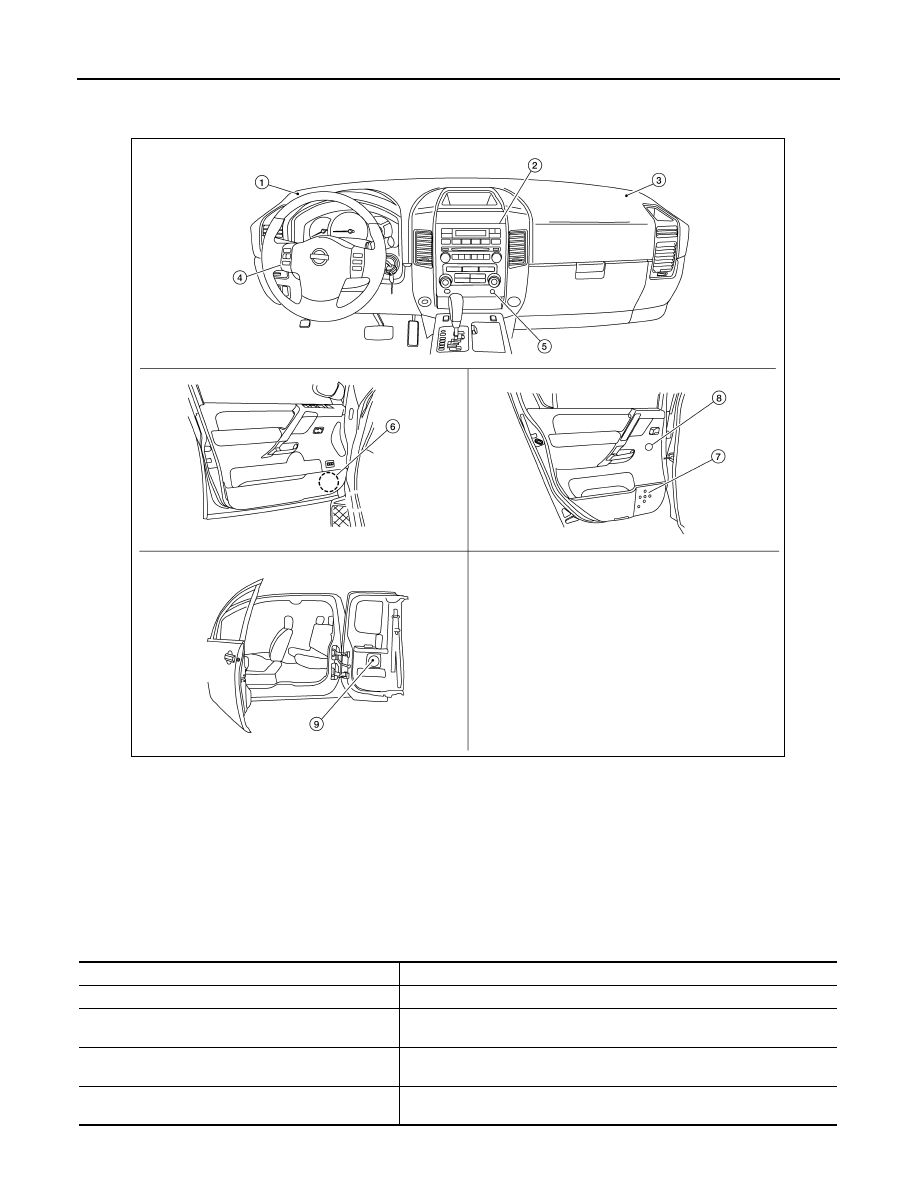

Component Parts Location

INFOID:0000000006166462

Component Description

INFOID:0000000006166463

1.

Front tweeter LH M109

2.

Audio unit M165, M166, M167

3.

Front tweeter RH M111

4.

Steering wheel audio control switch-
es

5.

Aux jack M104

6.

Front door speaker
LH D12
RH D112

7.

Rear door speaker (crew cab)
LH D207
RH D307

8.

Rear door tweeter (crew cab)
LH D208
RH D308

9.

Rear door speaker (king cab)
LH B76
RH B159

AWNIA1572ZZ

Part name

Description

Audio unit

Controls audio system and satellite radio system functions

Steering wheel audio control switches

• Audio operation can be operated
• Steering switch signal is output to the audio unit

Front door speakers

• Outputs audio signal from audio unit
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from audio unit
• Outputs high range sounds

AV

AUDIO SYSTEM

AV-43

< SYSTEM DESCRIPTION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Rear door speakers

• Outputs audio signal from audio unit
• Outputs high, mid and low range sounds

Rear door tweeters (crew cab)

• Outputs audio signal from audio unit
• Outputs high range sounds

Part name

Description

AV-44

< SYSTEM DESCRIPTION >

[MID AUDIO]

HANDS-FREE PHONE SYSTEM

HANDS-FREE PHONE SYSTEM

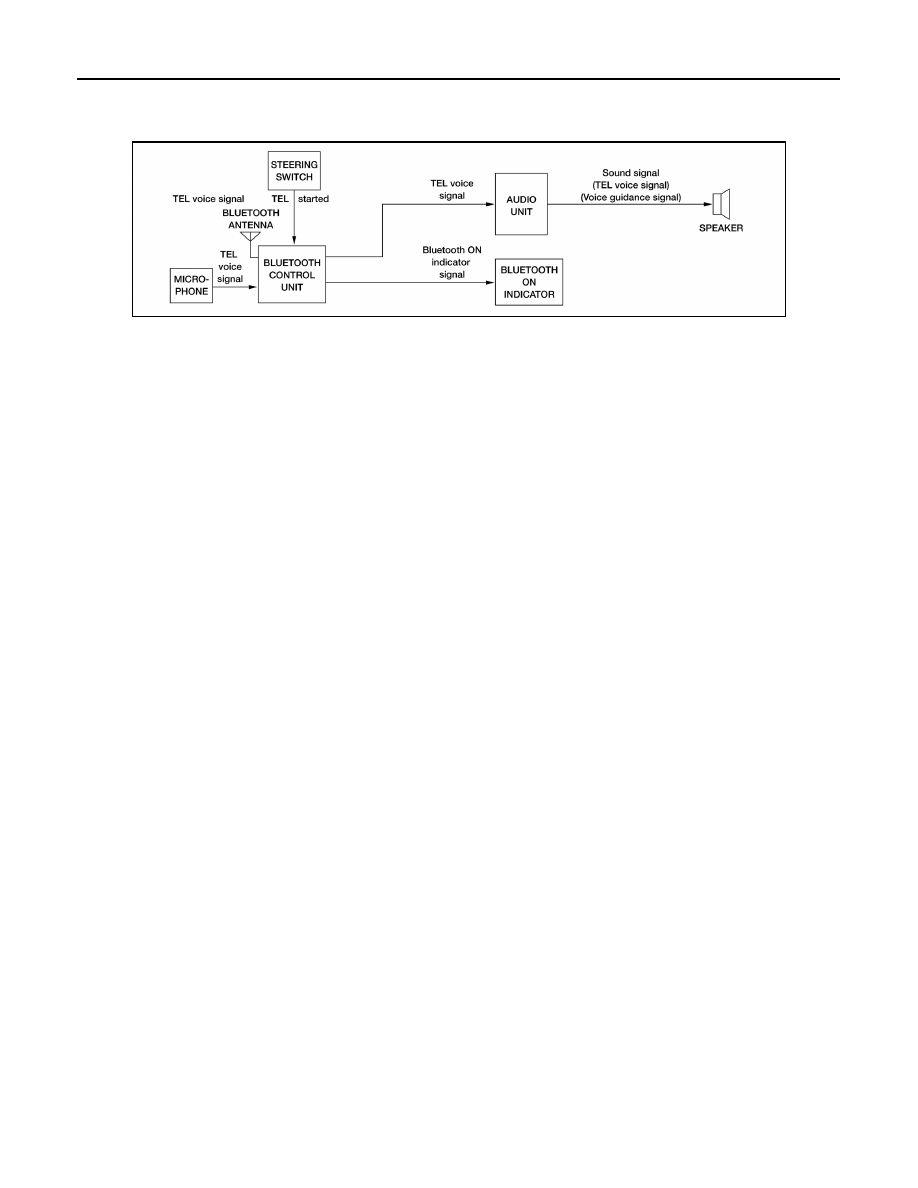

System Diagram

INFOID:0000000006706828

System Description

INFOID:0000000006706829

Refer to the Owner's Manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth equipped cellular telephone to make a wire-

less connection between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone

calls can be sent and received. Personal memos can be created using the Nissan Voice Recognition system.

Some Bluetooth cellular telephones may not be recognized by the Bluetooth control unit. When a cellular tele-

phone or the Bluetooth control unit is replaced, the telephone must be paired with the Bluetooth control unit.

Different cellular telephones may have different pairing procedures. Refer to the cellular telephone operating

manual.

BLUETOOTH CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the

Bluetooth control unit is initialized and performs various self checks.   Initialization may take up to 10 seconds.

If a phone is present in the vehicle and paired with the Bluetooth control unit, Nissan Voice Recognition will

then become active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition sys-

tem.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The Bluetooth control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth con-

trol unit. The microphone can be actively tested during self-diagnosis.

AUDIO UNIT

The audio unit receives signals from the Bluetooth control unit and sends audio signals to the speakers.

AWNIA2288GB
