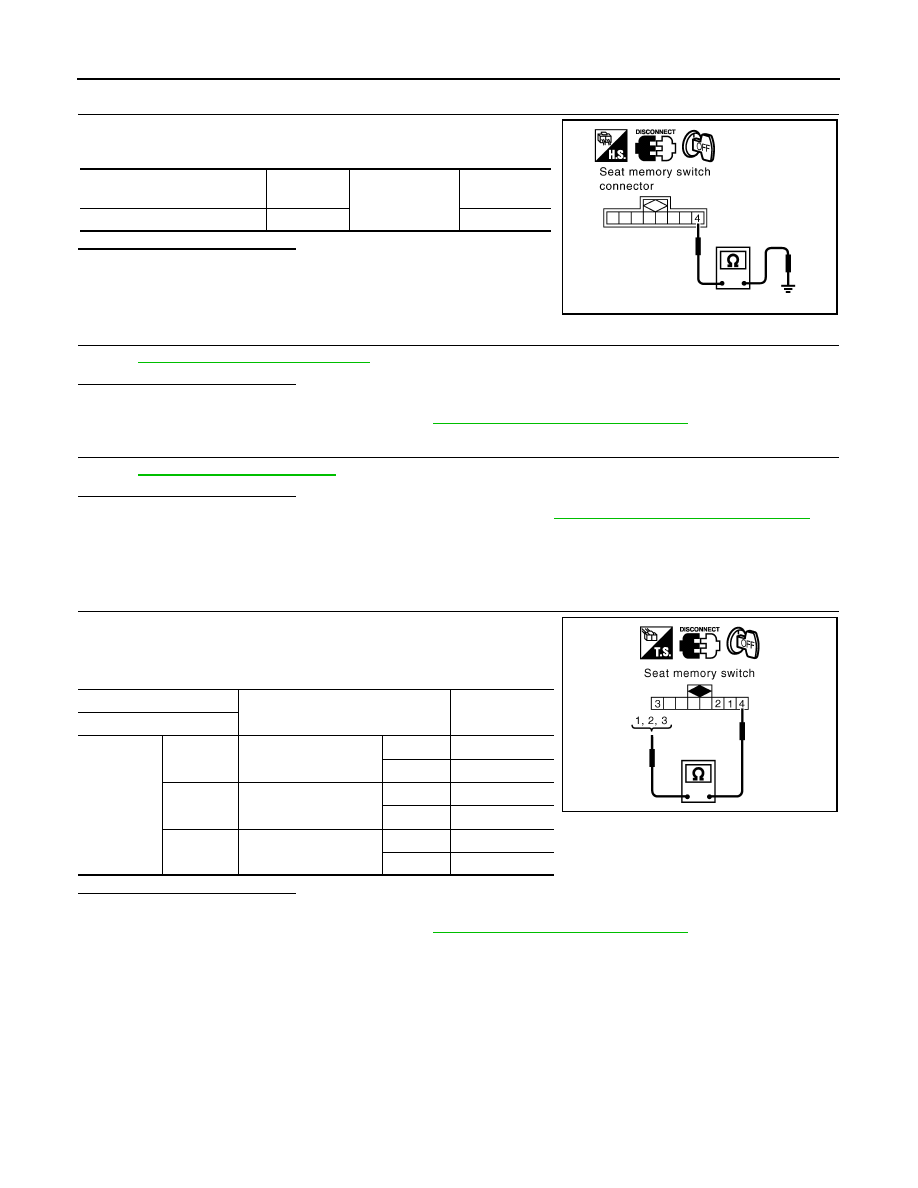

Nissan Titan A60. Manual - part 19

ADP-66

< DTC/CIRCUIT DIAGNOSIS >

SEAT MEMORY SWITCH

2.

 CHECK MEMORY SWITCH GROUND CIRCUIT

Check continuity between seat memory switch harness connector

and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK SEAT MEMORY SWITCH

Refer to

ADP-66, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace seat memory switch. Refer to

ADP-150, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-149, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Component Inspection

INFOID:0000000006163514

1.

 CHECK SEAT MEMORY SWITCH

1. Turn ignition switch OFF.

2. Disconnect seat memory switch.

3. Check continuity between seat memory switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace seat memory switch. Refer to

ADP-150, "Removal and Installation"

.

Seat memory switch

connector

Terminal

Ground

Continuity

D5

4

Yes

PIIA4821E

Terminal

Condition

Continuity

Seat memory switch

4

1

Memory switch 1

Push

Yes

Release

No

2

Memory switch 2

Push

Yes

Release

No

3

Set switch

Push

Yes

Release

No

LIIA1020E

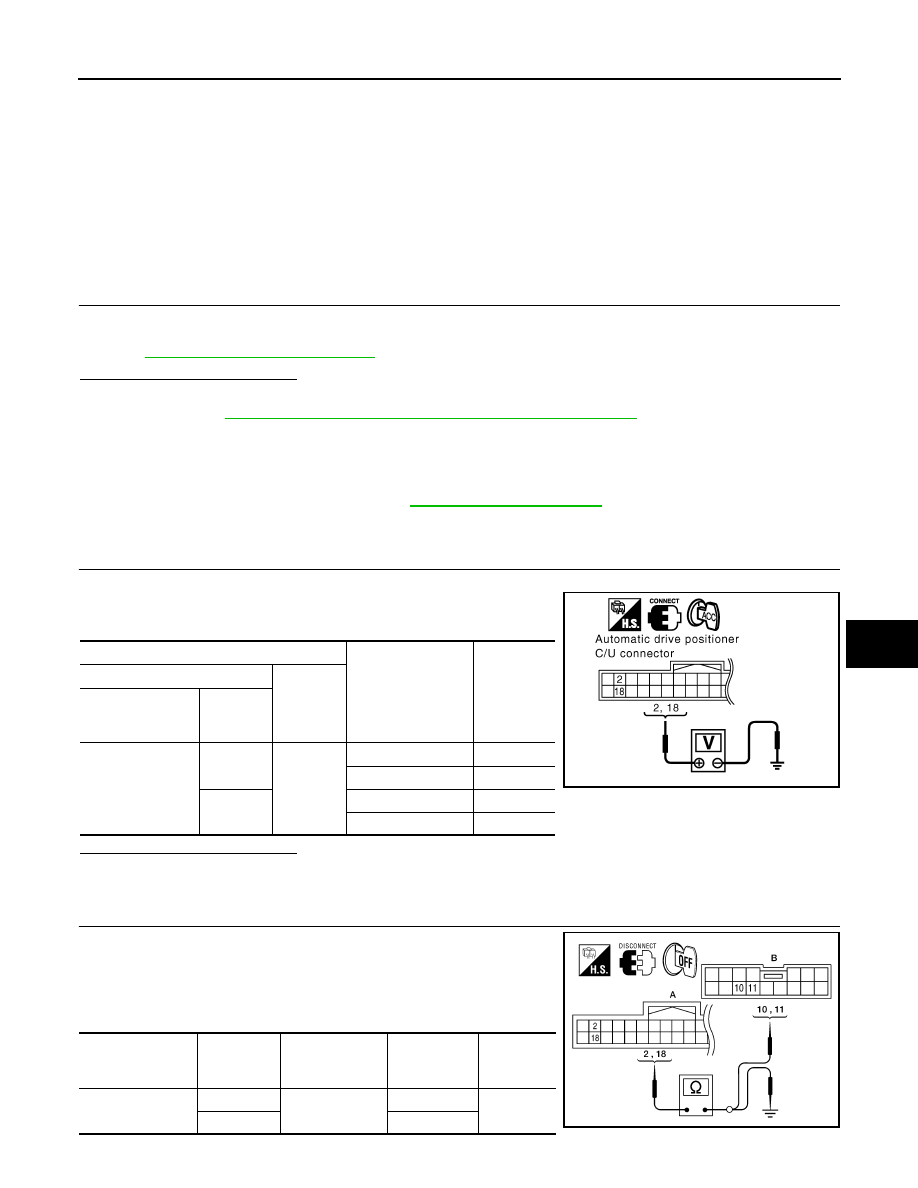

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-67

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DOOR MIRROR REMOTE CONTROL SWITCH

CHANGEOVER SWITCH
CHANGEOVER SWITCH : Description

INFOID:0000000006163515

Changeover switch is integrated into door mirror remote control switch.

Changeover switch has three positions (L, N and R).

It changes door mirror motor operation by transmitting control signal to automatic drive positioner control unit.

CHANGEOVER SWITCH : Component Function Check

INFOID:0000000006163516

1.

 CHECK CHANGEOVER SWITCH FUNCTION

Check the operation on “MIR CHNG SW-R” or “MIR CHNG SW-L” in “DATA MONITOR” mode with CON-

SULT-III.

Refer to

ADP-26, "CONSULT-III Function"

.

Is the inspection result normal?

YES

>> Changeover switch function is OK.

NO

>> Refer to

ADP-67, "CHANGEOVER SWITCH : Diagnosis Procedure"

.

CHANGEOVER SWITCH : Diagnosis Procedure

INFOID:0000000006163517

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK CHANGEOVER SWITCH SIGNAL

1. Turn ignition switch to ACC.

2. Check voltage between automatic drive positioner control unit

connector and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect automatic drive positioner control unit and door mir-

ror remote control switch.

3. Check continuity between automatic drive positioner control unit

connector and door mirror remote control switch connector.

Terminals

Change over switch

condition

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive

positioner control

unit connector

Terminal

M33

2

Ground

RIGHT

0

Other than above

5

18

LEFT

0

Other than above

5

PIIA4767E

Automatic drive

positioner control

unit connector

Terminal

Door mirror re-

mote control

switch connector

Terminal

Continuity

M33 (A)

2

D10 (B)

11

Yes

18

10

ALJIA0201ZZ

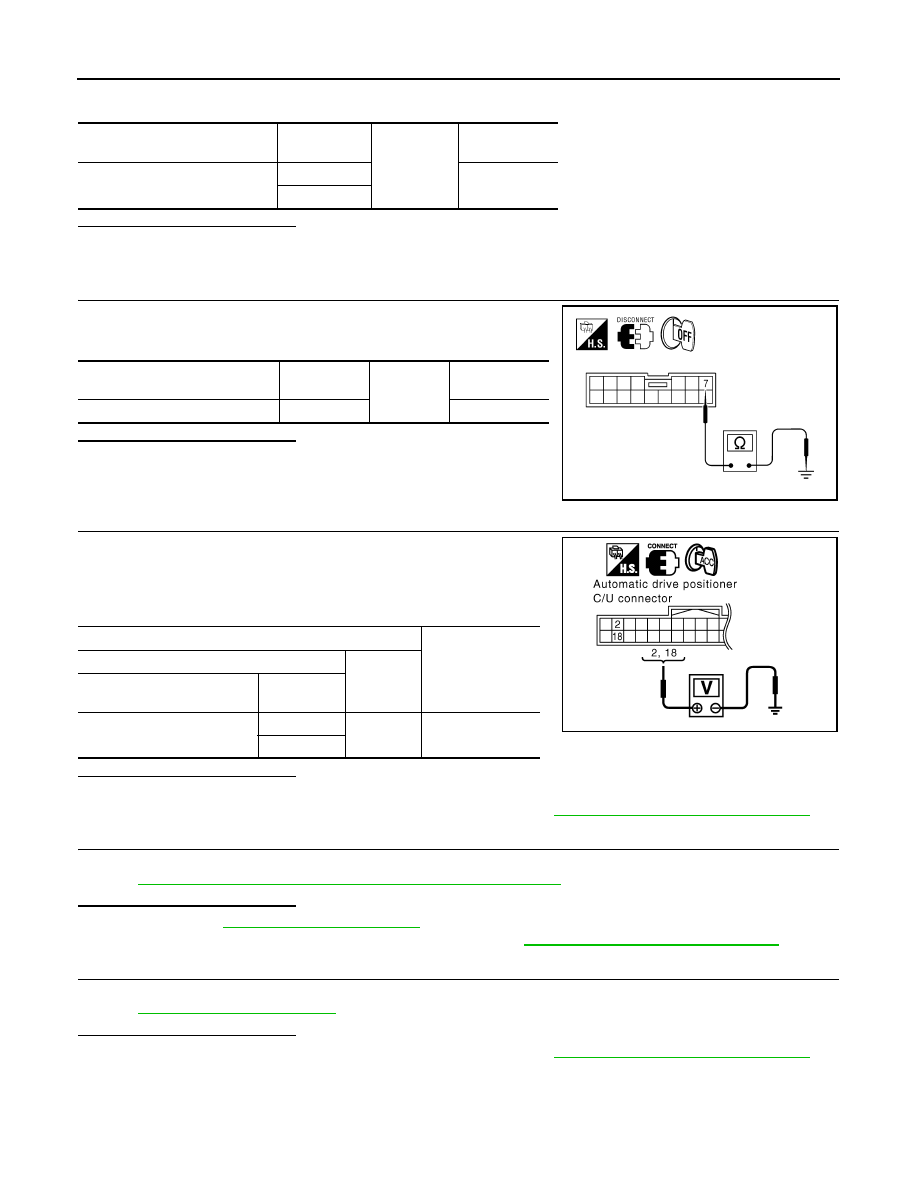

ADP-68

< DTC/CIRCUIT DIAGNOSIS >

DOOR MIRROR REMOTE CONTROL SWITCH

4. Check continuity between automatic drive positioner control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

Check continuity between door mirror remote control switch connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL

1. Connect automatic drive positioner control unit.

2. Turn ignition switch to ACC.

3. Check voltage between automatic drive positioner control unit

connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace automatic drive positioner control unit. Refer to

ADP-149, "Removal and Installation"

.

5.

 CHECK CHANGEOVER SWITCH

Check changeover switch.

Refer to

ADP-69, "CHANGEOVER SWITCH : Component Inspection"

.

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Replace door mirror remote control switch. Refer to

ADP-151, "Removal and Installation"

.

6.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-149, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

Automatic drive positioner control

unit connector

Terminal

Ground

Continuity

M33 (A)

2

No

18

Door mirror remote control switch

connector

Terminal

Ground

Continuity

D10

7

Yes

ALJIA0189ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive positioner

control unit connector

Terminal

M33

2

Ground

5

18

PIIA4767E

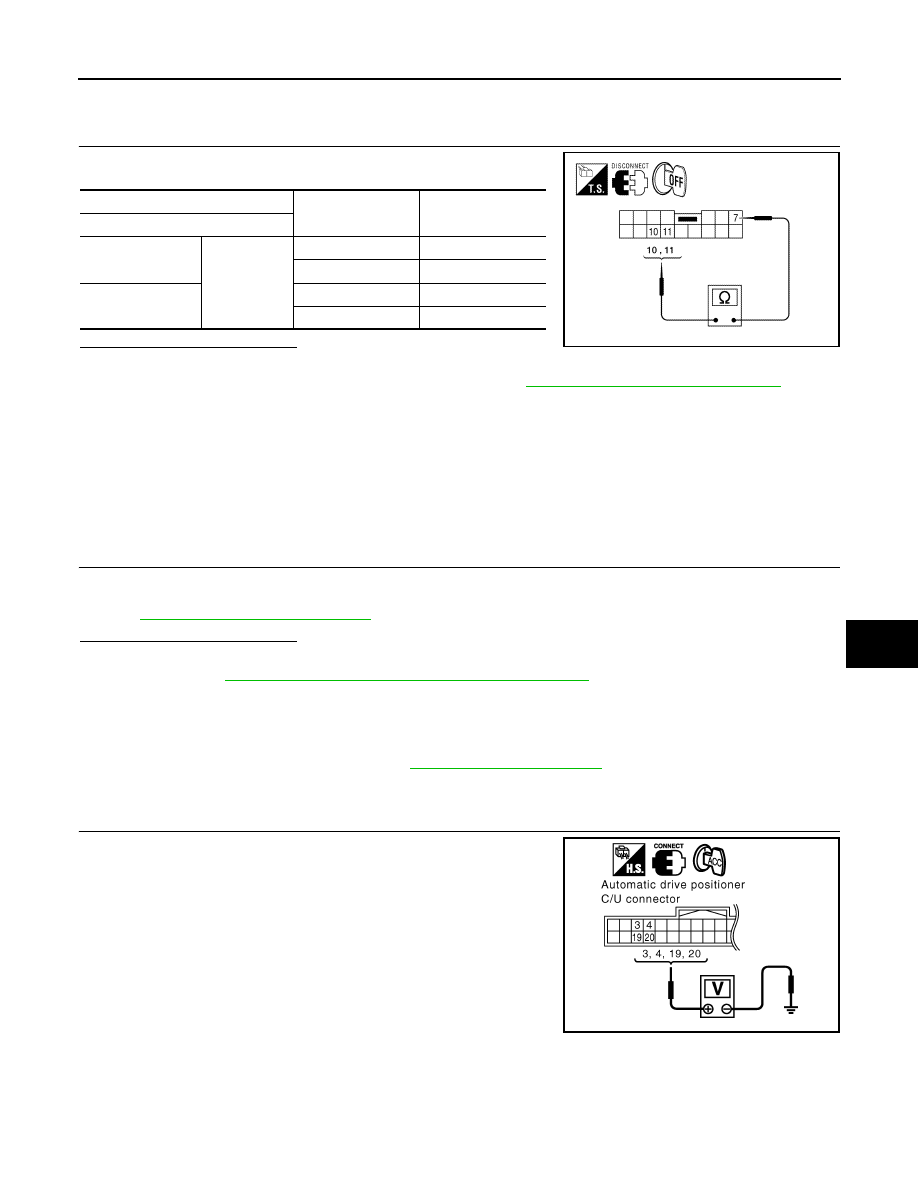

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-69

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

CHANGEOVER SWITCH : Component Inspection

INFOID:0000000006163518

1.

 CHECK CHANGEOVER SWITCH

Check door mirror remote control switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror remote control switch. Refer to

ADP-151, "Removal and Installation"

.

MIRROR SWITCH
MIRROR SWITCH : Description

INFOID:0000000006163519

It operates angle of the door mirror face.

It transmits mirror face adjust operation to automatic drive positioner control unit.

MIRROR SWITCH : Component Function Check

INFOID:0000000006163520

1.

 CHECK MIRROR SWITCH FUNCTION

Check the operation on “MIR CON SW–UP/DN” and “MIR CON SW–RH/LH” in “DATA MONITOR” mode

with CONSULT-III.

Refer to

ADP-26, "CONSULT-III Function"

.

Is the inspection result normal?

YES

>> Mirror switch function is OK.

NO

>> Refer to

ADP-69, "MIRROR SWITCH : Diagnosis Procedure"

.

MIRROR SWITCH : Diagnosis Procedure

INFOID:0000000006163521

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

1.

 CHECK MIRROR SWITCH FUNCTION

1. Turn ignition switch to ACC.

2. Check voltage between automatic drive positioner control unit

connector and ground.

Terminal

Change over switch

condition

Continuity

Door mirror remote control switch

10

7

LEFT

Yes

Other than above

No

11

RIGHT

Yes

Other than above

No

ALJIA0272ZZ

PIIA4771E
