Nissan Quest E52. Manual - part 968

PG-92

< WIRING DIAGRAM >

HARNESS LAYOUT

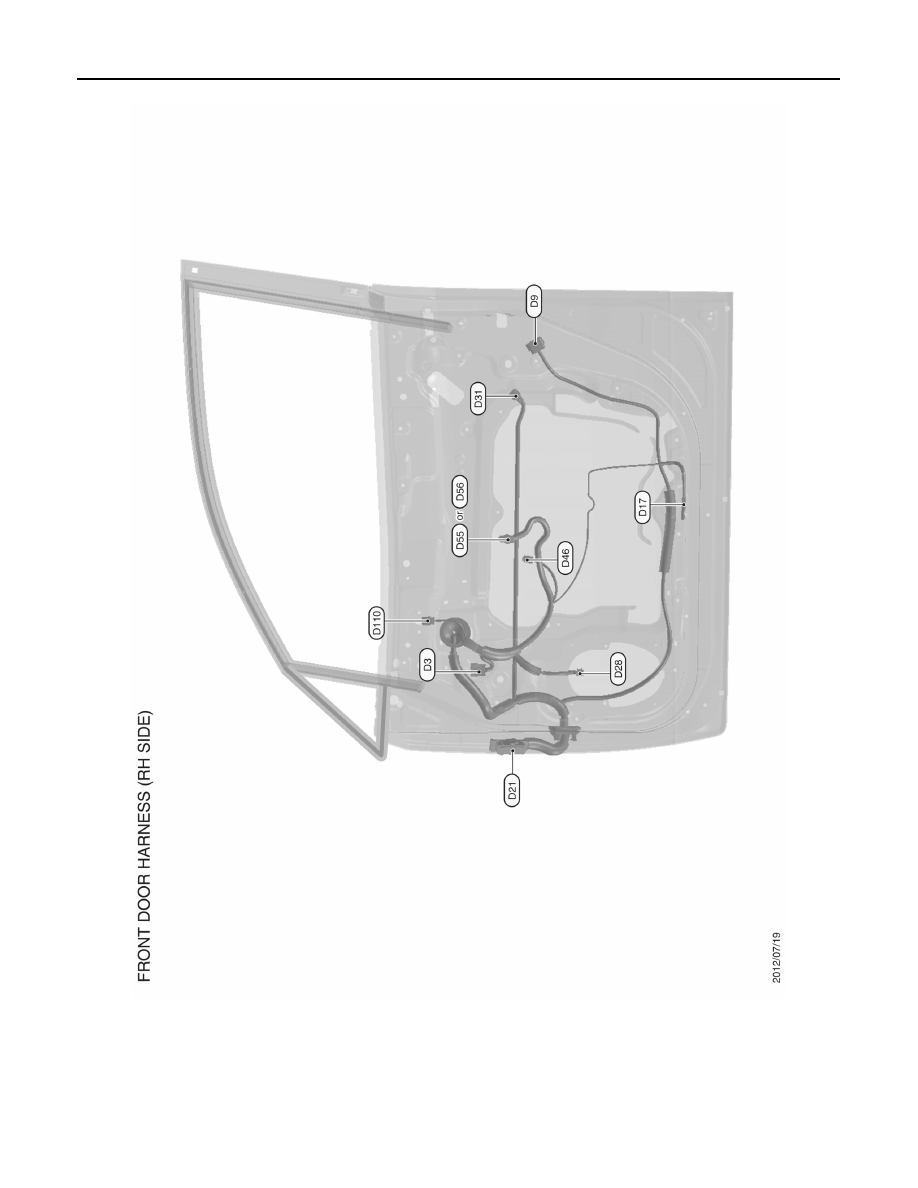

FRONT DOOR HARNESS (RH SIDE)

JRMIC1981GB

PG

HARNESS LAYOUT

PG-93

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

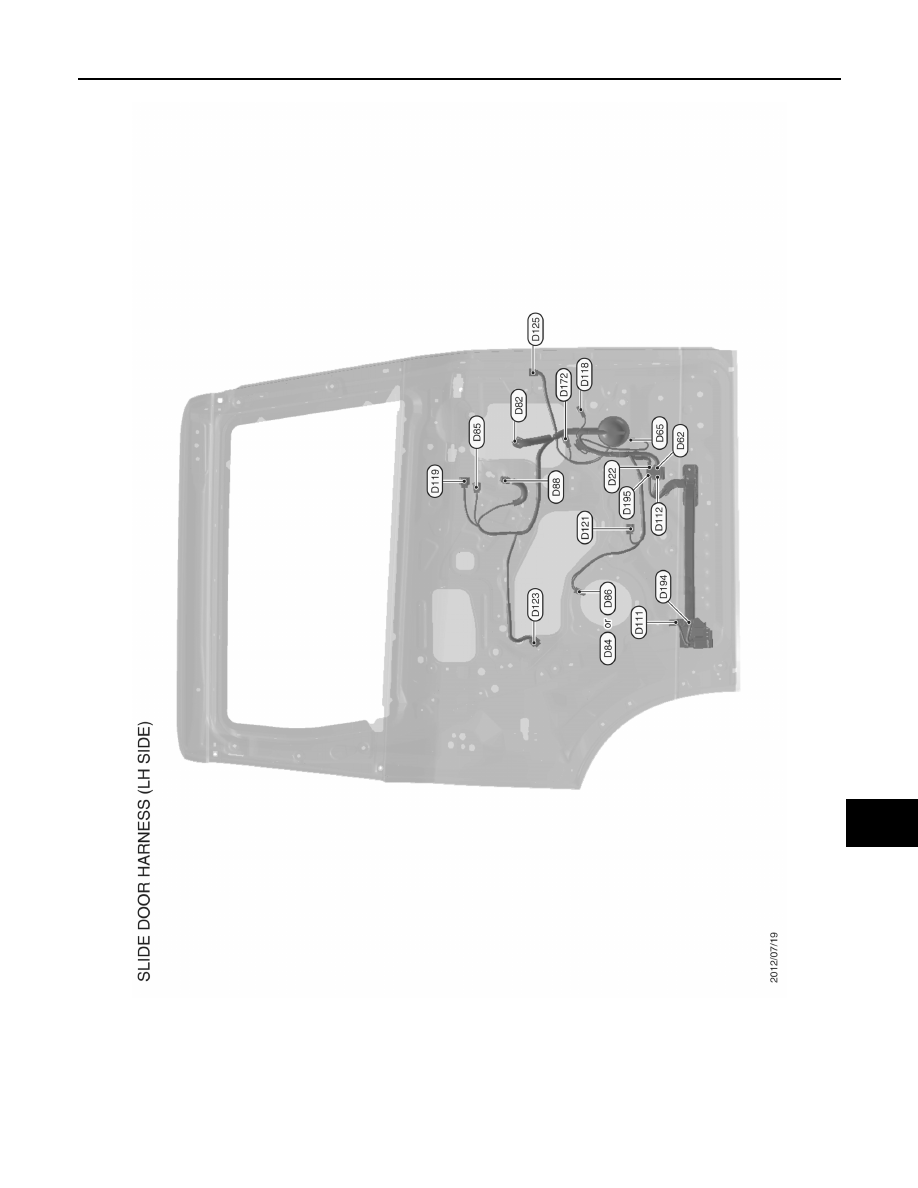

SLIDE DOOR HARNESS (LH SIDE)

JRMIC1982GB

PG-94

< WIRING DIAGRAM >

HARNESS LAYOUT

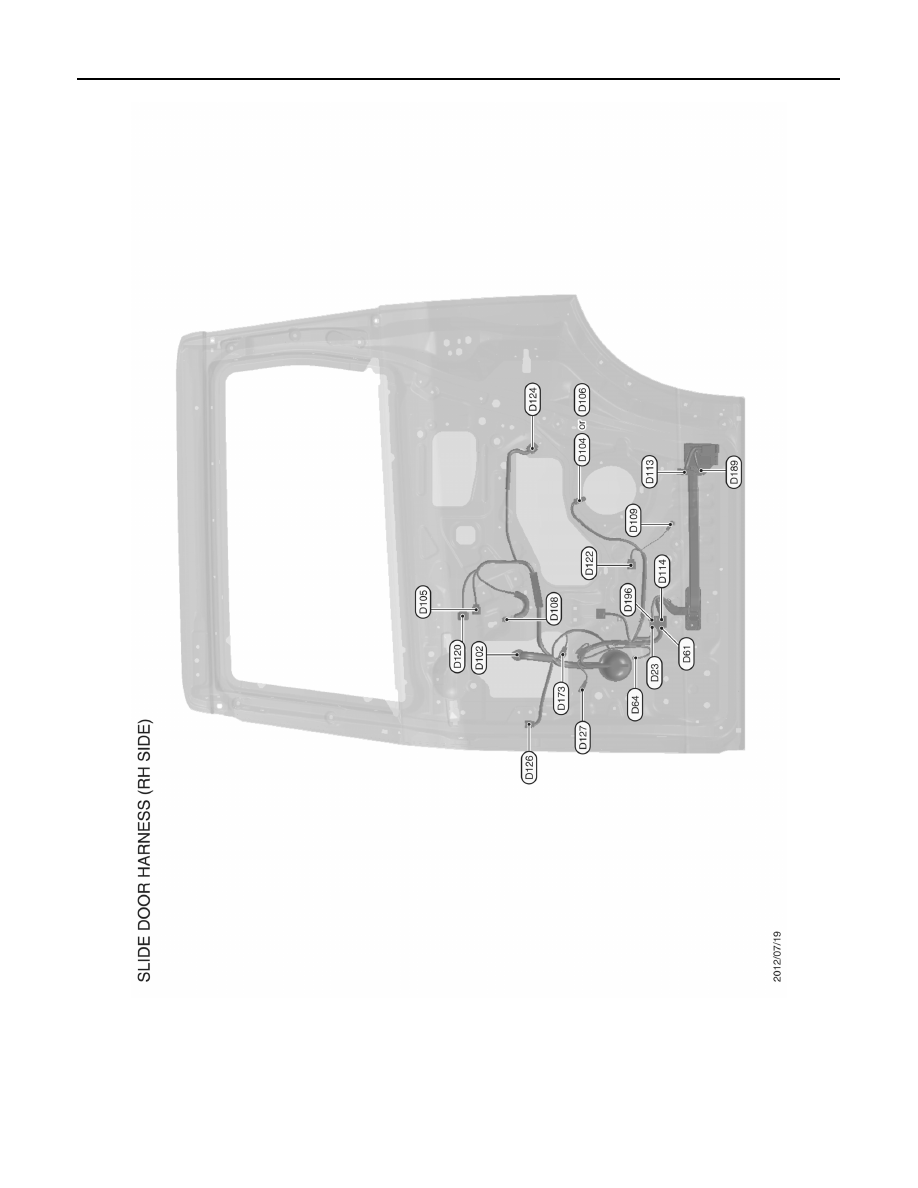

SLIDE DOOR HARNESS (RH SIDE)

JRMIC1983GB

PG

HARNESS LAYOUT

PG-95

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

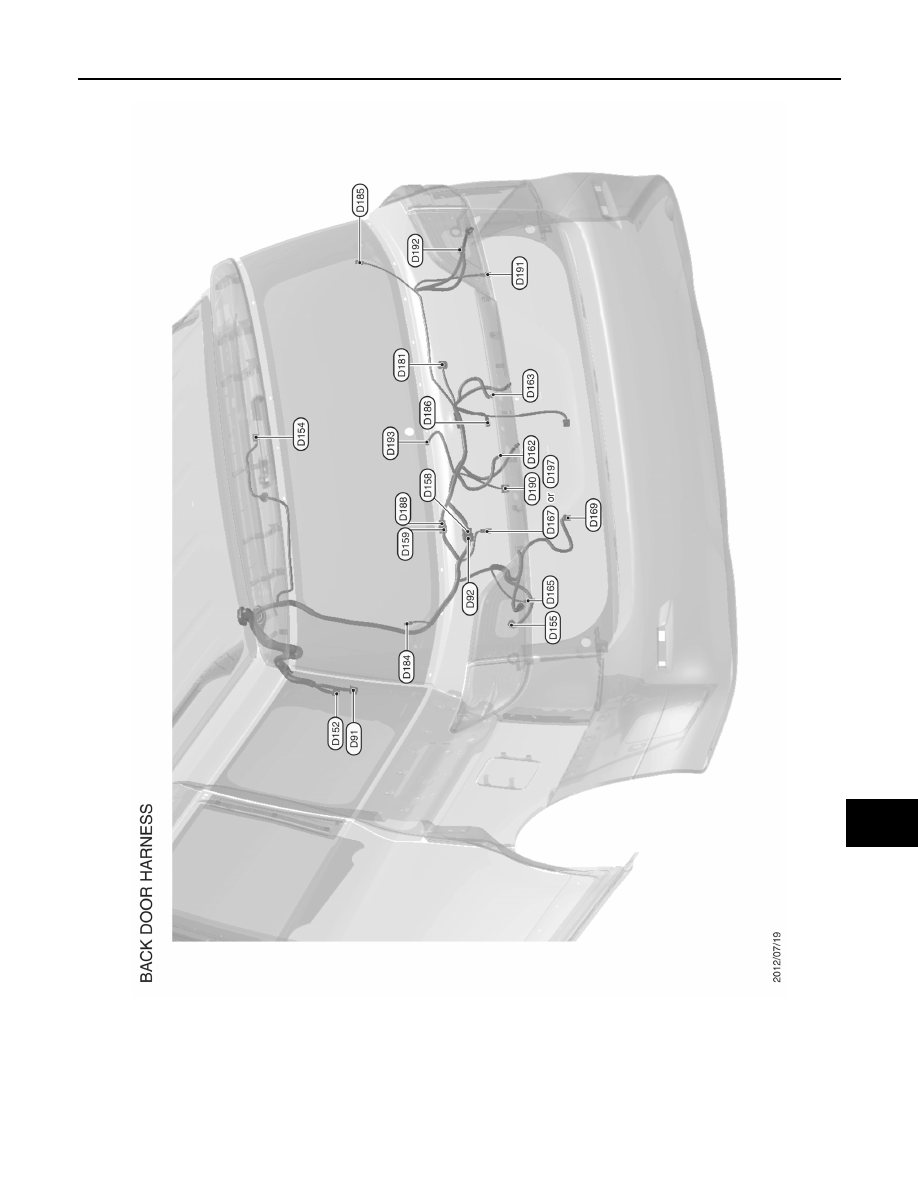

BACK DOOR HARNESS

JRMIC1984GB
