< WIRING DIAGRAM >

HARNESS LAYOUT

Body Harness

INFOID:0000000009651774

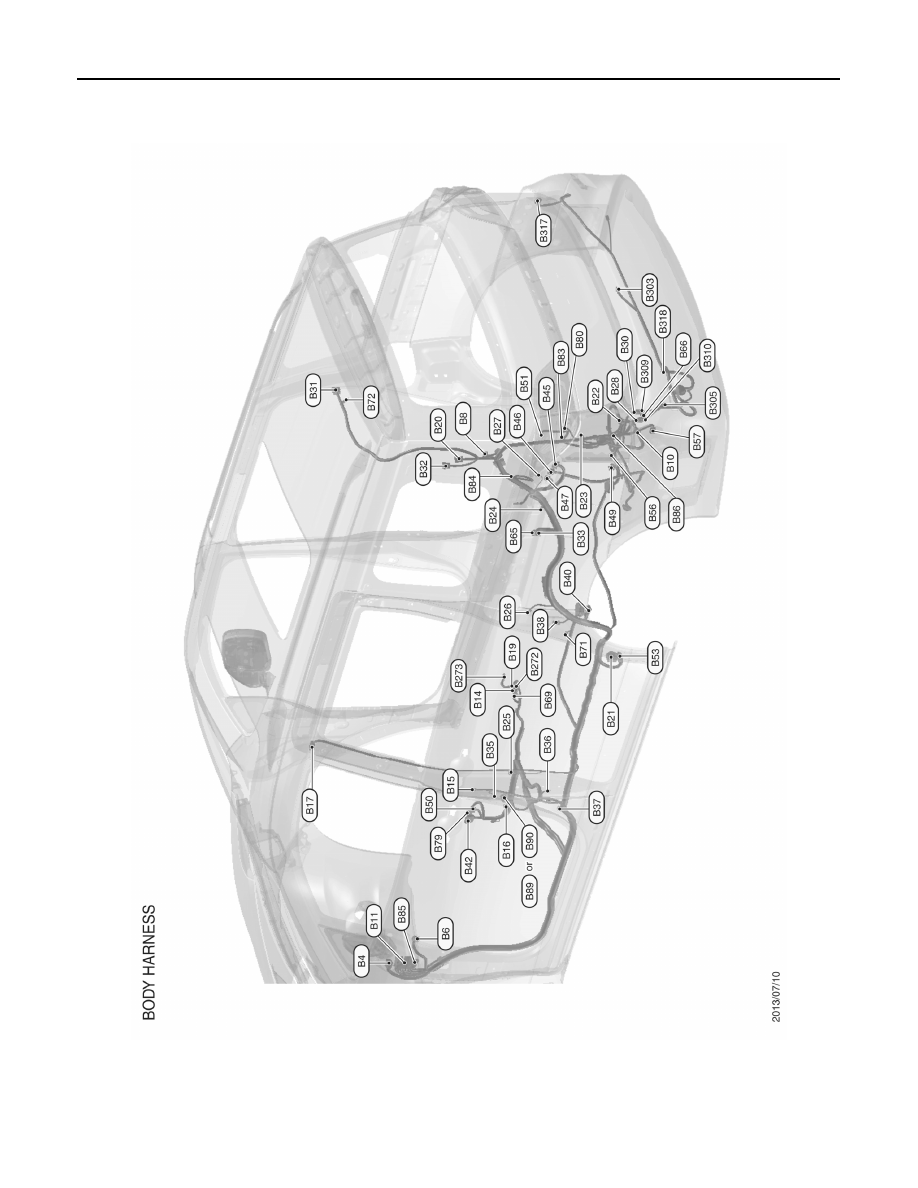

BODY HARNESS

JRMIC3433GB

PG

HARNESS LAYOUT

PG-89

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

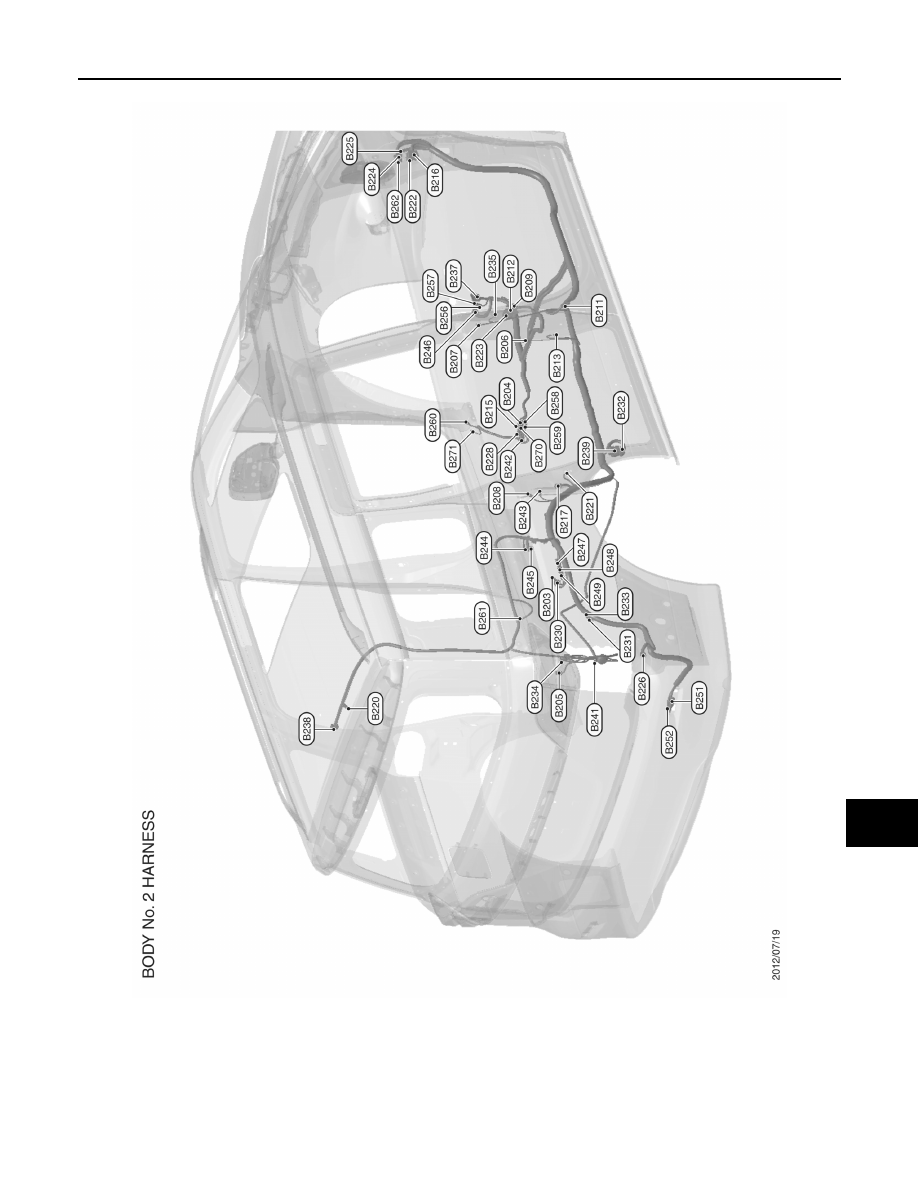

BODY No.2 HARNESS

JRMIC1978GB

PG-90

< WIRING DIAGRAM >

HARNESS LAYOUT

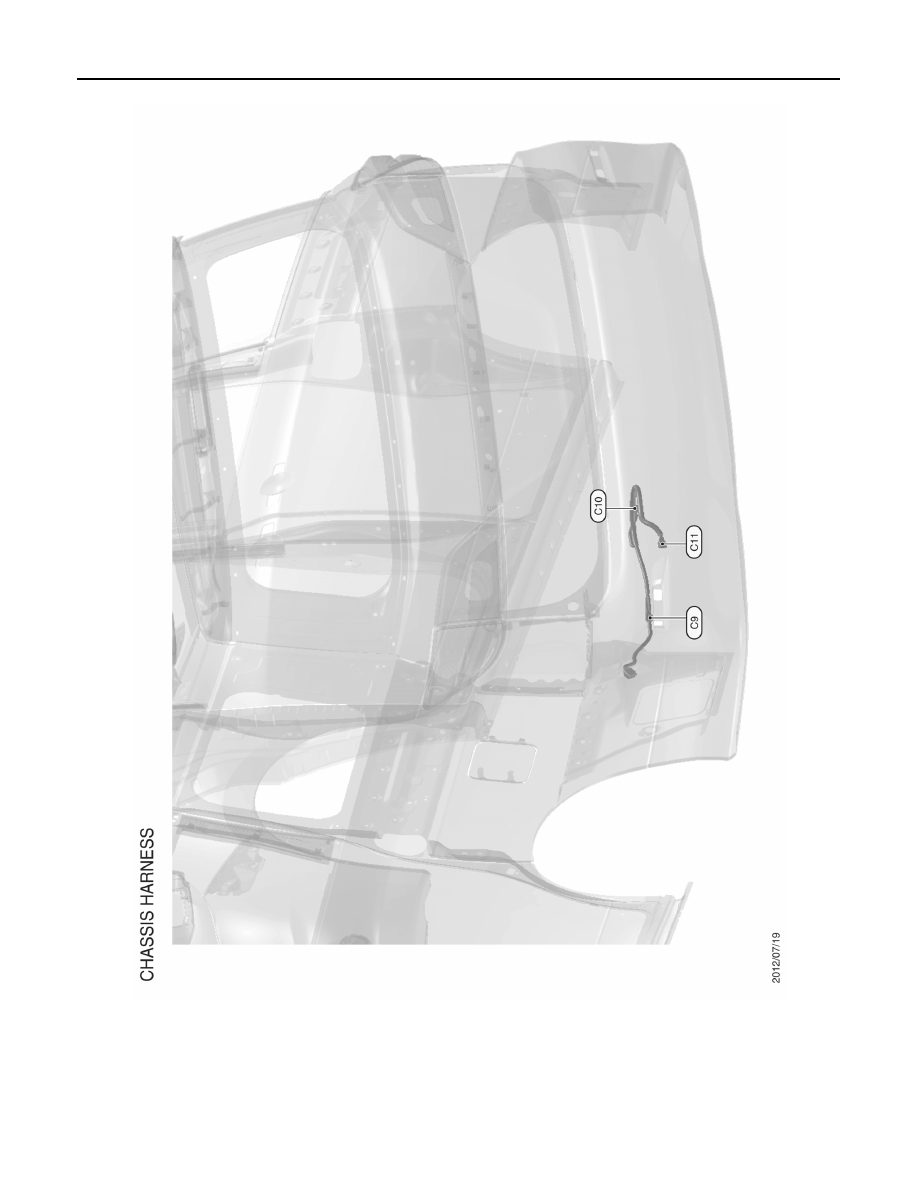

Chassis Harness

INFOID:0000000009651775

JRMIC1979GB

PG

HARNESS LAYOUT

PG-91

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Door Harness

INFOID:0000000009651776

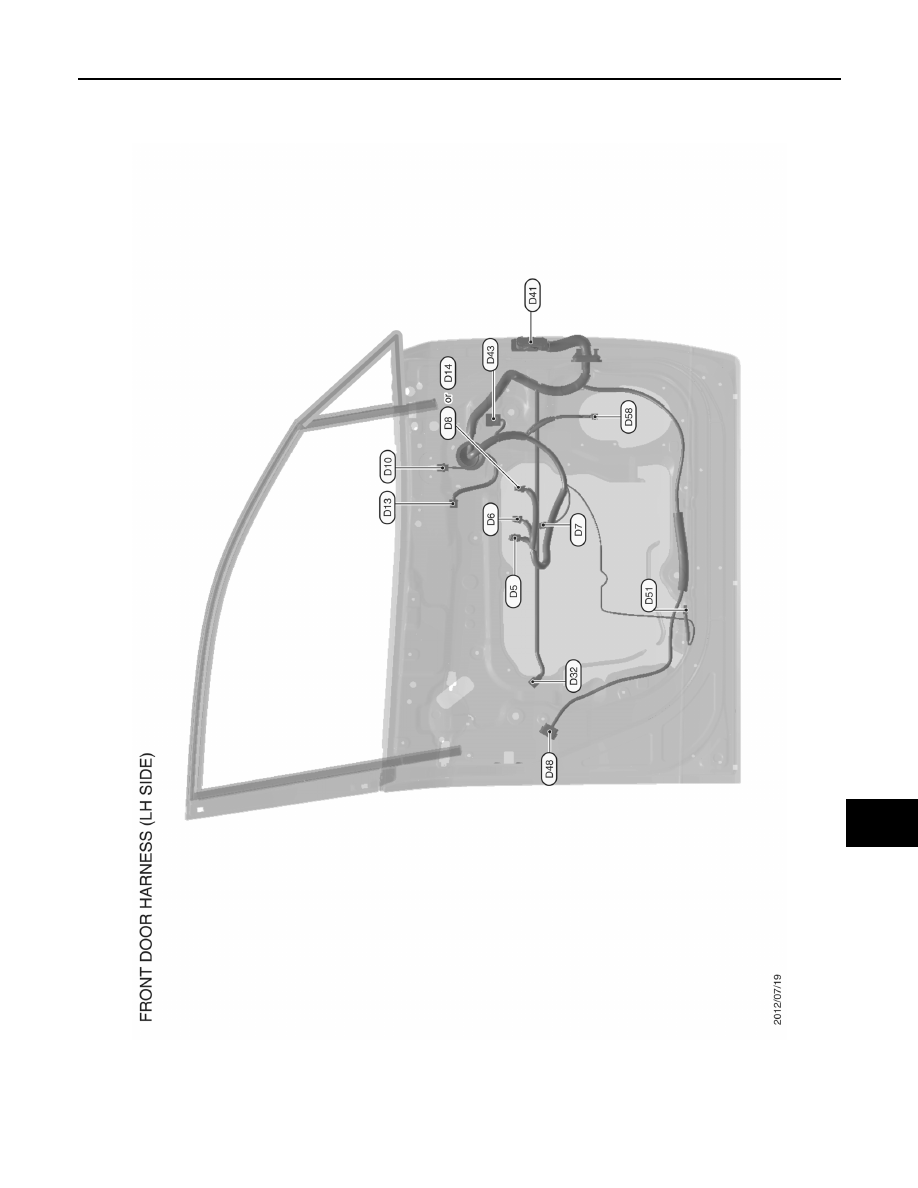

FRONT DOOR HARNESS (LH SIDE)

JRMIC1980GB
