PG-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

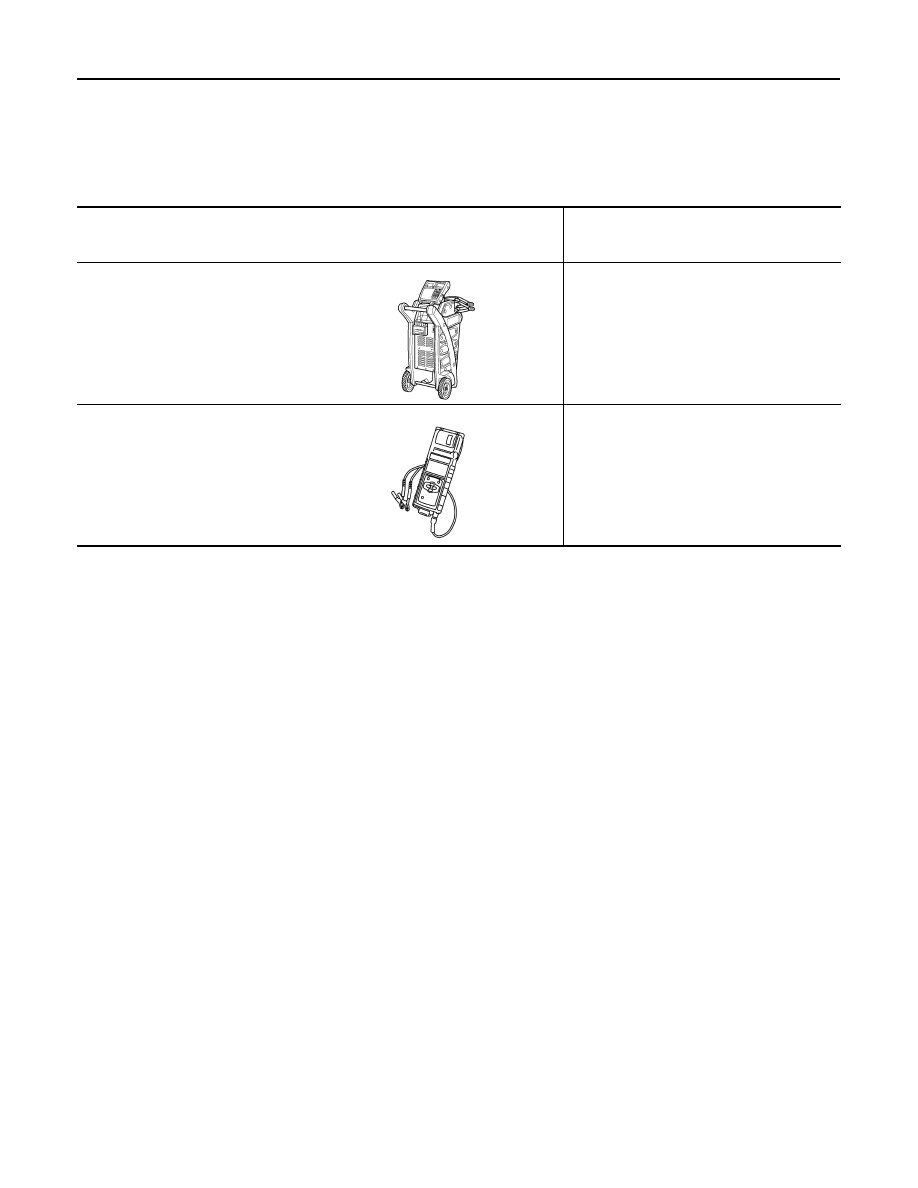

Special Service Tools

INFOID:0000000009651741

Tool number
(Kent-Moore No.)
Tool name

Description

—
(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnostic
station instruction manual.

—
(—) Model EXP-800 NI
Battery and electrical diagnostic ana-
lyzer

Tests batteries and charging systems.
For operating instructions, refer to diagnostic
analyzer instruction manual.

AWIIA1239ZZ

JSMIA0806ZZ

PG

COMPONENT PARTS

PG-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

COMPONENT PARTS

Circuit Breaker

INFOID:0000000009651742

The PTC thermistor generates heat in response to current flow. The
temperature (and resistance) of the thermistor element varies with
current flow. Excessive current flow will cause the element's temper-
ature to rise. When the temperature reaches a specified level, the
electrical resistance will rise sharply to control the circuit current.
Reduced current flow will cause the element to cool. Resistance falls
accordingly and normal circuit current flow is allowed to resume.

Battery

INFOID:0000000009651743

HR

*

: Because of the frequent battery charge/discharge performed according to a driving condition and a bat-

tery condition, this model uses a charge/discharge capacity-enhanced battery. Therefore, it is recommended
to use a genuine battery when replacement is needed.

Harness Connector

INFOID:0000000009651744

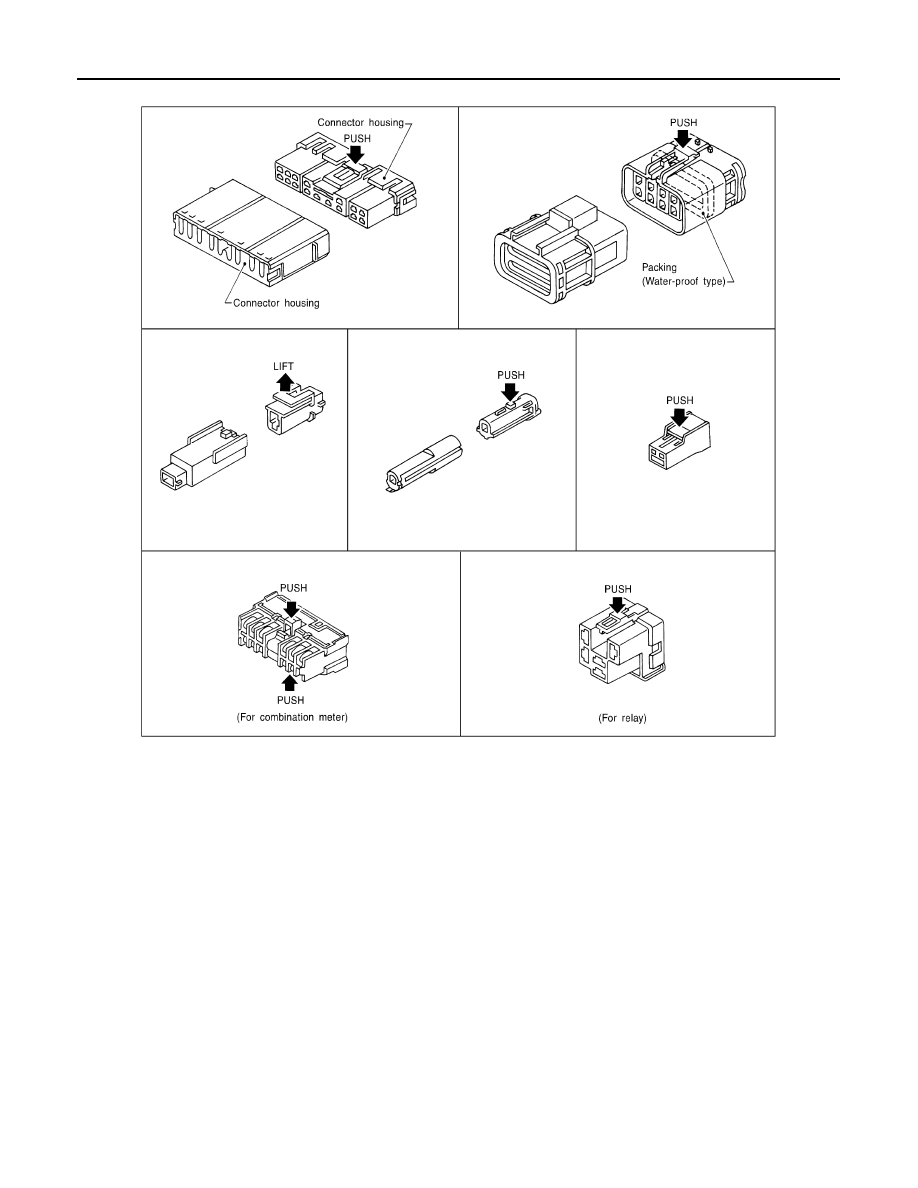

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure

below.

CAUTION:

To prevent damage to the parts, never pull the harness or wires when disconnecting the connector.

SEL109W

Type

110D26L-HR

*

20 hour rate capacity

[V – Ah]

12 – 75

Cold cranking current (For reference value)

[A]

720

PG-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

[Example]

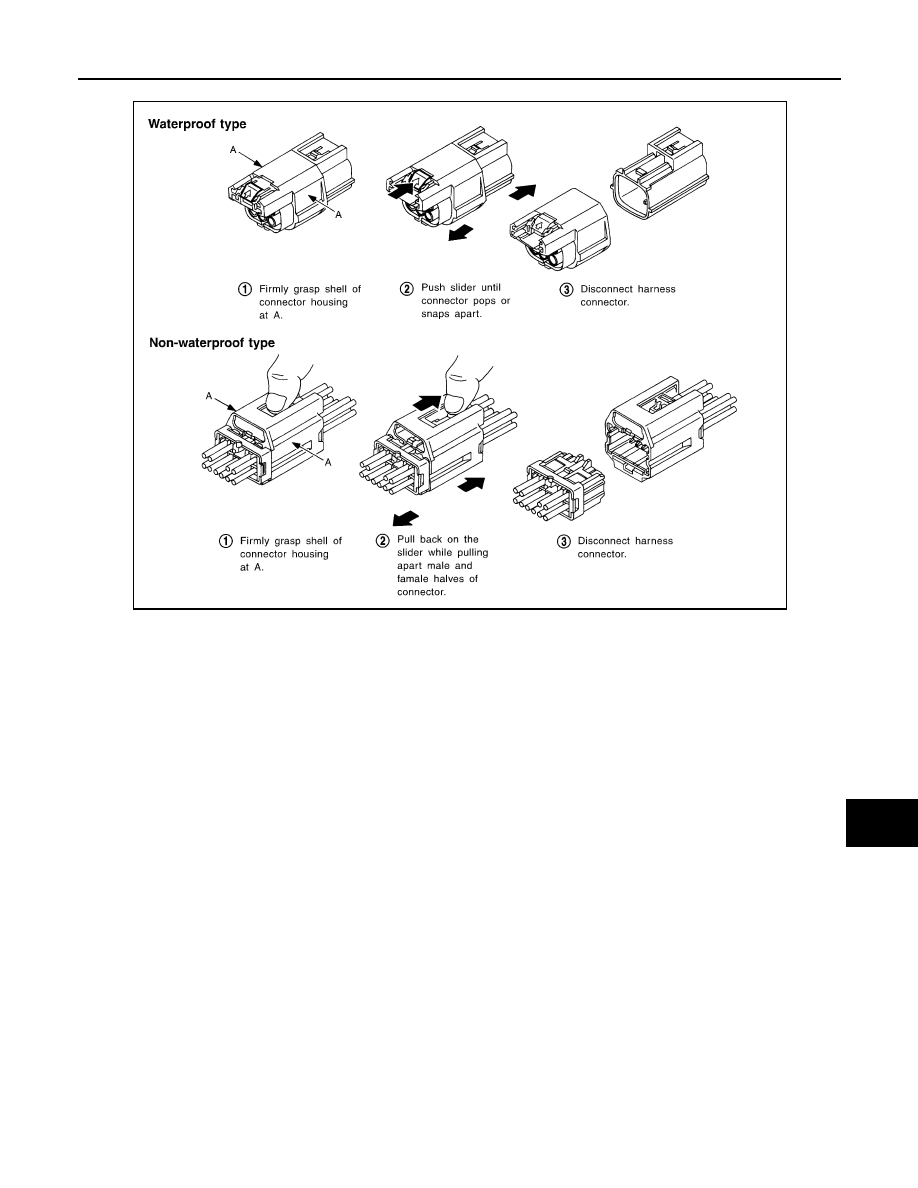

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure

below.

CAUTION:

• To prevent damage to the parts, never pull the harness or wires when disconnecting the connector.
• To prevent damage to the parts, be careful not to damage the connector support bracket when dis-

connecting the connector.

SEL769DA

PG

COMPONENT PARTS

PG-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

[Example]

HARNESS CONNECTOR (LEVER LOCKING TYPE)

• Lever locking type harness connectors are used on certain control units and control modules such as ECM,

ABS actuator and electric unit (control unit), etc.

• Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors.
• Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full connec-

tion.

CAUTION:

SEL769V
