Nissan Quest E52. Manual - part 909

MWI

COMBINATION METER

MWI-41

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

OIL W/L

Ignition switch
ON

Oil pressure warning lamp ON

On

Oil pressure warning lamp OFF

Off

MIL

Ignition switch
ON

Malfunction indicator lamp ON

On

Malfunction indicator lamp OFF

Off

CRUISE IND

Ignition switch
ON

CRUISE indicator ON

On

CRUISE indicator OFF

Off

SET IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

CRUISE W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

BA W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

O/D OFF IND

Ignition switch
ON

O/D OFF indicator lamp ON

On

O/D OFF indicator lamp OFF

Off

4WD W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

4WD LOCK IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

FUEL W/L

Ignition switch
ON

During low fuel warning indication

On

Other than the above

Off

WASHER W/L

Ignition switch
ON

During low washer fluid warning indication

On

Other than the above

Off

AIR PRES W/L

Ignition switch
ON

Low tire pressure warning lamp ON

On

Low tire pressure warning lamp OFF

Off

KEY G/Y W/L

Ignition switch
ON

During Intelligent Key system malfunction
indication

On

Other than the above

Off

EPS W/L

Ignition switch
ON

EPS warning lamp ON

On

EPS warning lamp OFF

Off

AFS OFF IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ECO MODE IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

Monitor Item

Condition

Value/Status

MWI-42

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

LCD

Ignition switch
ON

During engine start information indication

B&P I

Ignition switch
ACC

During engine start information indication

B&P N

Ignition switch
LOCK

During key ID warning indication

ID NG

Ignition switch
LOCK

During steering lock information indication

ROTAT

Ignition switch
LOCK

During P position warning indication

SFT P

Ignition switch
LOCK

During Intelligent Key insert information in-
dication

INSRT

Ignition switch
LOCK

During Intelligent Key low battery warning
indication

BATT

Ignition switch
ON

During take away warning indication

NO KY

Ignition switch
LOCK

During key warning indication

OUTKY

Ignition switch
ON

During ACC warning indication

LK WN

Ignition switch
LOCK

During Key ID verification information indi-
cation

KY>PSW

Ignition switch
ON

Other than above

Off

ACC TARGET

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ACC DISTANCE

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ACC OWN VHL

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ACC SET SPEED

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ACC UNIT

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

SHIFT IND

Ignition switch
ON

During the indication of “P” by shift position
indicator

P

During the indication of “R” by shift position
indicator

R

During the indication of “N” by shift position
indicator

N

During the indication of “D” by shift position
indicator

D

During the indication of “L” by shift position
indicator

L

BSW IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

BSW W/L

Ignition switch
ON

BSW warning lamp ON

On

BSW warning lamp OFF

Off

Monitor Item

Condition

Value/Status

MWI

COMBINATION METER

MWI-43

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUEL CAP W/L

Ignition switch
ON

During fuel filler cap warning display indica-
tion

On

Other than above

Off

O/D OFF SW

Ignition switch
ON

Overdrive control switch ON

On

Overdrive control switch OFF

Off

M RANGE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

NM RANGE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

AT SFT UP SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

AT SFT DWN SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

COMP F/B SIG

Ignition switch
ON

A/C compressor activation condition

On

A/C compressor deactivation condition

Off

PKB SW

Ignition switch
ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch
ON

Driver seat belt not fastened

On

Driver seat belt fastened

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

A/C AMP CONN

Ignition switch
ON

Other than the following

On

Receives ambient sensor power signal

Off

ENTER SW

Ignition switch
ON

When

 switch (enter switch) is pressed

On

Other than above

Off

SELECT SW

Ignition switch
ON

When

 switch (select switch) is pressed

On

Other than above

Off

ECO MODE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

DISTANCE
[km]

Ignition switch
ON

—

Distance to empty calculated by com-
bination meter

OUTSIDE TEMP
[

°

C or

°

F]

Ignition switch
ON

—

Input value of ambient sensor signal
(CAN communication signal)
NOTE:
This may not match the indicated value
on the information display.

FUEL LOW SIG

Ignition switch
ON

During low fuel warning indication

On

Other than above

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

Monitor Item

Condition

Value/Status

MWI-44

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

NOTE:
Some items are not available according to vehicle specification.

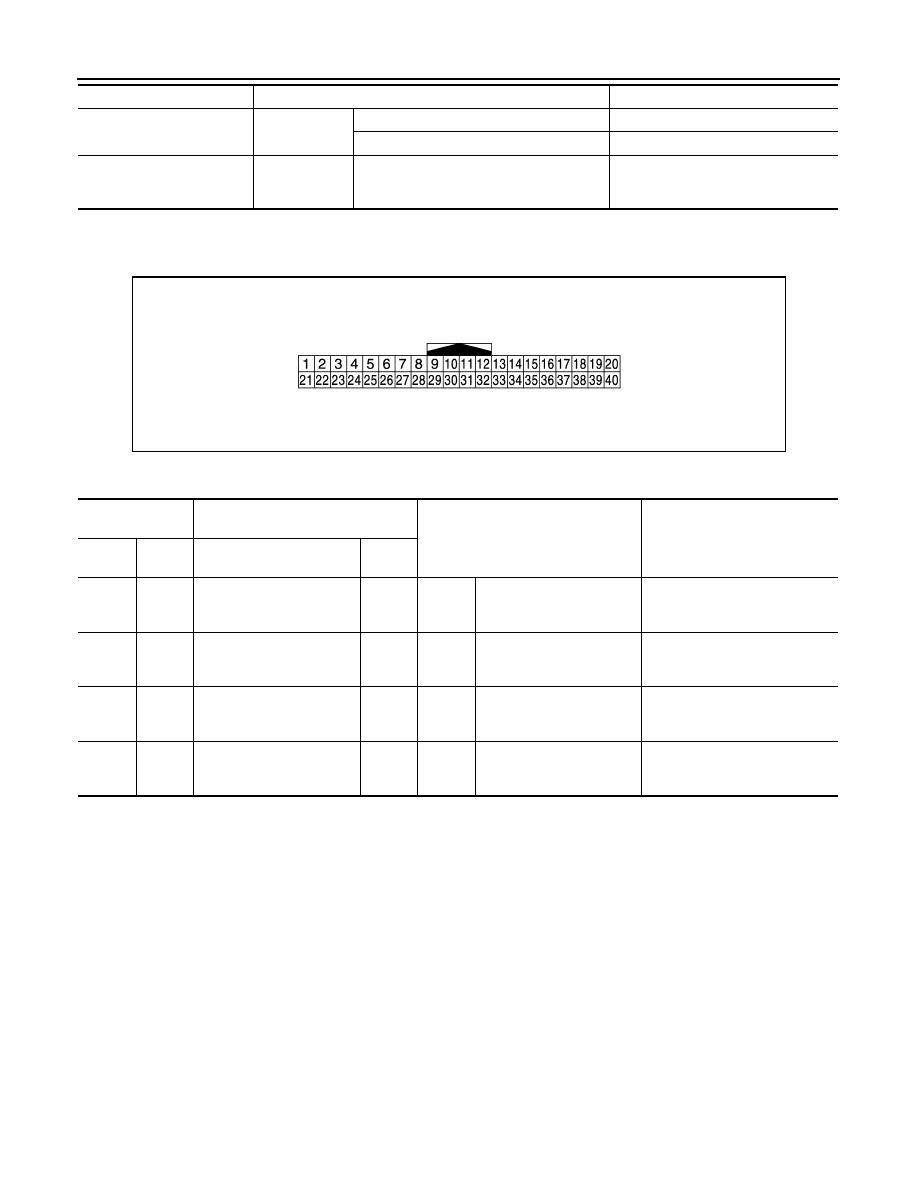

TERMINAL LAYOUT

PHYSICAL VALUES

TPMS PRESS L

Ignition switch
ON

During low tire pressure warning indication

On

Other than above

Off

4WD AUTO IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

Monitor Item

Condition

Value/Status

JPNIA1324ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(O)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

2

(Y)

Ground

Ignition signal

Input

Ignition
switch
ON

—

Battery voltage

3

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

4

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V
