< PREPARATION >

[WITH ADP]

PREPARATION

PREPARATION

PREPARATION

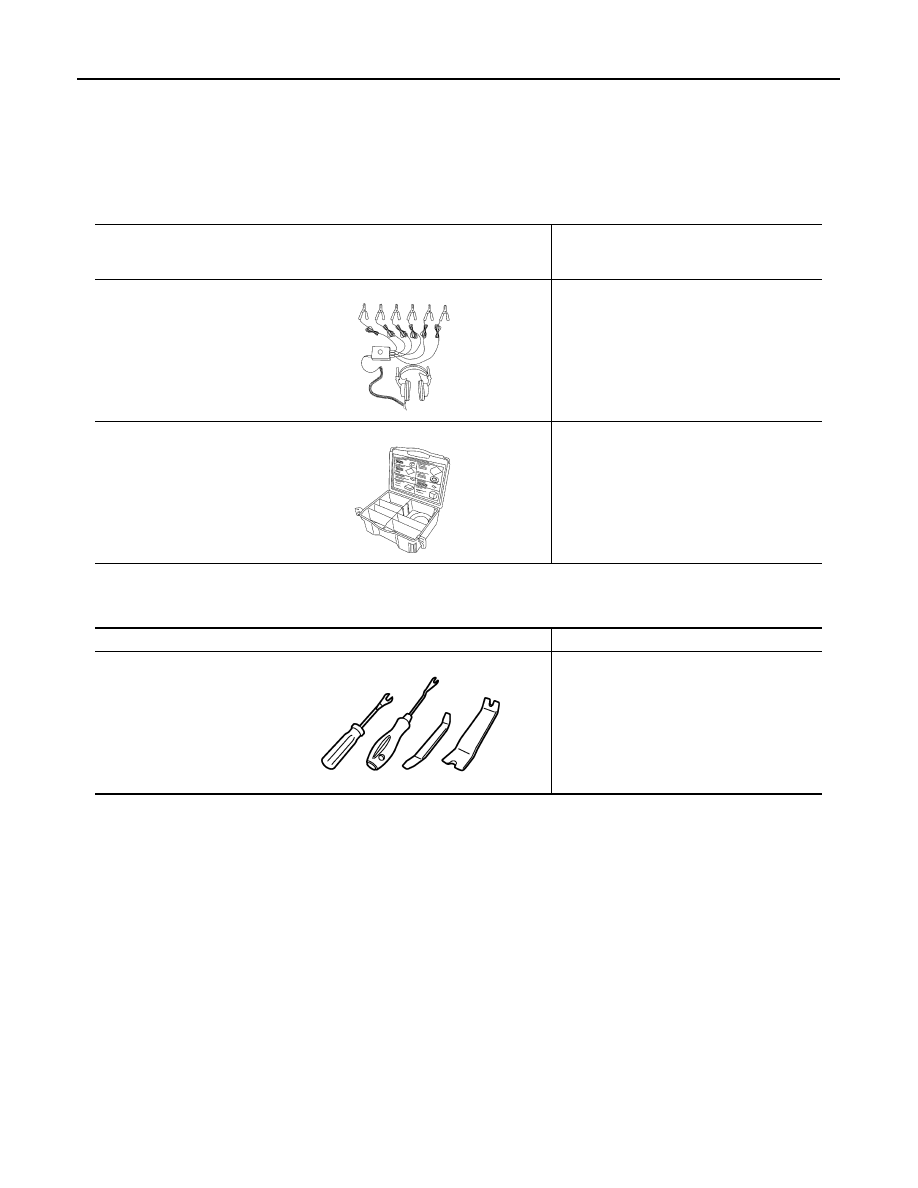

Special Service Tools

INFOID:0000000009652698

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009652699

Tool number

(Kent-Moore No.)

Tool name

Description

(J-39570)
Chassis ear

Locates the noise

(J-50397)
NISSAN Squeak and Rat-
tle Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Remover tool

Remove the clip, pawl and metal clip

JMKIA3050ZZ

COMPONENT PARTS

MIR-5

< SYSTEM DESCRIPTION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000009652700

Door Mirror Remote Control Switch

INFOID:0000000009652701

MIRROR SWITCH

It transmits mirror face adjust operation to automatic drive positioner control unit.

CHANGEOVER SWITCH

No.

Component parts

Function

1.

BCM

The ignition switch signal (ACC/ON) is transmitted to driver seat control unit
via CAN communication.
Refer to

BCS-4, "BODY CONTROL SYSTEM : Component Parts Location"



for detailed installation location.

2.

Automatic drive positioner control unit

Door mirror is supplied with power after receiving the input of mirror switch
and changeover switch.
Refer to

ADP-8, "Automatic Drive Positioner Control Unit"

 for detailed instal-

lation location.

3.

TCM

The CVT shift position signal is transmitted to driver seat control unit via CAN
communication.
Refer to

TM-10, "CVT CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

4.

Door mirror remote control switch

Refer to

MIR-5, "Door Mirror Remote Control Switch"

.

5.

Door mirror (driver side)

Refer to

MIR-6, "Door Mirror"

.

6.

Driver seat control unit

The ignition switch signal (ACC/ON) is transmitted to automatic drive posi-
tioner control unit via UART communication.
Refer to

ADP-8, "Driver Seat Control Unit"

 for detailed installation location.

7.

Auto anti-dazzling inside mirror

Refer to

MIR-6, "Auto Anti-dazzling Inside Mirror"

.

JMLIA2141ZZ

MIR-6

< SYSTEM DESCRIPTION >

[WITH ADP]

COMPONENT PARTS

It transmits the LH/RH control of door mirror that supplies power to automatic drive positioner control unit.

Door Mirror

INFOID:0000000009652702

It makes mirror face operate from side to side and up and down via integrated motor.

Auto Anti-dazzling Inside Mirror

INFOID:0000000009652703

It automatically changes the light transmittance according to the brightness of the light from the headlight of
the vehicle behind.

SYSTEM

MIR-7

< SYSTEM DESCRIPTION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

SYSTEM

DOOR MIRROR SYSTEM

DOOR MIRROR SYSTEM : System Description

INFOID:0000000009652704

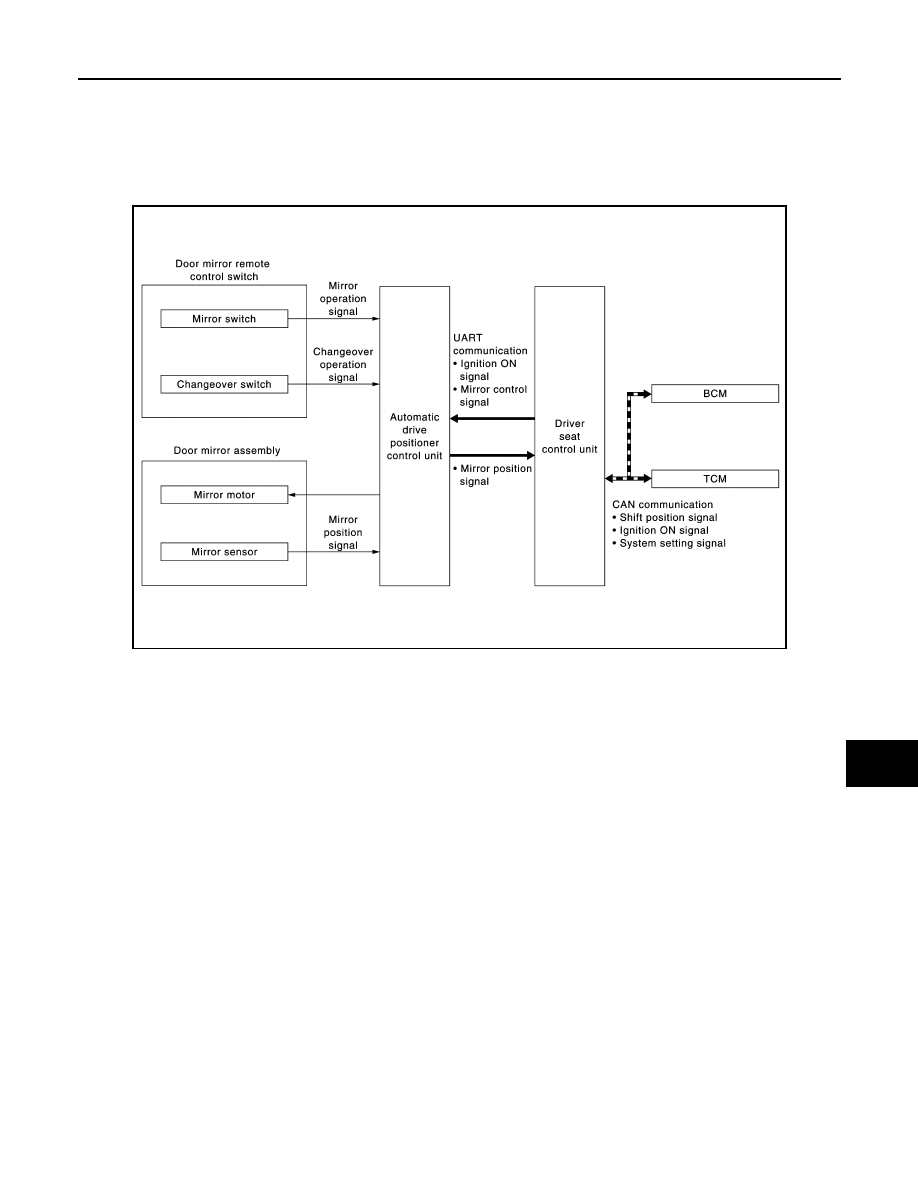

SYSTEM DIAGRAM

MANUAL FUNCTION

Description

• Automatic drive positioner control unit controls door mirror.
• Automatic drive positioner control unit inputs changeover switch signal and perform the LH/RH control of

door mirror motor supplying electric power when changeover switch is operated.

• Automatic drive positioner control unit inputs mirror switch signal and supplies electric power to door mirror.
• The ignition switch signal (ACC/ON) is transmitted from BCM to driver seat control unit via CAN communica-

tion and from driver seat control unit to automatic drive positioner control unit via UART communication.

Operation Conditions

If the following conditions are not satisfied, operation is not performed.
• Ignition switch: ON or ACC
• Changeover switch: Select either left or right

REVERSE INTERLOCK DOOR MIRROR SYSTEM

Description

• Select either of the door mirror faces by changeover switch, and then set mirror face downward.
• When ignition switch is ON position and CVT shift selector is in R position, TCM sends the R signal to driver

seat control unit.

• The R signal is transmitted to automatic drive positioner control unit from driver seat control unit via UART

communication.

• When the R signal is detected, automatic drive positioner control unit activated mirror motor.

Operation Conditions

If the following conditions are not satisfied, operation is not performed.
• Ignition switch: ON
• Changeover switch: Select either left or right
• CVT shift selector: R position

JMLIA2115GB
