MA-28

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

POWER STEERING FLUID AND LINES : Inspection

INFOID:0000000009651647

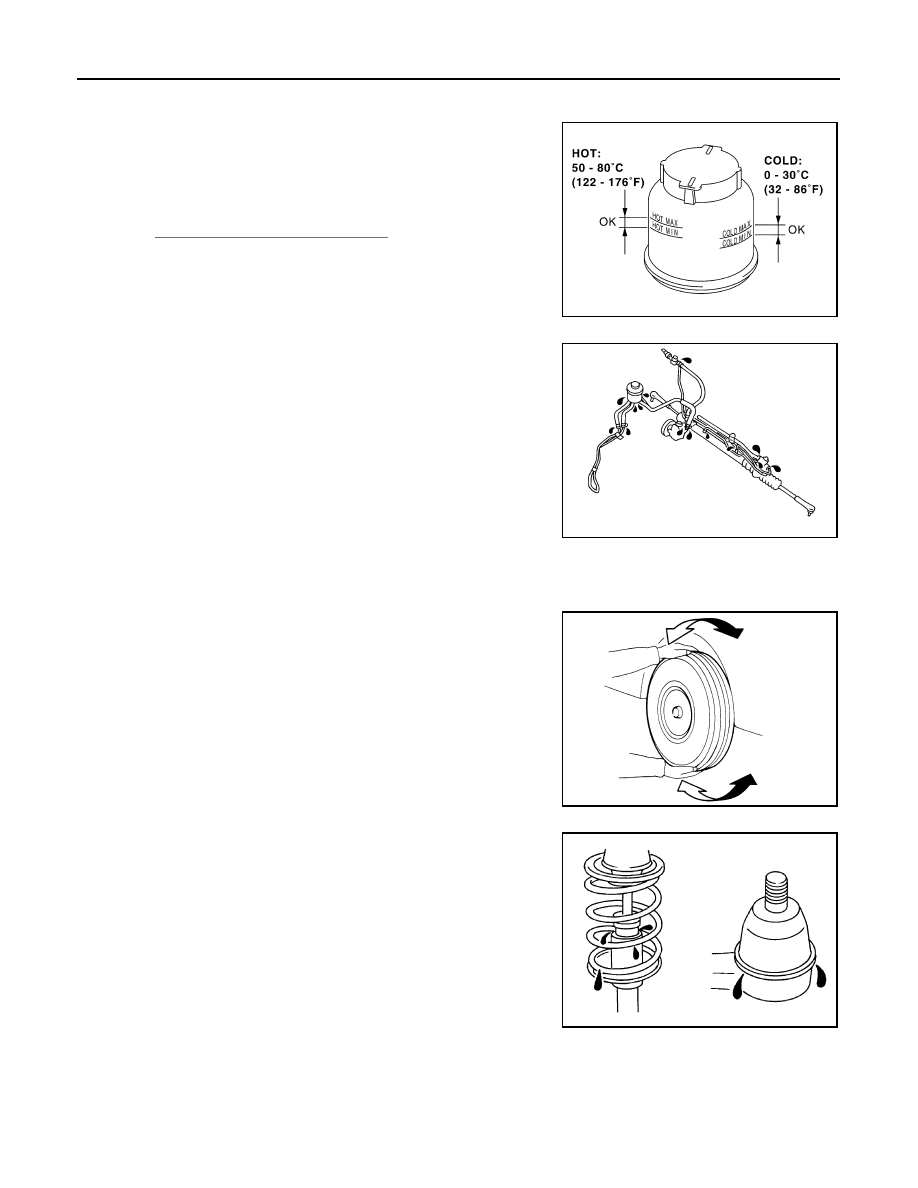

Check fluid level in reservoir tank with engine off.
Use “HOT” range at fluid temperatures of 50 to 80

C (122 to 176

or “COLD” range at fluid temperatures of 0 to 30

C (32 to 86

F).

CAUTION:

• Do not overfill.
• Recommended fluid is Genuine NISSAN E-PSF or equivalent.

Refer to

MA-10, "Fluids and Lubricants"

• Check lines for improper attachment, leaks, cracks, damage,

loose connections, chafing and deterioration.

• Check rack boots for accumulation of power steering fluid.

AXLE AND SUSPENSION PARTS

AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000009651648

Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Check wheel bearings for smooth operation.
• Check axle and suspension nuts and bolts for looseness.
• Check strut (shock absorber) for oil leakage or other damage.
• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

DRIVE SHAFT

SST850C

SST851C

SMA525A

JPPIA0011ZZ

CHASSIS MAINTENANCE

MA-29

< PERIODIC MAINTENANCE >

DRIVE SHAFT : Inspection

INFOID:0000000009651649

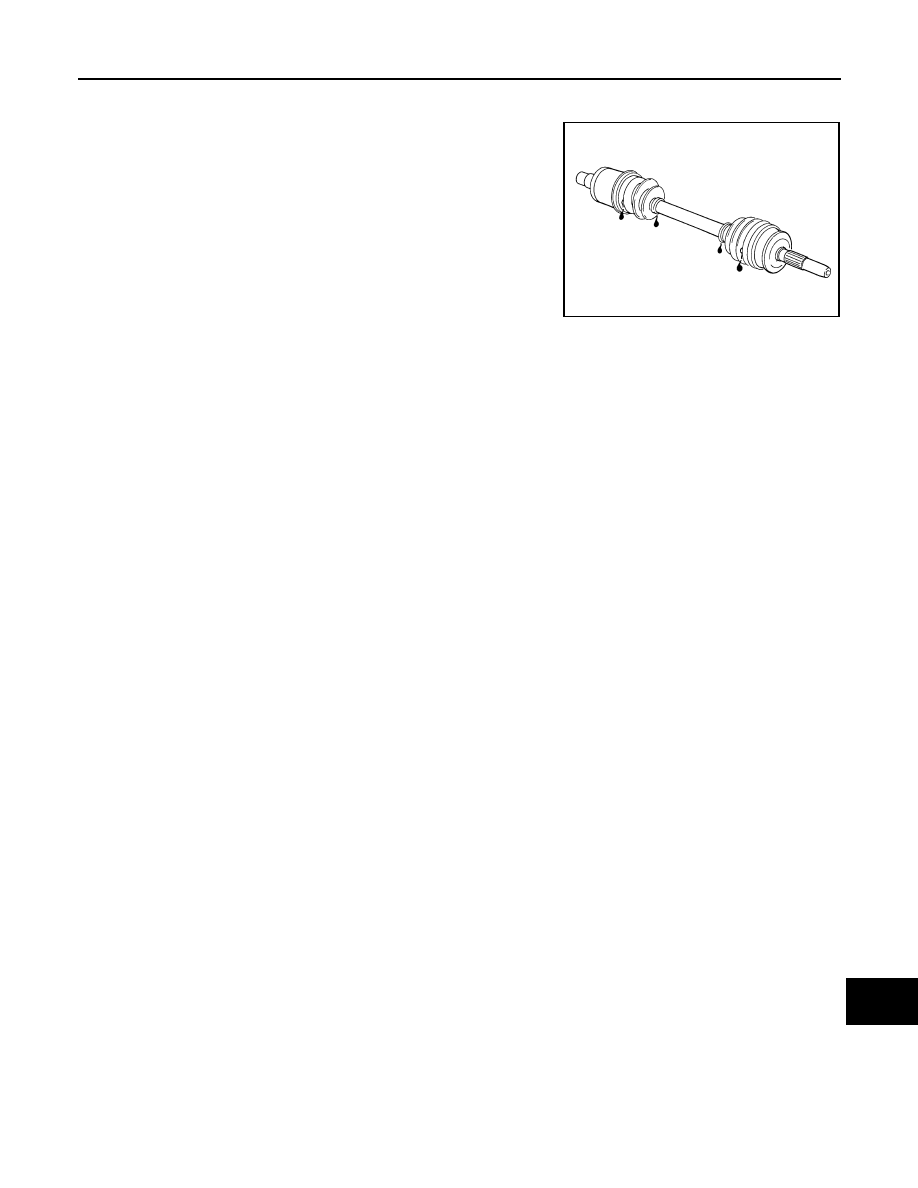

Check boot and drive shaft for cracks, wear, damage and grease
leakage.

SFA108A

MA-30

< PERIODIC MAINTENANCE >

BODY MAINTENANCE

BODY MAINTENANCE

LOCKS, HINGES AND HOOD LATCH

LOCKS, HINGES AND HOOD LATCH : Lubricating

INFOID:0000000009651650

For hood and hood lock illustration.
• Hood: Refer to

DLK-424, "Exploded View"

• Hood lock: Refer to

DLK-459, "Exploded View"

For door and door lock illustration.
• Front door: Refer to

DLK-432, "Exploded View"

• Front door lock: Refer to

DLK-463, "Exploded View"

• Slide door: Refer to

DLK-437, "Exploded View"

• Slide door lock: Refer to

DLK-466, "Exploded View"

For back door and back door lock illustration.
• Back door: Refer to

DLK-451, "Exploded View"

• Back door lock: Refer to

DLK-476, "Exploded View"

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

INFOID:0000000009651651

For front seat belt illustration. Refer to

SB-4, "Exploded View"

For second seat belt illustration. Refer to

SB-10, "Exploded View"

For third seat belt illustration. Refer to

SB-15, "Exploded View"

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached hard-

wares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in use
during a collision, unless not damaged and properly operating after minor collision.
Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly
operating.
Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal colli-
sion where the driver and passenger air bags are deployed.

• If any component of seat belt assembly is questionable, do not repair.

Replace as seat belt assembly.

• If webbing is cut, frayed, or damaged, replace belt assembly.
• Never oil tongue and buckle.
• Use a genuine NISSAN seat belt assembly.
For details, refer to

SB-6, "SEAT BELT RETRACTOR : Inspection"

SB-11, "SEAT BELT RETRACTOR :

Inspection"

SB-17, "SEAT BELT RETRACTOR : Inspection"

in SB section.

• Check anchors for loose mounting
• Check belts for damage
• Check retractor for smooth operation
• Check function of buckles and tongues when buckled and released

SERVICE DATA AND SPECIFICATIONS (SDS)

MA-31

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

DRIVE BELT

DRIVE BELT : Drive Belt

INFOID:0000000009651652

DRIVE BELT

ENGINE COOLANT

ENGINE COOLANT : Periodical Maintenance Specification

INFOID:0000000009651653

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

(US qt, lmp qt)

ENGINE OIL

ENGINE OIL : Periodical Maintenance Specification

INFOID:0000000009651654

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

(US qt, lmp qt)

SPARK PLUG

SPARK PLUG : Spark Plug

INFOID:0000000009651655

SPARK PLUG

Unit: mm (in)

ROAD WHEEL

ROAD WHEEL : Road Wheel

INFOID:0000000009651656

ALUMINUM WHEEL

STEEL WHEEL

Tension of drive belt

Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

Engine coolant capacity (With reservoir tank at “MAX” level)

11.3 (12, 10)

Reservoir tank

0.75 (6/8, 5/8)

Drain and refill

With oil filter change

4.6 (4-7/8, 4)

Without oil filter change

4.3 (4-1/2, 3-3/4)

Dry engine (Overhaul)

5.3 (5-5/8, 4-5/8)

Make

DENSO

Standard type

FXE22HR11

Gap

Standard

1.1 (0.043)

Limit

1.4 (0.055)

Item

Limit

Runout

Axial runout

Less than 0.3 mm (0.012 in)

Radial runout

Allowable unbalance

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)
