MA-24

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

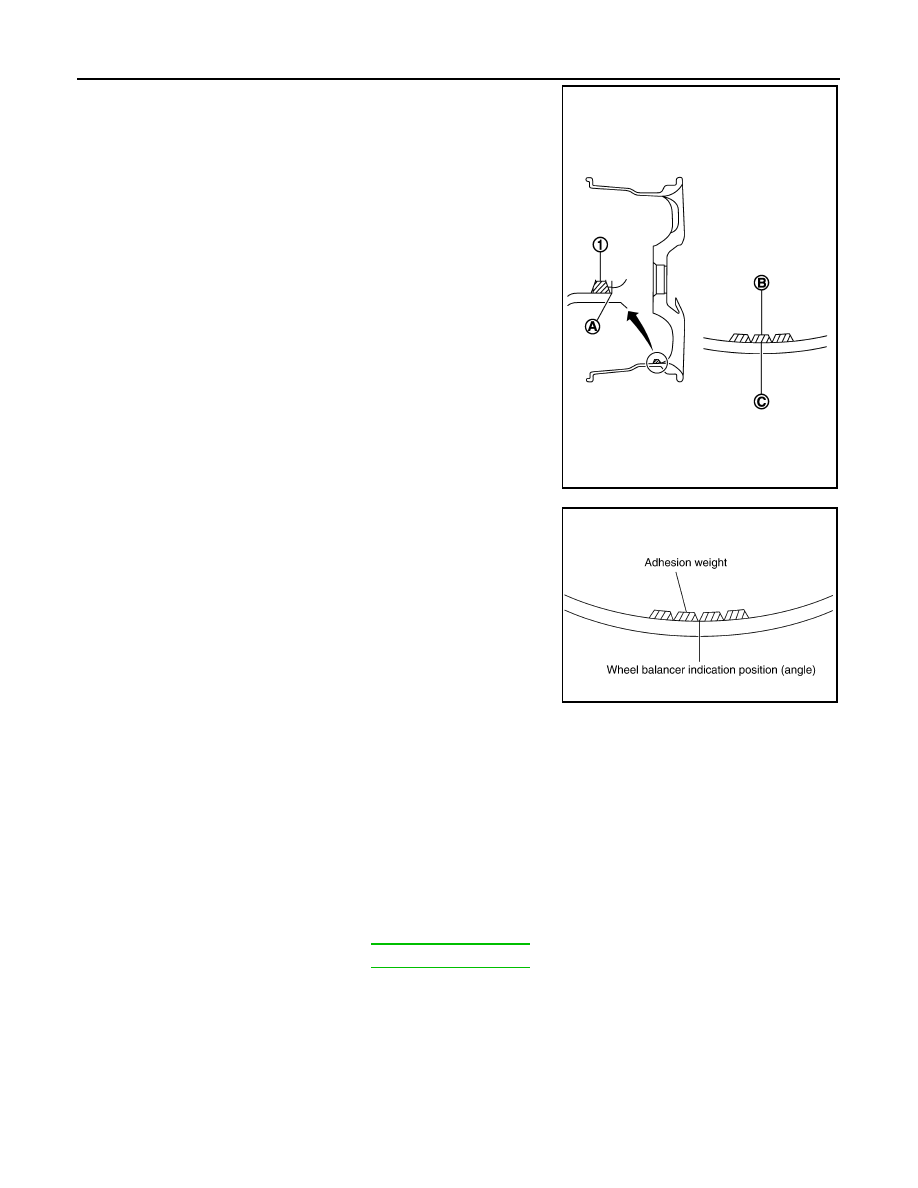

• When installing balance weight (1) to road wheels, set it into

the grooved area (A) on the inner wall of the road wheel as
shown in the figure so that the balance weight center (B) is
aligned with the tire balance machine indication position
(angle) (C).

CAUTION:

• Always use genuine NISSAN balance weights.
• Balance weights are non-reusable; always replace with

new ones.

• Never install three or more sheets of balance weight.

c.

If calculated balance weight value exceeds 50 g (1.76 oz), install
two balance weight sheets in line with each other as shown in
the figure.

CAUTION:

Never install one balance weight sheet on top of another.

3.

Start the tire balance machine again.

4.

Install drive-in balance weight on inner side of road wheel in the tire balance machine indication position
(angle).

CAUTION:

Never install three or more balance weight.

5.

Start the tire balance machine. Check that the inner and outer residual unbalance value is within the
allowable unbalance value.

CAUTION:

If either residual unbalance value exceeds limit, repeat installation procedures.

ADJUSTMENT (STEEL WHEEL)

Preparation Before Adjustment

Remove balance weight from the road wheel.

Wheel Balance Adjustment

• The details of the adjustment procedure are different for each model of wheel balancer. Therefore, refer to

each instruction manual.

• If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting,

select and adjust a drive-in weight mode suitable for steel wheels.

JPEIC0040ZZ

PEIA0033E

Allowable unbalance value

Dynamic (At flange)

: Refer to

WT-51, "Road Wheel"

.

Static (At flange)

: Refer to

WT-51, "Road Wheel"

.

CHASSIS MAINTENANCE

MA-25

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

1.

Set road wheel to wheel balancer, and then start wheel balancer.

2.

Install balance weight to road wheel according to the unbalance and position (angle) displayed on wheel
balancer.

CAUTION:

• Never install three or more balance weights on one side.
• Always use genuine NISSAN balance weights.
• Balance weights are non-reusable; always replace with new ones.
• Always use a plastic hammer when attaching the weight.

3.

Start the tire balance machine. Check that the inner and outer residual unbalance value is within the
allowable unbalance value.

CAUTION:

If either residual unbalance value exceeds limit, repeat installation procedures.

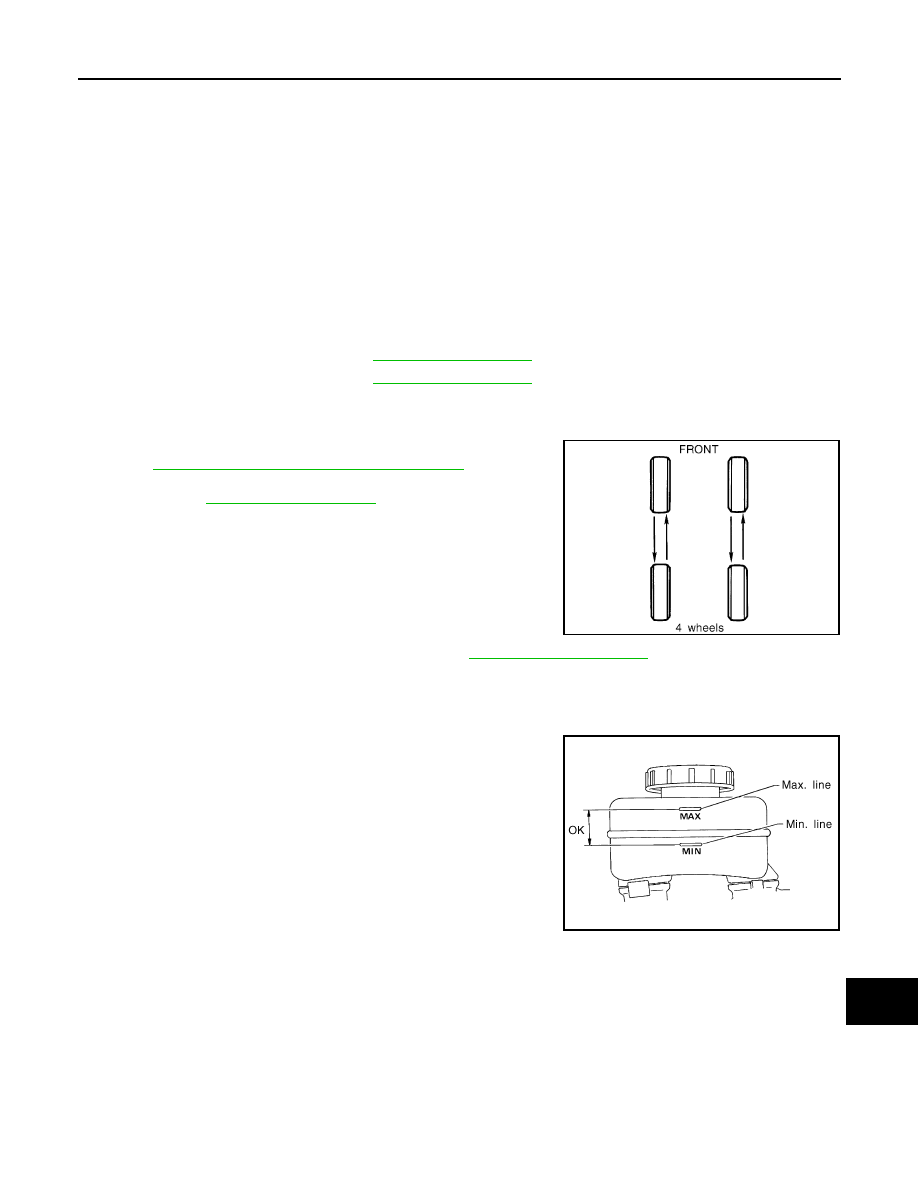

WHEELS : Tire Rotation

INFOID:0000000009651639

• Follow the maintenance schedule for tire rotation service intervals.

Refer to

MA-4, "Explanation of General Maintenance"

.

• When installing the wheel, tighten wheel nuts to the specified

torque. Refer to

WT-46, "Exploded View"

.

CAUTION:

• Never include the T-type spare tire when rotating the tires.
• When installing wheels, tighten them diagonally by dividing

the work two to three times in order to prevent the wheels
from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding the

criteria.

• Use NISSAN genuine wheel nut.

• Perform the ID registration, after tire rotation. Refer to

WT-23, "Work Procedure"

.

BRAKE FLUID LEVEL AND LEAKS

BRAKE FLUID LEVEL AND LEAKS : Inspection

INFOID:0000000009651640

• If fluid level is extremely low, check brake system for leaks.

BRAKE LINES AND CABLES

Allowable unbalance value

Dynamic (At flange)

: Refer to

WT-51, "Road Wheel"

.

Static (At flange)

: Refer to

WT-51, "Road Wheel"

.

SMA829C

SBR451D

MA-26

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

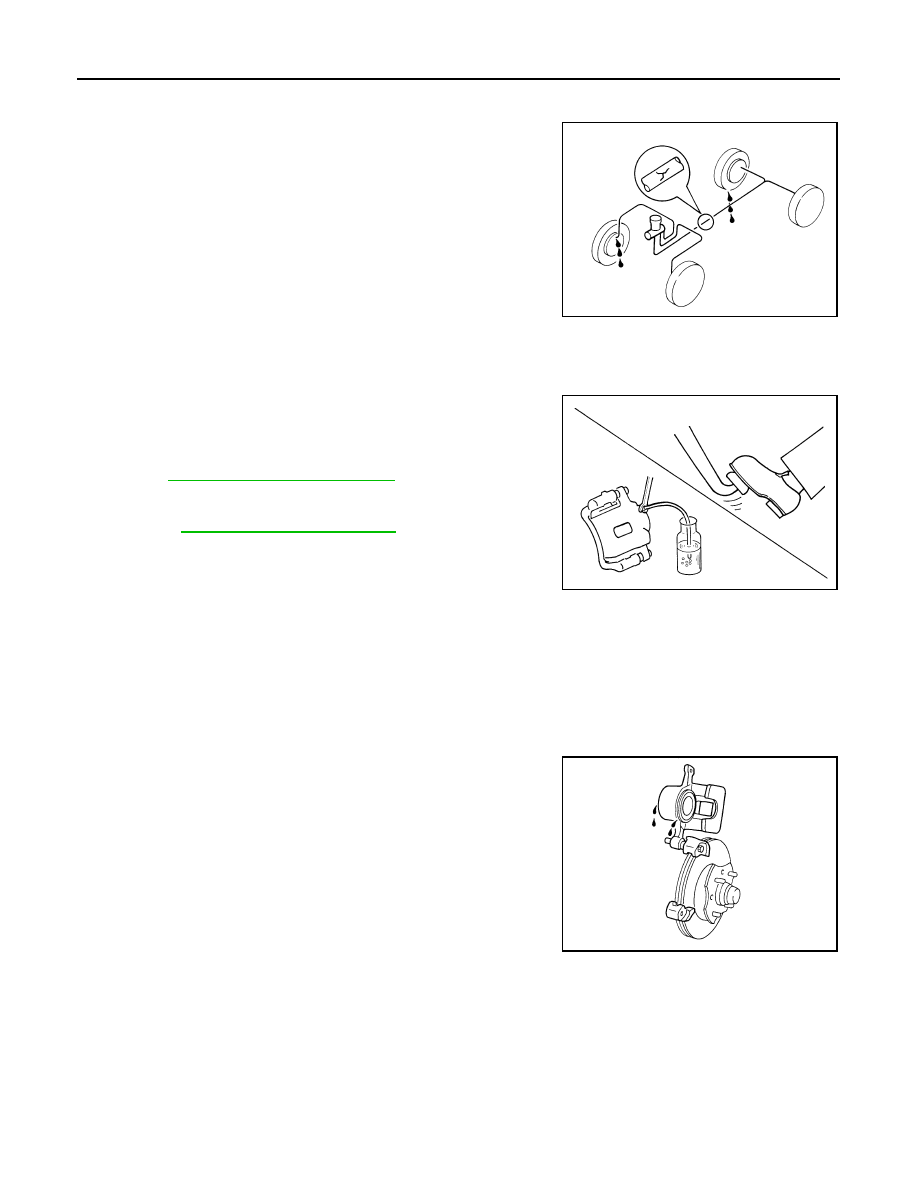

BRAKE LINES AND CABLES : Inspection

INFOID:0000000009651641

• Check brake fluid lines and parking brake cables for improper

attachment, leaks, chafing, abrasions, deterioration, etc.

BRAKE FLUID

BRAKE FLUID : Changing

INFOID:0000000009651642

1.

Drain brake fluid from each bleed valve.

2.

Refill until new brake fluid comes out from each bleed valve.
Use same procedure as in bleeding hydraulic system to refill
brake fluid.
Refer to

BR-11, "Bleeding Brake System"

.

• Refill with recommended Genuine NISSAN Super Heavy Duty

Brake Fluid or equivalent DOT 3 (US FMVSS No. 116).
Refer to

MA-10, "Fluids and Lubricants"

.

• Never reuse drained brake fluid.
• Be careful not to splash brake fluid on painted areas.

DISC BRAKE

DISC BRAKE : Inspection

INFOID:0000000009651643

DISC ROTOR

Check condition, wear, and damage.

CALIPER

• Check for leakage.

BRAKE PAD

SBR389C

SBR419C

SMA922A

CHASSIS MAINTENANCE

MA-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

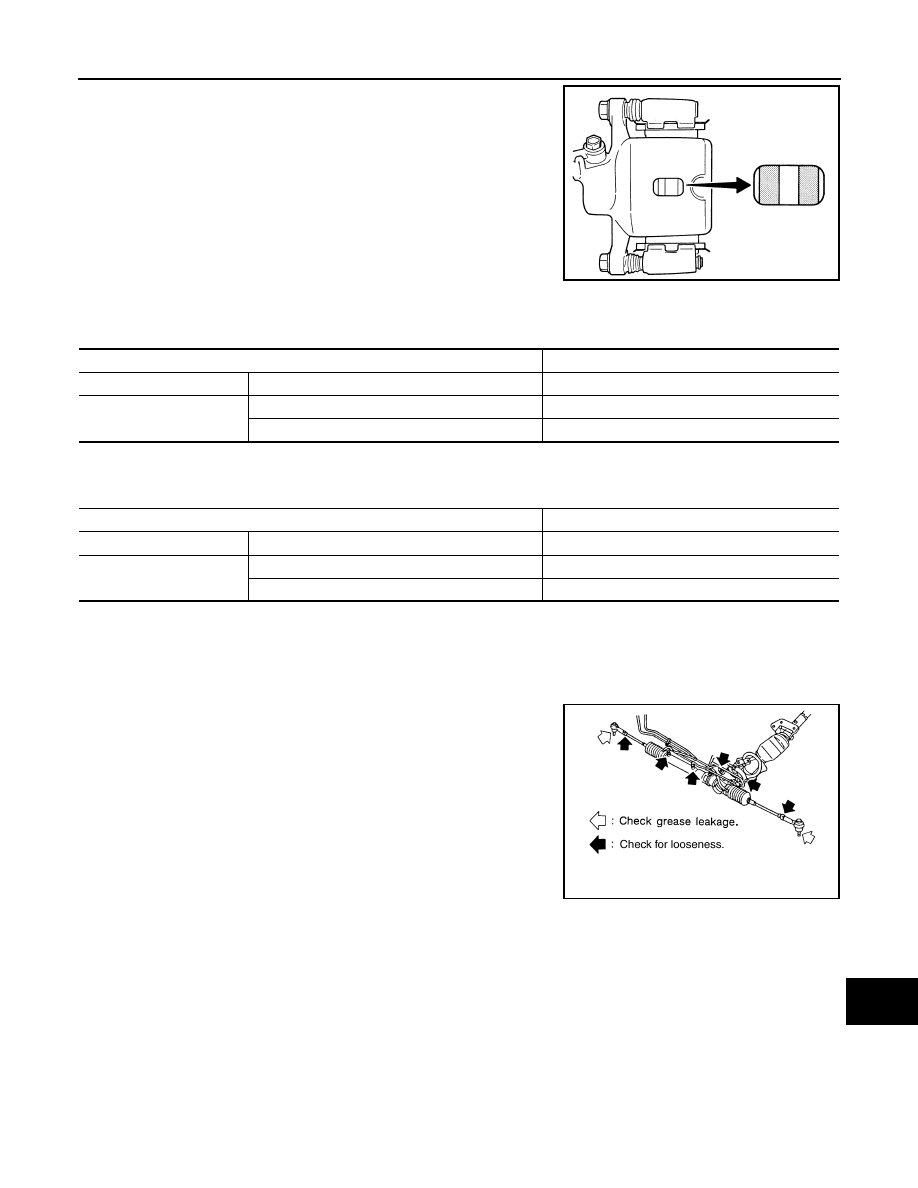

• Check for wear or damage.

DISC BRAKE : Front Disc Brake

INFOID:0000000009651644

Unit: mm (in)

DISC BRAKE : Rear Disc Brake

INFOID:0000000009651645

Unit: mm (in)

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE : Inspection

INFOID:0000000009651646

STEERING GEAR

• Check gear housing and boots for looseness, damage and grease

leakage.

• Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

POWER STEERING FLUID AND LINES

BRA0010D

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

26.0 (1.024)

Runout (with it attached to the vehicle)

0.040 (0.0016)

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

14.0 (0.551)

Runout (with it attached to the vehicle)

0.050 (0.0020)

SLIA0014E
