DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

*: Each lamp switch is in ON position.

Test item

Operation

Description

BATTERY SAVER

Off

Cuts the interior room lamp power supply to turn interior room lamps OFF.

On

Outputs the interior room lamp power supply to turn interior room lamps ON.*

BCM

INL-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000009653477

ECU

Reference

BCM

BCS-40, "Reference Value"

BCS-62, "Fail-safe"

BCS-62, "DTC Inspection Priority Chart"

BCS-63, "DTC Index"

INL-26

< WIRING DIAGRAM >

INTERIOR ROOM LAMP CONTROL SYSTEM

WIRING DIAGRAM

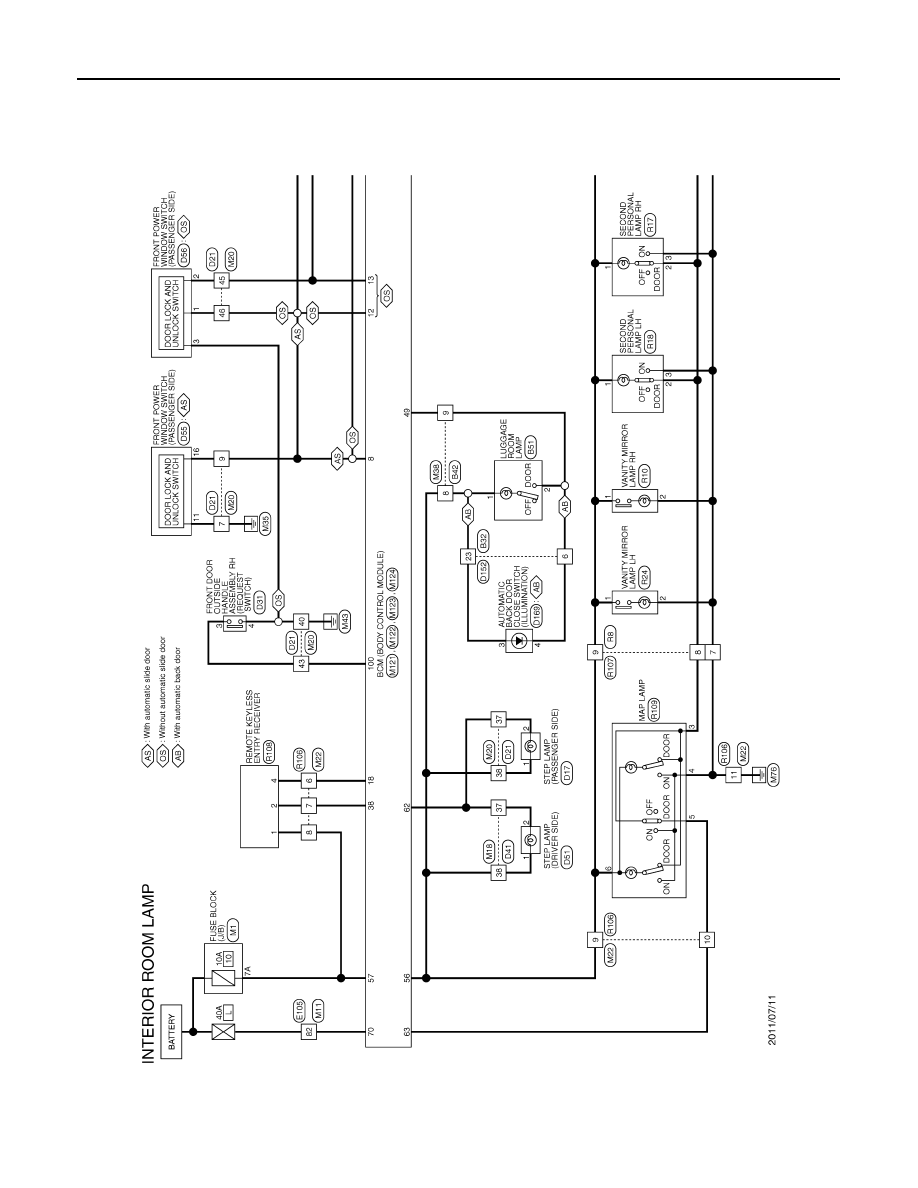

INTERIOR ROOM LAMP CONTROL SYSTEM

Wiring Diagram

INFOID:0000000009653478

JRLWC1005GB

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-27

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

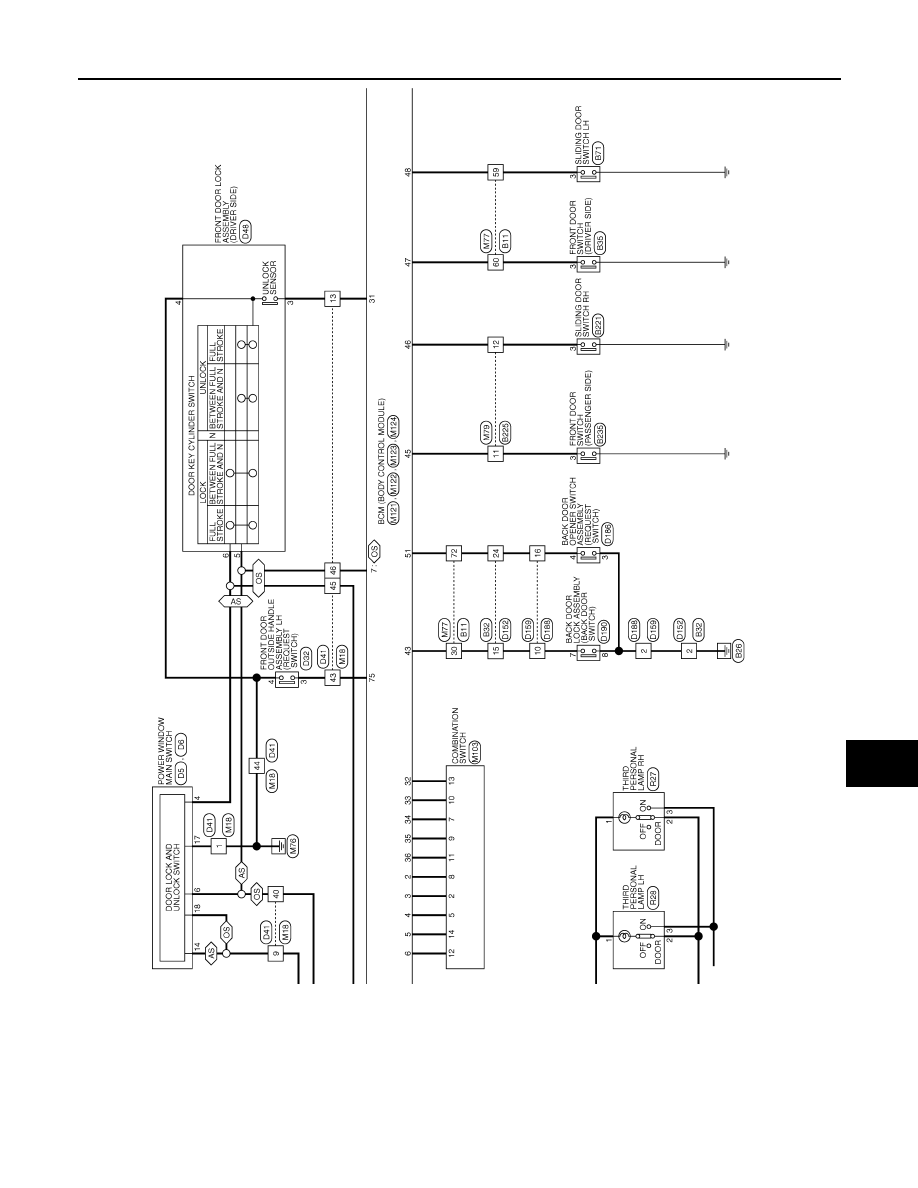

JRLWC1006GB
