HAC-242

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR MOTOR

DOOR MOTOR

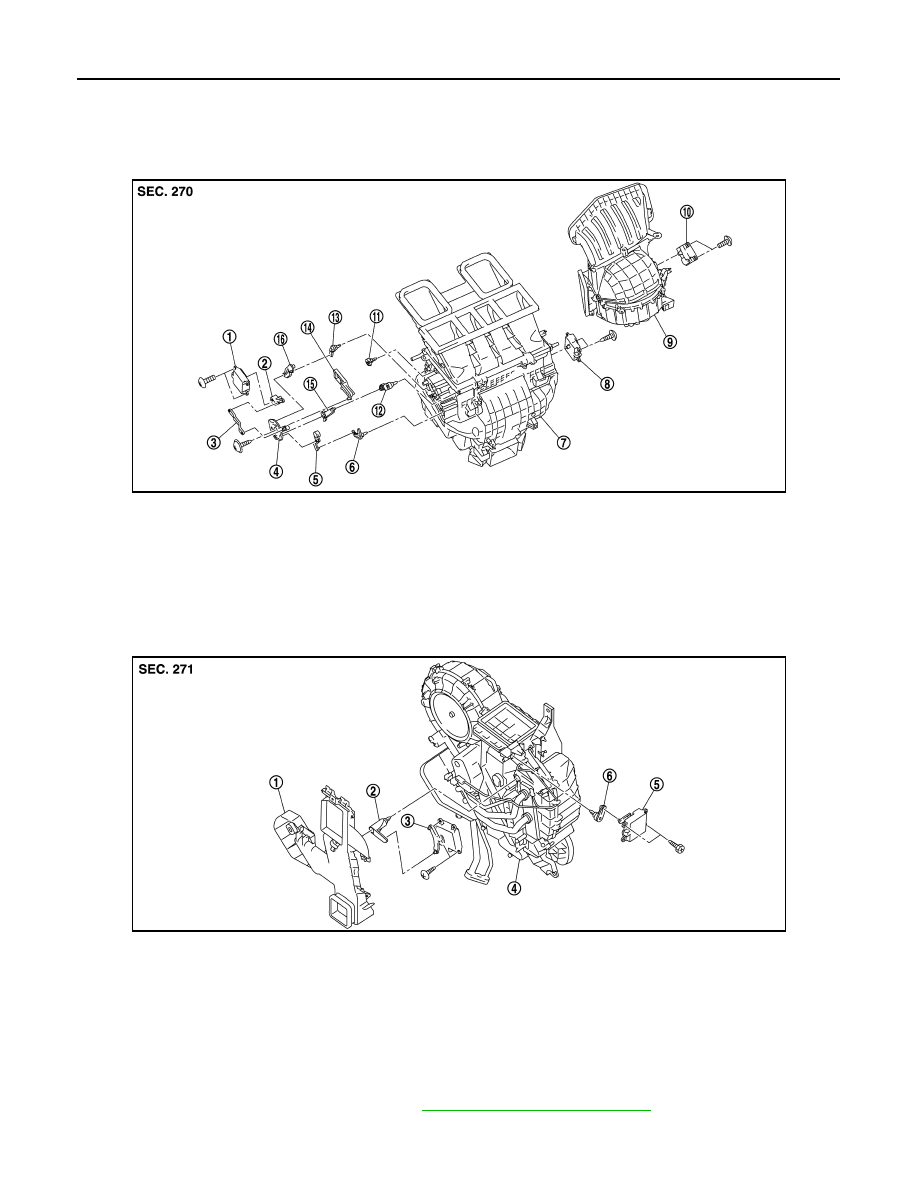

Exploded View

INFOID:0000000009652687

Front A/C unit

Rear A/C unit

FRONT MODE DOOR MOTOR

FRONT MODE DOOR MOTOR : Removal and Installation

INFOID:0000000009652688

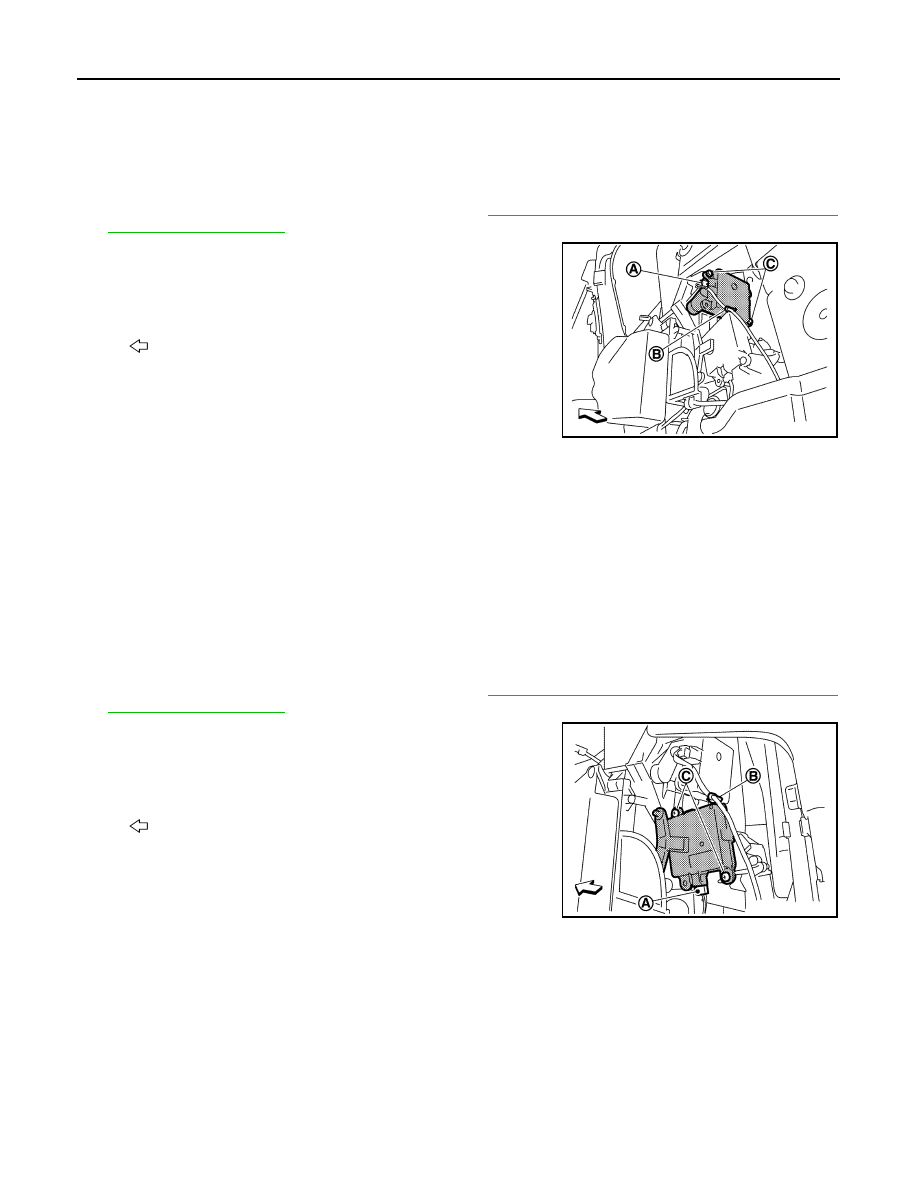

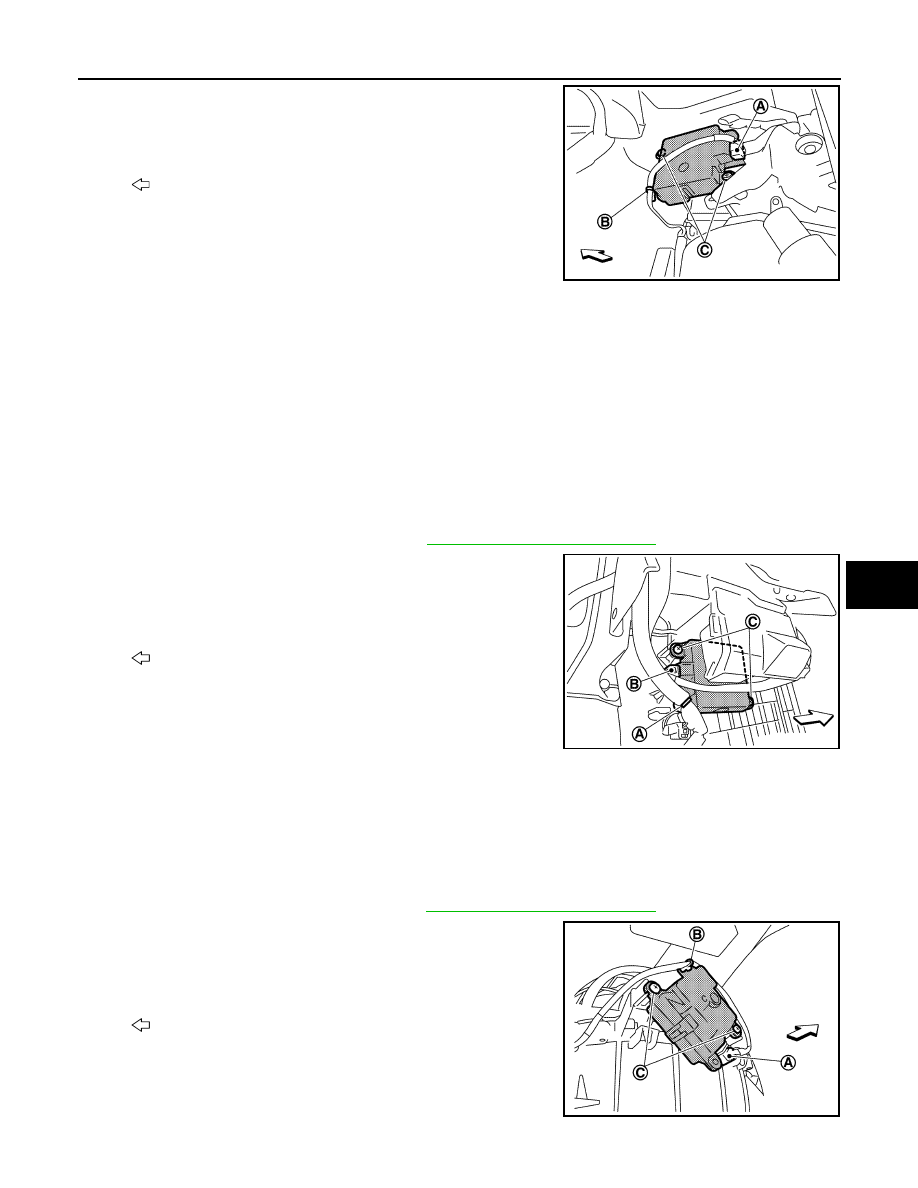

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

JMIIA1856ZZ

1.

Front mode door motor

2.

Front mode door lever

3.

Link rod

4.

Main link

5.

Foot link

6.

Foot lever

7.

Heater & cooling unit assembly

8.

Air mix door motor

9.

Blower unit assembly

10. Intake door motor

11.

Defroster lever

12. Ventilator lever

13. Max. cool lever

14.

Defroster link

15. Ventilator link

16. Max. cool link

JMIIA1121ZZ

1.

Rear foot duct

2.

Rear air mix door lever

3.

Rear air mix door motor

4.

Rear A/C unit assembly

5.

Rear mode door motor

6.

Rear mode door lever

DOOR MOTOR

HAC-243

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

2.

Disconnect harness connector (A), and then remove harness
fixing clip (B).

3.

Remove fixing screws (C), and then remove front mode door
motor from heater & cooling unit assembly.

INSTALLATION

Install in the reverse order of removal.

FRONT AIR MIX DOOR MOTOR

FRONT AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000009652689

REMOVAL

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove instrument lower cover RH. Refer to

IP-14, "Removal and Installation"

4.

Remove harness fixing clip (A), and then disconnect harness
connector (B).

5.

Remove fixing screws (C), and then remove front air mix door
motor from heater & cooling unit assembly.

INSTALLATION

Install in the reverse order of removal.

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000009652690

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-14, "Removal and Installation"

2.

Disconnect harness connector (A), and then remove harness
fixing clip (B).

3.

Remove fixing screws (C), and then remove intake door motor
from blower unit assembly.

INSTALLATION

: Vehicle front

JMIIA1849ZZ

: Vehicle front

JMIIA1851ZZ

: Vehicle front

JMIIA1848ZZ

HAC-244

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR MOTOR

Install in the reverse order of removal.

REAR MODE DOOR MOTOR

REAR MODE DOOR MOTOR : Removal and Installation

INFOID:0000000009652691

REMOVAL

1.

Remove luggage side lower finisher RH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

2.

Disconnect harness connector (A), and then remove harness
fixing clip (B).

3.

Remove fixing screws (C), and then remove rear mode door
motor from rear A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

REAR AIR MIX DOOR MOTOR

REAR AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000009652692

REMOVAL

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove luggage side lower finisher RH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

4.

Disconnect harness connector (A), and then remove harness
fixing clip (B).

5.

Remove fixing screws (C), and then remove rear air mix door
motor from rear A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JMIIA1852ZZ

: Vehicle front

JMIIA1853ZZ
