Nissan Quest E52. Manual - part 777

HAC-238

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

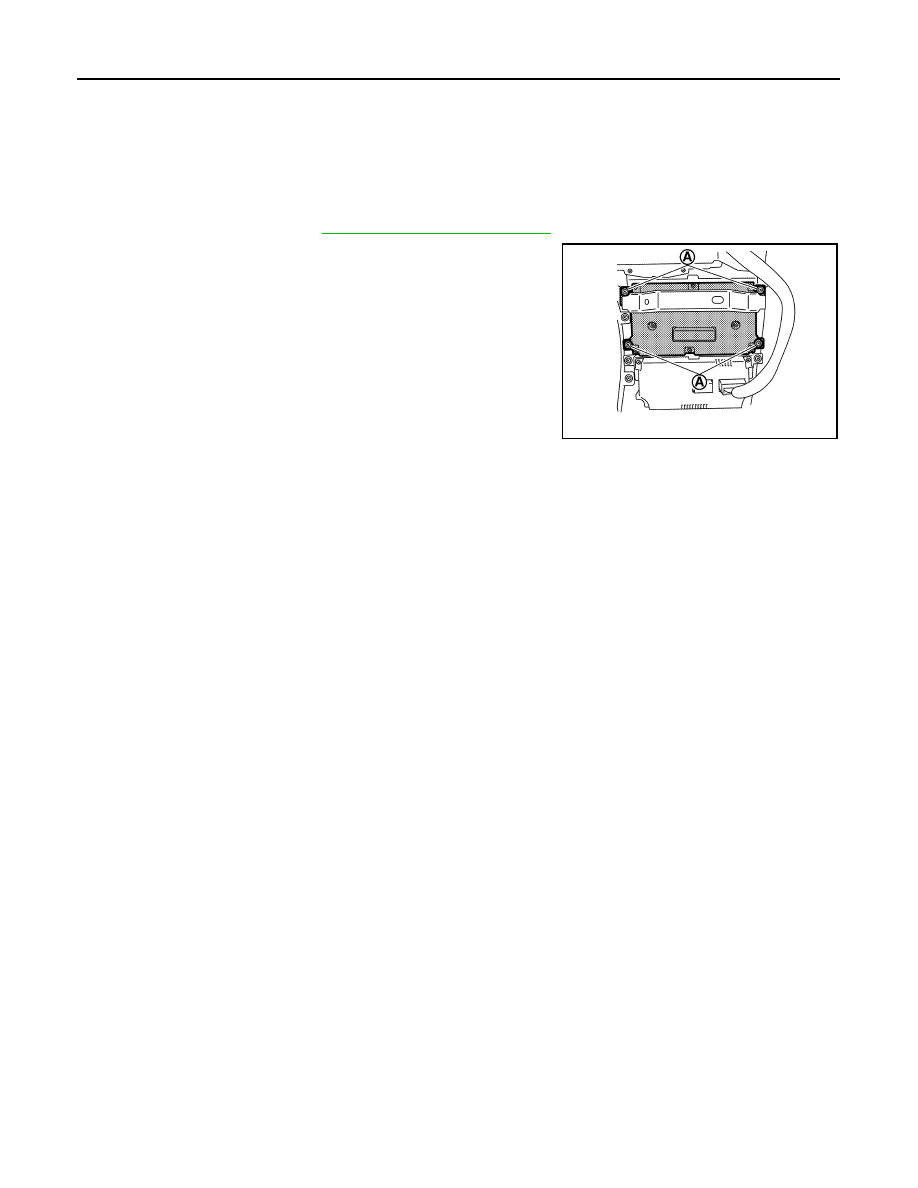

FRONT A/C CONTROL

REMOVAL AND INSTALLATION

FRONT A/C CONTROL

Removal and Installation

INFOID:0000000009652682

REMOVAL

1.

Remove cluster lid C. Refer to

IP-28, "Removal and Installation"

.

2.

Remove fixing screws (A), and then remove front A/C control.

INSTALLATION

Install in the reverse order of removal.

JMIIA1842ZZ

REAR A/C CONTROL

HAC-239

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

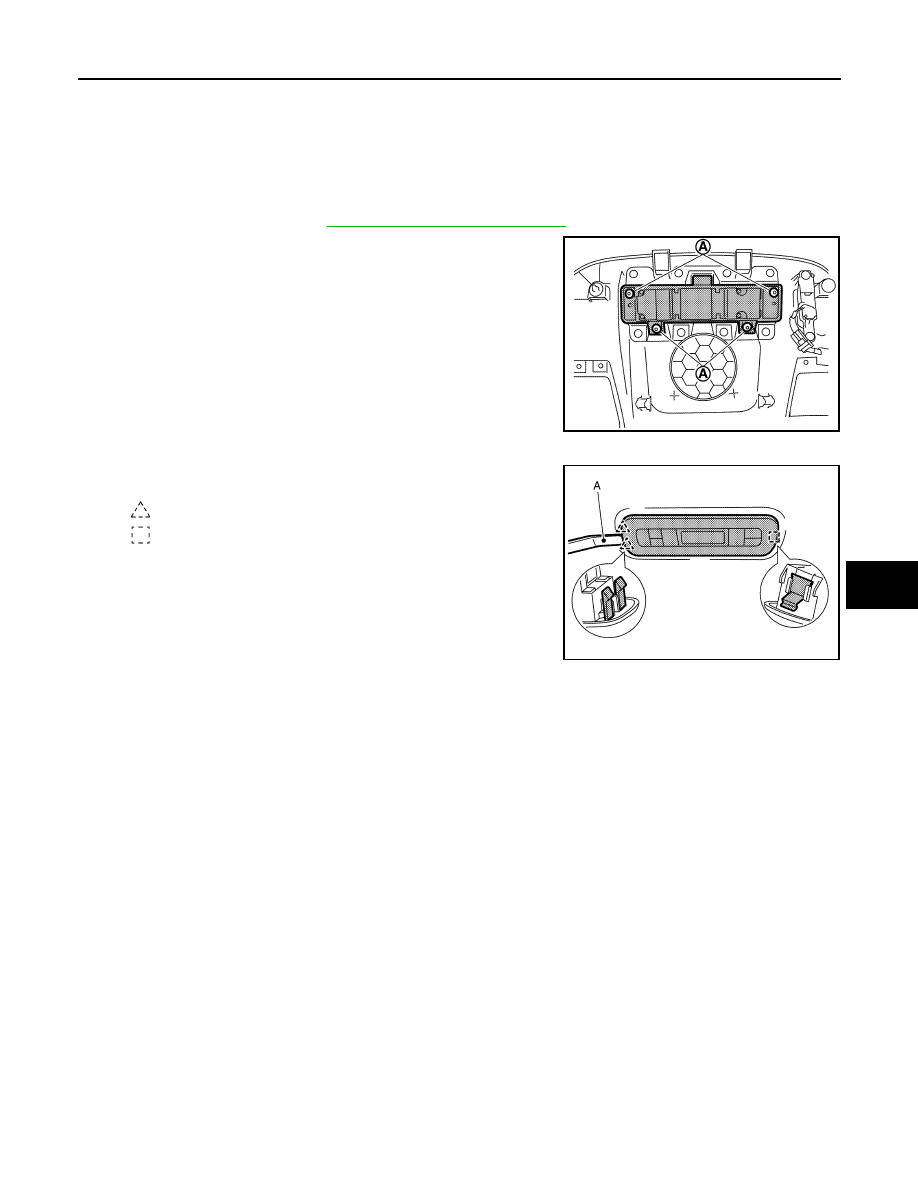

REAR A/C CONTROL

Removal and Installation

INFOID:0000000009652683

REMOVAL

With Rear Display

1.

Remove roof console. Refer to

INT-35, "Removal and Installation"

.

2.

Remove fixing screws (A), and then remove rear A/C control.

Without Rear Display

1.

Disengage fixing pawls and metal clip using a remover tool (A).

2.

Disconnect harness connector, and then remove rear A/C control.

INSTALLATION

Install in the reverse order of removal.

JMIIA1843ZZ

: Pawl

: Metal clip

JMIIA1179ZZ

HAC-240

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000009652684

REMOVAL

1.

Remove evaporator assembly. Refer to

HA-52, "EVAPORATOR : Removal and Installation"

.

2.

Remove intake sensor from evaporator assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply the compressor oil to them when installing.
• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• Never rotate the bracket insertion part when removing and installing the intake sensor.
• Check for leakages when recharging refrigerant. Refer to

HA-18, "Leak Test"

.

REFRIGERANT PRESSURE SENSOR

HAC-241

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000009652685

Refer to

HA-43, "Exploded View"

.

Removal and Installation

INFOID:0000000009652686

REMOVAL

Refer to

HA-45, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.
