EXL-104

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT COMBINATION LAMP

Removal and Installation

INFOID:0000000009653087

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-12, "Removal and Installation"

.

2.

Remove front combination lamp mounting bolts.

3.

Pull out the front combination lamp forward the vehicle, and then disconnect the connector.

4.

Remove front combination lamp.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, perform aiming adjustment. Refer to

EXL-99, "Description"

• After installation, check that headlamp lighting. Refer to

EXL-105, "Inspection After Installation (HID

Control Unit)"

.

Replacement

INFOID:0000000009653088

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB (HI)

1.

Disconnect the halogen bulb connector.

2.

Rotate the halogen bulb socket counterclockwise and unlock it.

3.

Remove halogen bulb socket from the front combination lamp housing assembly.

HEADLAMP BULB (LO)

1.

Rotate the resin cap counterclockwise and unlock it.

2.

Rotate the xenon bulb counterclockwise and unlock it.

3.

Remove retaining spring lock, and then remove xenon bulb from the front combination lamp housing
assembly.

CAUTION:

Never break the xenon bulb ceramic tube when replacing the bulb.

FRONT TURN SIGNAL LAMP/PARKING LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

FRONT SIDE MARKER LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

Disassembly and Assembly

INFOID:0000000009653089

DISASSEMBLY

1.

Rotate the resin cap counterclockwise and unlock it.

2.

Rotate the xenon bulb socket counterclockwise and unlock it.

3.

Remove the retaining spring lock, and then remove the xenon bulb.

13.

Retaining spring

: Always replace after every disassembly.

FRONT COMBINATION LAMP

EXL-105

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

4.

Rotate the halogen bulb socket counterclockwise and unlock it.

5.

Remove halogen bulb socket from the front combination lamp assembly.

6.

Rotate the front turn signal lamp/parking lamp bulb socket counterclockwise and unlock it.

7.

Remove front turn signal lamp/parking lamp bulb.

8.

Rotate the front side marker lamp bulb socket counterclockwise and unlock it.

9.

Remove the bulb from the front side marker lamp bulb socket.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

After installing the bulb, install the resin cap, back cover and the bulb socket securely for watertight-
ness.

Inspection After Installation (HID Control Unit)

INFOID:0000000009653090

CAUTION:

Temporarily install the headlamp on the vehicle. Connect the battery to the connector (vehicle side)
when checking ON/OFF status.

XENON HEADLAMP LIGHTING CHECK

When recycled HID Control Unit, check the following, when there is abnormality replace the HID Control Unit.
1.

Xenon bulb is cold condition (turn OFF more than 10 minutes), and repetition does headlamp turned ON/
OFF, check that a headlamp illuminated it surely.

2.

Headlamp is turn ON until the xenon bulb becomes stable condition (for about 5 minutes) from cold condi-
tion, check that there are not on and off light, abnormality such as blinking.

3.

Xenon bulb is warm condition (turn ON more than 15 minutes and turn OFF for 1 minute), and repetition
does headlamp turned ON/OFF, check that a headlamp illuminated it surely.

4.

Headlamp is turn ON for about 30 minutes, check that there are not on and off light, abnormality such as
blinking whether brightness of right and left does not have a difference.

EXL-106

< REMOVAL AND INSTALLATION >

[XENON TYPE]

FRONT FOG LAMP

FRONT FOG LAMP

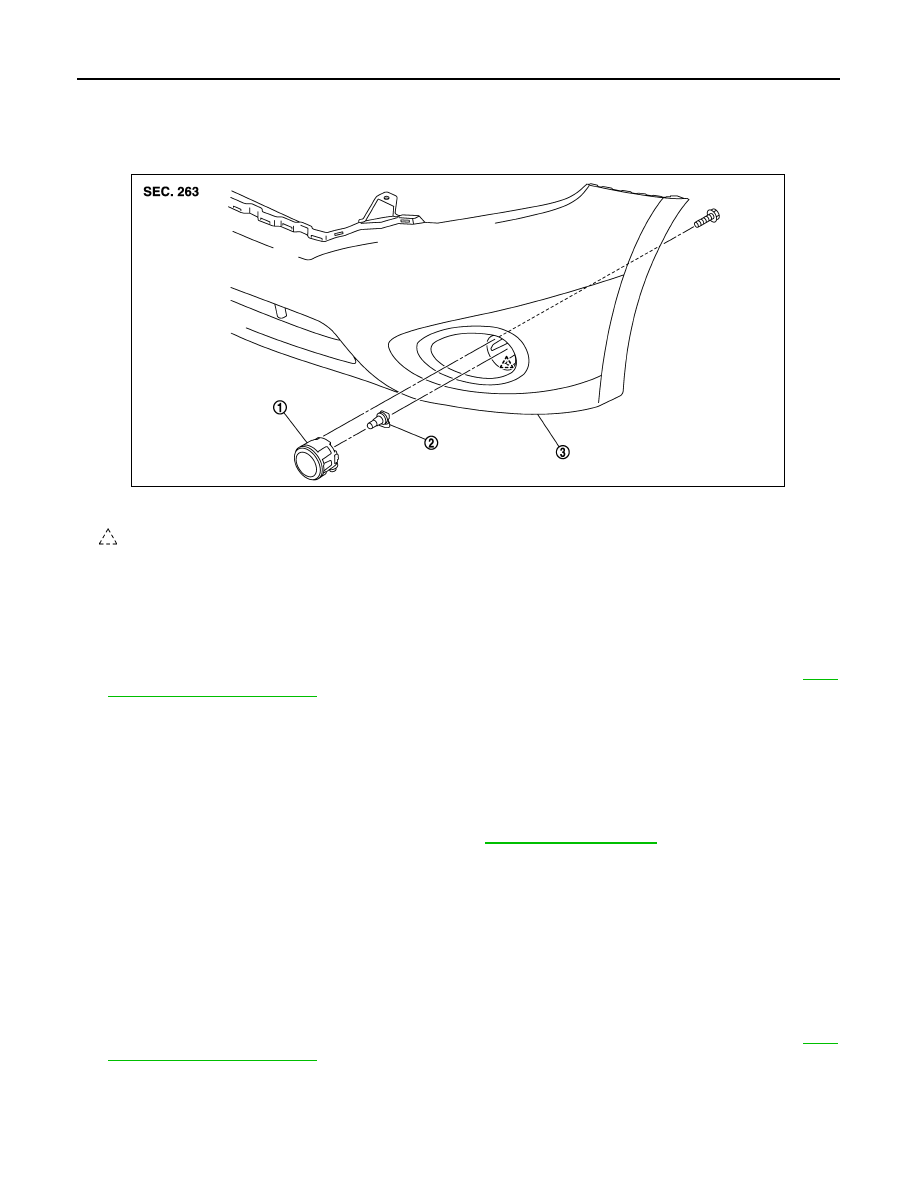

Exploded View

INFOID:0000000009653091

Removal and Installation

INFOID:0000000009653092

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove front fender protector (front) fixing screws and clips, and then keep a service area. Refer to

EXT-

23, "Removal and Installation"

.

2.

Disconnect front fog lamp connector.

3.

Remove front fog lamp mounting bolt.

4.

Disengage fixing pawl, and then remove front fog lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, perform aiming adjustment. Refer to

EXL-101, "Description"

.

Replacement

INFOID:0000000009653093

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove front fender protector (front) fixing screws and clips, and then keep a service area. Refer to

EXT-

23, "Removal and Installation"

.

1.

Front fog lamp

2.

Halogen bulb

3.

Front bumper fascia

: Pawl

JMLIA1457ZZ

FRONT FOG LAMP

EXL-107

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

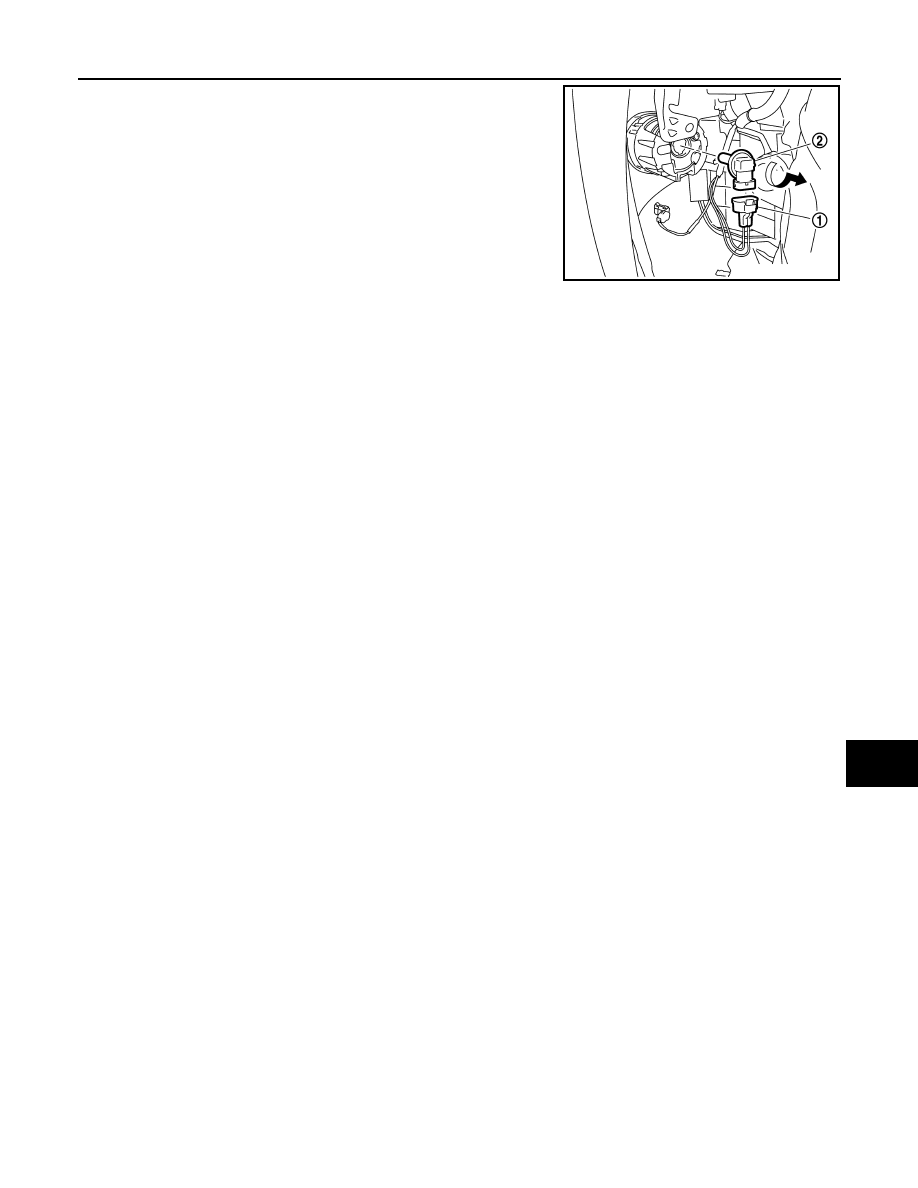

2.

Disconnect front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

JPLIA0921ZZ
