HOW TO SELECT PISTON AND BEARING

EM-125

< UNIT DISASSEMBLY AND ASSEMBLY >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

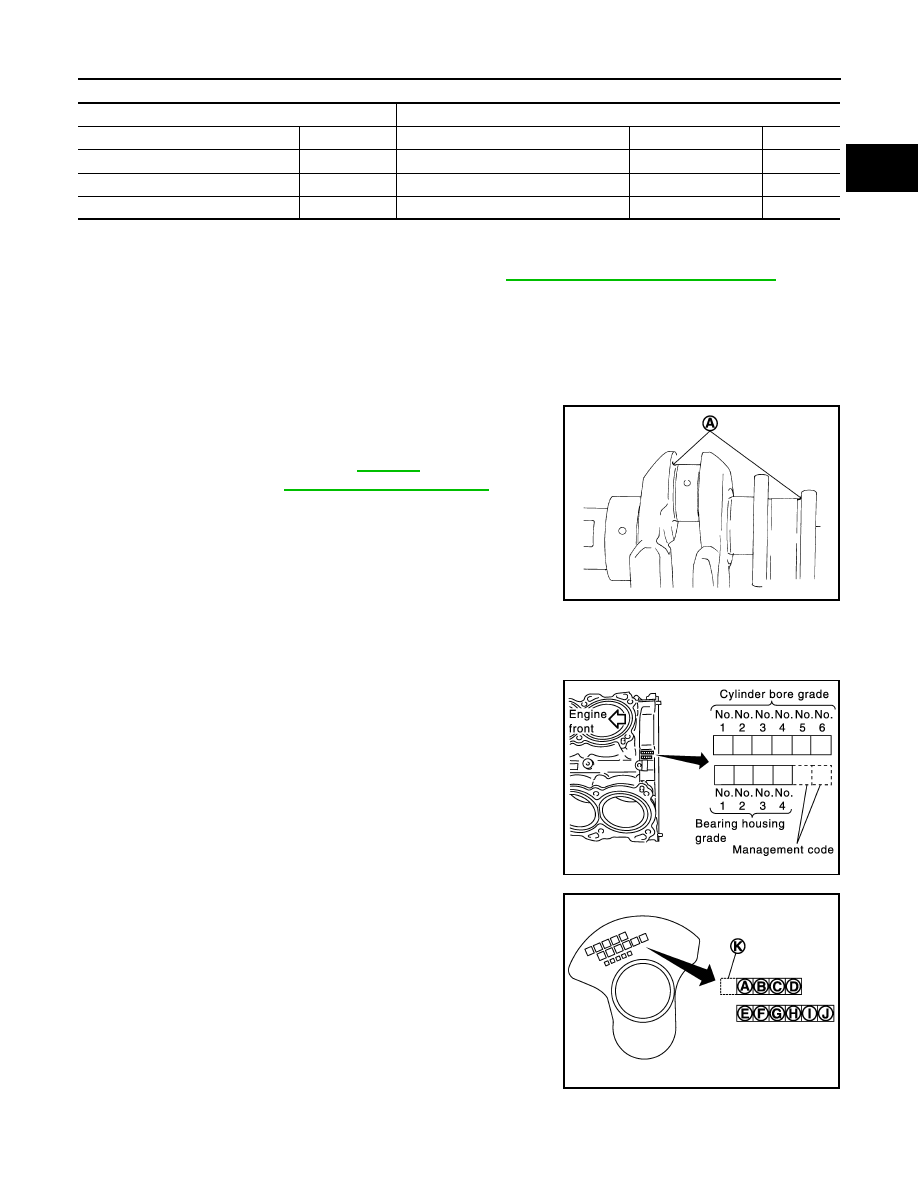

CONNECTING ROD BEARING GRADE TABLE

UNDERSIZE BEARING USAGE GUIDE

• When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod

bearings, use undersize (US) bearings.

• When using undersize (US) bearing, measure the connecting rod bearing inner diameter with bearing

installed, and grind crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.

CAUTION:

In grinding crankshaft pin to use undersize bearings, keep the
fillet R (A) [1.5 - 1.7 mm (0.059 - 0.067 in)].

Main Bearing

INFOID:0000000009652804

WHEN NEW CYLINDER BLOCK AND CRANKSHAFT ARE USED

1.

“MAIN BEARING SELECTION TABLE” rows correspond to
bearing housing grade on rear left side of cylinder block.

2.

“MAIN BEARING SELECTION TABLE” columns correspond to
journal diameter grade on front side of crankshaft.

Crankshaft

Connecting rod bearing

Crankshaft pin journal diameter

Grade (Mark)

Dimension (Bearing thickness range)

Bearing grade No.

Color

51.968 - 51.974 (2.0460 - 2.0462)

0

1.500 - 1.503 (0.0591 - 0.0592)

STD 0

Black

51.962 - 51.968 (2.0457 - 2.0460)

1

1.503 - 1.506 (0.0592 - 0.0593)

STD 1

Brown

51.956 - 51.962 (2.0455 - 2.0457)

2

1.506 - 1.509 (0.0593 - 0.0594)

STD 2

Green

Connecting rod bearing grade table

: Refer to

EM-137, "Connecting Rod Bearing"

.

Bearing undersize
table

: Refer to

EM-137,

"Connecting Rod Bearing"

.

JPBIA0216ZZ

SEM756G

A

: Journal diameter grade No. 1

B

: Journal diameter grade No. 2

C

: Journal diameter grade No. 3

D

: Journal diameter grade No. 4

E

: Pin diameter grade No. 1

F

: Pin diameter grade No. 2

G

: Pin diameter grade No. 3

H

: Pin diameter grade No. 4

I

: Pin diameter grade No. 5

JPBIA0269ZZ

EM-126

< UNIT DISASSEMBLY AND ASSEMBLY >

[VQ35DE]

HOW TO SELECT PISTON AND BEARING

3.

Select main bearing grade at the point where selected row and column meet in “MAIN BEARING SELEC-
TION TABLE”.

4.

Apply sign at crossing in above step 3 to “MAIN BEARING GRADE TABLE”.
NOTE:
• “MAIN BEARING GRADE TABLE” applies to all journals.
• Service parts is available as a set of both upper and lower.

WHEN CYLINDER BLOCK AND CRANKSHAFT ARE REUSED

1.

Measure cylinder block main bearing housing inner diameter and crankshaft main journal diameter. Refer
to

EM-113, "Inspection"

.

2.

Correspond the measured dimension in “Cylinder block main bearing housing inner diameter” row of
“MAIN BEARING SELECTION TABLE”.

3.

Correspond the measured dimension in “Crankshaft main journal diameter” column of “MAIN BEARING
SELECTION TABLE”.

4.

Follow step 3 and later in “When New Cylinder Block and Crankshaft are Used”.

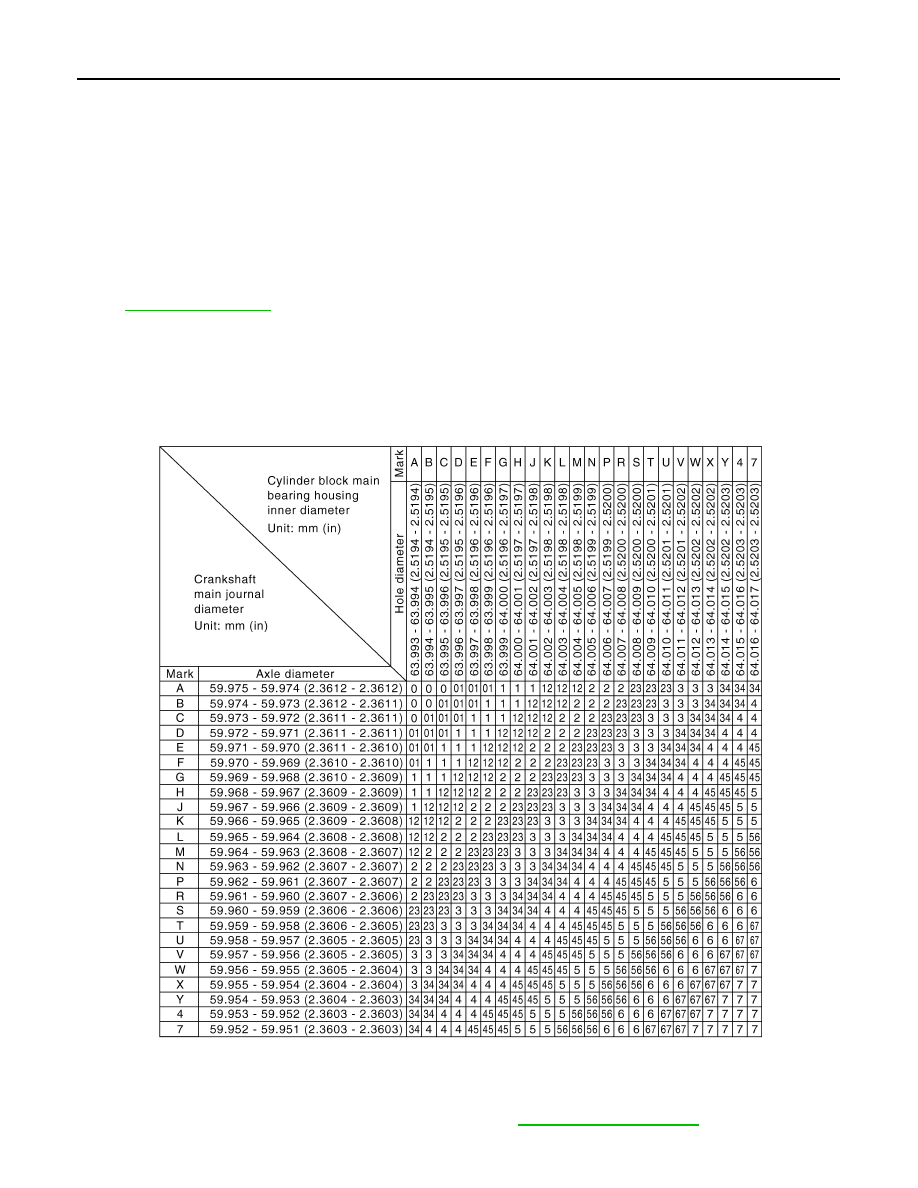

MAIN BEARING SELECTION TABLE

MAIN BEARING GRADE TABLE (ALL JOURNALS)

J

: Pin diameter grade No. 6

K

: Identification code

PBIC5332E

Main bearing grade table (All journals)

: Refer to

EM-136, "Main Bearing"

.

HOW TO SELECT PISTON AND BEARING

EM-127

< UNIT DISASSEMBLY AND ASSEMBLY >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

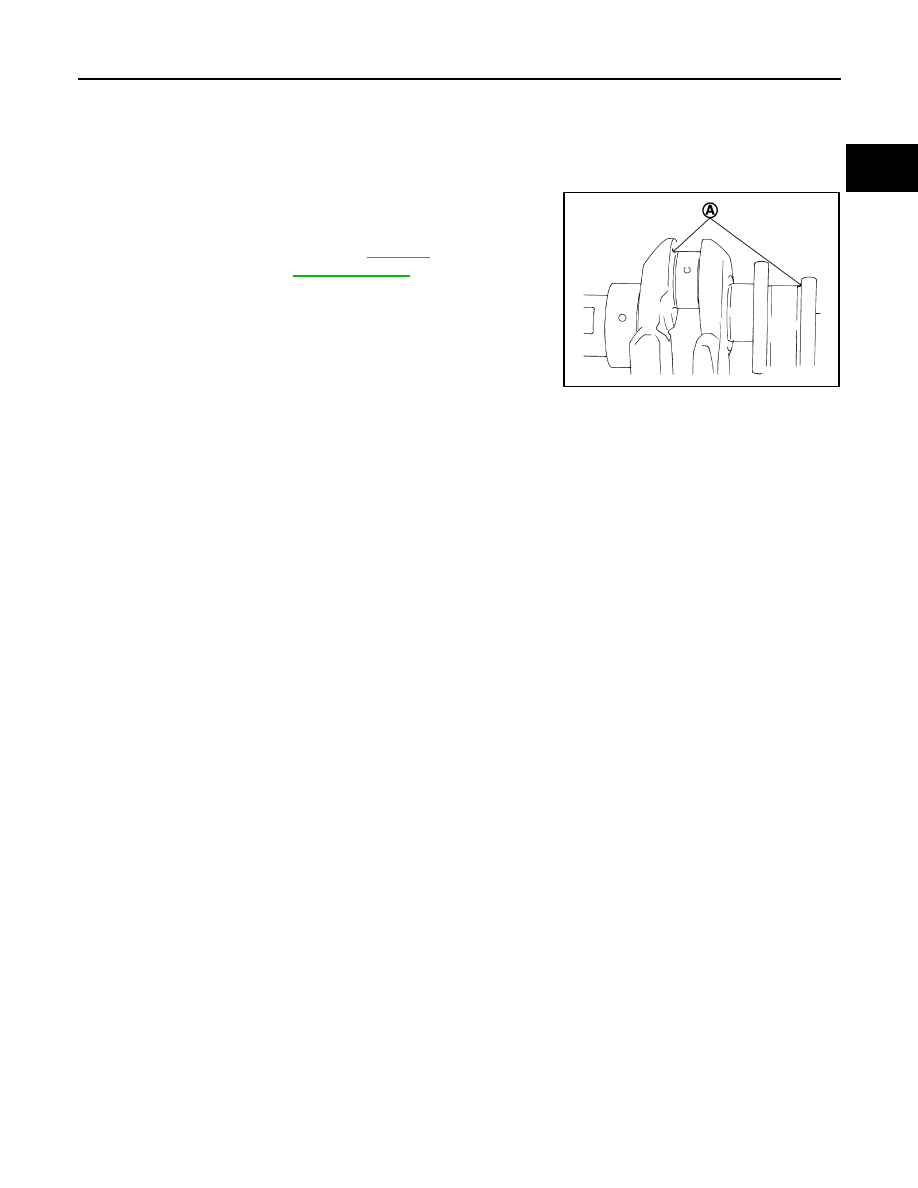

UNDERSIZE BEARING USAGE GUIDE

• When the specified main bearing oil clearance is not obtained with standard size main bearings, use under-

side (US) bearing.

• When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and

grind main journal so that the main bearing oil clearance satisfies the standard.

CAUTION:

In grinding crankshaft main journal to use undersize bearings,
keep the fillet R (A) [1.5 - 1.7 mm (0.059 - 0.067 in)].

Bearing undersize
table

: Refer to

EM-136,

"Main Bearing"

.

JPBIA0216ZZ

EM-128

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VQ35DE]

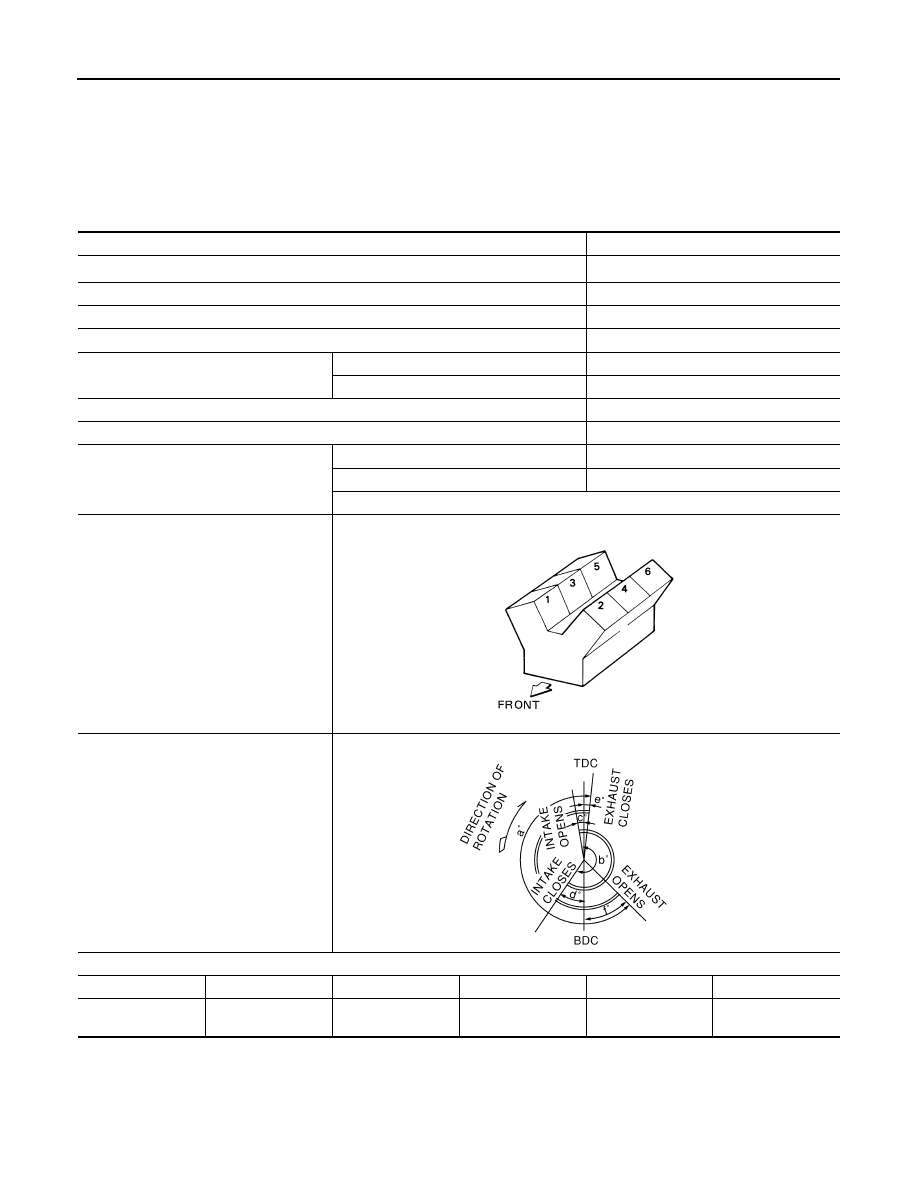

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009652805

GENERAL SPECIFICATIONS

Drive Belt

INFOID:0000000009652806

DRIVE BELT

Cylinder arrangement

V-6

Displacement

cm

3

 (cu in)

3,498 (213.45)

Bore and stroke

mm (in)

95.5 x 81.4 (3.760 x 3.205)

Valve arrangement

DOHC

Firing order

1-2-3-4-5-6

Number of piston rings

Compression

2

Oil

1

Number of main bearings

4

Compression ratio

10.3

Compression pressure

kPa (kg/cm

2

, psi)/300 rpm

Standard

1,275 (13.0, 185)

Minimum

981 (10.0, 142)

Differential limit between cylinders

98 (1.0, 14)

Cylinder number

Valve timing
(Valve timing control - “ON”)

Unit: degree

a

b

c

d

e

f

240

240

10 (–35)

ATDC

70 (25)

ABDC

10

50

SEM713A
