Nissan Quest E52. Manual - part 544





EC-386

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P1801 VIAS CONTROL SOLENOID VALVE 2

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK VIAS CONTROL SOLENOID VALVE 2

Check VIAS control solenoid valve 2. Refer to

EC-386, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace VIAS control solenoid valve 2. Refer to

EM-28, "Exploded View"

.

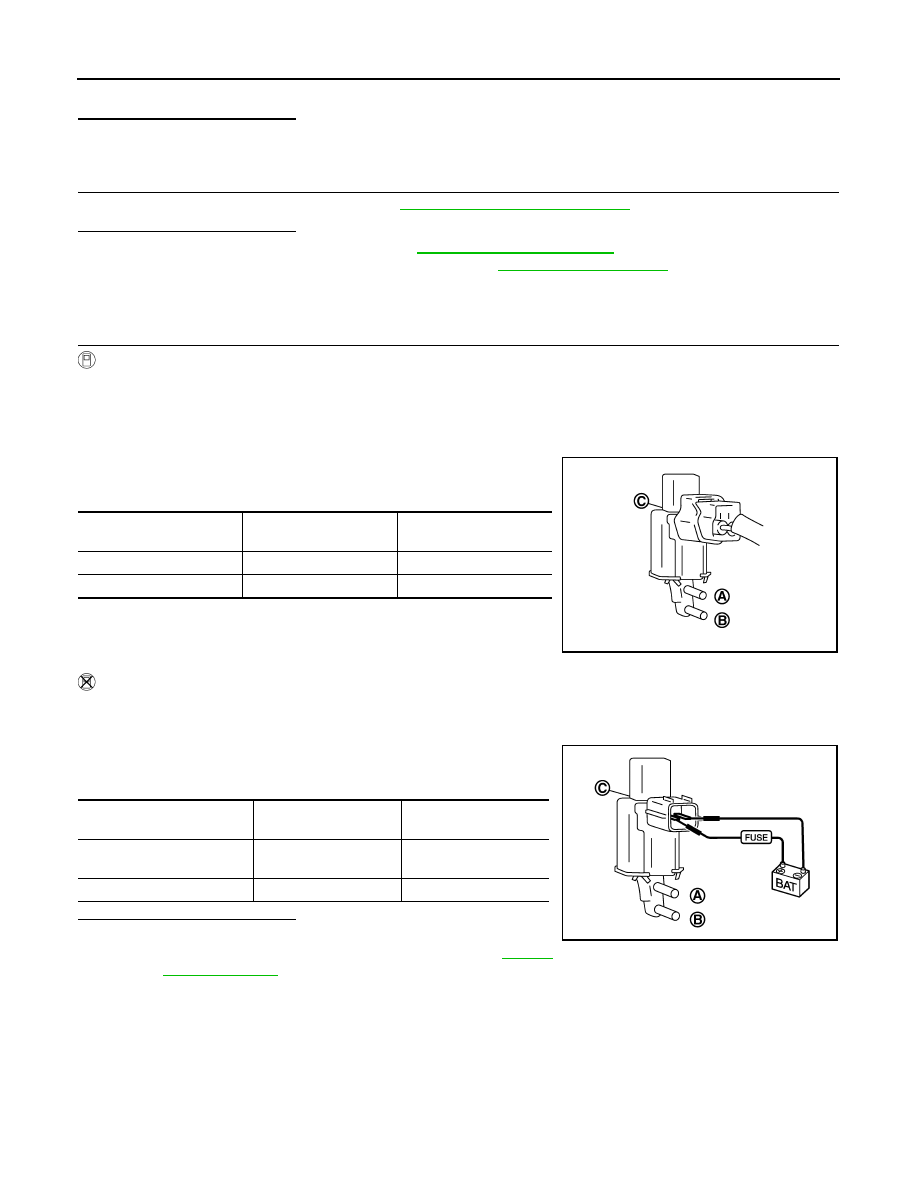

Component Inspection

INFOID:0000000009651241

1.

CHECK VIAS CONTROL SOLENOID VALVE 2

With CONSULT

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Disconnect vacuum hoses connected to VIAS control solenoid valve 2.

4.

Turn ignition switch ON.

5.

Select “VIAS S/V-2” in “ACTIVE TEST” mode with CONSULT.

6.

Check air passage continuity and operation delay time under the
following conditions.

Without CONSULT

1.

Turn ignition switch OFF.

2.

Disconnect VIAS control solenoid valve 2 harness connector.

3.

Disconnect vacuum hoses connected to VIAS volume control solenoid valve 2.

4.

Check air passage continuity and operation delay time under the
following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace VIAS control solenoid valve 2. Refer to

EM-28,

"Exploded View"

.

Condition

(VIAS S/V-2)

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

ON

Existed

Not existed

OFF

Not existed

Existed

JMBIA0180ZZ

Condition

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

12 V direct current supply be-
tween terminals 1 and 2

Existed

Not existed

No supply

Not existed

Existed

PBIB2532E

P1805 BRAKE SWITCH

EC-387

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1805 BRAKE SWITCH

Description

INFOID:0000000009651242

Brake switch signal is applied to the ECM via the stop lamp switch when the brake pedal is depressed. This
signal is used mainly to decrease the engine speed when the vehicle is driven.

DTC Logic

INFOID:0000000009651243

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Fully depress the brake pedal for at least 5 seconds.

3.

Erase the DTC with CONSULT.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-387, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009651244

1.

CHECK STOP LAMP SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Check the stop lamp when depressing and releasing the brake pedal.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> GO TO 2.

2.

CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

1.

Disconnect stop lamp switch harness connector.

2.

Check the voltage between stop lamp switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Fuse block (J/B) connector E103
• 10 A fuse (No. 7)

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1805

Brake switch

A brake switch signal is not sent to ECM for ex-
tremely long time while the vehicle is driving.

• Harness or connectors

(Stop lamp switch circuit is open or short-
ed.)

• Stop lamp switch

Brake pedal

Stop lamp

Fully released

Not illuminated

Slightly depressed

Illuminated

Stop lamp switch

Ground

Voltage

Connector

Terminal

E115

1

Ground

Battery voltage

EC-388

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P1805 BRAKE SWITCH

• Harness for open or short between battery and stop lamp switch

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK STOP LAMP RELAY GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp relay harness connector.

3.

Check the continuity between stop lamp relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT

1.

Connect stop lamp switch harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between stop lamp relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.
• Harness for open or short between stop lamp switch and stop lamp relay

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK STOP LAMP RELAY POWER SUPPLY CIRCUIT

Check the voltage between stop lamp relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK STOP LAMP RELAY INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp relay harness connector.

3.

Check the continuity between stop lamp relay harness connector and ECM harness connector.

Stop lamp relay

Ground

Continuity

Connector

Terminal

E15

1

Ground

Existed

Stop lamp relay

Ground

Condition

Voltage (V)

Connector

Terminal

E15

2

Ground

Brake
pedal

Slightly de-
pressed

Battery voltage

Fully released

Approx. 0

Stop lamp relay

Ground

Voltage (V)

Connector

Terminal

E15

5

Ground

Battery voltage

P1805 BRAKE SWITCH

EC-389

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK STOP LAMP SWITCH

Refer to

EC-389, "Component Inspection (Stop Lamp Switch)"

.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Replace stop lamp switch.

10.

CHECK STOP LAMP RELAY

Refer to

EC-390, "Component Inspection (Stop Lamp Relay)"

.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Replace stop lamp relay.

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection (Stop Lamp Switch)

INFOID:0000000009651245

1.

CHECK STOP LAMP SWITCH-I

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check harness continuity between stop lamp switch terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK STOP LAMP SWITCH-II

1.

Adjust stop lamp switch installation. Refer to

BR-7, "Inspection and Adjustment"

.

2.

Check harness continuity between stop lamp switch terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace stop lamp switch. Refer to

BR-18, "Exploded View"

.

ECM

Stop lamp relay

Continuity

Connector

Terminal

Connector

Terminal

E16

122

E15

3

Existed

Terminals

Condition

Continuity

1 and 2

Brake pedal

Fully released

Not existed

Slightly depressed

Existed

Terminals

Condition

Continuity

1 and 2

Brake pedal

Fully released

Not existed

Slightly depressed

Existed
