Nissan Quest E52. Manual - part 543





EC-382

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)

P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)

Description

INFOID:0000000009651233

ECM receives input speed sensor signal from TCM via the CAN communication line. ECM uses this signal for
engine control.

DTC Logic

INFOID:0000000009651234

DTC DETECTION LOGIC

NOTE:
• If DTC P1715 is displayed with DTC UXXXX first perform the trouble diagnosis for DTC UXXXX.
• If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335. Refer

to

EC-271, "DTC Logic"

.

• If DTC P1715 is displayed with DTC P0340, P0345, first perform the trouble diagnosis for DTC P0340,

P0345. Refer to

EC-274, "DTC Logic"

.

• If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer

to

EC-335, "DTC Logic"

.

• If DTC P1715 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-336, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine.

2.

Drive vehicle at a speed of more than 50 km/h (31 MPH) for at least 5 seconds.

3.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-382, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009651235

1.

CHECK DTC WITH TCM

Check DTC with TCM. Refer to

TM-48, "DTC Index"

.

Is the inspection result normal?

YES

>> Replace TCM. Refer to

TM-158, "Exploded View"

.

NO

>> Perform trouble shooting relevant to DTC indicated.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1715

Input speed sensor
(TCM output)

Input speed sensor signal is different from
the theoretical value calculated by ECM
from output speed sensor signal and en-
gine rpm signal.

• Harness or connectors

(The CAN communication line is open or short-
ed)

• Harness or connectors

(Input speed sensor circuit is open or shorted)

• TCM

P1800 VIAS CONTROL SOLENOID VALVE 1

EC-383

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1800 VIAS CONTROL SOLENOID VALVE 1

DTC Logic

INFOID:0000000009651236

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm battery voltage is more than 11 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-383, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009651237

1.

CHECK VIAS CONTROL SOLENOID VALVE 1 POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect VIAS control solenoid valve 1 harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between VIAS control solenoid valve 1 harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

2.

CHECK VIAS CONTROL SOLENOID VALVE 1 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between VIAS control solenoid valve 1 harness connector and ECM harness con-
nector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1800

VIAS control solenoid valve 1
circuit

An excessively low or high voltage signal
is sent to ECM through the VIAS control
solenoid valve 1.

• Harness or connectors

(The solenoid valve 1 circuit is open or
shorted.)

• VIAS control solenoid valve 1

VIAS control solenoid valve 1

Ground

Voltage

Connector

Terminal

F74

1

Ground

Battery voltage

VIAS control solenoid valve 1

ECM

Continuity

Connector

Terminal

Connector

Terminal

F74

2

F7

39

Existed

EC-384

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P1800 VIAS CONTROL SOLENOID VALVE 1

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK VIAS CONTROL SOLENOID VALVE 1

Check VIAS control solenoid valve 1. Refer to

EC-384, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace VIAS control solenoid valve 1. Refer to

EM-28, "Exploded View"

.

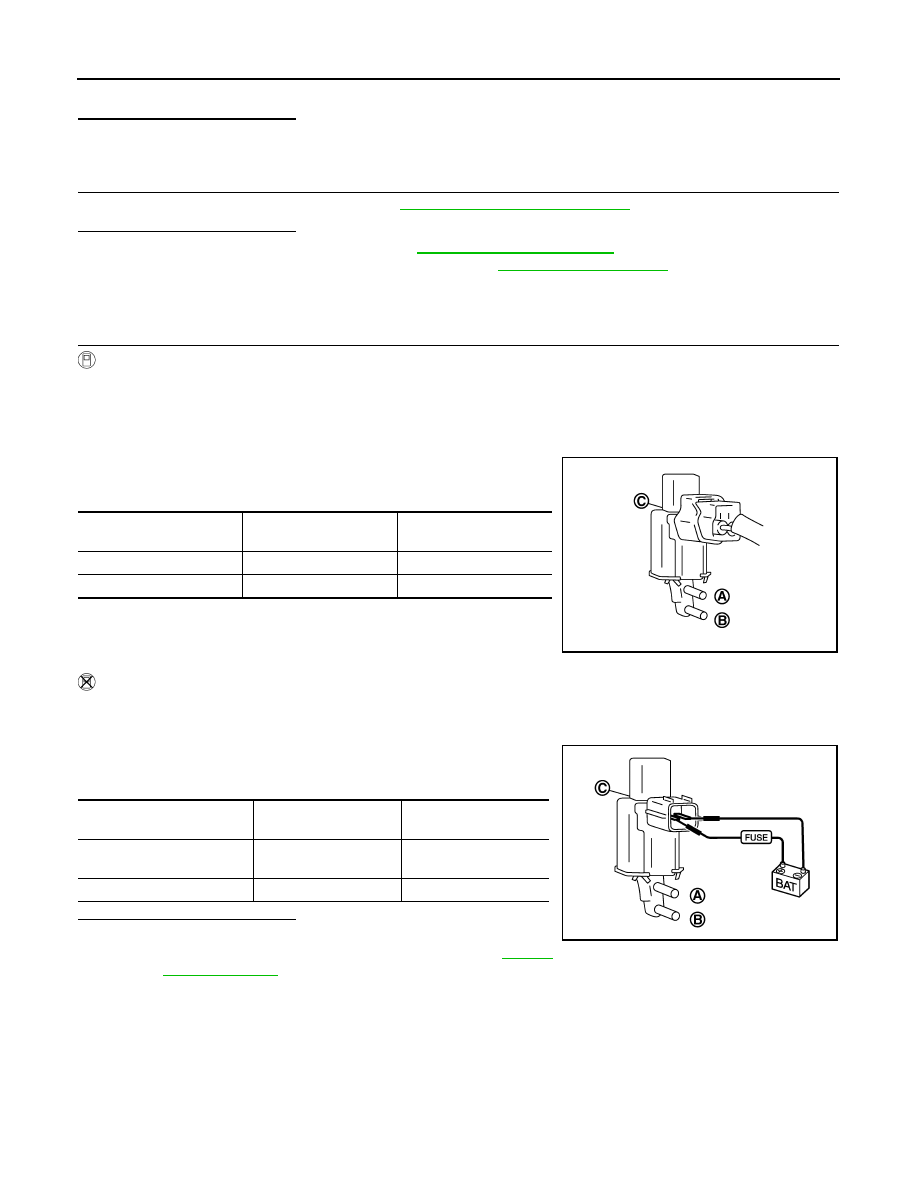

Component Inspection

INFOID:0000000009651238

1.

CHECK VIAS CONTROL SOLENOID VALVE 1

With CONSULT

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Disconnect vacuum hoses connected to VIAS control solenoid valve 1.

4.

Turn ignition switch ON.

5.

Select “VIAS S/V-1” in “ACTIVE TEST” mode with CONSULT.

6.

Check air passage continuity and operation delay time under the
following conditions.

Without CONSULT

1.

Turn ignition switch OFF.

2.

Disconnect VIAS control solenoid valve 1 harness connector.

3.

Disconnect vacuum hoses connected to VIAS volume control solenoid valve 1.

4.

Check air passage continuity and operation delay time under the
following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace VIAS control solenoid valve 1. Refer to

EM-28,

"Exploded View"

.

Condition

(VIAS S/V-1)

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

ON

Existed

Not existed

OFF

Not existed

Existed

JMBIA0180ZZ

Condition

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

12 V direct current supply be-
tween terminals 1 and 2

Existed

Not existed

No supply

Not existed

Existed

PBIB2532E

P1801 VIAS CONTROL SOLENOID VALVE 2

EC-385

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1801 VIAS CONTROL SOLENOID VALVE 2

DTC Logic

INFOID:0000000009651239

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm battery voltage is more than 11 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-385, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009651240

1.

CHECK VIAS CONTROL SOLENOID VALVE 2 POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect VIAS control solenoid valve 2 harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between VIAS control solenoid valve 2 harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

2.

CHECK VIAS CONTROL SOLENOID VALVE 2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between VIAS control solenoid valve 2 harness connector and ECM harness con-
nector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1801

VIAS control solenoid valve 2
circuit

An excessively low or high voltage signal
is sent to ECM through the VIAS control
solenoid valve 2.

• Harness or connectors

(The solenoid valve 2 circuit is open or
shorted.)

• VIAS control solenoid valve 2

VIAS control solenoid valve 2

Ground

Voltage

Connector

Terminal

F75

1

Ground

Battery voltage

VIAS control solenoid valve 2

ECM

Continuity

Connector

Terminal

Connector

Terminal

F75

2

F7

40

Existed
