EC-274

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0340, P0345 CMP SENSOR (PHASE)

P0340, P0345 CMP SENSOR (PHASE)

DTC Logic

INFOID:0000000009651116

DTC DETECTION LOGIC

NOTE:
If DTC P0340 or P0345 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to

EC-337, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V with igni-
tion switch ON.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE-I

1.

Start engine and let it idle for at least 5 seconds.
If engine does not start, crank engine for at least 2 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-274, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-I

1.

Maintaining engine speed at more than 800 rpm for at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-274, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009651117

1.

CHECK STARTING SYSTEM

Turn ignition switch to START position.
Does the engine turn over? Does the starter motor operate?

YES

>> GO TO 2.

NO

>> Check starting system. Refer to

STR-9, "Work Flow (With GR8-1200 NI)"

 or

STR-12, "Work Flow

(Without GR8-1200 NI)"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0340

Camshaft position sen-
sor (PHASE) (bank 1)
circuit

• The cylinder No. signal is not sent to ECM for

the first few seconds during engine cranking.

• The cylinder No. signal is not sent to ECM

during engine running.

• The cylinder No. signal is not in the normal

pattern during engine running.

• Harness or connectors

(The sensor circuit is open or shorted)

• Camshaft position sensor (PHASE)
• Camshaft (INT)
• Starter motor (Refer to

STR-5, "System

Description"

.)

• Starting system circuit (Refer to

STR-5,

"System Description"

.)

• Dead (Weak) battery

P0345

Camshaft position sen-
sor (PHASE) (bank 2)
circuit

P0340, P0345 CMP SENSOR (PHASE)

EC-275

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY

1.

Disconnect camshaft position (CMP) sensor (PHASE) harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between CMP sensor (PHASE) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

5.

CHECK CAMSHAFT POSITION SENSOR (PHASE)

Check camshaft position sensor (PHASE). Refer to

EC-276, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace malfunctioning camshaft position sensor (PHASE). Refer to

EM-52, "Exploded View"

.

6.

CHECK CAMSHAFT (INT)

Check the following.

DTC

CMP sensor (PHASE)

Ground

Voltage (V)

Bank

Connector

Terminal

P0340

1

F26

1

Ground

Approx. 5

P0345

2

F69

1

DTC

CMP sensor (PHASE)

ECM

Continuity

Bank

Connector

Terminal

Connector

Terminal

P0340

1

F26

2

F8

88

Existed

P0345

2

F69

2

92

DTC

CMP sensor (PHASE)

ECM

Continuity

Bank

Connector

Terminal

Connector

Terminal

P0340

1

F26

3

F8

94

Existed

P0345

2

F69

3

93

EC-276

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0340, P0345 CMP SENSOR (PHASE)

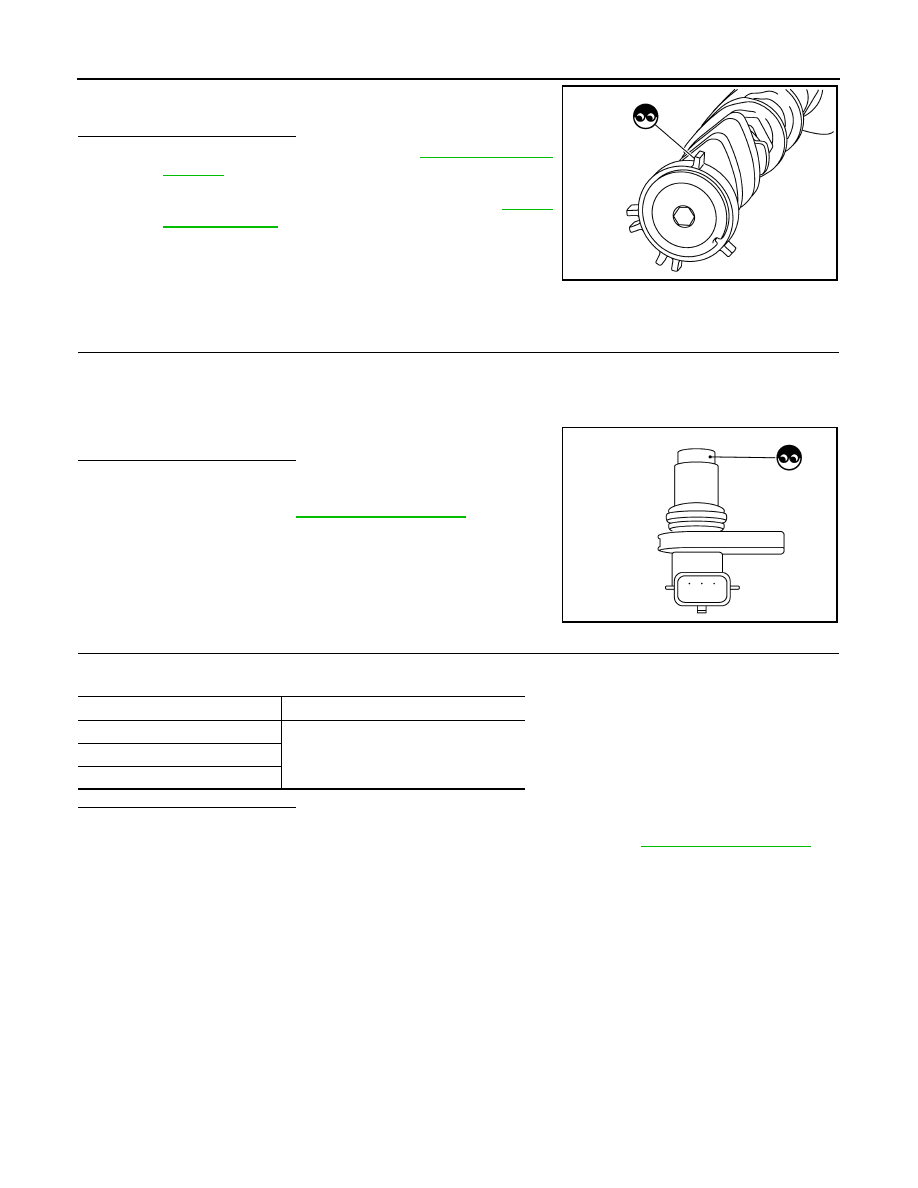

• Accumulation of debris to the signal plate of camshaft rear end
• Chipping signal plate of camshaft rear end
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent

Incident"

.

NO

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft. Refer to

EM-84,

"Exploded View"

.

Component Inspection

INFOID:0000000009651118

1.

CHECK CAMSHAFT POSITION SENSOR (PHASE)-I

1.

Turn ignition switch OFF.

2.

Loosen the fixing bolt of the sensor.

3.

Disconnect camshaft position sensor (PHASE) harness connector.

4.

Remove the sensor.

5.

Visually check the sensor for chipping.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace malfunctioning camshaft position sensor

(PHASE). Refer to

EM-52, "Exploded View"

.

2.

CHECK CAMSHAFT POSITION SENSOR (PHASE)-II

Check resistance camshaft position sensor (PHASE) terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning camshaft position sensor (PHASE). Refer to

EM-52, "Exploded View"

.

JMBIA0058ZZ

JMBIA0065ZZ

Terminal No. (Polarity)

Resistance

1 (+) - 2 (-)

Except 0 or

∞



Ω

 [at 25

°

C (77

°

F)]

1 (+) - 3 (-)

2 (+) - 3 (-)

P0420, P0430 THREE WAY CATALYST FUNCTION

EC-277

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0420, P0430 THREE WAY CATALYST FUNCTION

DTC Logic

INFOID:0000000009651119

DTC DETECTION LOGIC

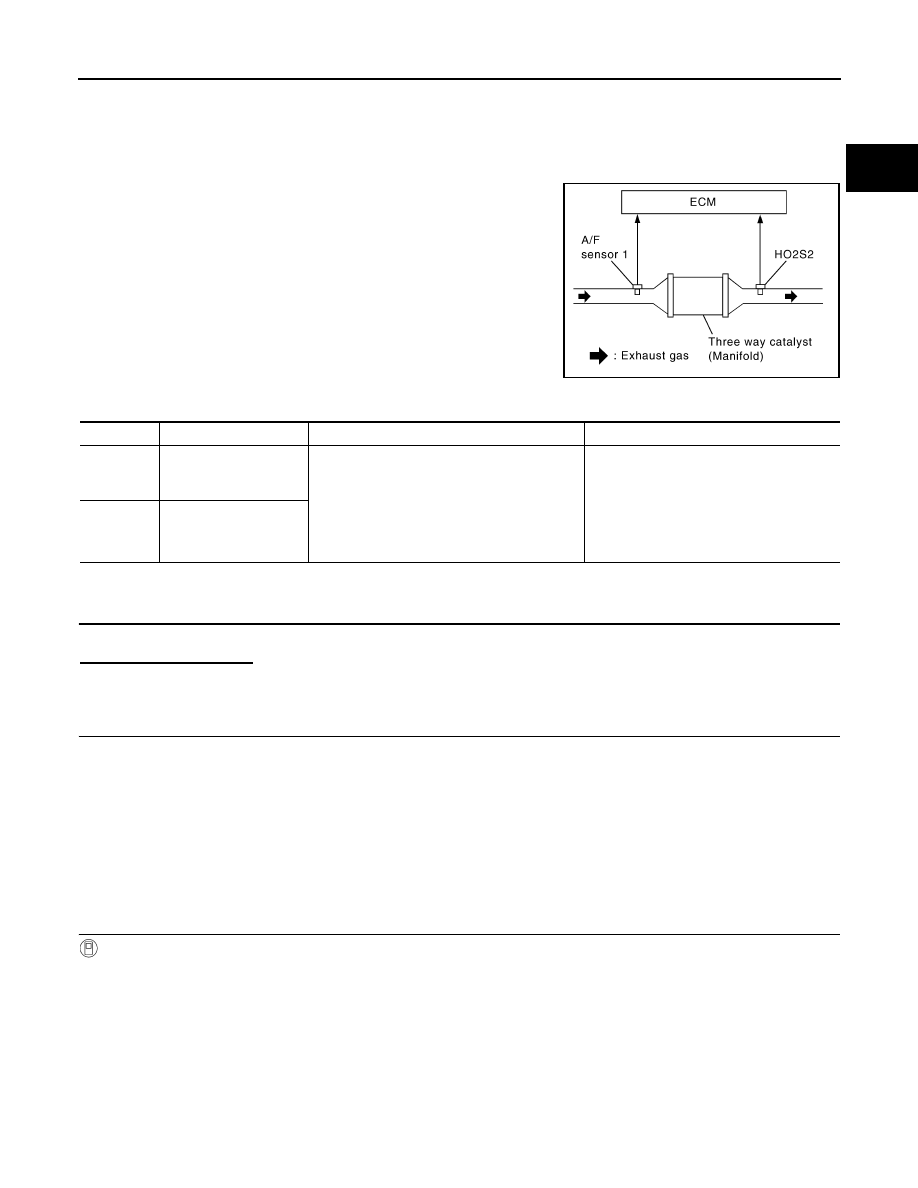

The ECM monitors the switching frequency ratio of air fuel ratio (A/F)
sensor 1 and heated oxygen sensor 2.
A three way catalyst (manifold) with high oxygen storage capacity
will indicate a low switching frequency of heated oxygen sensor 2.
As oxygen storage capacity decreases, the heated oxygen sensor 2
switching frequency will increase.
When the frequency ratio of A/F sensor 1 and heated oxygen sensor
2 approaches a specified limit value, the three way catalyst (mani-
fold) malfunction is diagnosed.

DTC CONFIRMATION PROCEDURE

1.

INSPECTION START

Will CONSULT be used?

Will CONSULT be used?

YES

>> GO TO 2.

NO

>> GO TO 7.

2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Do not maintain engine speed for more than the specified minutes below.

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-I

With CONSULT

1.

Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT.

2.

Start engine and warm it up to the normal operating temperature.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Turn ignition switch ON.

5.

Turn ignition switch OFF and wait at least 10 seconds.

6.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

7.

Let engine idle for 1 minute.

8.

Check that “COOLAN TEMP/S” indicates more than 70

°

C (158

°

F).

If not, warm up engine and go to next step when “COOLAN TEMP/S” indication reaches 70

°

C (158

°

F).

9.

Open engine hood.

10. Select “DTC & SRT CONFIRMATION” then “SRT WORK SUPPORT” mode with CONSULT.

PBIB2055E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0420

Catalyst system efficien-
cy below threshold
(bank 1)

• Three way catalyst (manifold) does not oper-

ate properly.

• Three way catalyst (manifold) does not have

enough oxygen storage capacity.

• Three way catalyst (manifold)
• Exhaust tube
• Intake air leakage
• Fuel injector
• Fuel injector leakage
• Spark plug
• Improper ignition timing

P0430

Catalyst system efficien-
cy below threshold
(bank 2)
