Nissan Quest E52. Manual - part 436

DLK-458

< REMOVAL AND INSTALLATION >

BACK DOOR

2.

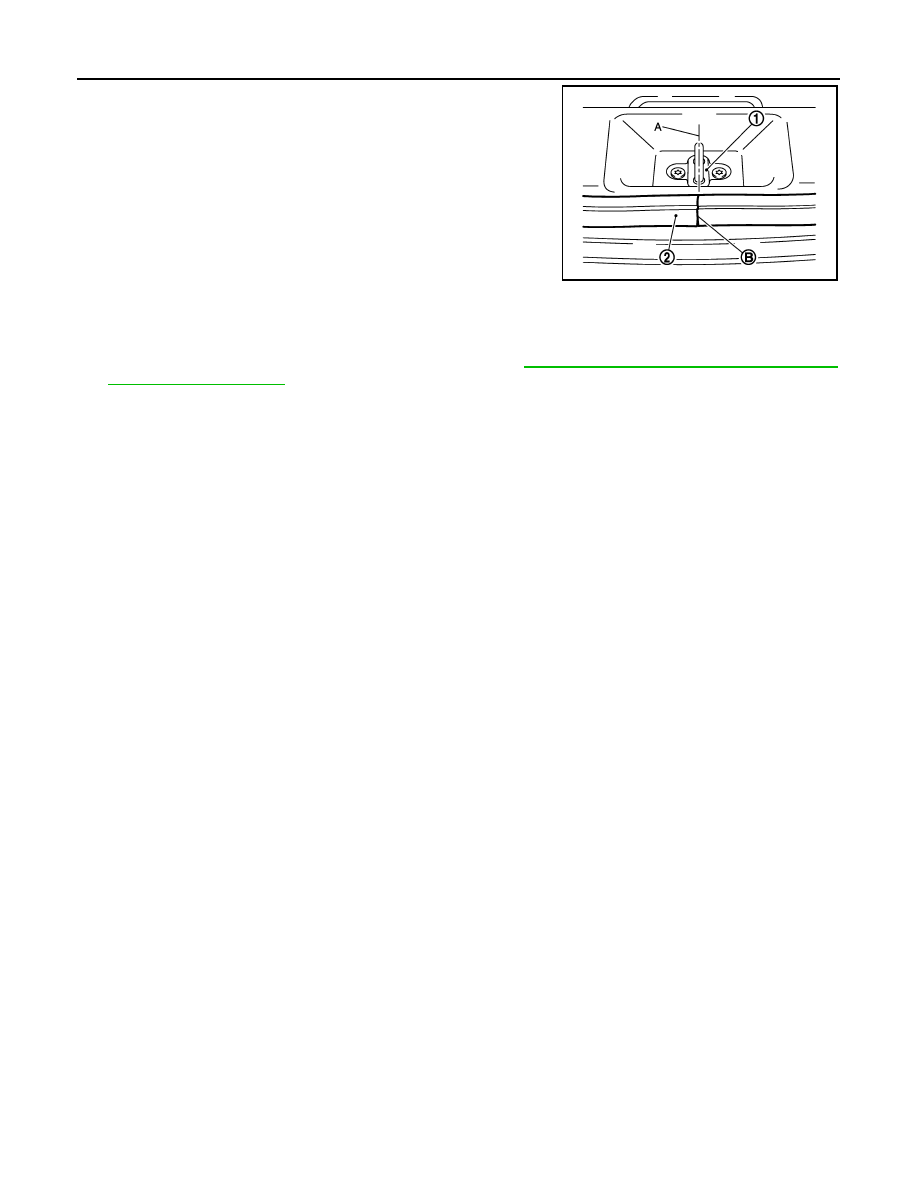

Align the connecting point (B) of weather-strip (2) to the center
(A) of striker (1), and then install as shown in the figure.

3.

Pull weather-strip gently to ensure that there is no loose section.
NOTE:
Check that weather-strip is fit tightly at each corner and tailgate kicking plate.

4.

Install back door support rod (back door side). Refer to

DLK-477, "BACK DOOR SUPPORT ROD :

Removal and Installation"

.

JMKIA5662ZZ

HOOD LOCK

DLK-459

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK

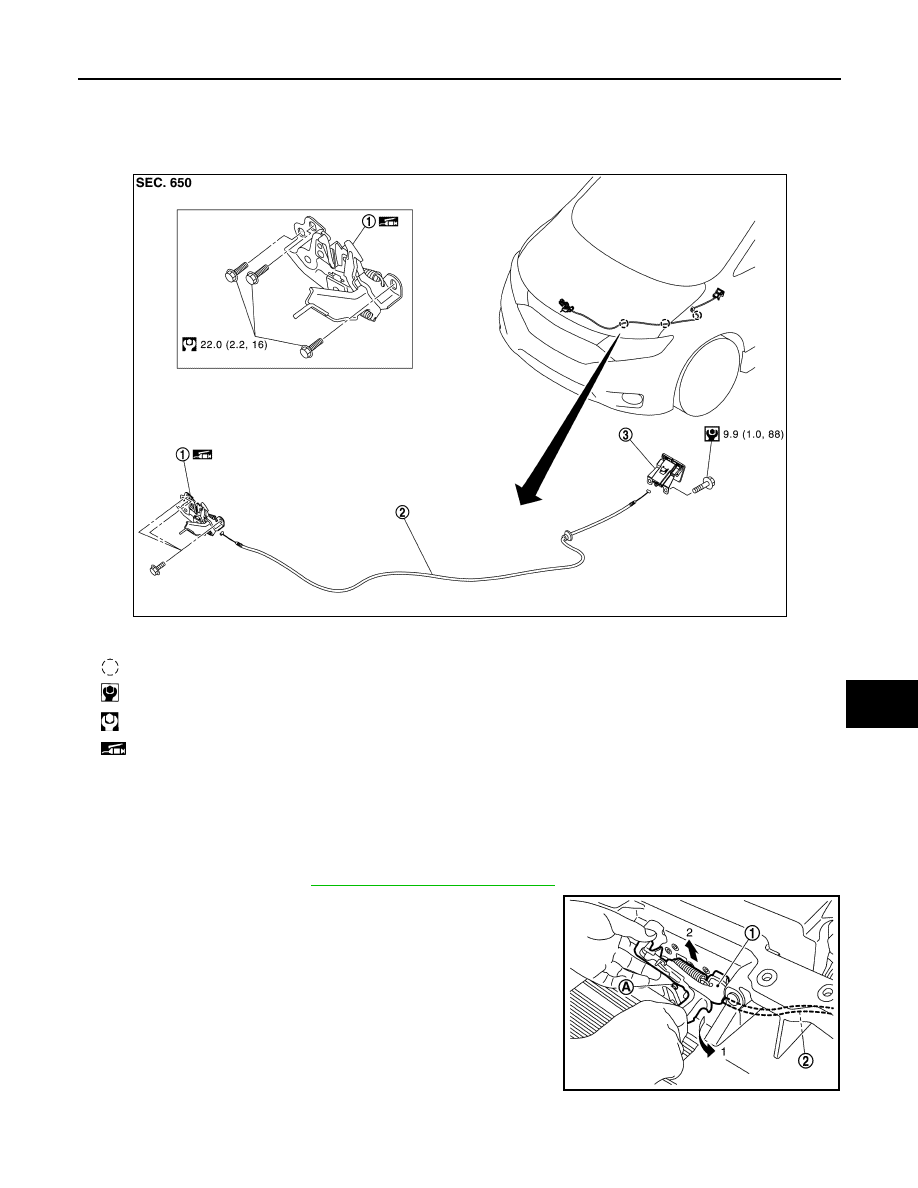

Exploded View

INFOID:0000000009649464

HOOD LOCK

HOOD LOCK : Removal and Installation

INFOID:0000000009649465

REMOVAL

1.

Remove front grille. Refer to

EXT-18, "Removal and Installation"

.

2.

Remove mounting bolts, and then remove hood lock assembly
(1).
NOTE:
Press the lever downward to avoid pin (A), then pull out hood
lock assembly upward.

CAUTION:

Never bend hood lock control cable (2) strongly.

1.

Hood lock assembly

2.

Hood lock control cable

3.

Hood lock control handle

: Clip

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIA8249GB

JMKIA8250ZZ

DLK-460

< REMOVAL AND INSTALLATION >

HOOD LOCK

3.

Disconnect hood lock control cable (2) from hood lock assembly
(1).

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, perform hood fitting adjustment. Refer to

DLK-425, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-461, "Inspection"

.

HOOD LOCK CONTROL CABLE

HOOD LOCK CONTROL CABLE : Removal and Installation

INFOID:0000000009649466

REMOVAL

1.

Disconnect hood lock control cable from hood lock assembly. Refer to

DLK-459, "HOOD LOCK : Removal

and Installation"

.

2.

Remove fender protector LH (front and rear). Refer to

EXT-23, "Removal and Installation"

.

3.

Remove hood lock cable fixing clips.

4.

Disconnect hood lock control cable from hood lock control handle. Refer to

DLK-461, "HOOD LOCK

CONTROL HANDLE : Removal and Installation"

.

5.

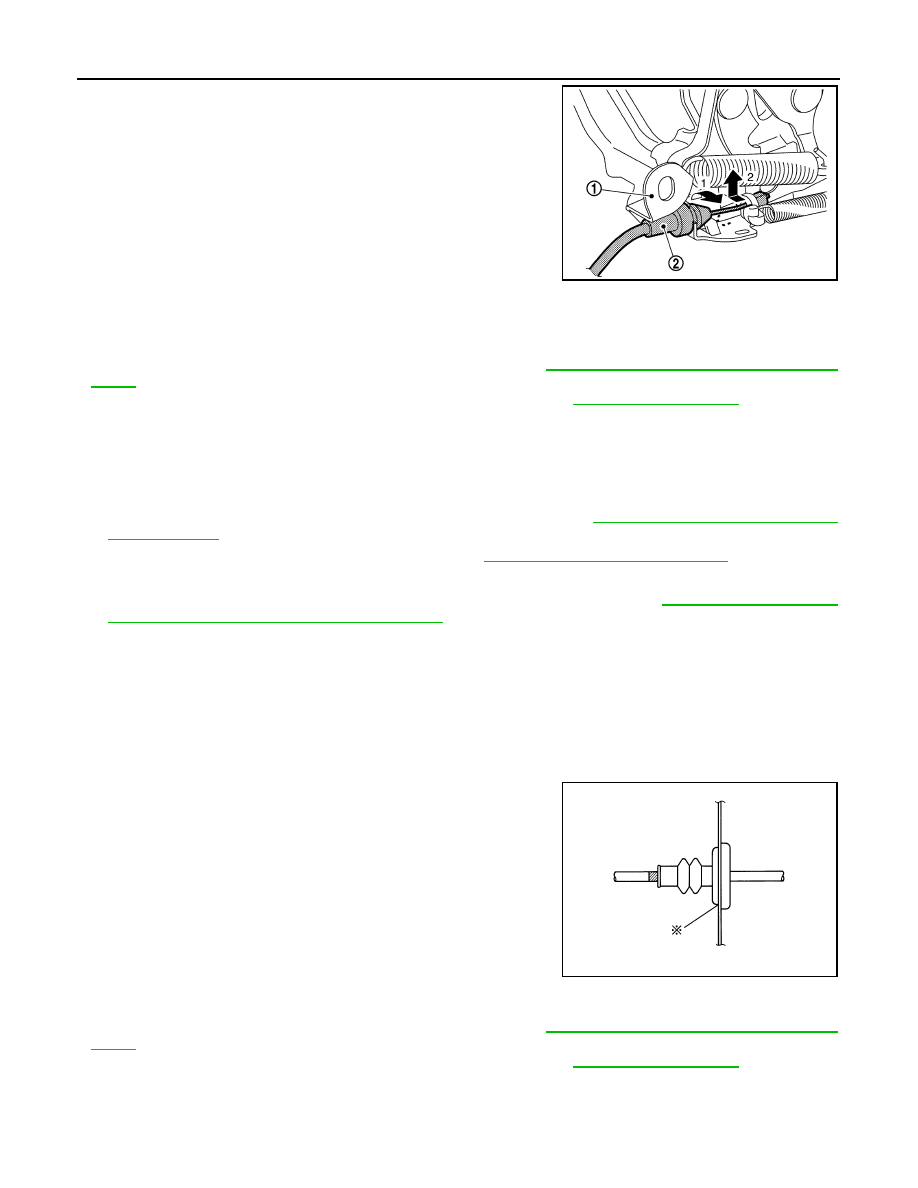

Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-
ment.

CAUTION:

While pulling, never to damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never to bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock control cable is properly engaged with hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-425, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-461, "Inspection"

.

HOOD LOCK CONTROL HANDLE

JMKIA8251ZZ

PIIB5801E

HOOD LOCK

DLK-461

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK CONTROL HANDLE : Removal and Installation

INFOID:0000000009649467

REMOVAL

1.

Remove mounting bolts, and then hood lock control handle.

2.

Remove fuel filler lid opener cable. Refer to

DLK-480, "FUEL FILLER OPENER CABLE : Removal and

Installation"

.

3.

Remove hood lock control cable (2) from hood lock opener lever
(1).

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, perform hood lock control inspection. Refer to

DLK-461, "Inspection"

.

Inspection

INFOID:0000000009649468

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

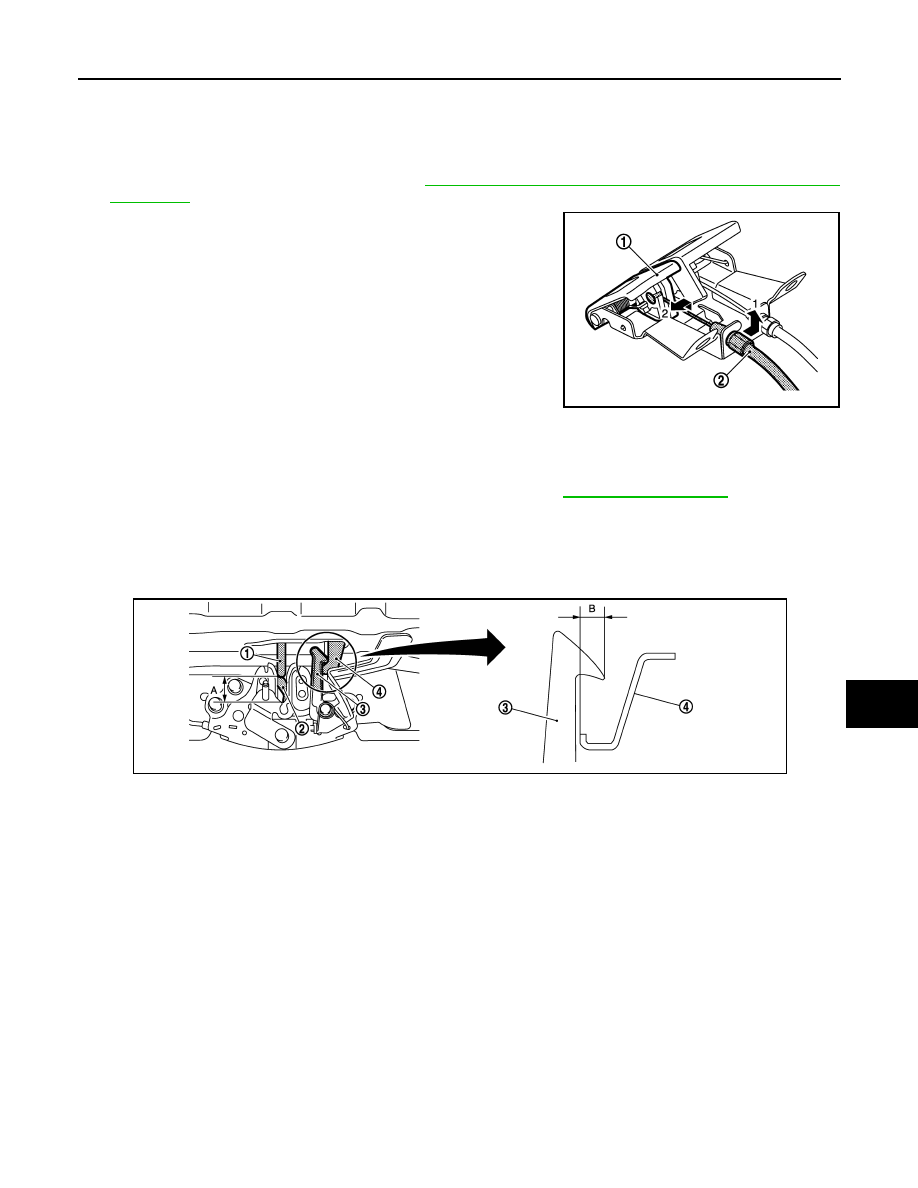

Check that secondary latch (3) is securely engaged with securely secondary striker (4) from the dead load
of the hood assembly.

2.

Check that primary latch (2) is securely engaged with primary striker (1) when hood assembly is closed
[free-fall from approximately 200 mm (7.874 in) height].

CAUTION:

Never free-fall hood assembly from a height of 300 (11.811 in) mm or more.

3.

While operating the hood opener carefully, check that the front end of the hood is lifted by approximately
20 mm (0.787 in) (A). Also, check that the hood opener returns to the original position.

4.

Check that secondary latch is properly engaged with secondary striker [6.8 mm (0.268 in)] (B).

JMKIA5901ZZ

1.

Primary striker

2.

Primary latch

3.

Secondary latch

4.

Secondary striker

JMKIA5673ZZ
