SQUEAK AND RATTLE TROUBLE DIAGNOSES

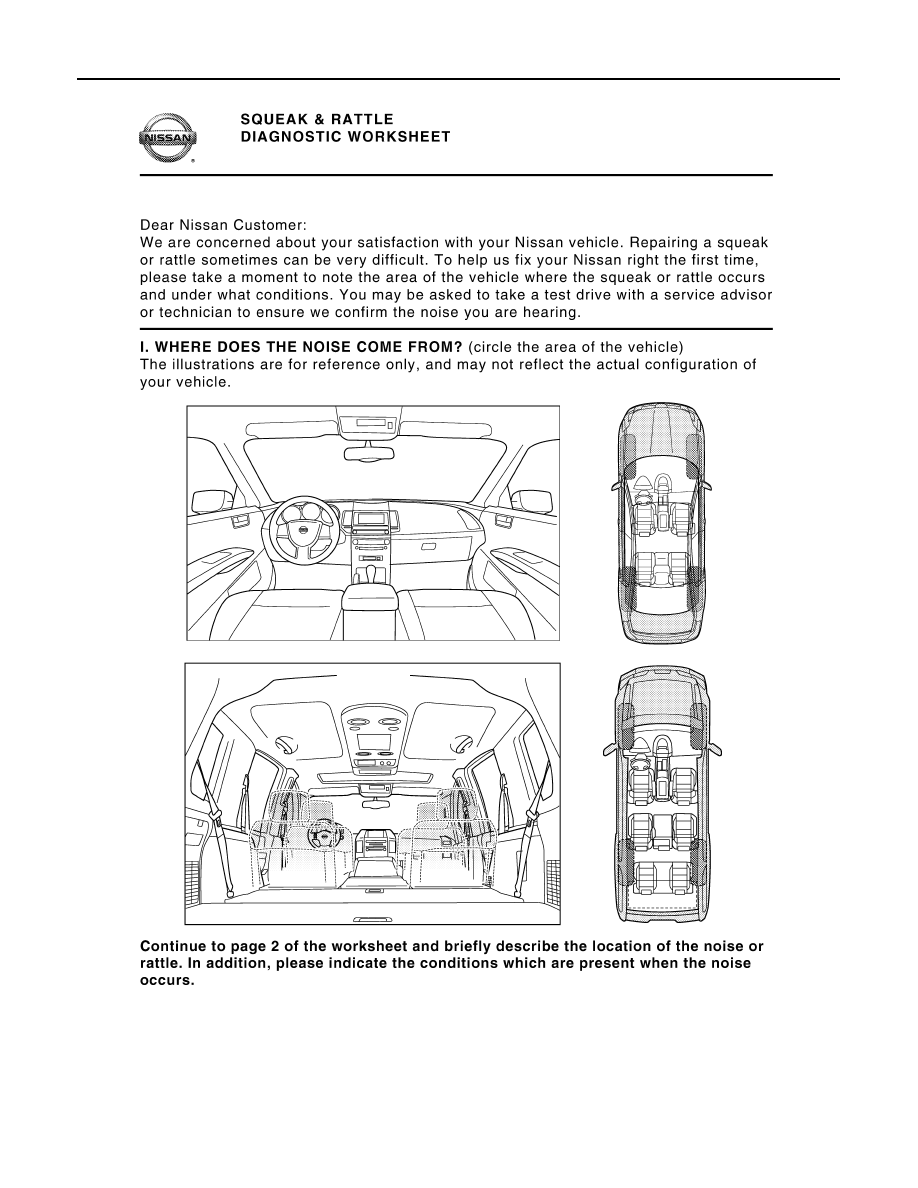

Diagnostic Worksheet

INFOID:0000000009649419

PIIB8740E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-423

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PIIB8742E

DLK-424

< REMOVAL AND INSTALLATION >

HOOD

REMOVAL AND INSTALLATION

HOOD

Exploded View

INFOID:0000000009649420

HOOD ASSEMBLY

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000009649421

CAUTION:

• Operate with two workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Support hood assembly with the proper material to prevent it from falling.

WARNING:

Injury may occur if hood assembly is not supported with appropriate material when removing
hood assembly.

2.

Remove hood hinge mounting nuts on the hood to remove the hood assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Before installing the hood hinge, apply anticorrosive agent onto the mounting surface of the vehicle

body.

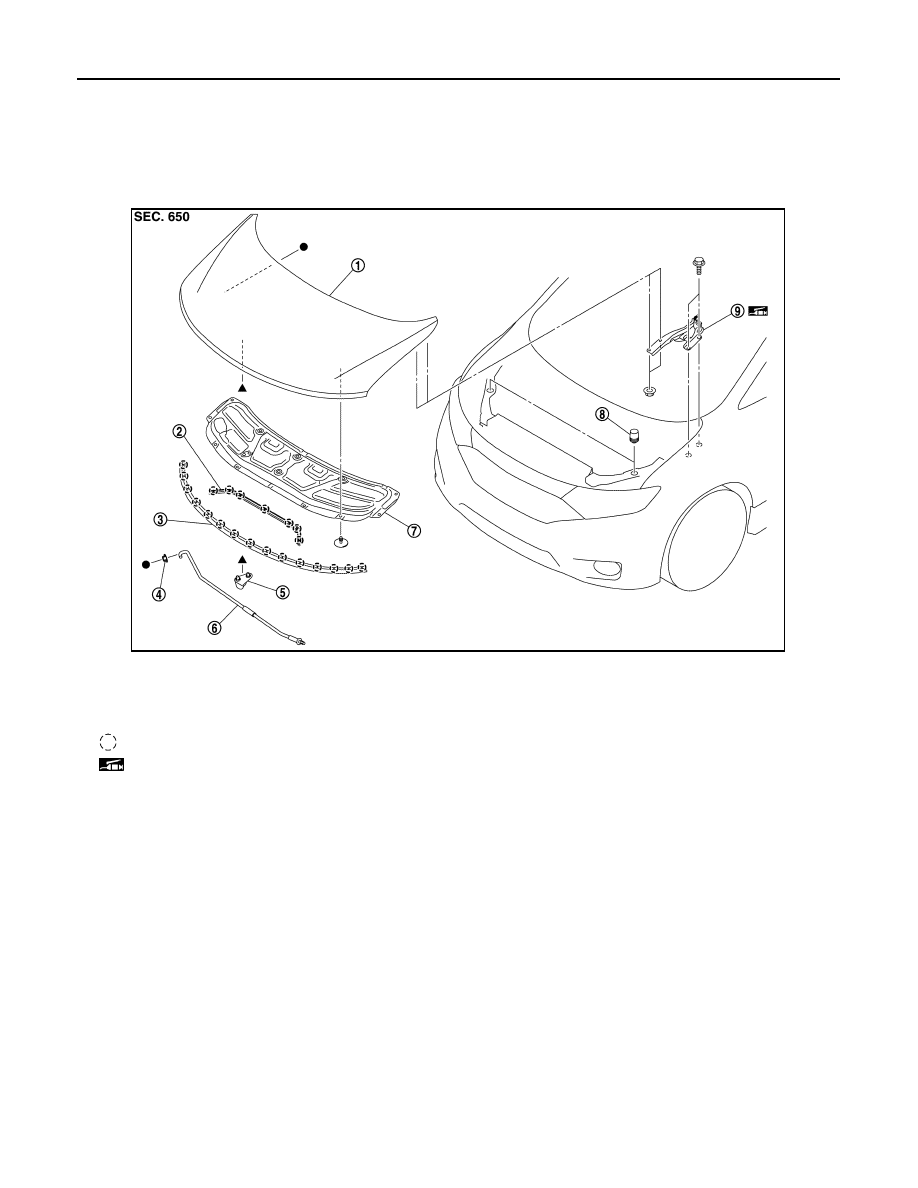

1.

Hood assembly

2.

Radiator core seal

3.

Hood seal

4.

Grommet

5.

Clamp

6.

Hood support rod

7.

Hood insulator

8.

Bumper rubber

9.

Hood hinge

: Clip

: Body grease

JMKIA8247ZZ

HOOD

DLK-425

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• After installing, perform hood fitting adjustment. Refer to

DLK-425, "HOOD ASSEMBLY : Adjust-

ment"

.

HOOD ASSEMBLY : Adjustment

INFOID:0000000009649422

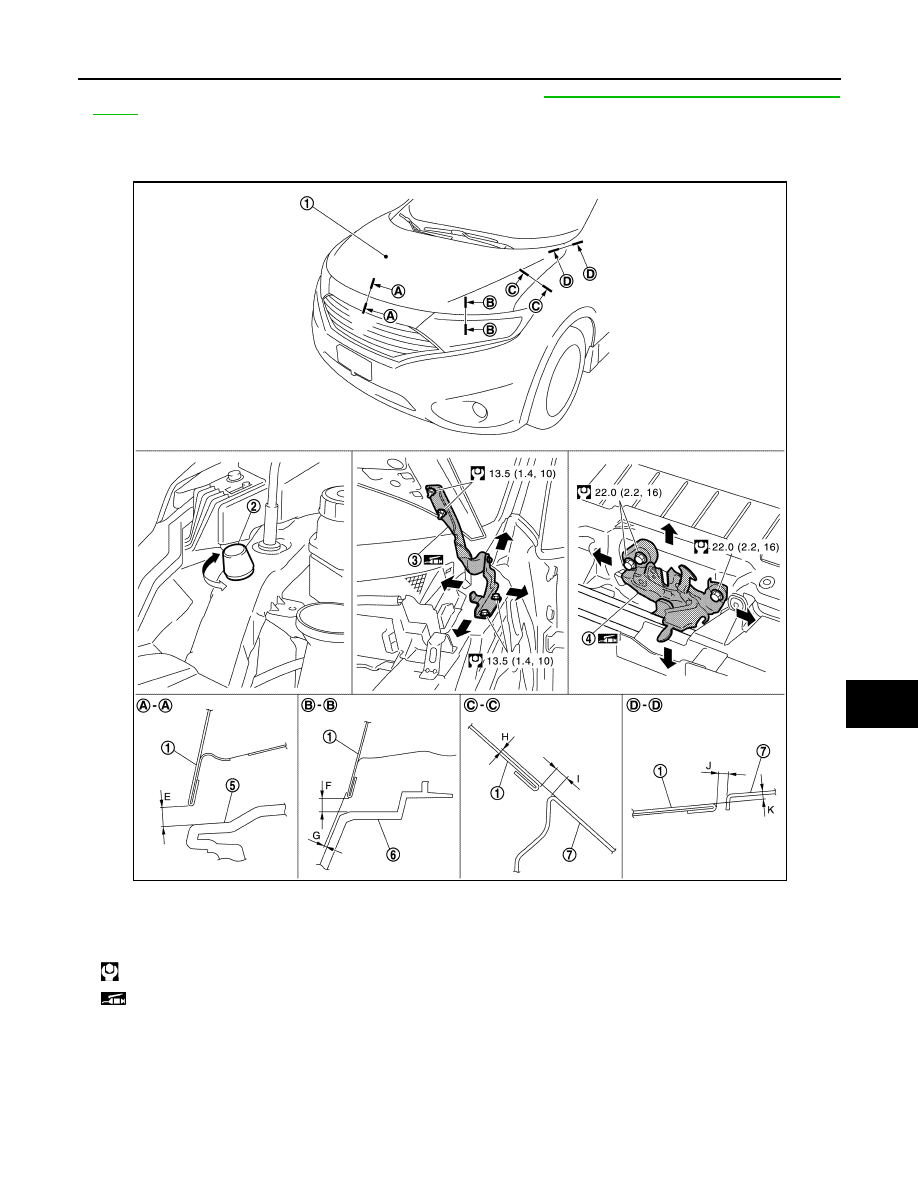

Check the clearance and the surface height between hood and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Hood assembly

2.

Bumper rubber

3.

Hood hinge

4.

Hood lock assembly

5.

Front grille

6.

Front combination lamp

7.

Front fender

: N·m (kg-m, ft-lb)

: Body grease

JMKIA8248GB
