DLK-86

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

*1

: When battery is reconnected, cancellation conditions are unconditionally fulfilled.

*2

: After returning to normal status, auto open/close function does not operate unless sliding door auto closure

function is operated.

INTERMITTENT CLUTCH FUNCTION

Display contents of CONSULT

Fail-safe

Reference page

*1

U1010: CAN COMM CIRCUIT

Intermittent clutch operation

Return to normal status

*2

B2401: IGN OPEN

When the following conditions are
fulfilled
• Sliding door control unit detects

that ignition switch is in the OFF
position

• Sliding door control unit detects

that ignition switch is not in the
ON position via CAN communica-
tion

B2402: TOUCH SENSOR OPEN

Return to normal status

B2403: PULSE ENCODER

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2405: ECU FAIL

Erase DTC

*2

B2409: HALF LATCH SW

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2412: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2413: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2414: ASD MTR TIME OUT

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B241A: ENCDR PWR SUPLY

When the following conditions are
fulfilled
• Return to normal status
• Sliding door control unit detects

that sliding door is in the fully
closed position

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-87

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTERMITTENT CLUTCH FUNCTION : System Description

INFOID:0000000009649006

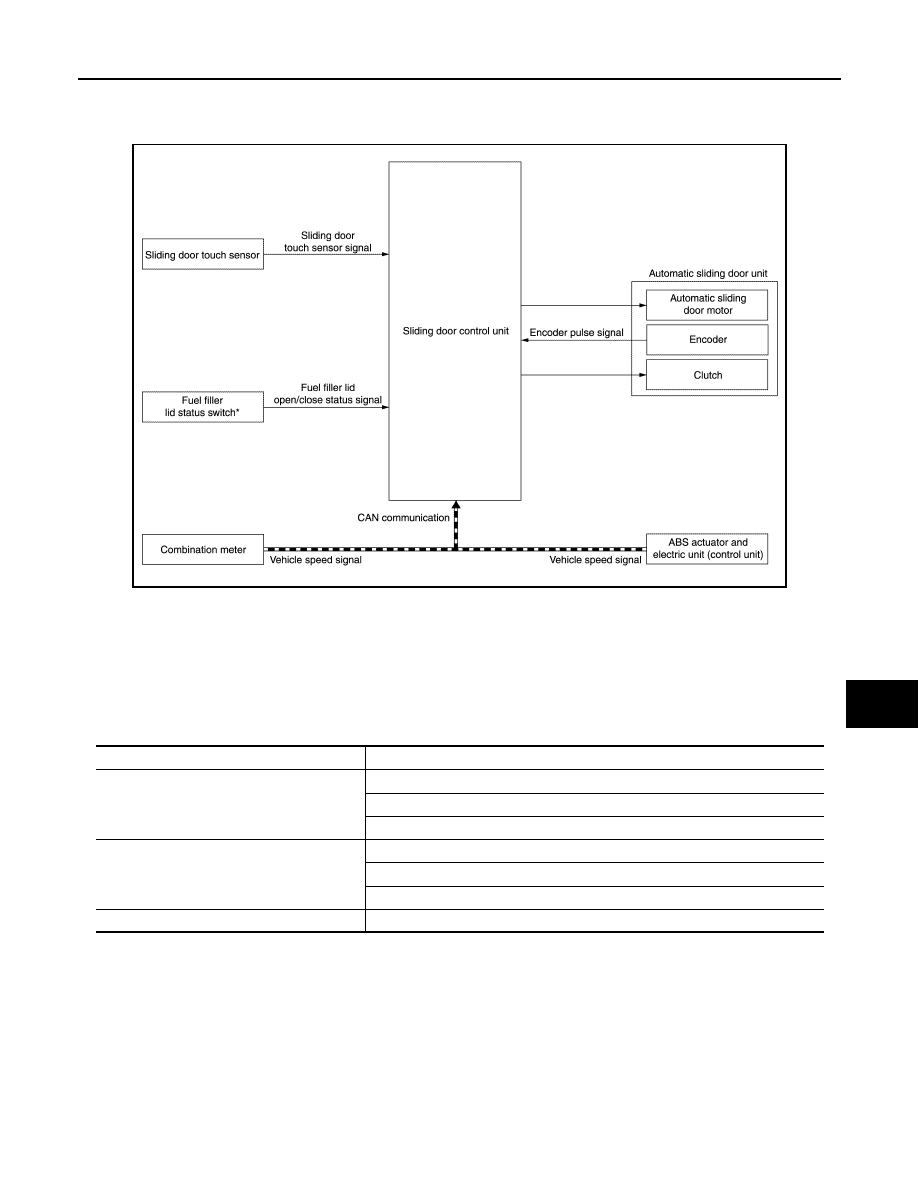

SYSTEM DIAGRAM

*

: For automatic sliding door LH

• During automatic operation of sliding door, when the vehicle is on a slope, it may become impossible to con-

tinue automatic operation of sliding door and its operation may stop suddenly, or door may open or close
suddenly. This is due to automatic door main switch being turned the OFF position or any other cause. For
prevention purposes, sliding door control unit stops automatic sliding door motor, and simultaneously oper-
ates clutch intermittently and prevents sliding door from opening or closing suddenly, so that safety can be
secured.

• Intermittent clutch function operates when any of the following conditions is satisfied.

INTERMITTENT CLUTCH FUNCTION : Fail-safe

INFOID:0000000009649007

FAIL-SAFE CONTROL BT DTC

Sliding door control unit performs fail-safe control when any DTC is detected.

JMKIA8097GB

Operation

Operation condition

auto open/close function in operation

Fuel filler lid status: Closed

→

 Open

Automatic sliding door system malfunction

Battery voltage: Continuous detection of 9 V or less for 2 seconds or more

Hold function in operation

Vehicle speed: 0 km/h

Fuel filler lid status: Closed

→

 Open

Automatic sliding door system malfunction

Anti-pinch function

Continuous detection of pinching for 3 times during auto close operation

DLK-88

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

*1

: When battery is reconnected, cancellation conditions are unconditionally fulfilled.

*2

: After returning to normal status, auto open/close function does not operate unless sliding door auto closure

function is operated.

BUZZER REMINDER FUNCTION

BUZZER REMINDER FUNCTION : System Description

INFOID:0000000009649008

• Automatic sliding door warning buzzer sounds when sliding door automatic function is operated as a

reminder.

Display contents of CONSULT

Fail-safe

Reference page

*1

U1010: CAN COMM CIRCUIT

Intermittent clutch operation

Return to normal status

*2

B2401: IGN OPEN

When the following conditions are
fulfilled
• Sliding door control unit detects

that ignition switch is in the OFF
position

• Sliding door control unit detects

that ignition switch is not in the
ON position via CAN communica-
tion

B2402: TOUCH SENSOR OPEN

Return to normal status

B2403: PULSE ENCODER

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2405: ECU FAIL

Erase DTC

*2

B2409: HALF LATCH SW

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2412: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2413: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2414: ASD MTR TIME OUT

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B241A: ENCDR PWR SUPLY

When the following conditions are
fulfilled
• Return to normal status
• Sliding door control unit detects

that sliding door is in the fully
closed position

Operation

Automatic sliding door warning buzzer

Auto open

2 times for start operation

Auto close

From sliding door halfway position until operation start of sliding door auto clo-

sure function

Power assist function (open)

2 times for start operation

Power assist function (close)

Reverse

2 times for reverse operation

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-89

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• When all of the following conditions are satisfied, automatic sliding door warning buzzer sounds, alerting the

driver to stop the vehicle.

- Sliding door: Open status (Sliding door switch ON or full latch switch ON)
- Vehicle speed: 0 km/h or more

BUZZER REMINDER FUNCTION : Fail-safe

INFOID:0000000009649009

FAIL-SAFE CONTROL BT DTC

Sliding door control unit performs fail-safe control when any DTC is detected.

*1

: When battery is reconnected, cancellation conditions are unconditionally fulfilled.

Operation

Function

Automatic sliding door warning buzzer

operation pattern

Automatic operation start

Sliding door open/close switch

Sound twice (2 times)

Intelligent Key button operation

Power assist function

Reverse operation start

Reverse operation detection

Hold function in operation

Vehicle speed 0km/h or more, and sliding
door open

Sound continuously (until sliding door is

fully closed or the vehicle stops)

Auto close in operation

Auto close in operation

Continuously sounds intermittently (until
sliding door is in half latch position)

Display contents of CONSULT

Fail-safe

Reference page

*1

U1010: CAN COMM CIRCUIT

Intermittent clutch operation

Return to normal status

*2

B2401: IGN OPEN

When the following conditions are
fulfilled
• Sliding door control unit detects

that ignition switch is in the OFF
position

• Sliding door control unit detects

that ignition switch is not in the
ON position via CAN communica-
tion

B2402: TOUCH SENSOR OPEN

Return to normal status

B2403: PULSE ENCODER

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2405: ECU FAIL

Erase DTC

*2

B2409: HALF LATCH SW

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2412: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2413: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2414: ASD MTR TIME OUT

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B241A: ENCDR PWR SUPLY

When the following conditions are
fulfilled
• Return to normal status
• Sliding door control unit detects

that sliding door is in the fully
closed position
