Nissan Quest E52. Manual - part 341





DLK-78

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

• Battery voltage: 11 V or more
• Fuel filler lid: Closed status

*1

• Sliding door: Fully closed status
• Sliding door lock status switch: OFF (Sliding door locked status)
• Shift position: P position

*2

*1

: When sliding door LH is operated

*2

: Only when ignition switch is in the ON position

UNLOCK-LINKED OPENING FUNCTION : Fail-safe

INFOID:0000000009648997

FAIL-SAFE CONTROL BT DTC

Sliding door control unit performs fail-safe control when any DTC is detected.

*1

: When battery is reconnected, cancellation conditions are unconditionally fulfilled.

*2

: After returning to normal status, auto open/close function does not operate unless sliding door auto closure

function is operated.

POWER ASSIST FUNCTION

Display contents of CONSULT

Fail-safe

Reference page

*1

U1010: CAN COMM CIRCUIT

Intermittent clutch operation

Return to normal status

*2

B2401: IGN OPEN

When the following conditions are
fulfilled
• Sliding door control unit detects

that ignition switch is in the OFF
position

• Sliding door control unit detects

that ignition switch is not in the
ON position via CAN communica-
tion

B2402: TOUCH SENSOR OPEN

Return to normal status

B2403: PULSE ENCODER

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2405: ECU FAIL

Erase DTC

*2

B2409: HALF LATCH SW

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2412: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2413: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2414: ASD MTR TIME OUT

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B241A: ENCDR PWR SUPLY

When the following conditions are
fulfilled
• Return to normal status
• Sliding door control unit detects

that sliding door is in the fully
closed position

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-79

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER ASSIST FUNCTION : System Description

INFOID:0000000009648998

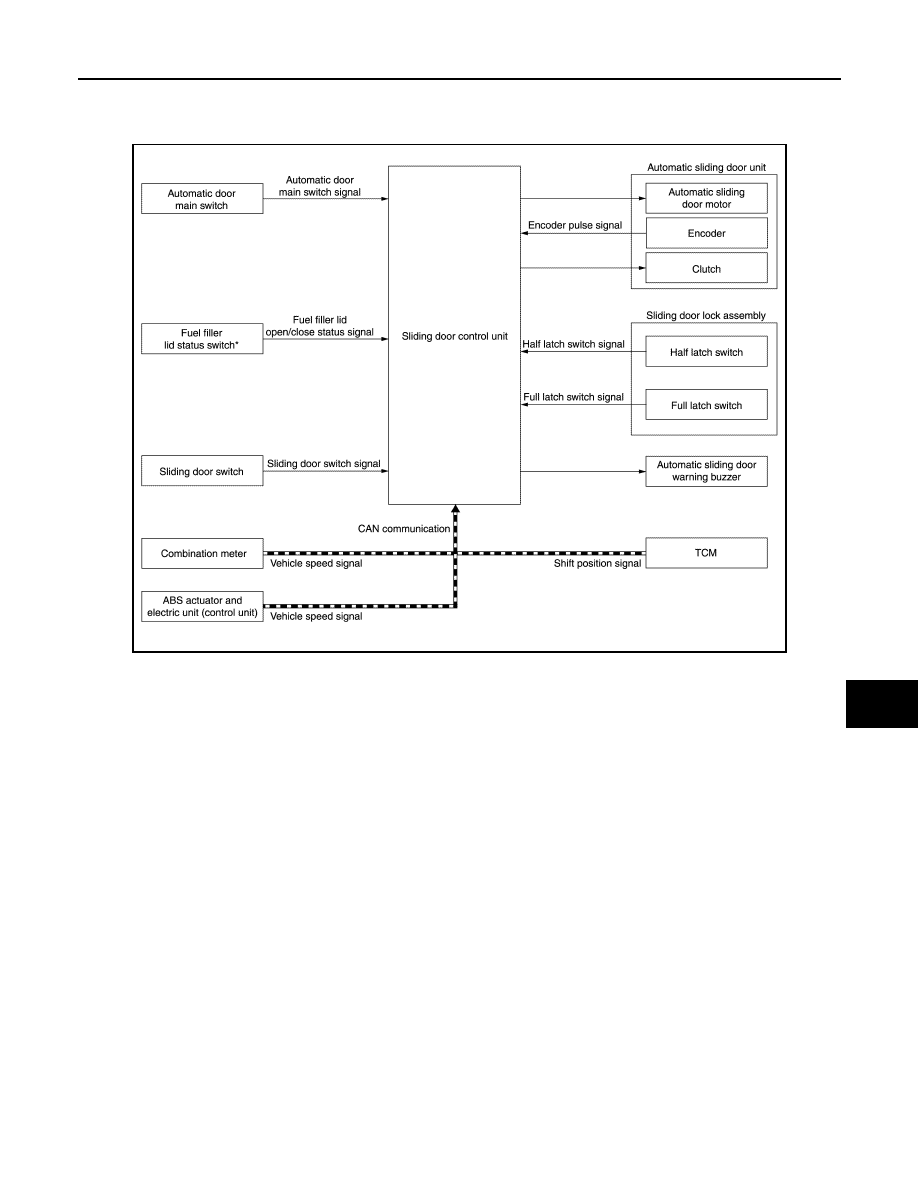

SYSTEM DIAGRAM

*

: For automatic sliding door LH

Power assist function automatically opens or closes sliding door to fully open/closed position, when sliding
door is pressed manually without operating each switch or sliding door handle, while sliding door is in half
open stop status or fully open stop status.

OPERATION DESCRIPTION

Sliding door control unit sounds automatic sliding door warning buzzer, activates automatic sliding door motor,
and automatically opens or closes to the fully open/close position, when encoder pulse signal is detected from
encoder.

OPERATION CONDITION

If the following conditions are satisfied, the power assist function is performed.
• Automatic door main switch: ON
• Vehicle speed: 0 km/h (auto close operation only)
• Fuel filler lid: Closed status

*1

• Shift position: P position

*2

• Sliding door position: Halfway position
• Sliding door status: Stop status
*1: When sliding door LH is operated.
*2: Only when ignition switch is in the ON position.

POWER ASSIST FUNCTION : Fail-safe

INFOID:0000000009648999

FAIL-SAFE CONTROL BT DTC

Sliding door control unit performs fail-safe control when any DTC is detected.

JMKIA8093GB

DLK-80

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

*1

: When battery is reconnected, cancellation conditions are unconditionally fulfilled.

*2

: After returning to normal status, auto open/close function does not operate unless sliding door auto closure

function is operated.

SLIDING DOOR AUTO CLOSURE FUNCTION

Display contents of CONSULT

Fail-safe

Reference page

*1

U1010: CAN COMM CIRCUIT

Intermittent clutch operation

Return to normal status

*2

B2401: IGN OPEN

When the following conditions are
fulfilled
• Sliding door control unit detects

that ignition switch is in the OFF
position

• Sliding door control unit detects

that ignition switch is not in the
ON position via CAN communica-
tion

B2402: TOUCH SENSOR OPEN

Return to normal status

B2403: PULSE ENCODER

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2405: ECU FAIL

Erase DTC

*2

B2409: HALF LATCH SW

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2412: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2413: ASD MTR/ENCDR

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B2414: ASD MTR TIME OUT

Sliding door control unit detects that
sliding door is in the fully closed po-
sition

B241A: ENCDR PWR SUPLY

When the following conditions are
fulfilled
• Return to normal status
• Sliding door control unit detects

that sliding door is in the fully
closed position

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-81

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SLIDING DOOR AUTO CLOSURE FUNCTION : System Description

INFOID:0000000009649000

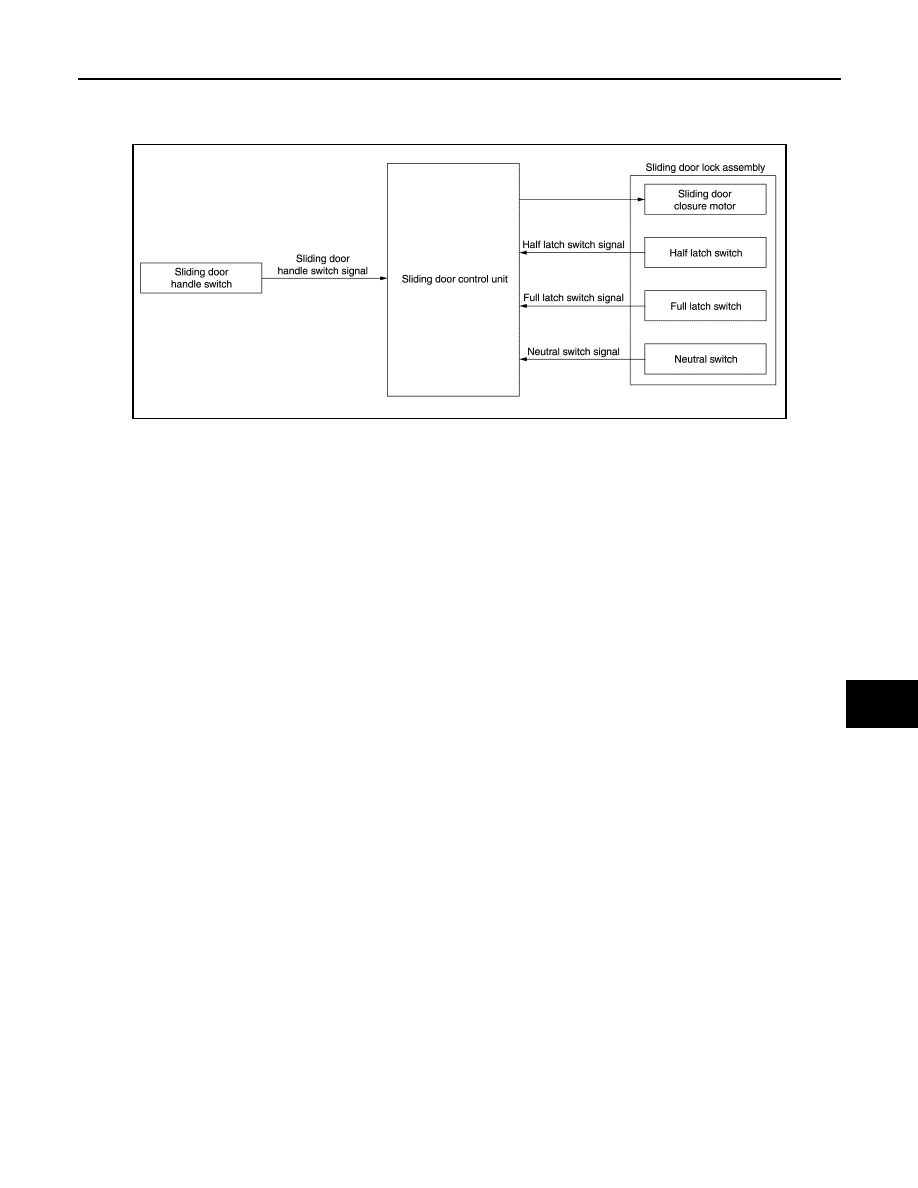

SYSTEM DIAGRAM

Sliding door auto closure function closes automatically sliding door to the fully closed position when sliding
door is in half latch status (lock and striker are in engage status). Sliding door auto closure function is opera-
tive, even when automatic door main switch is in the OFF position.

OPERATION DESCRIPTION

• When sliding door control unit judges that sliding door handle is in non-operated status and sliding door is in

half latch status according to half latch switch signal and full latch switch signal, sliding door control unit
judges that sliding door is in retractable position according to sliding door handle switch and neutral switch
signal. Sliding door control unit operates sliding door closure motor, and starts retract operation.

• When sliding door control unit judges that sliding door is in fully closed status according to half latch switch

signal and full latch switch signal, sliding door control unit stops sliding door closure motor operation once,
and then operates sliding door closure motor in reverse direction to the neutral position of sliding door clo-
sure motor.

• Sliding door auto closure function does not operate when any of the following conditions is satisfied.
- Sliding door: When manually closed swiftly
- Sliding door handle: When operated immediately after detection of half latch status
- Battery voltage: 9 V or less

SLIDING DOOR AUTO CLOSURE FUNCTION : Fail-safe

INFOID:0000000009649001

FAIL-SAFE CONTROL BT DTC

Sliding door control unit performs fail-safe control when any DTC is detected.

JMKIA8094GB
