Nissan Quest E52. Manual - part 331

DLK-38

< SYSTEM DESCRIPTION >

SYSTEM (INTELLIGENT KEY SYSTEM)

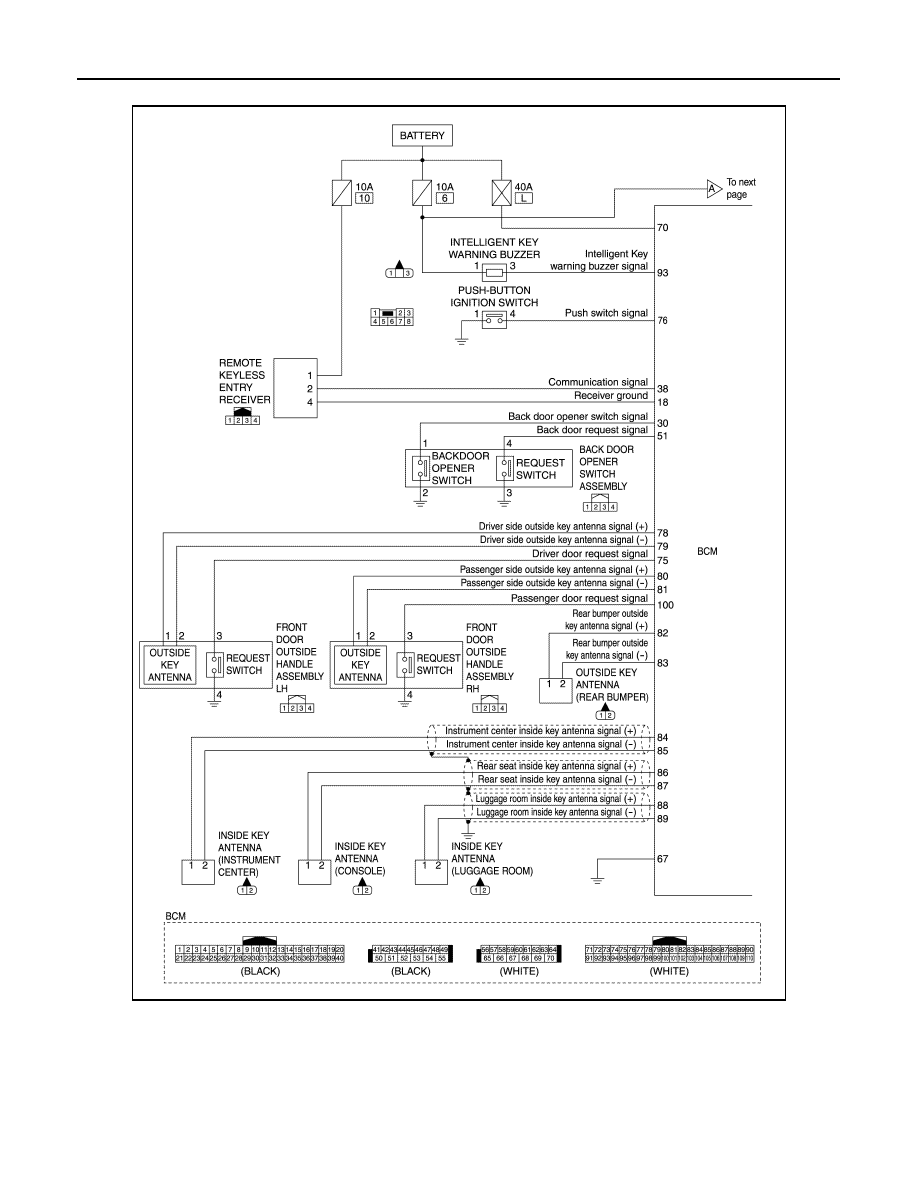

INTELLIGENT KEY SYSTEM : Circuit Diagram

INFOID:0000000009648977

JMKIA8113GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-39

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

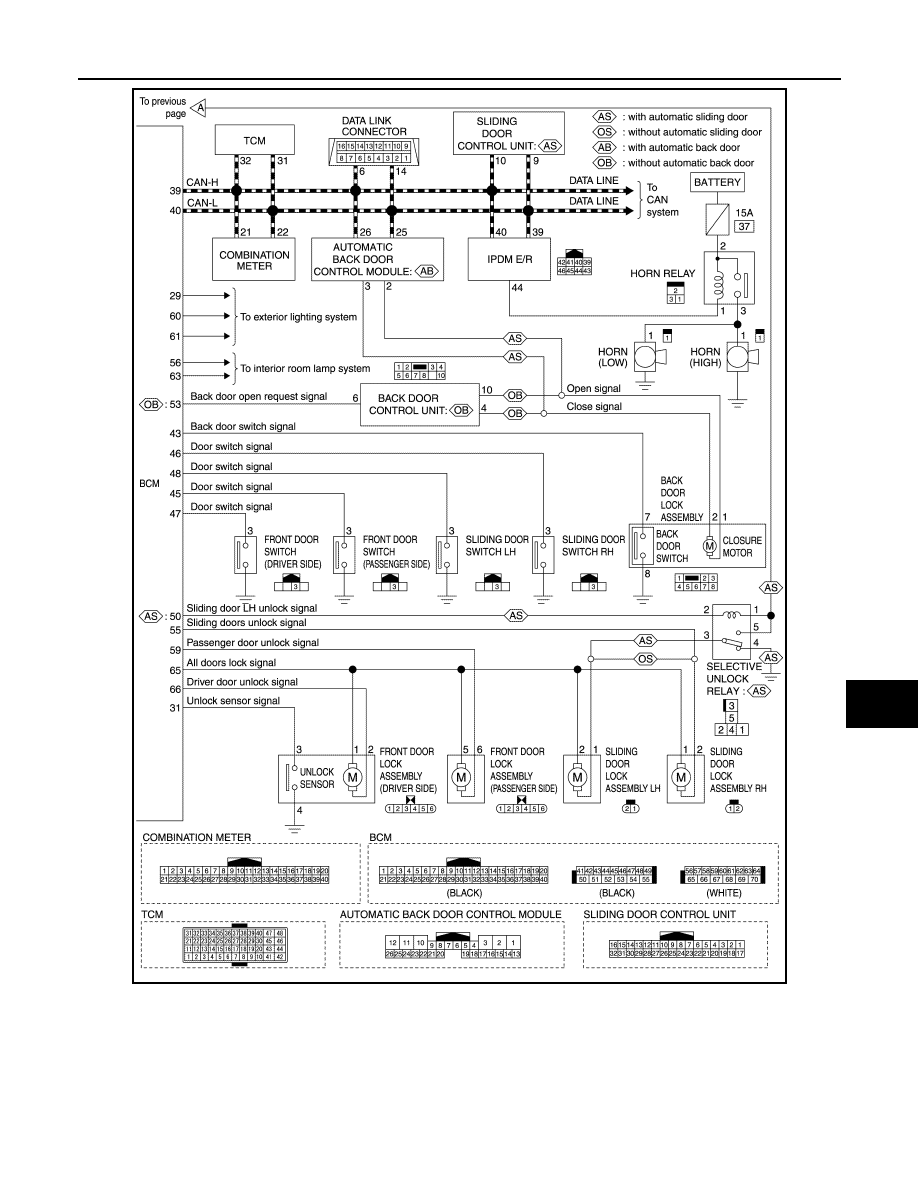

DOOR LOCK FUNCTION

JMKIA8114GB

DLK-40

< SYSTEM DESCRIPTION >

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION : System Description

INFOID:0000000009648978

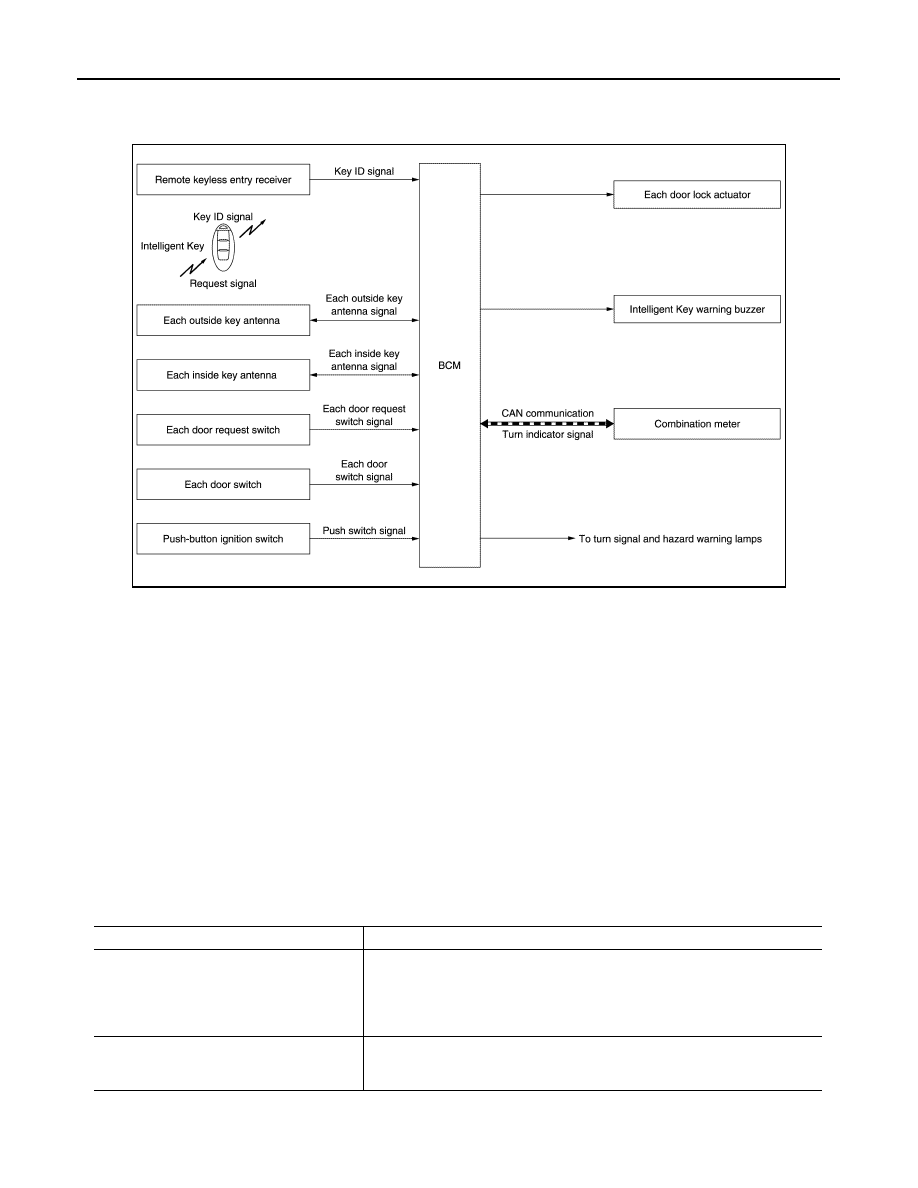

SYSTEM DIAGRAM

DOOR REQUEST SWITCH OPERATION

Only when pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelli-
gent Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the
Intelligent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM locks/unlocks each doors.
• BCM sounds Intelligent Key warning buzzer (lock: 2 times, unlock: 1 time) and blinks hazard warning lamps

(lock: 2 times, unlock: 1 time) at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is
operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be locked/unlocked from outside of the vehicle with
a spare Intelligent Key as long as key IDs are different.

JMKIA8009GB

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Panic alarm is not activated
• P position warning is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area*

Unlock

• Panic alarm is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area*

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-41

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

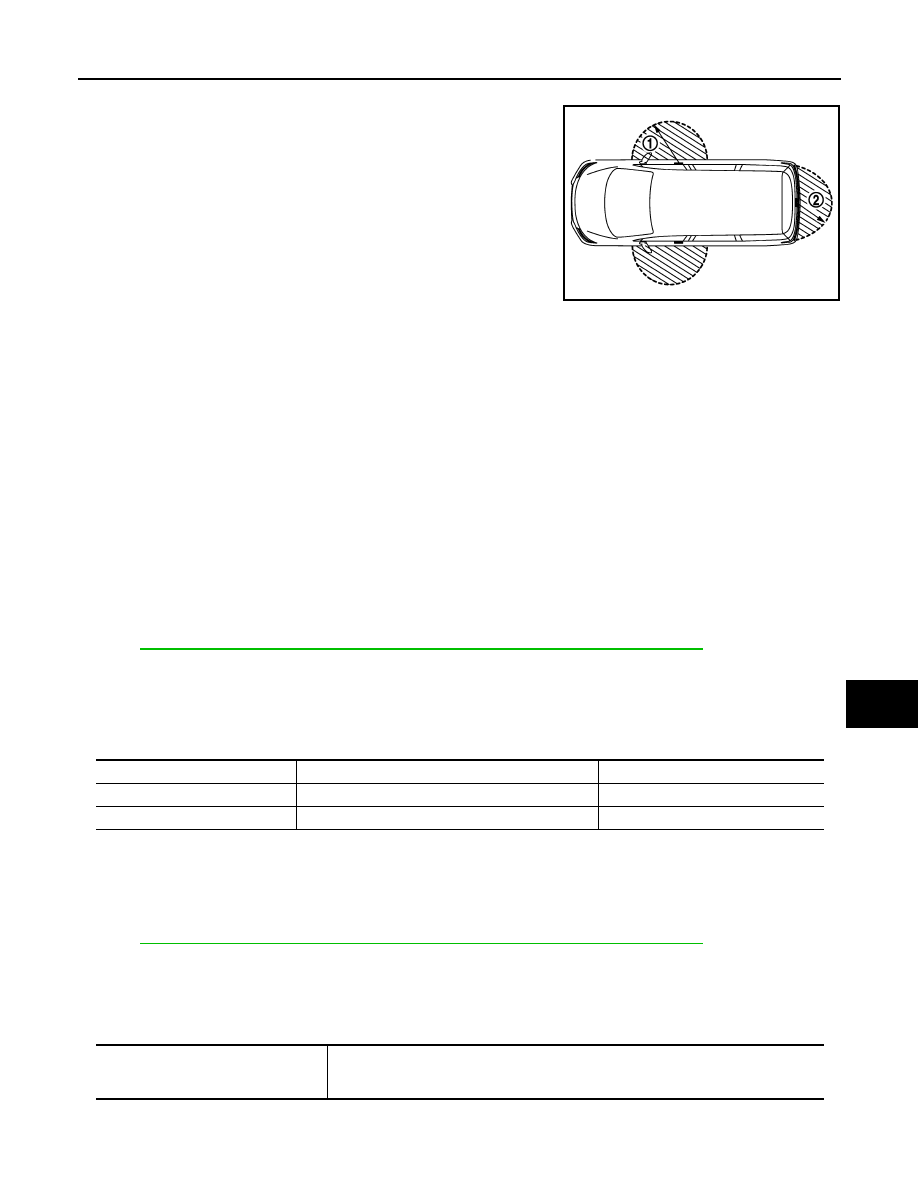

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver, passenger door handles (1) and back door handle (2). How-
ever, this operating range depends on the ambient conditions.

SELECTIVE UNLOCK FUNCTION

Lock Operation

When an LOCK signal is sent from door request switch (driver side, passenger side, back door), all doors and
fuel filler lid are locked.

Unlock Operation

• When an UNLOCK signal from driver side door request switch is transmitted, driver side door are unlocked.

When another UNLOCK signal is transmitted within 60 seconds, all other doors are unlocked, back door
open permission is set.

• When an UNLOCK signal from passenger side door request switch is transmitted, passenger side door is

unlocked. When another UNLOCK signal is transmitted within 60 seconds, all other doors are unlocked,
back door open permission is set.

• When an UNLOCK signal from back door request switch is transmitted, back door open permission is set.

When another UNLOCK signal is transmitted within 60 seconds, all doors are unlocked.

• Only the door, of which one touch switch is pressed, unlock and starts automatic open operation when one-

touch switch of sliding door is pressed.

How To Change Selective Unlock Operation Mode

Selective unlock operation mode can be changed using CONSULT.
Refer to

DLK-95, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

HAZARD AND BUZZER REMINDER FUNCTION

During lock or unlock operation by each door request switch, the hazard warning lamps and Intelligent Key
warning buzzer blinks or honks as a reminder.

Operating Function Of Hazard And buzzer Reminder

Hazard and buzzer reminder does not operate in the following conditions.
• Ignition switch position is ON
• Door is open (only lock operation)

How To Change Hazard And Buzzer Reminder Mode

Hazard and buzzer reminder mode can be changed using CONSULT.
Refer to

DLK-95, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 60 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

How To Change Auto Door Lock Operation Mode

Auto door lock operation mode can be changed using CONSULT.

JMKIA5919ZZ

Operation

Hazard warning lamp blinks

Intelligent Key warning buzzer honks

Unlock

Once

Once

Lock

Twice

Twice

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed
