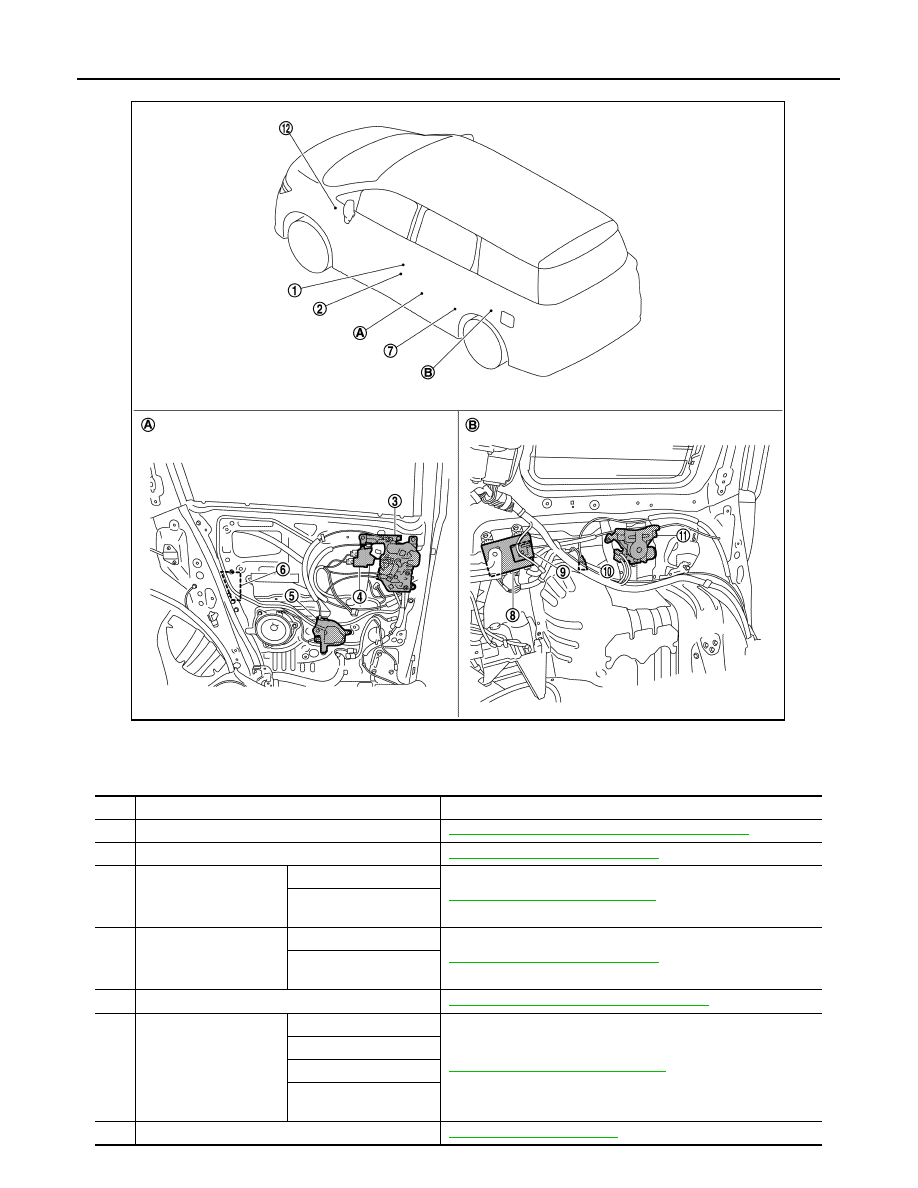

COMPONENT PARTS

A.

View with sliding door finisher LH re-
moved

B.

View with luggage side lower finisher
LH removed

No.

Component

Function

1.

Automatic sliding door open/close switch (rear LH)

DLK-30, "Automatic Sliding Door Open/Close Switch"

2.

Sliding door touch sensor LH

DLK-31, "Sliding Door Touch Sensor"

3.

Remote control assem-
bly LH

Child lock status switch

DLK-31, "Remote Control Assembly"

Sliding door handle
switch

4.

Sliding door lock actuator
LH

Sliding door lock actuator

DLK-31, "Sliding Door Lock Actuator"

Sliding door lock status
switch

5.

Sliding door lock release actuator LH

DLK-31, "Sliding Door Lock Release Actuator"

6.

Sliding door lock assem-
bly LH

Neutral switch

DLK-31, "Sliding Door Lock Assembly"

Full latch switch

Half latch switch

Sliding door closure mo-
tor

7.

Sliding door switch LH

DLK-31, "Sliding Door Switch"

JMKIA8169ZZ

COMPONENT PARTS

DLK-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

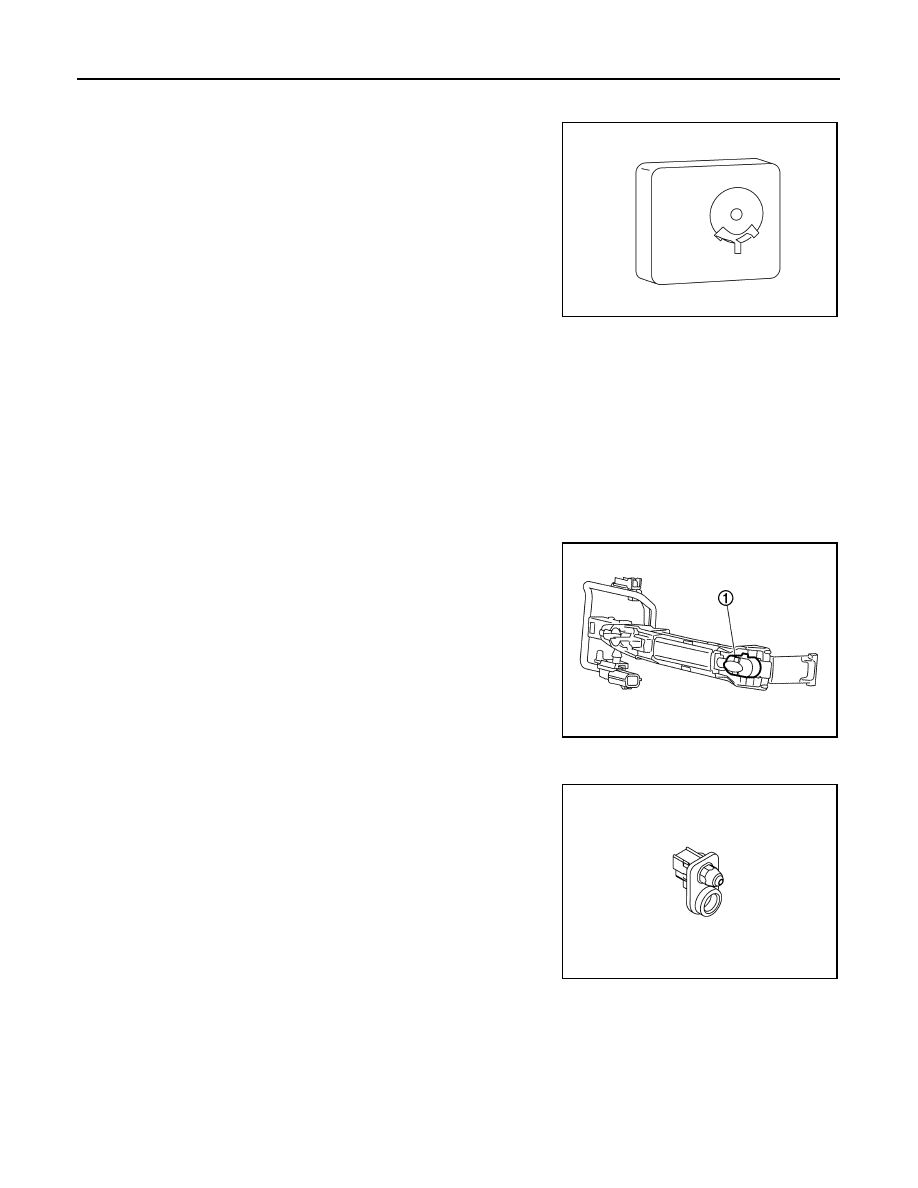

Inside Key Antenna

INFOID:0000000009648939

Inside key antenna detects that Intelligent Key is within the inside
detection area, and then transmits detection status to BCM.

Front Door Outside Handle Assembly (Outside Key Antenna)

INFOID:0000000009648940

• Outside key antenna detects that Intelligent Key is within the outside detection area, and then transmits

detection status to BCM. Request signal is transmitted simultaneously to Intelligent Key.

• Outside key antenna is installed in side outside handle assembly.

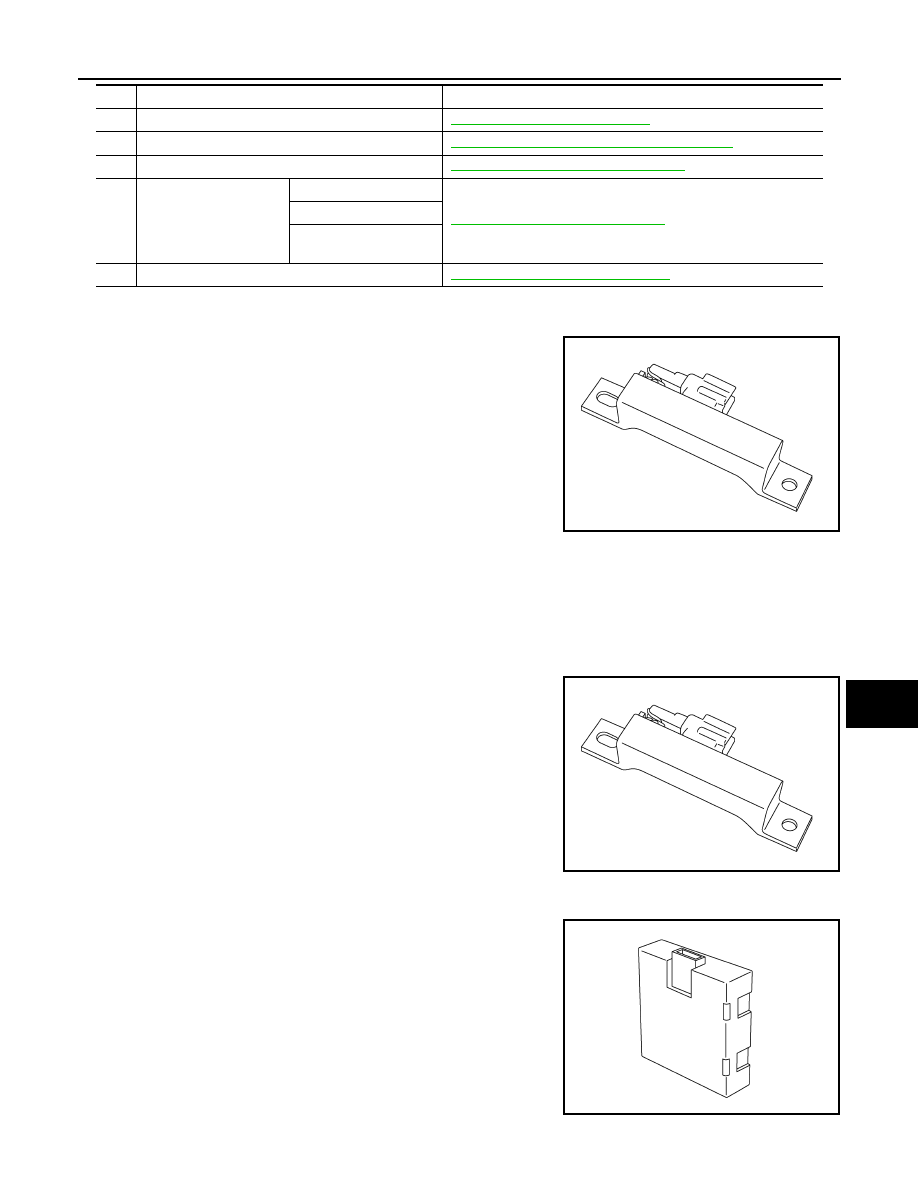

Outside Key Antenna (Rear Bumper)

INFOID:0000000009648941

• Outside key antenna (rear bumper) detects that Intelligent Key is

within the outside detection area, and then transmits detection sta-
tus to BCM. Request signal is transmitted simultaneously to Intelli-
gent Key.

• Outside key antenna (rear bumper) is installed in the rear of rear

bumper.

Remote Keyless Entry Receiver

INFOID:0000000009648942

Remote keyless entry receiver receives button operation signal and
key ID signal of Intelligent Key, and then transmits them to BCM.

8.

Sliding door control unit LH

DLK-31, "Sliding Door Control Unit"

9.

Automatic sliding door warning buzzer LH

DLK-31, "Automatic Sliding Door Warning Buzzer"

10.

Fuel filler lid status switch

DLK-32, "Fuel Filler Lid Sliding Door Unit"

11.

Automatic sliding door
unit LH

Encoder

DLK-30, "Automatic Sliding Door Unit"

Clutch

Automatic sliding door
motor

12.

Automatic door main switch

DLK-30, "Automatic Door Main Switch"

No.

Component

Function

JMKIA8646ZZ

JMKIA8646ZZ

JMKIA8647ZZ

DLK-28

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Intelligent Key Warning Buzzer

INFOID:0000000009648943

Intelligent Key warning buzzer warns the user, who is outside vehi-
cle, of operation confirmation according to Intelligent Key operation
and door request switch operation, or of an inappropriate operation.

Door Lock and Unlock Switch (Driver Side)

INFOID:0000000009648944

• Door lock and unlock switch transmits door lock/unlock signal operation to BCM.
• Door lock and unlock switch is Integrated in the power window main switch.

Door Lock and Unlock Switch (Passenger Side)

INFOID:0000000009648945

• Door lock and unlock switch transmits door lock/unlock signal operation to BCM.
• Door lock and unlock switch is Integrated in the front power window switch (passenger side).

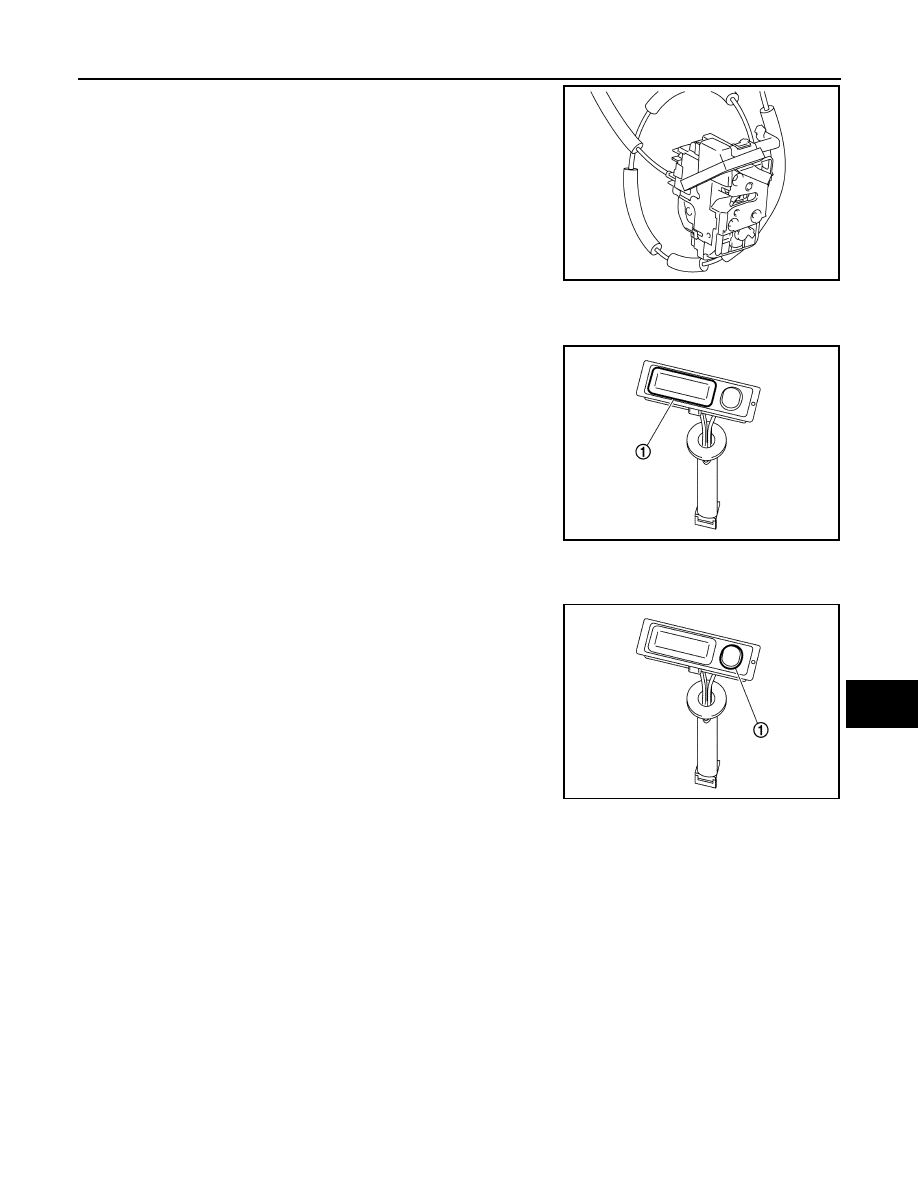

Front Door Request Switch

INFOID:0000000009648946

• Front door request switch (1) transmits door request switch signal to BCM.
• Front door request switch (1) integrated in outside handle assem-

bly.

Front Door Switch

INFOID:0000000009648947

Door switch detects open/close status of door and transmits door
switch signal to BCM.

Front Door Lock Assembly (Driver Side)

INFOID:0000000009648948

• Door lock actuator and unlock sensor are Integrated in driver door lock assembly.
• Door lock actuator receives lock/unlock signal from BCM, and then locks/unlocks driver door.

JMKIA8650ZZ

JMKIA9353ZZ

JMKIA6526ZZ

COMPONENT PARTS

DLK-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Only front door lock assembly (driver side) integrates unlock sen-

sor. Unlock sensor transmits lock/unlock status of driver seat to
BCM.

Back Door Opener Switch

INFOID:0000000009648949

• Back door opener switch (1) transmits back door opener switch signal to BCM.
• Back door opener switch (1) is integrated in outside handle (back

door).

Back Door Request Switch

INFOID:0000000009648950

• Back door request switch (1) transmits back door request switch signal to BCM.
• Back door request switch (1) is integrated in outside handle (back

door).

Back Door Lock Assembly (Without Automatic Back Door System)

INFOID:0000000009648951

Back door closure motor, half latch switch, open switch, close switch and back door switch are installed
• Closure motor: Inputs open/close signal from back door control unit and activates the back door auto closure

operation.

• Half latch switch: Starts the closure motor close operation.
• Open switch: Stops the closure motor open operation.
• Close switch: Stops the closure motor close operation.
• Back door switch: Detects open/close status of back door and transmits signal to BCM.

Back Door Control Unit (Without Automatic Back Door System)

INFOID:0000000009648952

Controls the back door auto closure system.

Selective Unlock Relay

INFOID:0000000009648953

Detects open/close status of front door (passenger side) and transmits signal to BCM.

JMKIA8649ZZ

JMKIA9354ZZ

JMKIA9355ZZ
