Nissan Quest E52. Manual - part 327

DLK-22

< SYSTEM DESCRIPTION >

COMPONENT PARTS

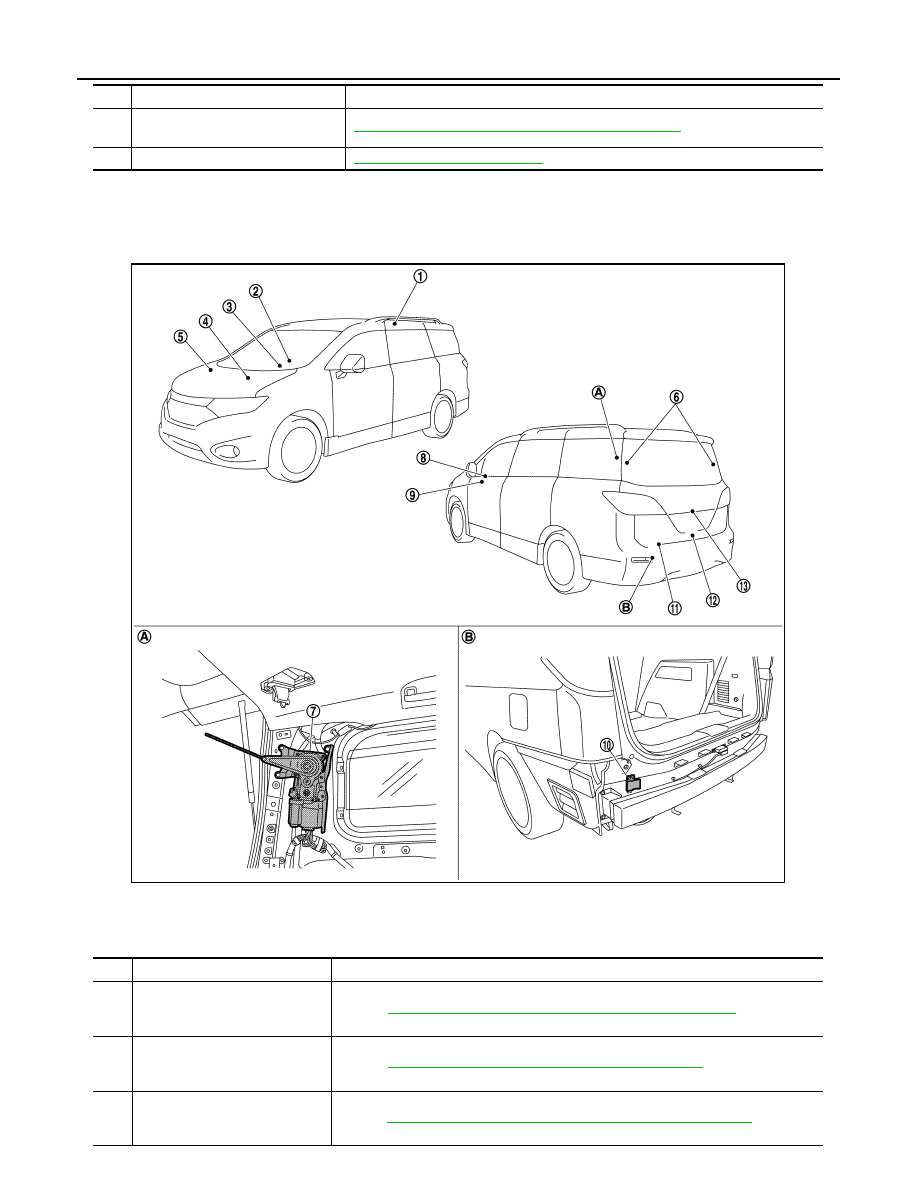

AUTOMATIC BACK DOOR SYSTEM

AUTOMATIC BACK DOOR SYSTEM : Component Parts Location

INFOID:0000000009648937

10.

Door lock and unlock switch (pas-
senger side)

DLK-28, "Door Lock and Unlock Switch (Passenger Side)"

11.

Selective unlock relay

DLK-29, "Selective Unlock Relay"

No.

Component

Function

A.

View with luggage side upper finish-
er removed

B.

View with rear bumper removed

No.

Component

Function

1.

Remote keyless entry receiver

Receives Intelligent Key operation and transmits to BCM
Refer to

DLK-18, "DOOR LOCK SYSTEM : Component Parts Location"

 for detailed in-

stallation location

2.

Combination meter

Transmits vehicle speed signal to CAN communication line
Refer to

MWI-6, "METER SYSTEM : Component Parts Location"

 for detailed installa-

tion location

3.

BCM

Transmits and receives signal to the automatic back door control module
Refer to

BCS-4, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location

JMKIA8157ZZ

COMPONENT PARTS

DLK-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

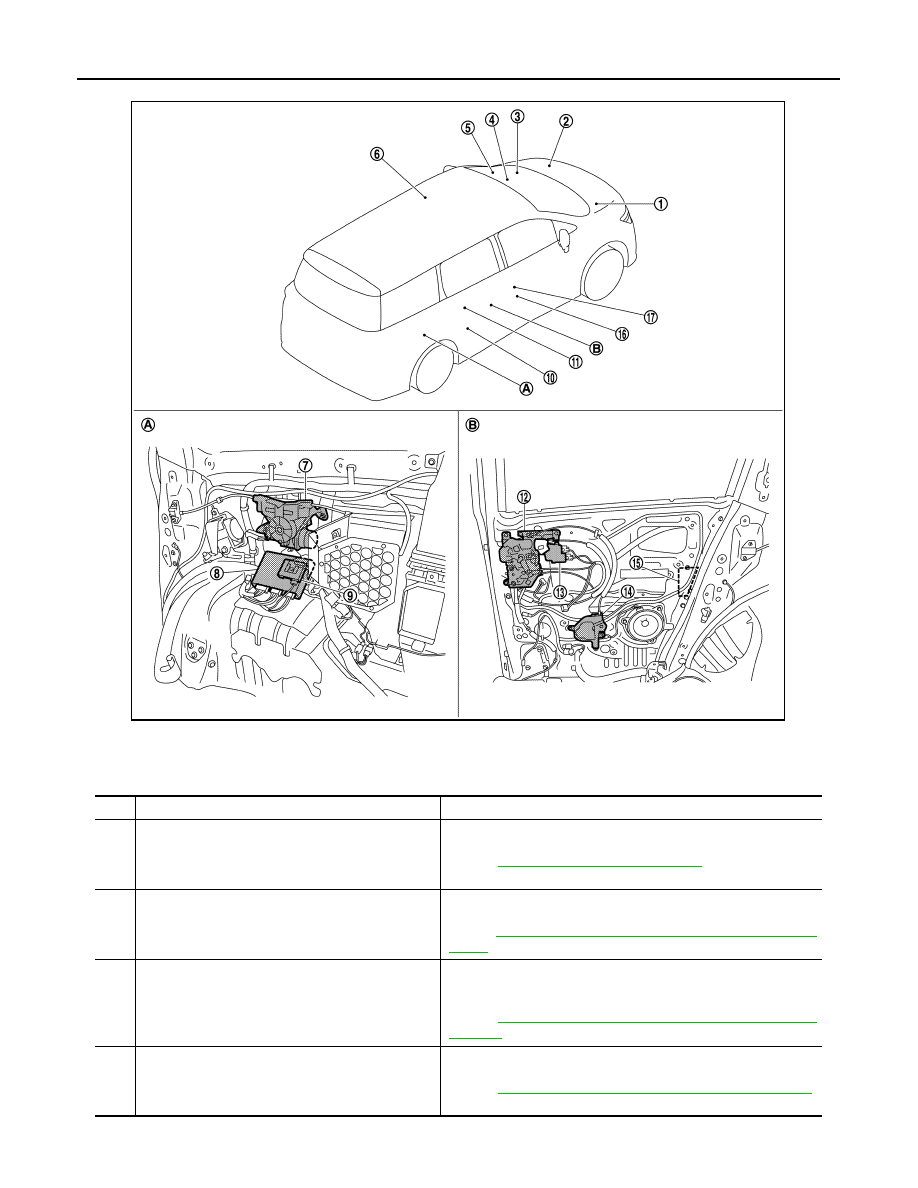

AUTOMATIC SLIDING DOOR SYSTEM

AUTOMATIC SLIDING DOOR SYSTEM : Component Parts Location

INFOID:0000000009648938

RH

4.

TCM

Transmits shift position signal to BCM via CAN communication line
Refer to

TM-10, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location

5.

ABS actuator and electric unit

Transmits vehicle speed signal to CAN communication line
Refer to

BRC-9, "Component Parts Location"

 for detailed installation location

6.

Back door touch sensor LH/RH

DLK-30, "Back Door Touch Sensor"

7.

Automatic back door control mod-
ule

DLK-30, "Automatic Back Door Control Module"

8.

Automatic back door switch

DLK-30, "Automatic Back Door Switch"

9.

Automatic door main switch

DLK-30, "Automatic Door Main Switch"

10.

Automatic back door warning
buzzer

DLK-30, "Automatic Back Door Warning Buzzer"

11.

Automatic back door close switch

DLK-30, "Automatic Back Door Close Switch"

12.

Back door lock assembly

DLK-30, "Back Door Lock Assembly (With Automatic Back Door System)"

13.

Automatic back door opener
switch

DLK-30, "Automatic Back Door Opener Switch"

No.

Component

Function

DLK-24

< SYSTEM DESCRIPTION >

COMPONENT PARTS

A.

View with luggage side lower finisher
RH removed

B.

View with sliding door finisher RH re-
moved

No.

Component

Function

1.

ABS actuator and electric unit

Transmits vehicle speed signal to sliding door control unit via CAN
communication line
Refer to

BRC-9, "Component Parts Location"

 for detailed installa-

tion location

2.

TCM

Transmits shift position signal to sliding door control unit via CAN
communication line
Refer to

TM-10, "CVT CONTROL SYSTEM : Component Parts Lo-

cation"

 for detailed installation location

3.

BCM

Transmits ignition switch ON signal, automatic sliding door operate
request signal and sleep wake up signal to sliding door control unit
via CAN communication line
Refer to

BCS-4, "BODY CONTROL SYSTEM : Component Parts

Location"

 for detailed installation location

4.

Combination meter

Transmits vehicle speed signal to sliding door control unit via CAN
communication line
Refer to

MWI-6, "METER SYSTEM : Component Parts Location"



for detailed installation location

JMKIA8168ZZ

COMPONENT PARTS

DLK-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

LH

5.

Automatic sliding door open/close switch (driver
side)

DLK-30, "Automatic Sliding Door Open/Close Switch"

6.

Remote keyless entry receiver

Receives Intelligent Key operation and transmits to BCM
Refer to

DLK-18, "DOOR LOCK SYSTEM : Component Parts Lo-

cation"

 for detailed installation location

7.

Automatic sliding door
unit RH

Encoder

DLK-30, "Automatic Sliding Door Unit"

Clutch

Automatic sliding door
motor

8.

Sliding door control unit RH

DLK-31, "Sliding Door Control Unit"

9.

Automatic sliding door warning buzzer RH

DLK-31, "Automatic Sliding Door Warning Buzzer"

10.

Sliding door switch RH

DLK-31, "Sliding Door Switch"

11.

Automatic sliding door one-touch open/close switch
RH

DLK-31, "Automatic Sliding Door One-Touch Open/Close Switch"

12.

Remote control assem-
bly RH

Child lock status switch

DLK-31, "Remote Control Assembly"

Sliding door handle
switch

13.

Sliding door lock actuator
RH

Sliding door lock actuator

DLK-31, "Sliding Door Lock Actuator"

Sliding door lock status
switch

14.

Sliding door lock release actuator RH

DLK-31, "Sliding Door Lock Release Actuator"

15.

Sliding door lock assem-
bly RH

Neutral switch

DLK-31, "Sliding Door Lock Assembly"

Full latch switch

Half latch switch

Sliding door closure mo-
tor

16.

Sliding door touch sensor RH

DLK-31, "Sliding Door Touch Sensor"

17.

Automatic sliding door open/close switch (rear RH)

DLK-30, "Automatic Sliding Door Open/Close Switch"

No.

Component

Function
