Nissan Quest E52. Manual - part 311

DAS-86

< REMOVAL AND INSTALLATION >

[BSW]

SIDE RADAR

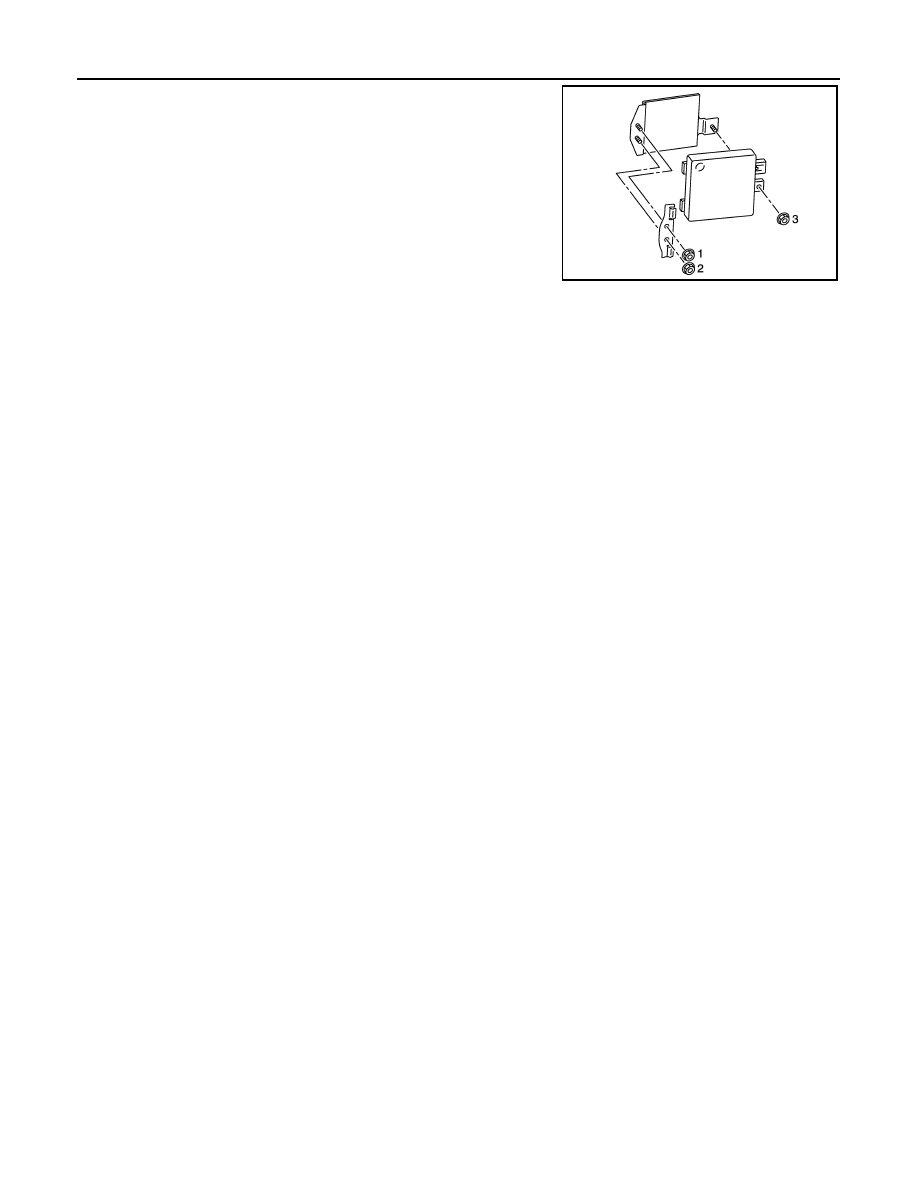

• Tighten mounting nuts in the numerical order as shown in the fig-

ure.

• Always lock the side radar connector.

CAUTION:

Since right side radar and left side radar are similar in shape,
never confuse right with left.

JSOIA0359ZZ

DAS

BSW INDICATOR

DAS-87

< REMOVAL AND INSTALLATION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

BSW INDICATOR

Exploded View

INFOID:0000000009940777

BSW indicator is installed on the door mirror surface. Refer to

MIR-37, "GLASS MIRROR : Removal and

Installation"

.

NOTE:
Always remove BSW indicator together with glass mirror.

DAS-88

< REMOVAL AND INSTALLATION >

[BSW]

BSW SWITCH

BSW SWITCH

Removal and Installation

INFOID:0000000009940778

REMOVAL

1.

Remove the instrument lower panel (LH). Refer to

IP-14, "Removal and Installation"

.

2.

Remove the bracket for BSW switch and other switches from instrument driver lower panel.

3.

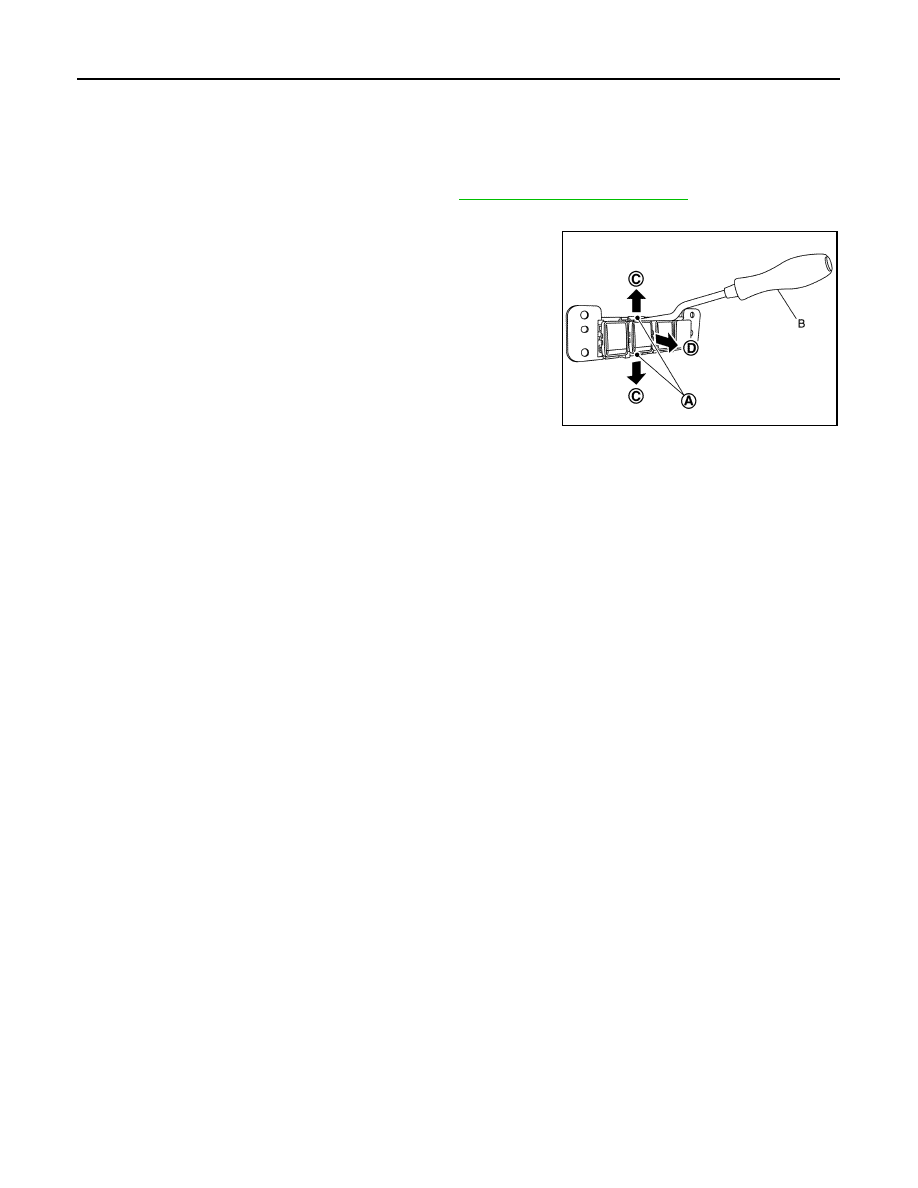

Insert remover tool (B) in pawl (A) of the bracket and widen the
pawl in (C) direction to release the fit.

4.

Remove BSW switch from the bracket in (D) direction.

INSTALLATION

Install in the reverse order of removal.

JSOIA0515ZZ

DEF-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

DEF

A

B

DEF

N

O

P

CONTENTS

DEFOGGER

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions For Xenon Headlamp Service  ...............

3

Precautions for Removing Battery Terminal  .............

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Rear window defogger  ..............................................

6

Door mirror defogger .................................................

6

SYSTEM ..............................................................

7

System Description  ...................................................

7

Circuit Diagram  .........................................................

8

DIAGNOSIS SYSTEM (BCM)  .............................

9

COMMON ITEM  ...........................................................

9

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .......................................................

9

REAR WINDOW DEFOGGER ...................................

10

REAR WINDOW DEFOGGER : CONSULT Func-
tion (BCM - REAR DEFOGGER)  ............................

11

ECU DIAGNOSIS INFORMATION ..............

12

BCM ....................................................................

12

List of ECU Reference  ............................................

12

WIRING DIAGRAM  ......................................

13

REAR WINDOW DEFOGGER SYSTEM ............

13

Wiring Diagram  .......................................................

13

BASIC INSPECTION  ...................................

19

DIAGNOSIS AND REPAIR WORK FLOW  ........

19

Work Flow ................................................................

19

DTC/CIRCUIT DIAGNOSIS  .........................

20

REAR WINDOW DEFOGGER SWITCH  ...........

20

WITH AUTO A/C  ........................................................

20

WITH AUTO A/C : Component Function Check ......

20

WITH AUTO A/C : Diagnosis Procedure  .................

20

WITH MANUAL A/C ...................................................

21

WITH MANUAL A/C : Component Function Check

....

21

WITH MANUAL A/C : Diagnosis Procedure  ............

21

REAR WINDOW DEFOGGER RELAY  .............

23

Component Function Check  ....................................

23

Diagnosis Procedure  ...............................................

23

Component Inspection .............................................

24

REAR WINDOW DEFOGGER  ..........................

25

Component Function Check  ....................................

25

Diagnosis Procedure  ...............................................

25

DOOR MIRROR DEFOGGER ...........................

27

Component Function Check  ....................................

27

Diagnosis Procedure  ...............................................

27

DRIVER SIDE DOOR MIRROR DEFOGGER ...

28

Component Function Check  ....................................

28

Diagnosis Procedure  ...............................................

28

PASSENGER SIDE DOOR MIRROR DEFOG-
GER ...................................................................

29

Component Function Check  ....................................

29

Diagnosis Procedure  ...............................................

29

REAR WINDOW DEFOGGER FEEDBACK
SIGNAL .............................................................

30

WITH AUTO A/C  ........................................................

30

WITH AUTO A/C : Component Function Check ......

30

WITH AUTO A/C : Diagnosis Procedure  .................

30
