CO-6

< PRECAUTION >

PRECAUTIONS

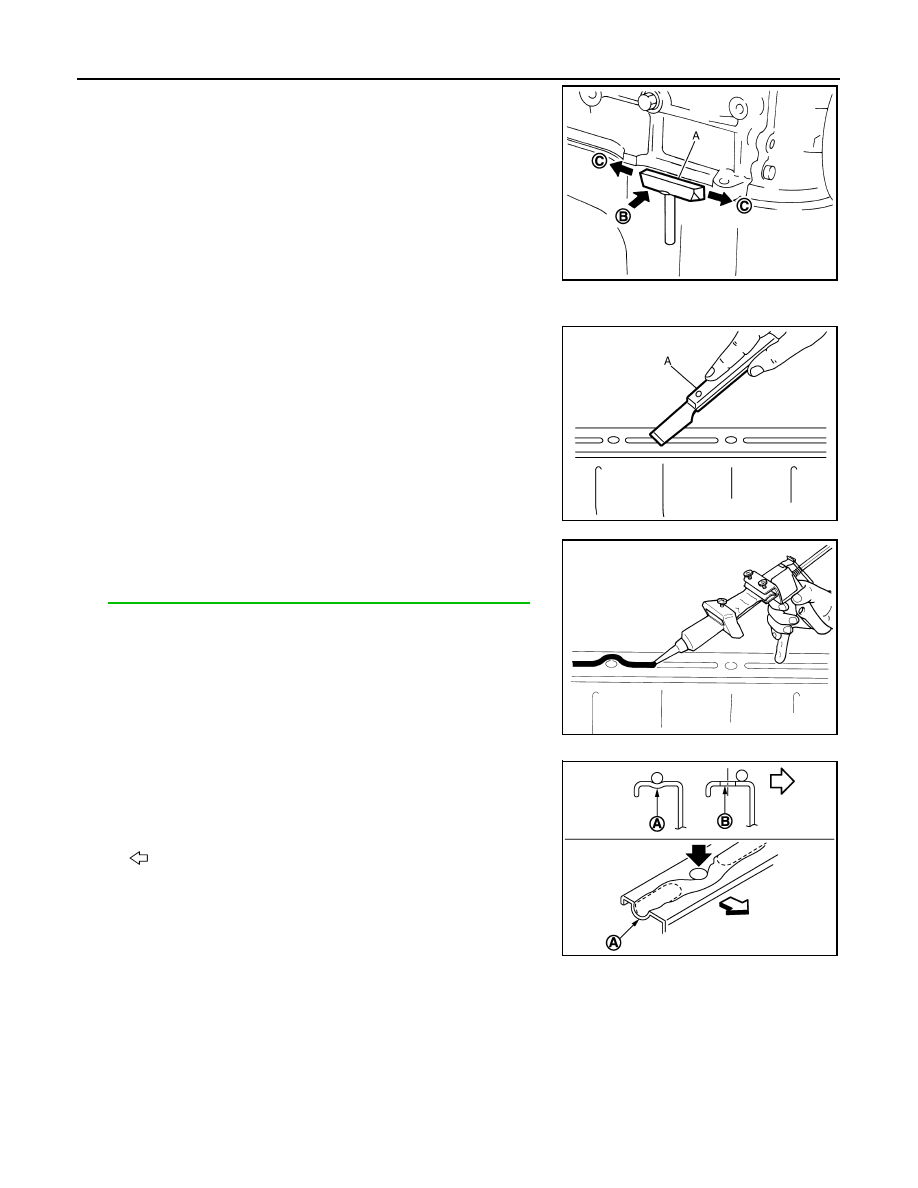

• After removing mounting nuts and bolts, separate the mating sur-

face using the seal cutter [SST: KV10111100 (J-37228)] (A) and
remove old liquid gasket sealing.

CAUTION:

Be careful not to damage the mating surfaces.

• Tap (B) the seal cutter [SST: KV10111100 (J-37228)] to insert it,

and then slide (C) it by tapping on the side as shown in the figure.

• In areas where seal cutter [SST: KV10111100 (J-37228)] is difficult

to use, use a plastic hammer to lightly tap the parts, to remove it.

CAUTION:

If for some unavoidable reason tool such as a screwdriver is
used, be careful not to damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper (A), remove old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.
• Remove liquid gasket completely from the groove of the liquid

gasket application surface, mounting bolts, and bolt holes.

2.

Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.

3.

Attach liquid gasket tube to the tube presser (commercial ser-
vice tool).
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

4.

Apply liquid gasket without breaks to the specified location with
the specified dimensions.
• If there is a groove for the liquid gasket application, apply liq-

uid gasket to the groove.

• As for the bolt holes (B), normally apply liquid gasket inside

the holes. Occasionally, it should be applied outside the holes.
Check to read the text of service manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.
• Never retighten after mounting bolts and nuts the installation.
• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

JPBIA0052ZZ

JPBIA0053ZZ

EMA0622D

A

:  Groove

: Inside

JPBIA0010ZZ

PREPARATION

CO-7

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

PREPARATION

PREPARATION

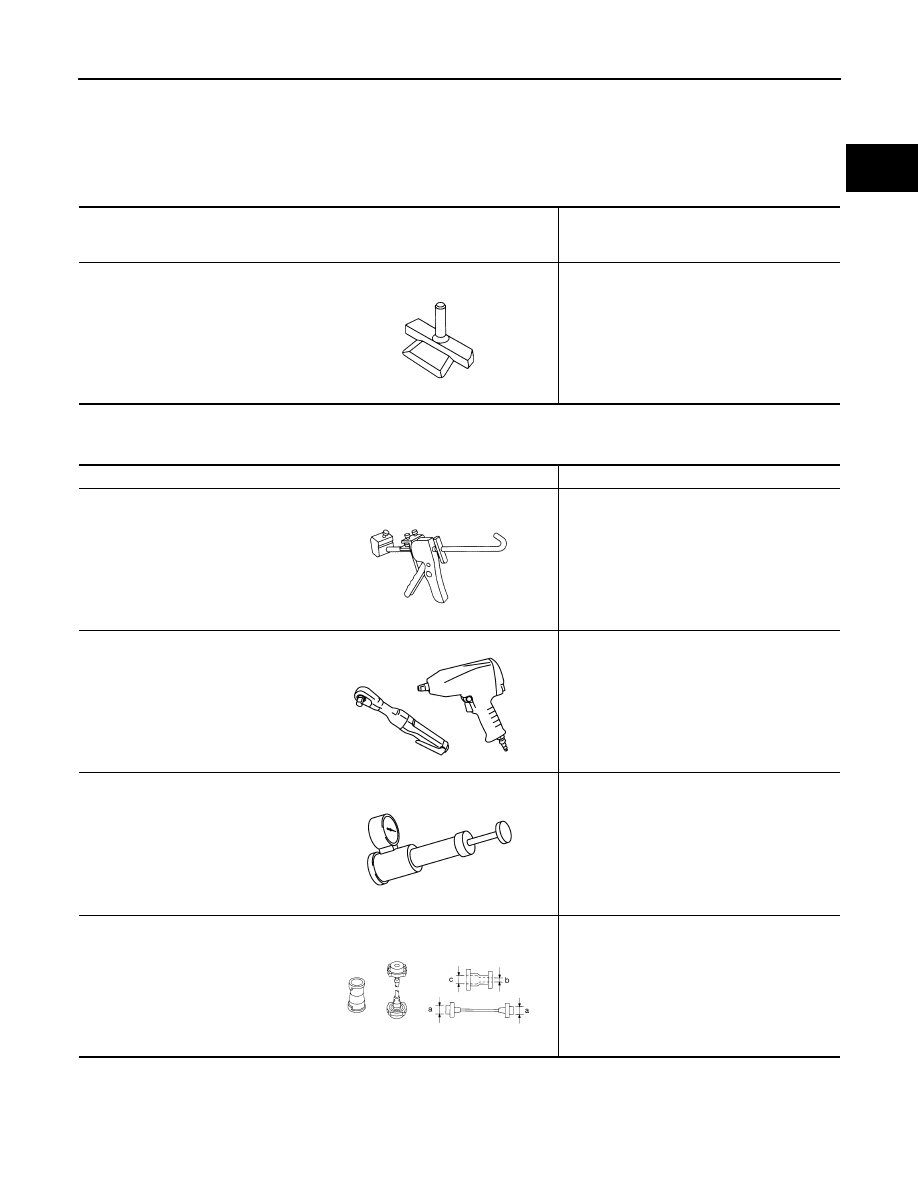

Special Service Tool

INFOID:0000000009650536

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009650537

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing water pump cover

NT046

Tool name

Description

Tube presser

Pressing the tube of liquid gasket

Power tool

Loosening nuts and bolts

Radiator cap tester

Checking radiator and radiator cap

Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator pipe (upper) filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

S-NT052

PBIC0190E

PBIC1982E

S-NT564

CO-8

< PERIODIC MAINTENANCE >

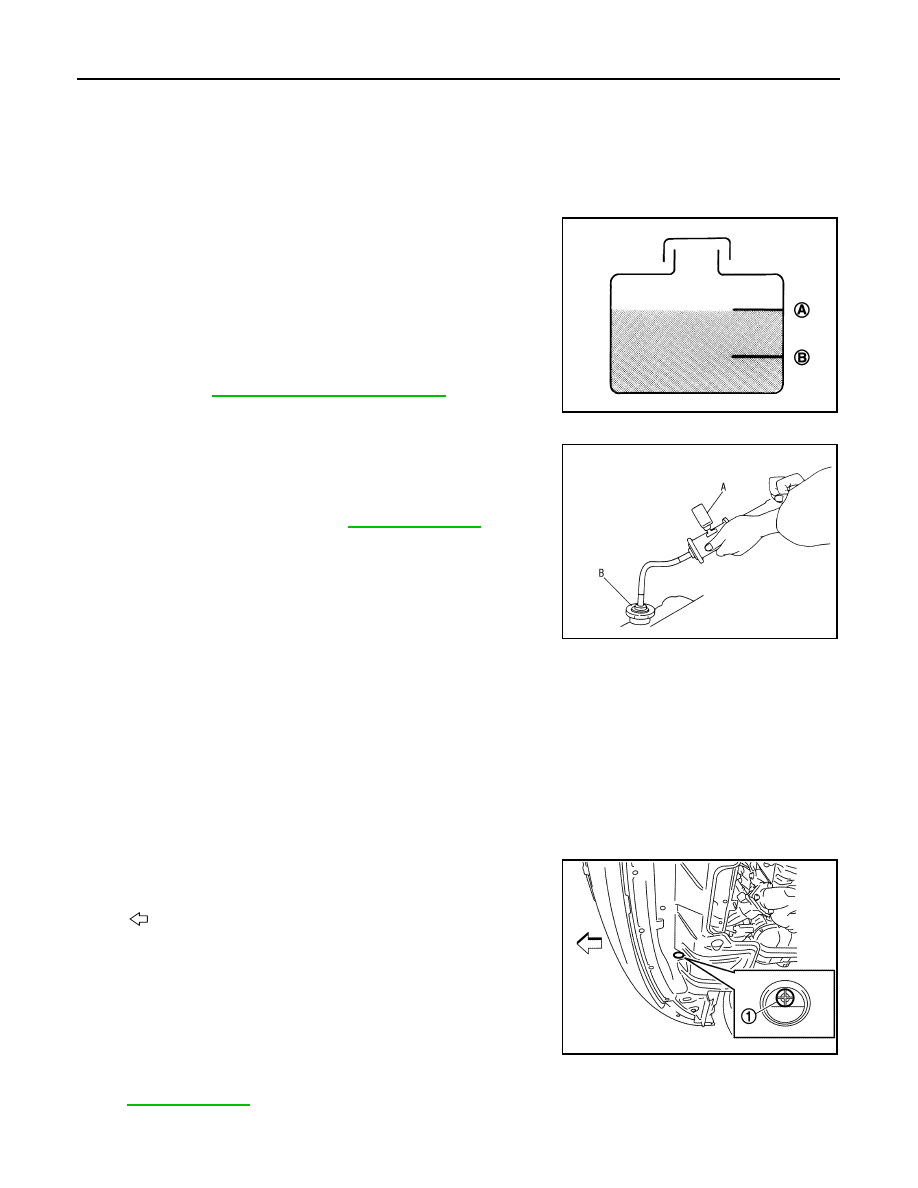

ENGINE COOLANT

PERIODIC MAINTENANCE

ENGINE COOLANT

Inspection

INFOID:0000000009650538

LEVEL

• Check if the reservoir tank engine coolant level is within the “MIN”

to “MAX” when the engine is cool.

• Adjust the engine coolant level if necessary.

CAUTION:

Refill Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent in its quality mixed with water (distilled or deminer-
alized). Refer to

MA-10, "Fluids and Lubricants"

.

LEAKAGE

• To check for leakage, apply pressure to the cooling system with the

radiator cap tester (commercial service tool) (A) and radiator cap
tester adapter (commercial service tool) (B).

WARNING:

Never remove radiator cap when engine is hot. Serious burns
could occur from high-pressure engine coolant escaping from
engine cooling system.

CAUTION:

Higher test pressure than specified may cause radiator dam-
age.
NOTE:
In a case that engine coolant decreases, replenish radiator with engine coolant.

• If anything is found, repair or replace damaged parts.

Draining

INFOID:0000000009650539

WARNING:

• To avoid being scalded, never change engine coolant when the engine is hot.
• Wrap a thick cloth around radiator cap and carefully remove radiator cap. First, turn radiator cap a

quarter of a turn to release built-up pressure. Then turn radiator cap all the way.

1.

Remove engine under cover.

2.

Open radiator drain plug (1) at the bottom of radiator, and then
remove radiator cap.

When draining all of engine coolant in the system, open water drain plugs on cylinder block. Refer
to

EM-63, "Setting"

.

3.

Remove reservoir tank if necessary, and drain engine coolant and clean reservoir tank before installing.

A

:  MAX

B

:  MIN

JPBIA0102ZZ

Testing pressure

: Refer to

CO-28, "Radiator"

.

PBIC5121J

: Vehicle front

JPBIA5339ZZ

ENGINE COOLANT

CO-9

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

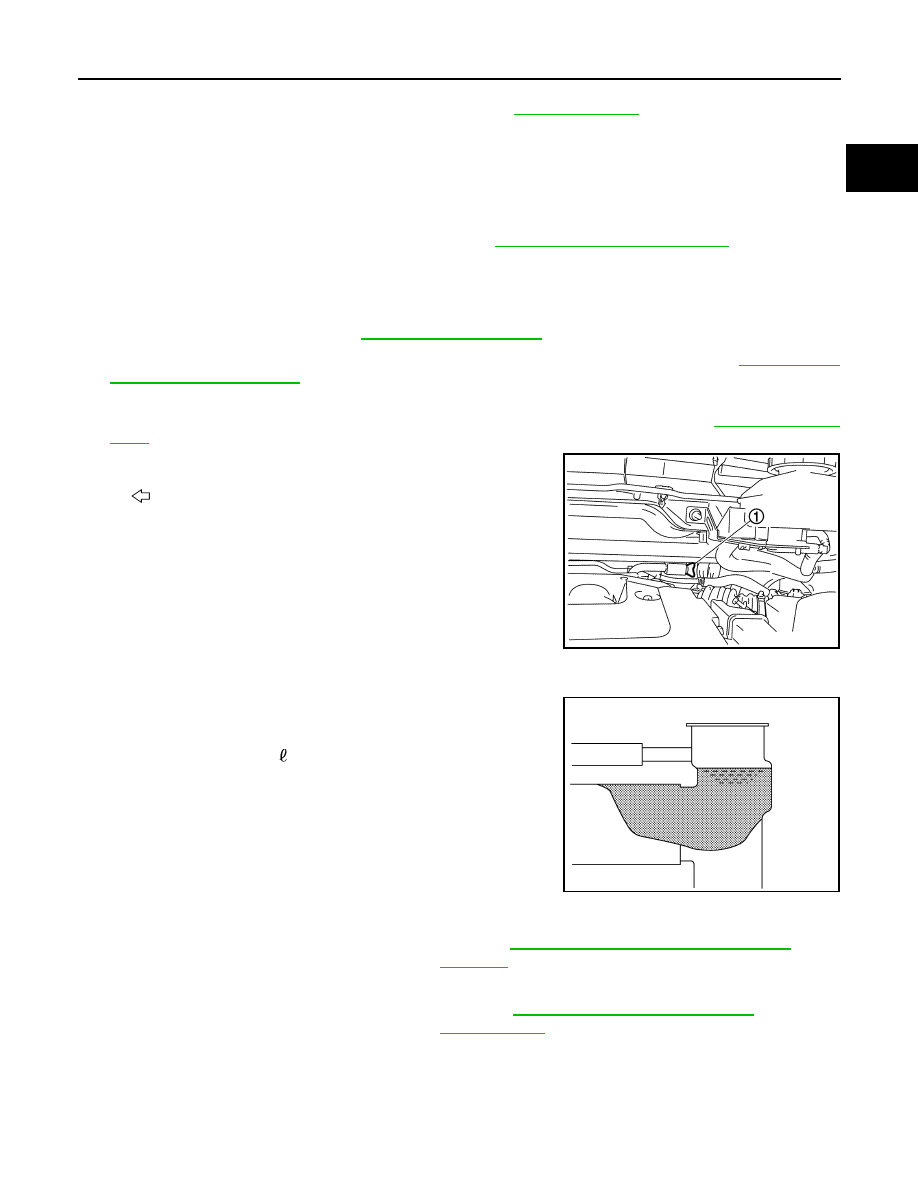

4.

Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to

CO-10, "Flushing"

.

Refilling

INFOID:0000000009650540

CAUTION:

• Do not reuse O-rings.
• Do not put additive such as water leak preventive, since it may cause cooling waterway clogging.
• When refilling use Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent in its quality

mixed with water (distilled or demineralized). Refer to

MA-10, "Fluids and Lubricants"

.

1.

Install reservoir tank if removed and radiator drain plug.

CAUTION:

Be sure to clean drain plug and install with new O-ring.

If water drain plugs on cylinder block are removed, close and tighten them. Refer to

EM-105, "Dis-

assembly and Assembly"

.

2.

Check that each hose clamp has been firmly tightened.

3.

Remove air duct assembly and air cleaner cases (upper and lower) assembly. Refer to

EM-26, "Exploded

View"

.

4.

Remove air bleeder plug (1) of heater pipe.

5.

Fill radiator, and reservoir tank if removed, to specified level.

CAUTION:

Never adhere the engine coolant to electronic equipments.
(alternator etc.)
• Pour engine coolant through engine coolant filler neck

slowly of less than 2  (2-1/8 US qt, 1-3/4 lmp qt) a minute
to allow air in system to escape.

• When coolant comes out from the air bleeder plug of

heater pipe, tighten the bleeder plug.

Tightening torque

: Refer to

CO-13, "Exploded View"

.

: Vehicle front

JPBIA5340ZZ

JPBIA0412ZZ

Engine coolant capacity

: Refer to

CO-28, "Periodical Maintenance Spec-

ification"

.

(With reservoir tank at “MAX” level)

Reservoir tank engine coolant capacity

: Refer to

CO-28, "Periodical Maintenance

Specification"

.

(At “MAX” level)
