CHG

L TERMINAL CIRCUIT (SHORT)

CHG-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

L TERMINAL CIRCUIT (SHORT)

Description

INFOID:0000000009650430

The “L” terminal circuit controls the charge warning lamp. The charge warning lamp illuminates when the igni-
tion switch is set to ON or START. When the alternator is providing sufficient voltage with the engine running,
the charge warning lamp will go off. If the charge warning lamp illuminates with the engine running, a malfunc-
tion is indicated.

Diagnosis Procedure

INFOID:0000000009650431

1.

CHECK “L” TERMINAL CIRCUIT (SHORT)

1.

Turn ignition switch OFF.

2.

Disconnect alternator connector.

3.

Turn ignition switch ON.

Does charge warning lamp illuminate?

YES

>> GO TO 2.

NO

>> Refer to

CHG-14, "Work Flow (With EXP-800 NI or GR8-1200 NI)"

 or

CHG-18, "Work Flow (With-

out EXP-800 NI or GR8-1200 NI)"

.

2.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect combination meter connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> Replace combination meter.

NO

>> Repair the harness.

Combination meter harness connector

Ground

Continuity

Connector No.

Terminal No.

M34

25

Not existed

CHG-28

< DTC/CIRCUIT DIAGNOSIS >

S TERMINAL CIRCUIT

S TERMINAL CIRCUIT

Description

INFOID:0000000009650432

The output voltage of the alternator is controlled by the IC voltage regulator at the “S” terminal detecting the
input voltage.
The “S” terminal circuit detects the battery voltage to adjust the alternator output voltage with the IC voltage
regulator.

Diagnosis Procedure

INFOID:0000000009650433

1.

CHECK “S” TERMINAL CONNECTION

1.

Turn ignition switch OFF.

2.

Check if “S” terminal is clean and tight.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair “S” terminal connection. Confirm repair by performing complete Charging system test

using EXP-800 NI or GR8-1200 NI (if available). Refer to the applicable Instruction Manual for
proper testing procedures.

2.

CHECK “S” TERMINAL CIRCUIT

Check voltage between alternator harness connector and ground.

Is the inspection result normal?

YES

>> Refer to

CHG-14, "Work Flow (With EXP-800 NI or GR8-1200 NI)"

 or

CHG-18, "Work Flow (With-

out EXP-800 NI or GR8-1200 NI)"

.

NO

>> Check harness for open between alternator and fuse.

Terminals

Voltage (Approx.)

(+)

(–)

Alternator harness connector

Terminal

F60

4

Ground

Battery voltage

CHG

CHARGING SYSTEM

CHG-29

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYMPTOM DIAGNOSIS

CHARGING SYSTEM

Symptom Table

INFOID:0000000009650434

Symptom

Reference

Discharged battery

Refer to

CHG-14, "Work Flow (With EXP-800 NI or GR8-1200 NI)"



or

CHG-18, "Work Flow (Without EXP-800 NI or GR8-1200 NI)"

.

The charge warning lamp does not illuminate when the ignition
switch is set to ON.

The charge warning lamp does not turn OFF after the engine
starts.

The charging warning lamp turns ON when increasing the engine
speed.

CHG-30

< REMOVAL AND INSTALLATION >

ALTERNATOR

REMOVAL AND INSTALLATION

ALTERNATOR

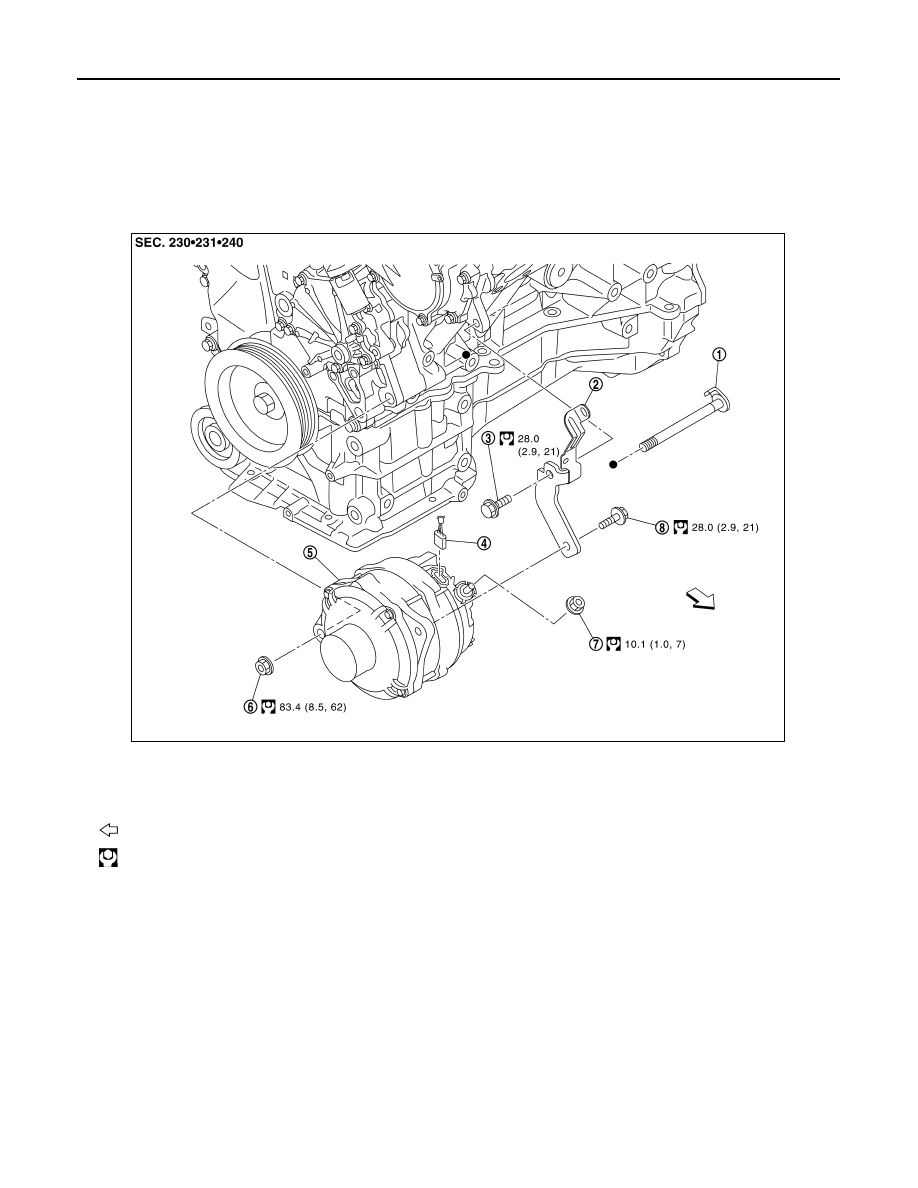

Exploded View

INFOID:0000000009650435

REMOVAL

DISASSEMBLY

1.

Alternator mounting bolt (lower)

2.

Alternator bracket

3.

Alternator bracket mounting bolt

4.

Alternator harness connector

5.

Alternator

6.

Alternator mounting nut (lower)

7.

“B” terminal harness nut

8.

Alternator mounting bolt (upper)

: Vehicle front

: N·m (kg-m, ft-lb)

JSMIA1554GB
