Nissan Quest E52. Manual - part 273





BRM-58

< SERVICE DATA AND SPECIFICATIONS (SDS)

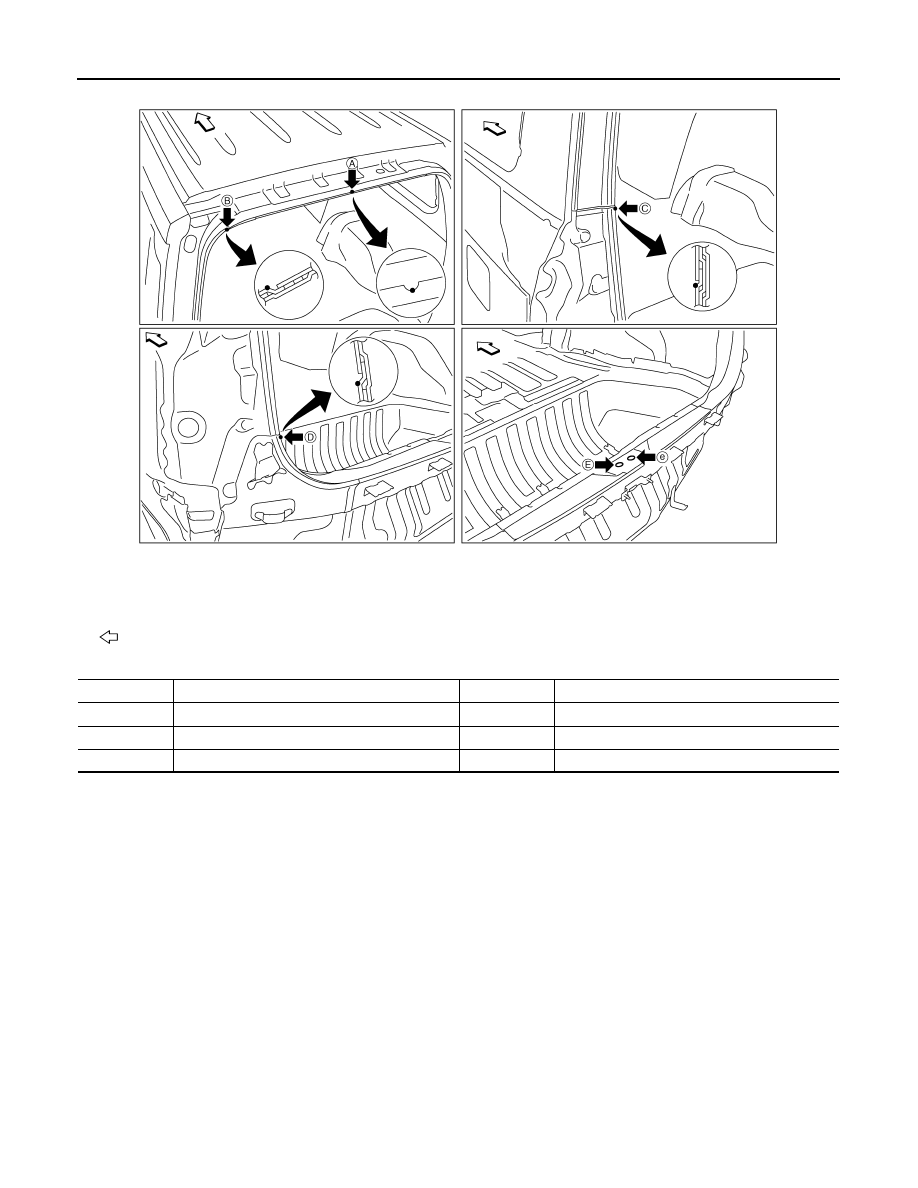

BODY ALIGNMENT

Unit: mm (in)

: Vehicle front

JSKIA2491ZZ

Point

Material

Point

Material

A

Roof flange end of center positioning mark

D, d

Upper rear panel joggle

B, b

Back pillar main joggle

E, e

Back door striker installing hole center

φ

16 (0.63)

C, c

Rear combination lamp base joggle

LOCATION OF PLASTIC PARTS

BRM-59

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

LOCATION OF PLASTIC PARTS

Precautions for Plastics

INFOID:0000000009648894

CAUTION:

• When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat

and solvent) and remove them if necessary or take suitable measures to protect them.

• Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Abbre-

viation

Material name

Heat resisting

temperature

°

C (

°

F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

ABS

Acrylonitrile Butadiene Styrene

80 (176)

Avoid gasoline and solvents.

AES

Acrylonitrile Ethylene Styrene

80 (176)

EPM/
EPDM

Ethylene Propylene (Diene) co-
polymer

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

PVC

Poly Vinyl Chloride

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Poisonous gas is emitted
when burned.

TPO

Thermoplastic Olefine

80 (176)

Flammable

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Avoid gasoline and solvents.

PMMA

Poly Methyl Methacrylate

85 (185)

EVAC

Ethylene Vinyl Acetate

90 (194)

PP

Polypropylene

90 (194)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable, avoid bat-
tery acid.

PUR

Polyurethane

90 (194)

Avoid gasoline and solvents.

UP

Unsaturated Polyester

90 (194)

Flammable

ASA

Acrylonitrile Styrene Acrylate

100 (212)

Flammable

PPE

Poly Phenylene Ether

110 (230)

TPU

Thermoplastic Urethane

110 (230)

PBT+
PC

Poly Butylene Terephthalate +
Polycarbonate

120 (248)

Flammable

PC

Polycarbonate

120 (248)

POM

Poly Oxymethylene

120 (248)

Avoid battery acid.

PA

Polyamide

140 (284)

Avoid immersing in wa-
ter.

PBT

Poly Butylene Terephthalate

140 (284)

PAR

Polyarylate

180 (356)

PET

Polyethylene terephthalate

180 (356)

PEI

Polyetherimide

200 (392)

BRM-60

< SERVICE DATA AND SPECIFICATIONS (SDS)

LOCATION OF PLASTIC PARTS

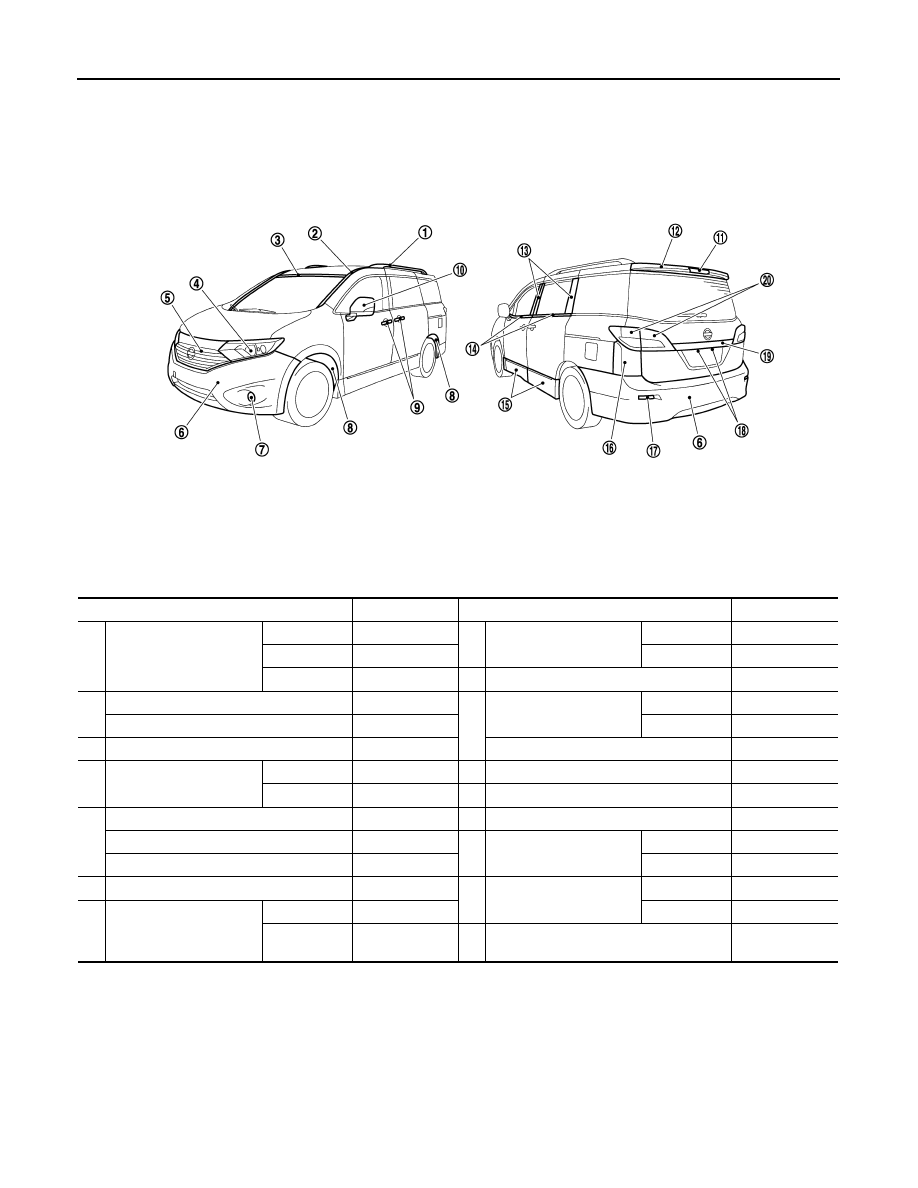

Location of Plastic Parts

INFOID:0000000009648895

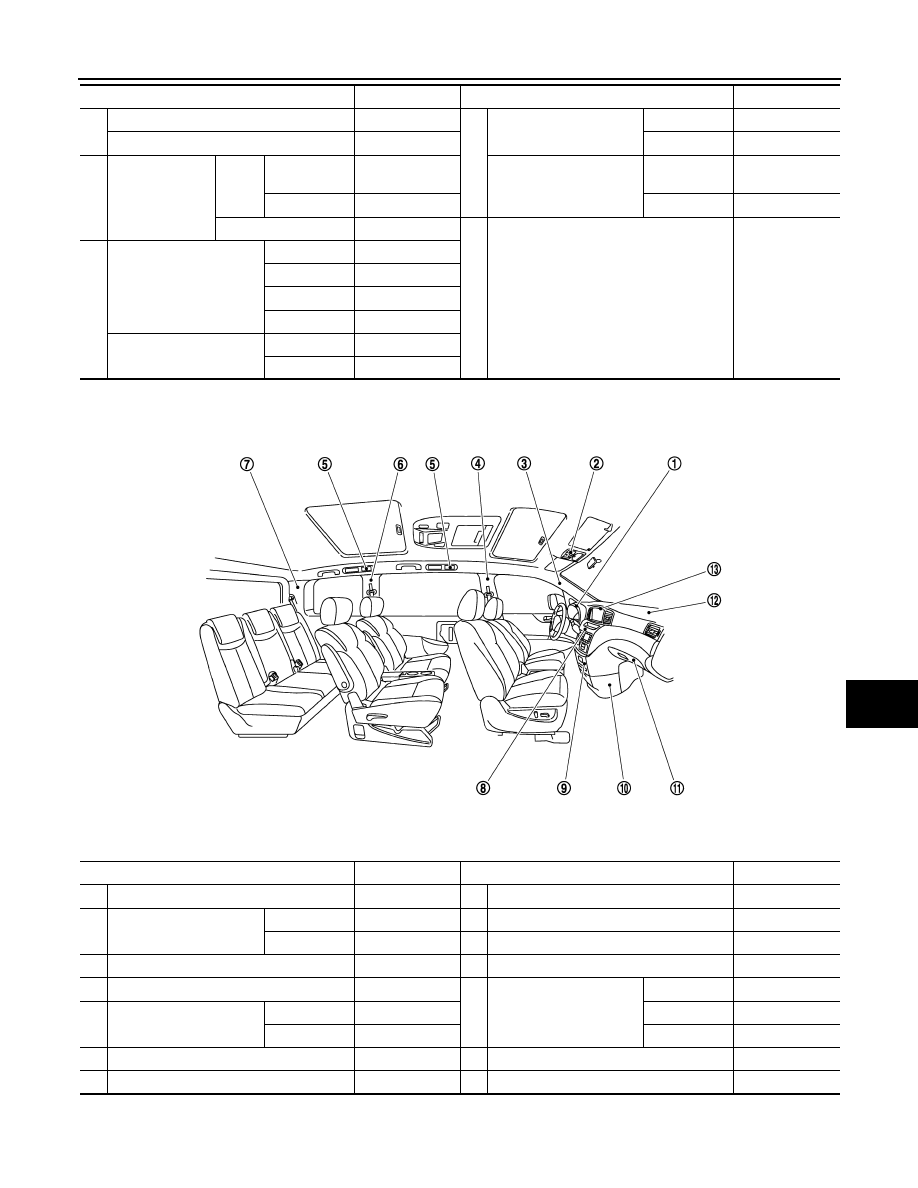

Component

Material

Component

Material

1

Roof  rack

Front cover

PC + PET

11

High mount stop lamp

Lens

PMMA

Rear cover

ABS

Housing

ABS

Pipe

Aluminum

12

Rear spoiler

PC + PET

2

Roof side molding

PVC + Stainless

13

Door sash cover

Front door

PMMA

Lower side molding

ASA

Slide door

PMMA

3

Windshield molding

EPDM

Slide door outer corner cover

PMMA

4

Front combination lamp

Lens

PC

14

Door outside molding

PVC + Stainless

Housing

PP

15

Protect molding

ASA

5

Front grille

ABS

16

Sight shield assembly

ABS

Upper molding

ABS

17

Reflex reflector

Lens

PMMA

Lower molding

ABS

Housing

ABS

6

Bumper fascia

PP + EPM

18

License plate lamp

Lens

PC

7

Front fog lamp

Lens

Glass

Housing

PC

Housing

PBT + ASA +

Glass fiber

19

Back door finisher

ABS

JSKIA2492ZZ

LOCATION OF PLASTIC PARTS

BRM-61

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

8

Front fender protector

PP

20

Rear combination lamp
(Rear fender)

Lens

PMMA

Rear bumper closing

PP

Housing

ASA

9

Door outside
handle

Front
door

Grip body

PC + PET +

Glass fiber

Rear combination lamp
(Back door)

Lens

PMMA

Grip cover

PC + ABS

Housing

ASA

Slide door

PC + ABS

10

Door outside mirror

Housing

ASA

Base

ASA

Base cover

ABS

Mirror cover

ABS

Side turn signal lamp

Lens

PMMA

Housing

ABS

Component

Material

Component

Material

1

Cluster lid A

ABS

8

Cluster lid C

PC + ABS

2

Map  lamp

Lens

PC

9

Instrument lower panel center

PP + EPDM

Housing

PP

10

Instrument lower cover

PP

3

Front pillar garnish

PP

11

Glove box

PP + EPDM

4

Center pillar garnish

PP

12

Instrument panel

Skin

TPU

5

Personal  lamp

Lens

PC

Pad

PUR

Housing

PP

Core

PP + EPDM

6

Rear pillar garnish

PP

13

Cluster lid D

PC + ABS

7

Back pillar garnish

PP

Component

Material

Component

Material

JSKIA2493ZZ
