AROUND VIEW MONITOR CONTROL UNIT

AV-631

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AROUND VIEW MONITOR CONTROL UNIT

Removal and Installation

INFOID:0000000009652427

REMOVAL

1.

Remove globe box assembly. Refer to

IP-14, "Removal and Installation"

.

2.

Remove harness clip mounted to the bracket.

3.

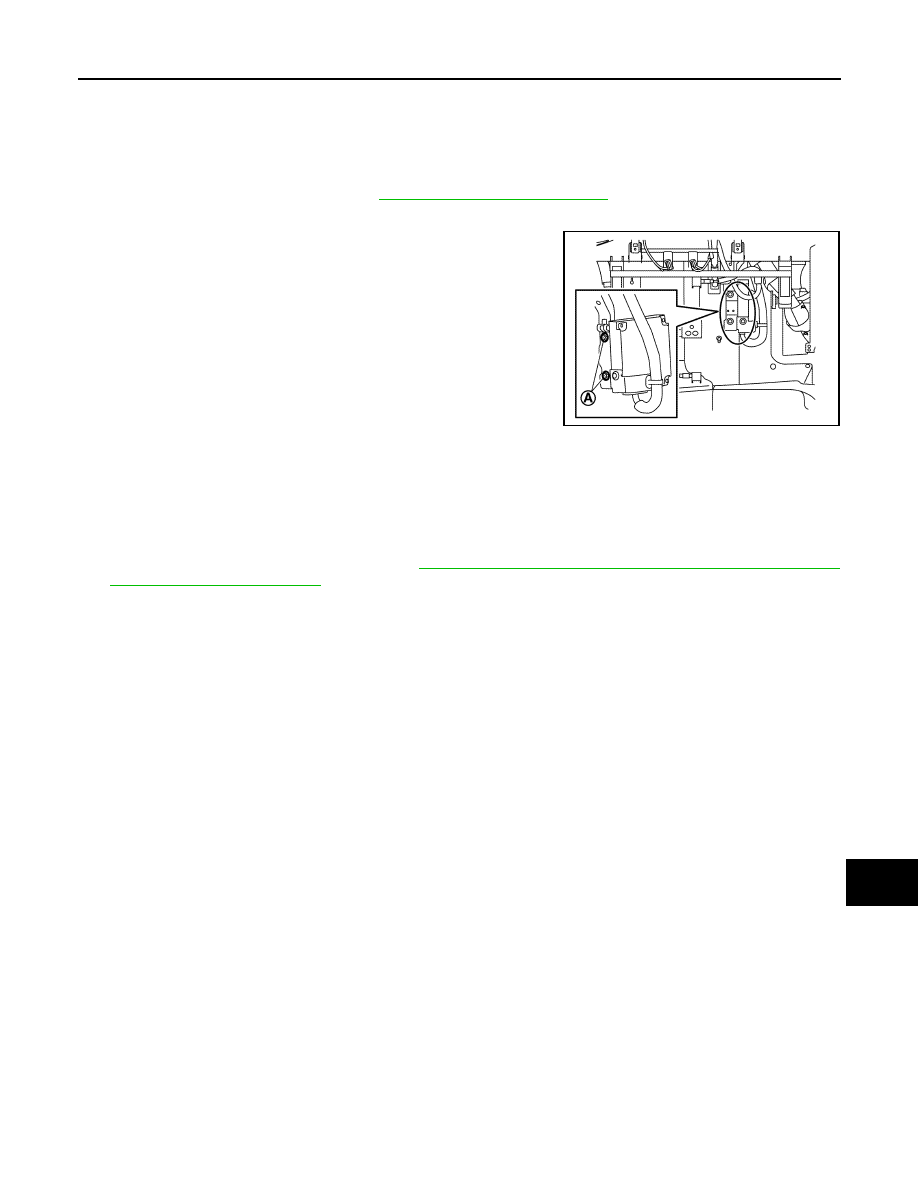

Remove two mounting screws (A) and pull the around view
monitor control unit together with the brackets.

4.

Disconnect connectors to remove around view monitor control unit and brackets from the vehicle as a sin-
gle unit.

5.

Remove bracket screws to remove around view monitor control unit.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-528, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

JSNIA5401ZZ

AV-632

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

FRONT CAMERA

FRONT CAMERA

Removal and Installation

INFOID:0000000009652428

REMOVAL

1.

Remove front grille. Refer to

EXT-18, "Removal and Installation"

.

2.

Remove front camera mounting screws to remove front camera from front grille.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-528, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

AV

REAR CAMERA

AV-633

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR CAMERA

Removal and Installation

INFOID:0000000009942969

REMOVAL

1.

Remove back door finisher. Refer to

EXT-47, "Removal and Installation"

.

2.

Remove screws to remove rear camera from back door finisher.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-528, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

AV-634

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

SIDE CAMERA

SIDE CAMERA

Removal and Installation

INFOID:0000000009652430

REMOVAL

1.

Remove door mirror under cover from door mirror. Refer to

MIR-35, "DOOR MIRROR ASSEMBLY : Dis-

assembly and Assembly"

.

2.

Remove screws to remove side camera from door mirror under cover.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-528, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Work Procedure"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.
