ANTENNA AMP.

Removal and Installation

INFOID:0000000009652421

REMOVAL

1.

Remove rear pillar garnish RH. Refer to

INT-27, "REAR PILLAR GARNISH : Removal and Installation"

.

2.

Remove screw and disconnect connector, and remove antenna amp.

INSTALLATION

Install in the reverse order of removal.

AV-628

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

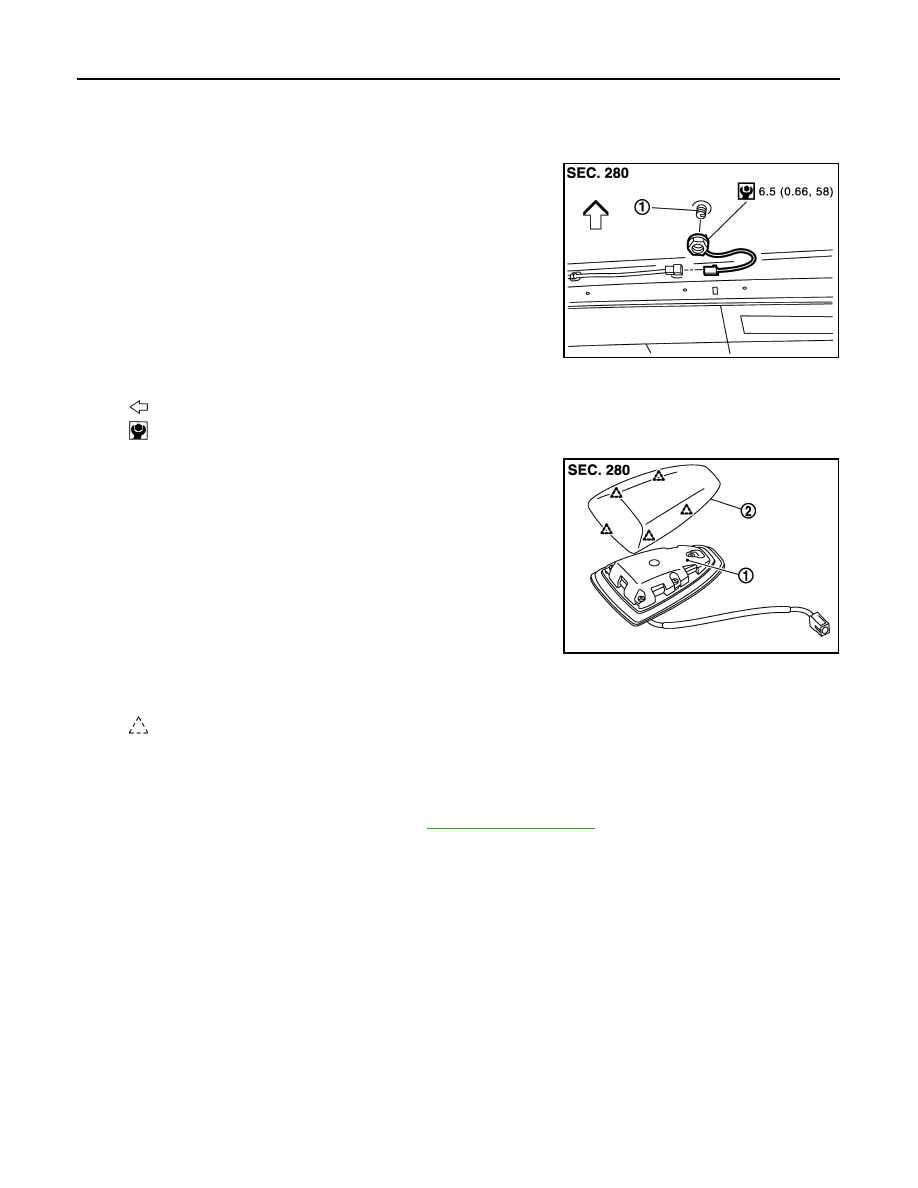

Exploded View

INFOID:0000000009652422

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009652423

REMOVAL

1.

Remove rear upper ventilator duct 2. Refer to

HA-56, "Exploded View"

.

2.

Disconnect antenna feeder connector.

3.

Remove nut, and remove satellite radio antenna and the cover from the vehicle as a single unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the satellite radio antenna mounting nut is tightened looser than the specified torque, then this will
lower the sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified
torque, then this will deform the roof panel.

Disassembly and Assembly

INFOID:0000000009652424

DISASSEMBLY

Insert cloth-covered driver into gaps between satellite radio antenna and the cover, and remove the cover from
satellite radio antenna.

ASSEMBLY

Assemble in the reverse order of disassembly.

JSNIA3188ZZ

1.

Satellite radio antenna

 :

Vehicle front

 :

N·m (kg-m, in-fb)

JSNIA3284ZZ

1.

Satellite radio antenna

2.

Cover

 :

Pawl

AV

GPS ANTENNA

AV-629

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

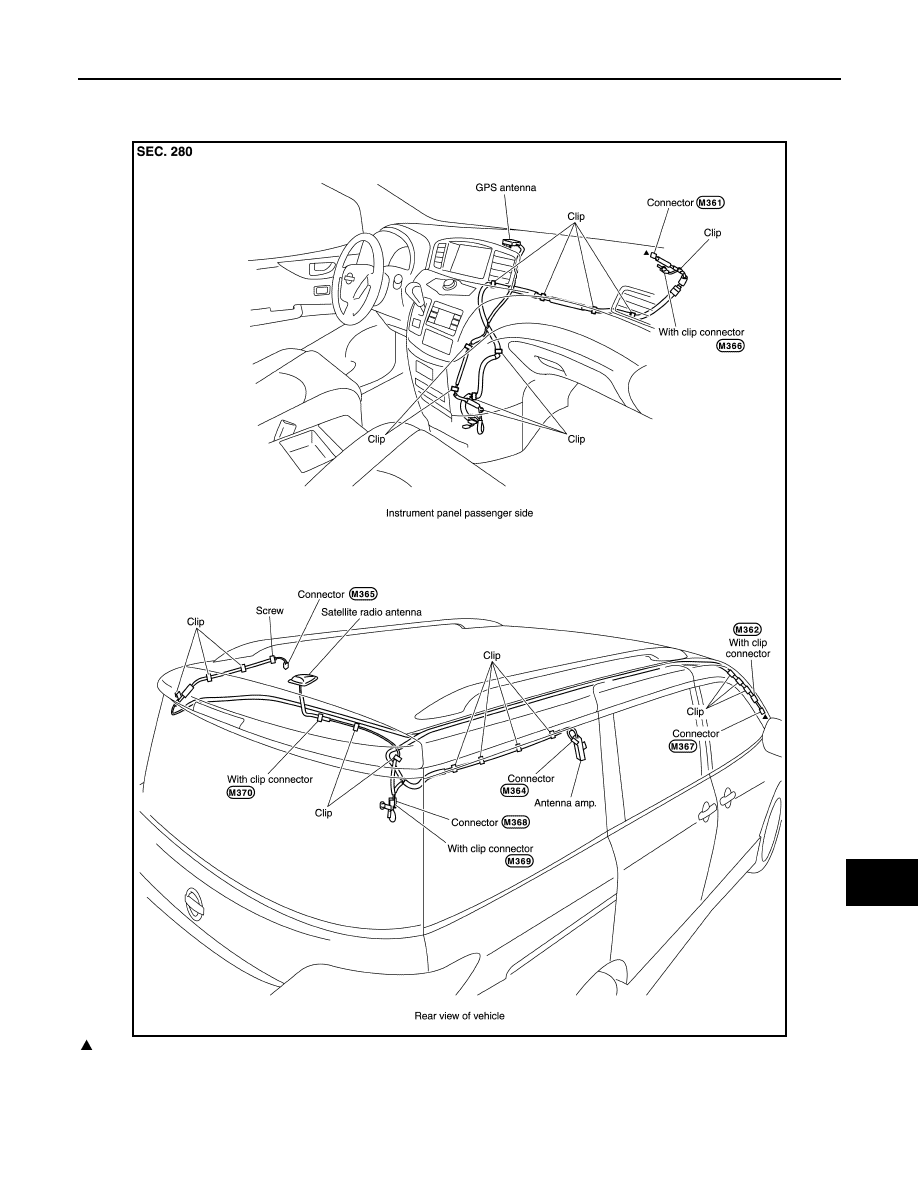

Feeder Layout

INFOID:0000000009652425

: Indicates that the part is connected at points with same symbol in actual vehicle.

Removal and Installation

INFOID:0000000009652426

REMOVAL

JSNIA4207GB

AV-630

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

GPS ANTENNA

1.

Remove AV control unit. Refer to

AV-610, "Removal and Installation"

.

2.

Remove front display unit. Refer to

AV-611, "Removal and Installation"

.

3.

Remove cup holder assembly. Refer to

IP-14, "Removal and Installation"

.

4.

Remove GPS antenna feeder clips.

5.

Remove screw to remove GPS antenna.

INSTALLATION

Install in the reverse order of removal.
