AUX IMAGE SIGNAL CIRCUIT

AV-587

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUX IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000009652385

• Transmits the image signal of AUX (auxiliary input) device from auxiliary input jacks to AV control unit.
• The AV control unit transmits the AUX image signal to the front display unit by composite image signal.

Diagnosis Procedure

INFOID:0000000009652386

1.

CHECK CONTINUITY AUX IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector and auxiliary input jacks connector.

3.

Check continuity between AV control unit harness connector and auxiliary input jacks harness connector.

4.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AUX IMAGE SIGNAL

1.

Connect AV control unit connector and auxiliary input jacks connector.

2.

Turn ignition switch ON.

3.

Check signal between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> Replace AV control unit. Refer to

AV-610, "Removal and Installation"

.

NO

>> Check that there is no malfunction in the external device.

AV control unit

Auxiliary input jacks

Continuity

Connector

Terminal

Connector

Terminal

M179

26

B273

7

Existed

46

8

AV control unit

Ground

Continuity

Connector

Terminal

M179

26

Not existed

46

Probe

Condition

Standard

Reference value

(+)

(

)

AV control unit

Connector

Terminal

Connector

Terminal

M179

26

M179

46

When AUX
image is dis-
played on
front or rear
display unit.

Waveform according to
AUX image is input.

SKIB2251J

AV-588

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

CAMERA IMAGE SIGNAL CIRCUIT

CAMERA IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000009652387

Around view monitor control unit supplies to the front camera, rear camera and side camera. And then it
superimpose the images from each camera and outputs then to the front display unit.

Diagnosis Procedure

INFOID:0000000009652388

1.

CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front display unit connector and around view monitor control unit connector.

3.

Check continuity between front display unit harness connector and around view monitor control unit har-
ness connector.

4.

Check continuity between front display unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK CAMERA IMAGE SIGNAL

1.

Connect front display unit connector and around view monitor control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between front display unit harness connector and ground.

Is inspection result normal?

YES

>> Replace front display unit. Refer to

AV-611, "Removal and Installation"

.

NO

>> Replace around view monitor control unit. Refer to

AV-631, "Removal and Installation"

.

Front display unit

Around view monitor control

unit

Continuity

Connector

Terminal

Connector

Terminal

M155

8

M253

24

Existed

Front display unit

Ground

Continuity

Connector

Terminal

M155

8

Not existed

(+)

(

)

Condition

Standard

Reference value

(Approx.)

Front display unit

Connector

Terminal

M155

8

Ground

At camera image is dis-
played.

Waveform according to
camera image is input.

JSNIA0834GB

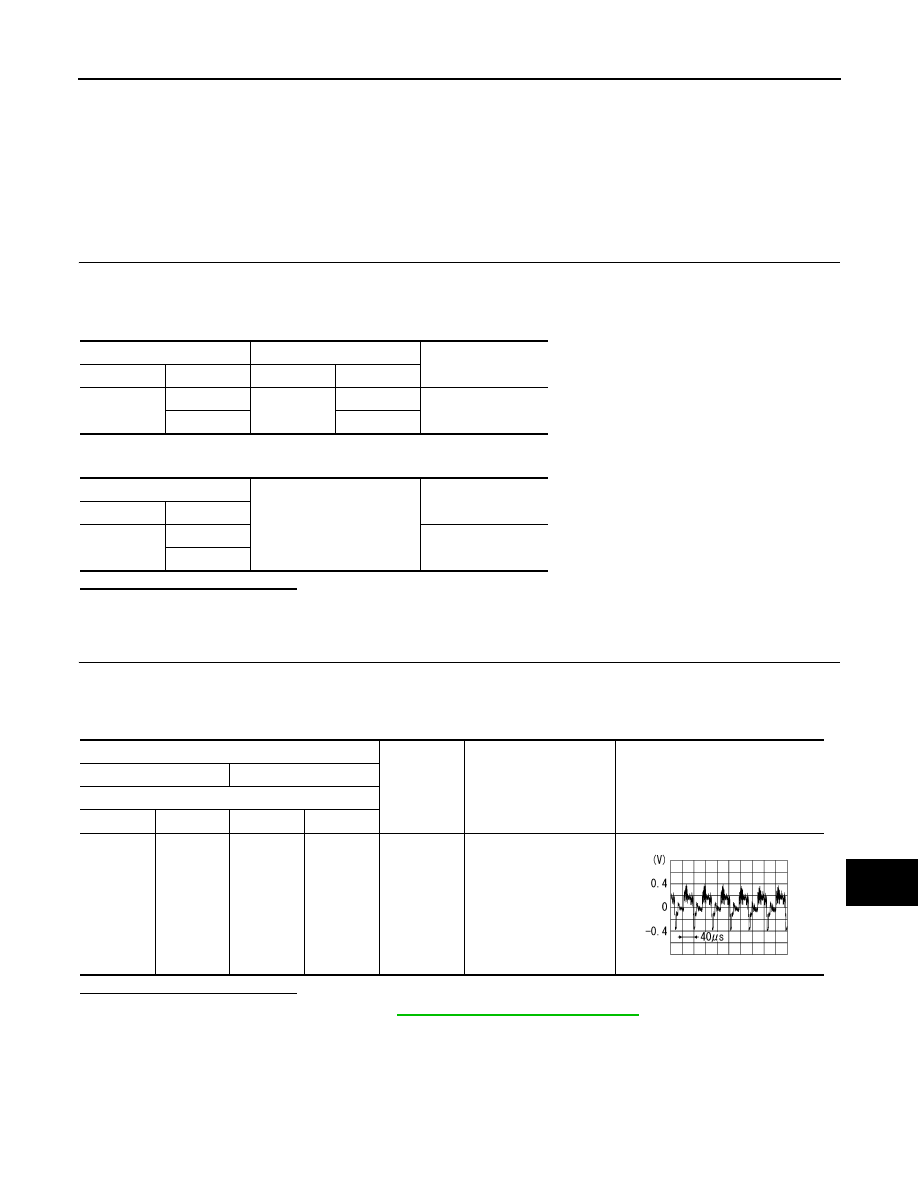

AV

DISK EJECT SIGNAL CIRCUIT

AV-589

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISK EJECT SIGNAL CIRCUIT

Description

INFOID:0000000009652389

The disk eject switch outputs disk eject signal to the AV control unit when the switch of disk eject switch is
pressed.

Diagnosis Procedure

INFOID:0000000009652390

1.

CHECK CONTINUITY DISK EJECT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector and disk eject switch connector.

3.

Check continuity between AV control unit harness connector and disk eject switch harness connector.

4.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AV CONTROL UNIT VOLTAGE

1.

Connect AV control unit connector.

2.

Turn ignition switch ON.

3.

Check voltage between disk eject switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace disk eject switch. Refer to

AV-623, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-610, "Removal and Installation"

.

AV control unit

Disk eject switch

Continuity

Connector

Terminal

Connector

Terminal

M179

29

M153

4

Existed

49

3

AV control unit

Ground

Continuity

Connector

Terminal

M179

29

Not existed

49

Probe

Standard

Voltage

(Approx.)

(+)

(

)

Disk eject switch

Connector

Terminal

Connector

Terminal

M153

4

M153

3

5.0 V or more

5.0 V

AV-590

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE SIGNAL CIRCUIT

MICROPHONE SIGNAL CIRCUIT

Description

INFOID:0000000009652391

Supply power from AV control unit to microphone. The microphone transmits the sound/voice to the AV control
unit.

Diagnosis Procedure

INFOID:0000000009652392

1.

CHECK CONTINUITY BETWEEN AV CONTROL UNIT AND MICROPHONE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector and microphone connector.

3.

Check continuity between AV control unit harness connector and microphone harness connector.

4.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VOLTAGE MICROPHONE VCC

1.

Connect AV control unit connector.

2.

Turn ignition switch ON.

3.

Check voltage between AV control unit harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace AV control unit. Refer to

AV-610, "Removal and Installation"

.

3.

CHECK MICROPHONE SIGNAL

1.

Connect microphone connector.

2.

Check signal between AV control unit harness connector.

AV control unit

Microphone

Continuity

Connector

Terminals

Connector

Terminals

M180

71

R20

2

Existed

72

4

87

1

AV control unit

Ground

Continuity

Connector

Terminals

M180

72

Not existed

87

Probe

Standard

Voltage

(Approx.)

(+)

(

)

AV control unit

Connector

Terminal

Connector

Terminal

M180

72

M178

20

4.18 - 5.3 V

5.0 V
