WASHER NOZZLE & TUBE

WW-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

4.

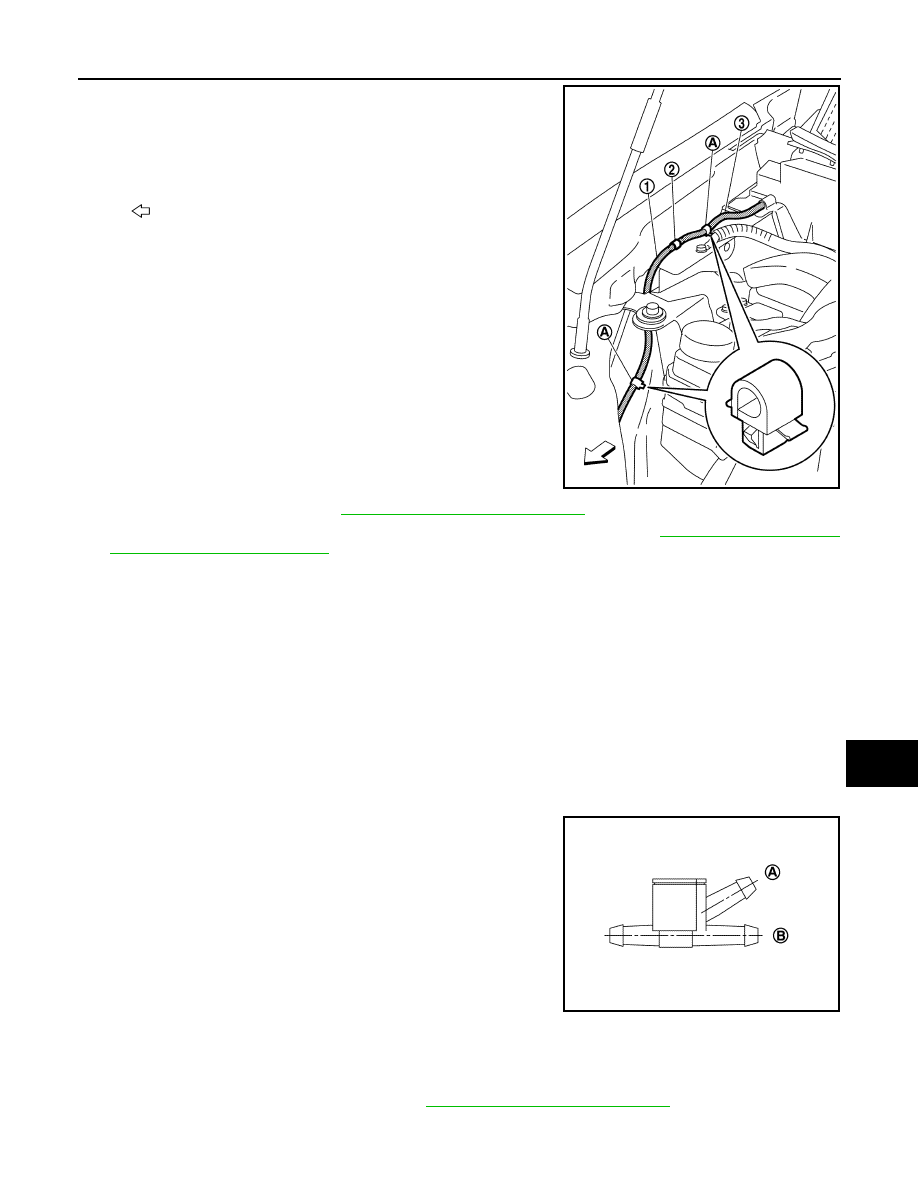

Disconnect front washer tube A (1) from joint A (2).

5.

Remove front washer tube mounting clips (A) from the Vehicle.

6.

Remove front washer tube mounting clips from front washer
tube A and B (3).

7.

Remove front washer tube A from the vehicle.

8.

Remove cowl top cover. Refer to

EXT-22, "Removal and Installation"

.

9.

Disconnect front washer tube C and D from the front washer nozzle. Refer to

WW-65, "WASHER NOZ-

ZLE : Removal and Installation"

.

10. Remove front washer tube B.

a.

Disconnect front washer tube B from the cowl top cover.

b.

Disconnect front washer tube B check valve.

11. Remove front washer tube C.

a.

Disconnect front washer tube C from the cowl top cover.

b.

Disconnect front washer tube C check valve.

12. Remove front washer tube D.

a.

Disconnect front washer tube D from the cowl top cover.

b.

Disconnect front washer tube D check valve.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• When installing front washer tube C to the check valve, install

to portion (B: RH side).

• When installing front washer tube D to the check valve, install

to portion (A: LH side).

REAR WASHER TUBE

REMOVAL

1.

Fully open hood assembly.

2.

Remove fender protector RH (front). Refer to

EXT-23, "Removal and Installation"

.

3.

Disconnect rear washer tube A from the front & rear washer pump.

: Vehicle front

JMLIA2165ZZ

JMLIA2154ZZ

WW-70

< REMOVAL AND INSTALLATION >

WASHER NOZZLE & TUBE

4.

Remove front kicking plate and rear kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and

Installation"

.

5.

Remove luggage side lower finisher and back pillar garnish. Refer to

INT-27, "BACK PILLAR GARNISH :

Removal and Installation"

.

6.

Remove third assist grip (LH and RH), and then remove headlining assembly rear clips.
Refer to

INT-35, "Removal and Installation"

.

7.

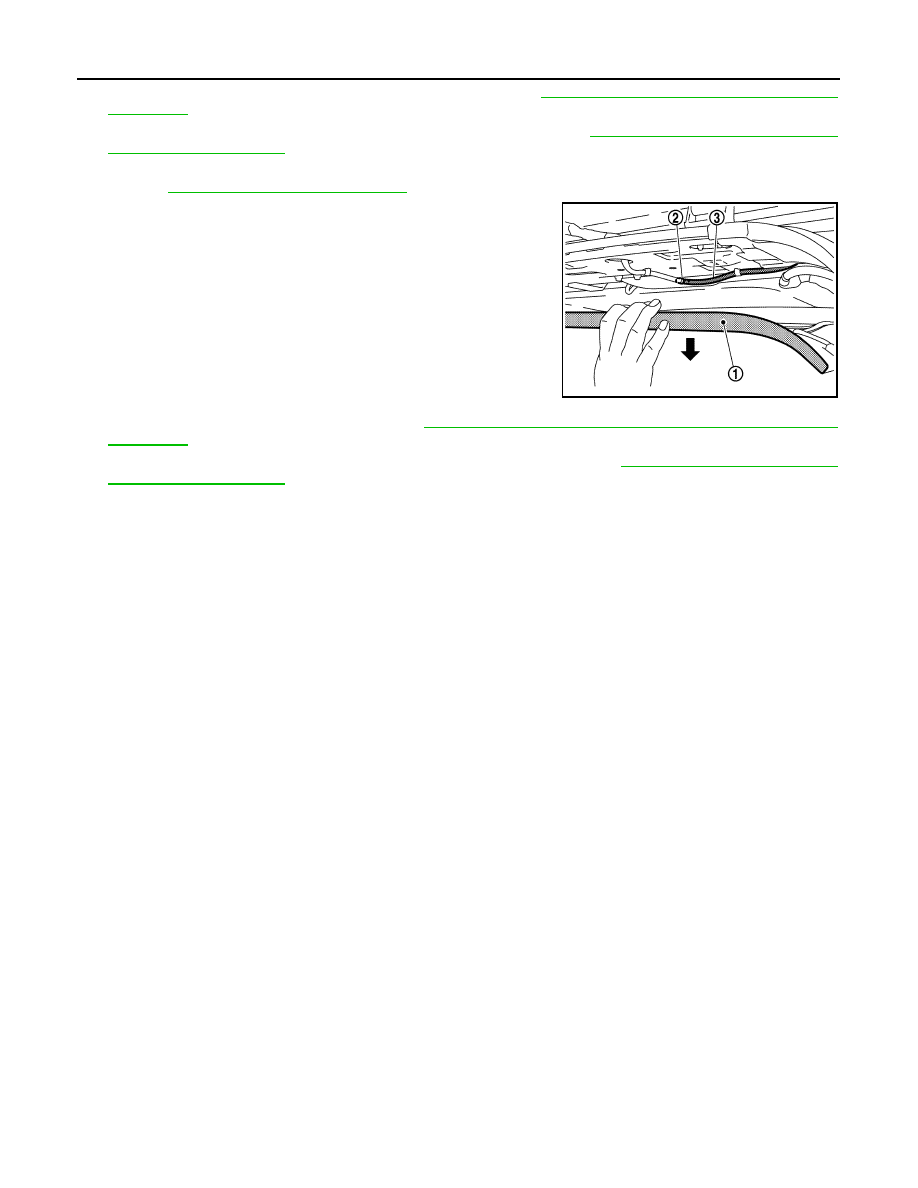

Slightly lower the headlining assembly (1) rear and secure work
space.

8.

Disconnect rear washer tube B (3) from joint B (2).

9.

Remove back door upper finisher. Refer to

INT-49, "BACK DOOR UPPER FINISHER : Removal and

Installation"

.

10. Disconnect rear washer tube C from the rear washer nozzle. Refer to

WW-65, "WASHER NOZZLE :

Removal and Installation"

.

11. Remove rear washer tube mounting clips (A) from the Vehicle.

12. Remove rear washer tube mounting clips from the rear washer tube.

13. Remove rear washer tube from the vehicle.

INSTALLATION

Install in the reverse order of removal.

JMLIA2166ZZ

WASHER LEVEL SWITCH

WW-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000009649591

The washer level switch must be replaced together with the washer tank as an assembly.
Refer to

WW-59, "Removal and Installation"

.

WW-72

< REMOVAL AND INSTALLATION >

WIPER AND WASHER SWITCH

WIPER AND WASHER SWITCH

Exploded View

INFOID:0000000009649592

Refer to

BCS-99, "Exploded View"

.
