WASHER PUMP

WW-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER PUMP

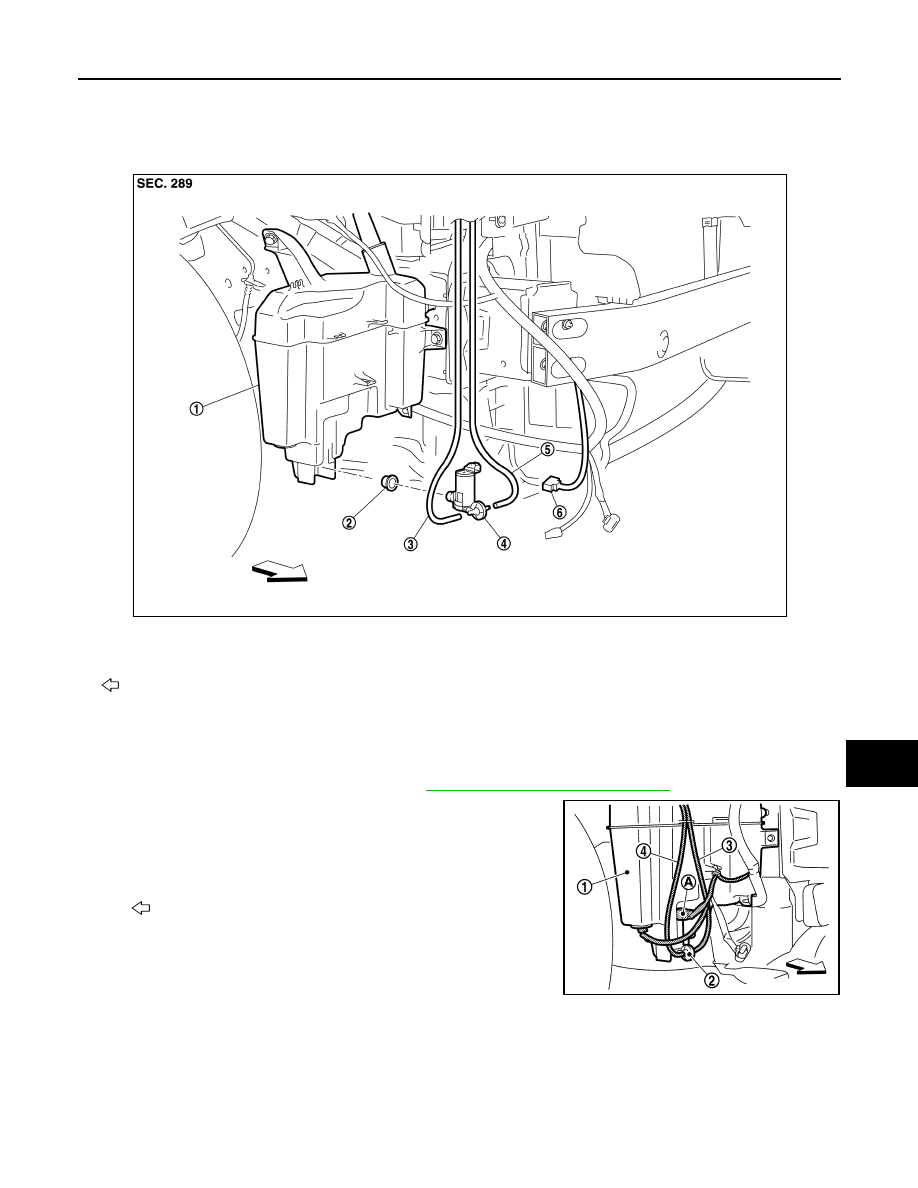

Exploded View

INFOID:0000000009649584

Removal and Installation

INFOID:0000000009649585

REMOVAL

1.

Remove fender protector RH (front). Refer to

EXT-23, "Removal and Installation"

.

2.

Disconnect washer pump connector (A).

3.

Disconnect front washer tube (3) and rear washer tube (4) from
the front & rear washer pump (2).

4.

Remove washer pump from the washer tank (1).

5.

Remove packing from the washer tank.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing tube to front & rear washer pump, be sure to install to front and rear correctly.
• Check that there is no leakage after installation or replace packing with new part if it has been dam-

age.

1.

Washer tank

2.

Packing

3.

Rear washer tube

4.

Front & rear washer pump

5.

Front washer tube

6.

Washer pump connector

: Vehicle front

JMLIA2136ZZ

: Vehicle front

JMLIA2153ZZ

WW-62

< REMOVAL AND INSTALLATION >

WASHER PUMP

• Never twist the packing when installing the washer pump.

WASHER NOZZLE & TUBE

WW-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER NOZZLE & TUBE

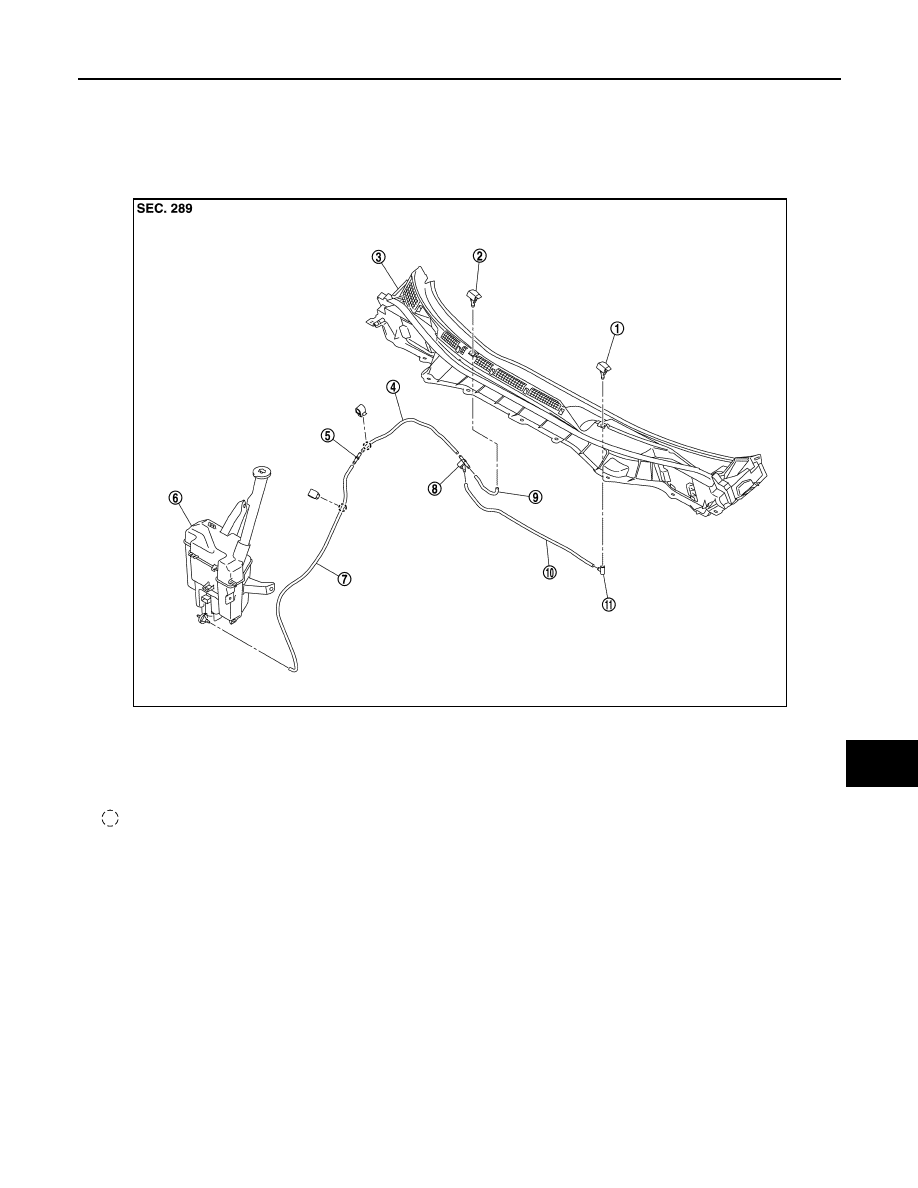

Exploded View

INFOID:0000000009649586

FRONT WASHER NOZZLE &  TUBE

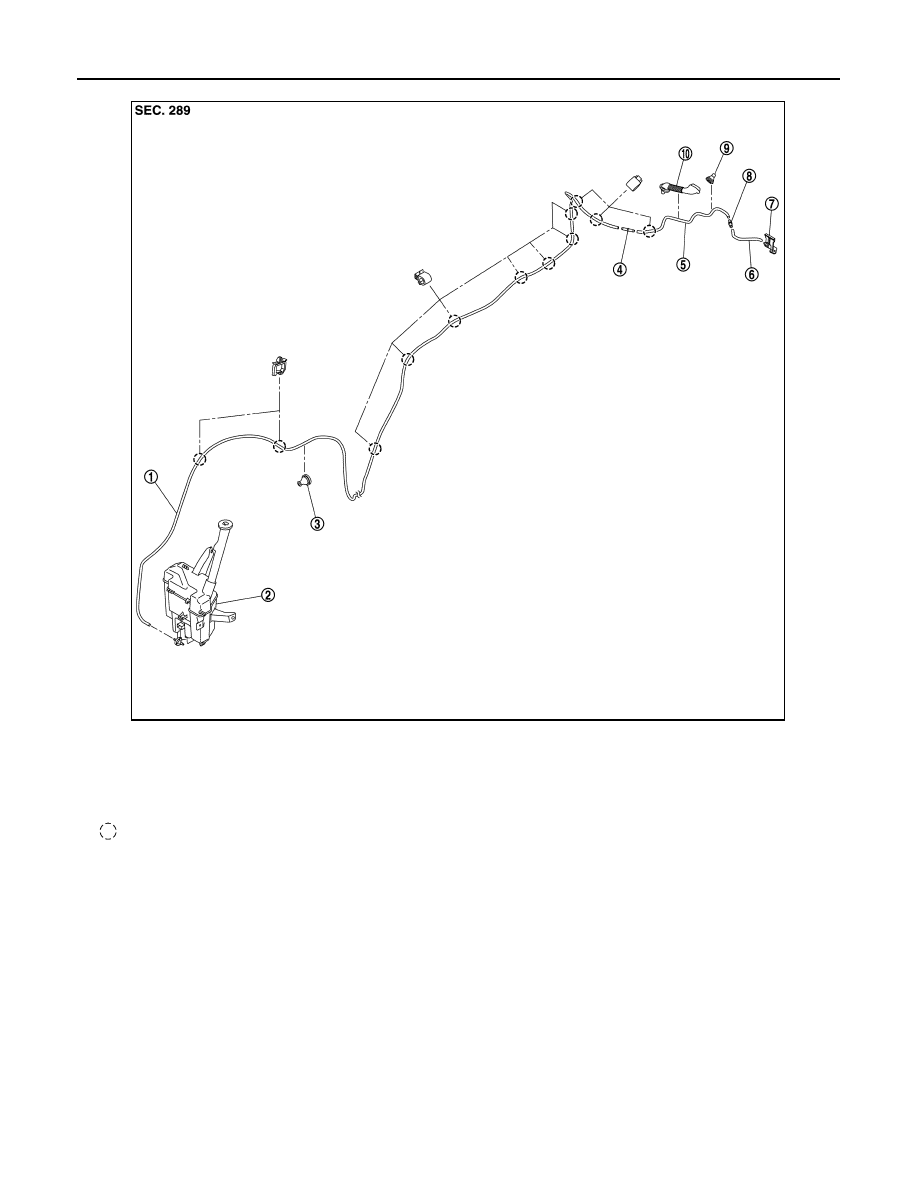

REAR WASHER NOZZLE & TUBE

1.

Front washer nozzle LH

2.

Front washer nozzle RH

3.

Cowl top cover

4.

Front washer tube B

5.

Joint A

6.

Washer tank assembly

7.

Front washer tube A

8.

Check valve

9.

Front washer tube C

10. Front washer tube D

11. Joint B

: Clip

JMLIA2149ZZ

WW-64

< REMOVAL AND INSTALLATION >

WASHER NOZZLE & TUBE

1.

Rear washer tube A

2.

Washer tank assembly

3.

Grommet A

4.

Joint A

5.

Rear washer tube B

6.

Rear washer tube C

7.

Rear washer nozzle

8.

Joint B

9.

Grommet B

10. Back door seal rubber

: Clip

JMLIA2156ZZ
