PRECAUTIONS

• ID registration is required when replacing or rotating wheels, replacing tire pressure sensor or BCM. Refer to

WT-23, "Work Procedure"

.

• For easy fill tire alert function, refer to the following.
- When inflating the tires, park the vehicle in the safe area and ensure the safety of the working area.
- Read and understand the easy fill tire alert function prior to use.
- Inflate the tires one at a time.
- If there is no response for approximately 15 seconds or more after inflating the tires, cancel the use of the

easy fill tire alert function or move the vehicle approximately 1 m (3.2 ft) backward or forward to try again.
The air filler pressure may be weak or out of service area.

- Despite the high-precision TPMS pressure sensor, an indicated value may differ from that of the pressure

gauge.

- Air pressure is measured rather high due to the rise in tire air temperature after driving.
- If TPMS is malfunctioning, the easy fill tire alert is unusable.
• Replace grommet seal, valve core and valve cap of tire pressure sensor in TPMS, when replacing each tire

by reaching the wear limit. Refer to

WT-48, "Exploded View"

.

• Because the tire pressure sensor conforms to North America radio law, the following items must be

observed.

- The sensor may be used only in North America.
- It may not be used in any method other than the specified method.
- It must not be disassembled or modified.

Service Notice and Precautions for Road Wheel

INFOID:0000000009653411

• Genuine NISSAN aluminum wheel is designed for each type of vehicle. Use it on the specified vehicle only.
• Use Genuine NISSAN parts for the road wheels, valve caps and wheel nuts.
• Always use them after adjusting the wheel balance. For the balance weights, use Genuine NISSAN alumi-

num wheel weights.

• Use caution when handling the aluminum wheels, because they can be easily scratched. When removing

dirt, do not use any abrasives, a wire brush, or other items that may scratch the coating. Use a neutral deter-
gent if a detergent is needed.

• After driving on roads scattered with anti-icing salts, wash off the wheels completely.
• When installing road wheels onto the vehicle, always wipe off any dirt or foreign substances to prevent them

from being trapped between the contact surfaces of wheel.

• Never apply oil to nut and bolt threads.
• When tightening the valve cap there is a risk of damaging the valve cap if a tool is used. Tighten by hand.

PREPARATION

WT-5

< PREPARATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PREPARATION

PREPARATION

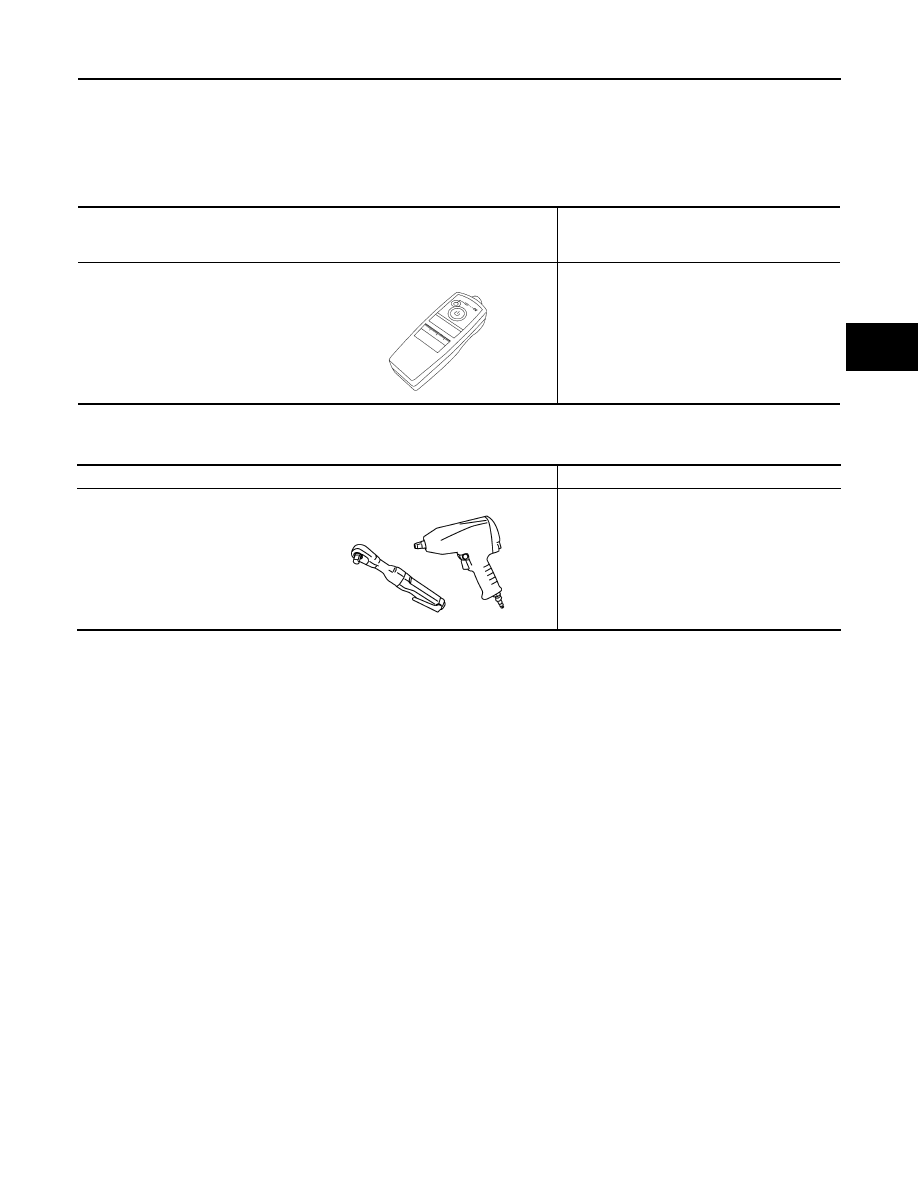

Special Service Tool

INFOID:0000000009653412

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009653413

Tool number
(Kent-Moore No.)
Tool name

Description

—
(J-45295)
Tire pressure sensor activation tool

ID registration

SEIA0462E

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

WT-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

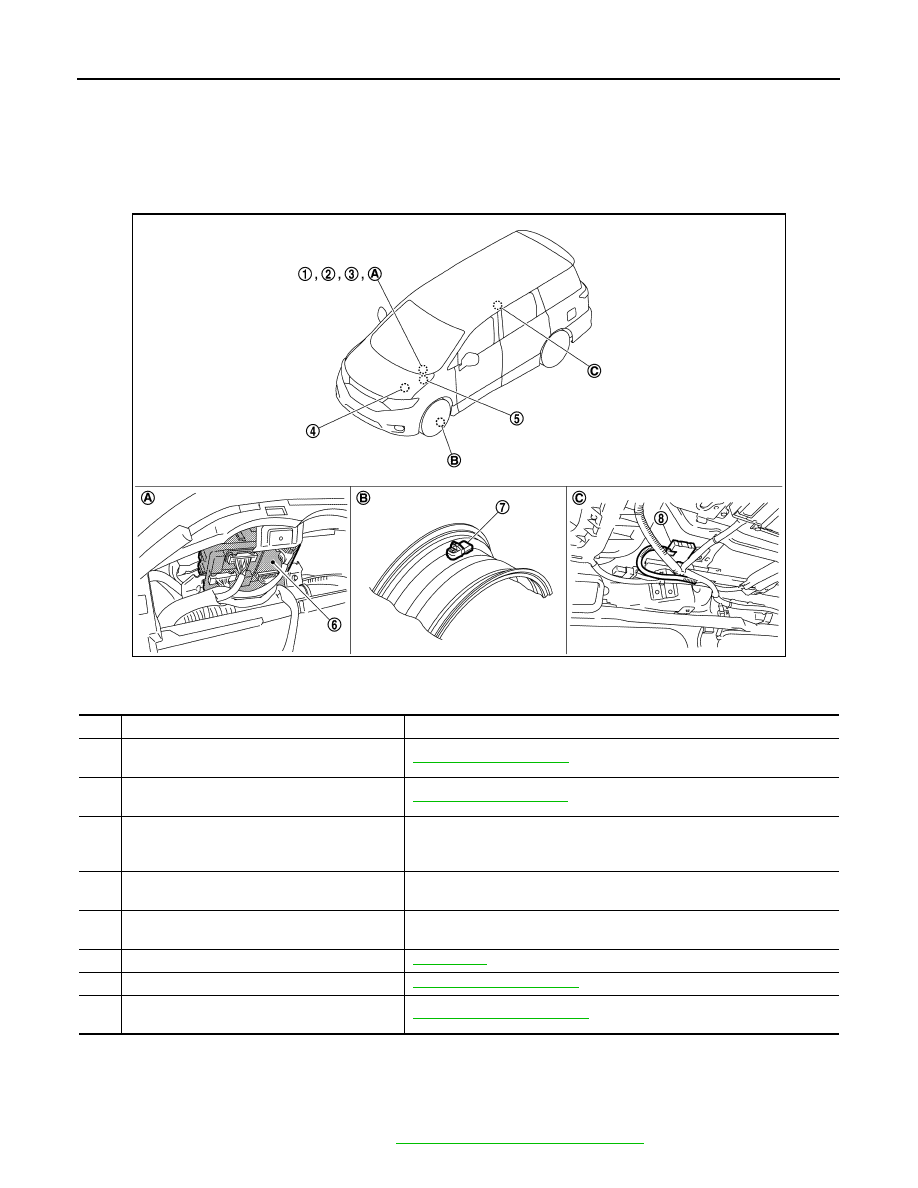

Component Parts Location

INFOID:0000000009653414

BCM

INFOID:0000000009653415

• The BCM reads the air pressure signal received by the tire pressure receiver, controls the low tire pressure

warning lamp, hazard warning lamp, and horn operation. It also has a judgment function to detect a system
malfunction.

• Controls easy fill tire alert function. Refer to

WT-9, "Easy Fill Tire Alert Function"

.

JSEIA0404GB

A.

Behind of combination meter

B.

Wheel

C.

View with roof finisher removed

No.

Component parts

Function

1.

Low tire pressure warning lamp
(in combination meter)

WT-8, "System Description"

2.

Information display
(in combination meter)

WT-7, "Information Display"

3.

Combination meter

Mainly receives the following signals from BCM via CAN communication.
• Low tire pressure warning lamp signal
• TPMS malfunction warning lamp signal

4.

TCM

Mainly transmits the following signals to BCM via CAN communication.
• P range signal

5.

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to BCM via CAN communication.
• Vehicle speed signal

6.

BCM

WT-6, "BCM"

7.

Tire pressure sensor

WT-7, "Tire Pressure Sensor"

8.

Remote keyless entry receiver
(tire pressure receiver)

WT-7, "Tire Pressure Receiver"

COMPONENT PARTS

WT-7

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

Tire Pressure Sensor

INFOID:0000000009653416

The tire pressure sensor integrated with a valve is installed on a wheel, and transmits a detected air pressure
signal by radio wave.

Tire Pressure Receiver

INFOID:0000000009653417

• Tire pressure receiver is incorporated into remote keyless entry receiver.
• The tire pressure receiver receives the air pressure signal transmitted by the tire pressure sensor in each

wheel.

Information Display

INFOID:0000000009653418

The vehicle information display is shown when a low tire pressure warning lamp signal is transmitted from
BCM to combination meter. via CAN communication.

Condition

Vehicle information display

Ignition switch OFF

Not indicated

Ignition switch ON

Low tire pressure warning lamp remains ON after blinking for one
minute. [Tire Pressure Monitoring System (TPMS) malfunction.]

Not indicated

Ignition switch ON

Low tire pressure warning lamp remains ON. (low tire pressure)

Indicated
