Nissan Quest E52. Manual - part 1254





WCS-46

< SYMPTOM DIAGNOSIS >

THE SEAT BELT WARNING CONTINUES SOUNDING, OR DOES NOT SOUND

THE SEAT BELT WARNING CONTINUES SOUNDING, OR DOES NOT
SOUND

Description

INFOID:0000000009650470

• Seat belt warning chime does not sound.
• Seat belt warning chime sounds continuously.

Diagnosis Procedure

INFOID:0000000009650471

1.

CHECK SEAT BELT WARNING LAMP

1.

Turn ignition switch ON.

2.

Check the operation of the seat belt warning lamp in the combination meter.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK BCM OUTPUT SIGNAL

Check if the seat belt warning chime is activated by performing BCM active test. Refer to

WCS-20, "BUZZER :

CONSULT Function (BCM - BUZZER)"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

CHECK COMBINATION METER INPUT SIGNAL

Check if buzzer switches to proper condition (On/Off) on data monitor of combination meter. Refer to

MWI-35,

"CONSULT Function"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-93, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-98, "Removal and Installation"

.

4.

CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE) CIRCUIT

Perform the check for the seat belt buckle switch (driver side) circuit. Refer to

WCS-41,

"Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connector.

5.

CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE)

Perform a unit check for the seat belt buckle switch (driver side). Refer to

WCS-42, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-93, "Removal and Installation"

.

NO

>> Replace seat belt buckle (driver side). Refer to

SB-8, "SEAT BELT BUCKLE : Removal and Instal-

lation"

.

Seat belt fastened

: OFF

Seat belt not fastened

: ON

Buzzer active condition

: On

Buzzer non-active condition

: Off

WT-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

WT

A

B

WT

N

O

P

CONTENTS

ROAD WHEELS & TIRES

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precautions for Removing Battery Terminal  .............

3

Service Notice and Precautions for TPMS  ................

3

Service Notice and Precautions for Road Wheel ......

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

5

SYSTEM DESCRIPTION  ..............................

6

COMPONENT PARTS  ........................................

6

Component Parts Location ........................................

6

BCM ..........................................................................

6

Tire Pressure Sensor  ................................................

7

Tire Pressure Receiver  .............................................

7

Information Display  ...................................................

7

SYSTEM ..............................................................

8

System Description  ...................................................

8

Circuit Diagram  .........................................................

9

Easy Fill Tire Alert Function  ......................................

9

DIAGNOSIS SYSTEM (BCM)  ............................

11

COMMON ITEM  .........................................................

11

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

11

AIR PRESSURE MONITOR  ......................................

12

AIR PRESSURE MONITOR : CONSULT Function
(BCM - AIR PRESSURE MONITOR)  ......................

12

ECU DIAGNOSIS INFORMATION ..............

15

BCM ....................................................................

15

List of ECU Reference .............................................

15

WIRING DIAGRAM  ......................................

16

TIRE PRESSURE MONITORING SYSTEM ......

16

Wiring Diagram ........................................................

16

BASIC INSPECTION  ...................................

20

DIAGNOSIS AND REPAIR WORK FLOW  .......

20

Work Flow ................................................................

20

ADDITIONAL SERVICE WHEN REPLACING
BCM ...................................................................

22

Description ...............................................................

22

Work Procedure .......................................................

22

TIRE PRESSURE SENSOR ID REGISTRA-
TION ..................................................................

23

Description ...............................................................

23

Work Procedure .......................................................

23

DTC/CIRCUIT DIAGNOSIS  .........................

25

C1704, C1705, C1706, C1707 LOW TIRE
PRESSURE .......................................................

25

DTC Logic ................................................................

25

Diagnosis Procedure  ...............................................

25

C1708, C1709, C1710, C1711 TIRE PRES-
SURE SENSOR .................................................

27

DTC Logic ................................................................

27

Diagnosis Procedure  ...............................................

27

C1716, C1717, C1718, C1719 TIRE PRES-
SURE SENSOR .................................................

29

DTC Logic ................................................................

29

Diagnosis Procedure  ...............................................

29

C1729 VEHICLE SPEED SIGNAL ....................

31

DTC Logic ................................................................

31

Diagnosis Procedure  ...............................................

31

WT-2

POWER SUPPLY AND GROUND CIRCUIT  .....

32

Diagnosis Procedure  ..............................................

32

SYMPTOM DIAGNOSIS  .............................

33

TPMS .................................................................

33

Symptom Table  ......................................................

33

LOW TIRE PRESSURE WARNING LAMP
DOES NOT TURN ON  .......................................

36

Description ..............................................................

36

Diagnosis Procedure  ..............................................

36

LOW TIRE PRESSURE WARNING LAMP
DOES NOT TURN OFF  .....................................

37

Description ..............................................................

37

Diagnosis Procedure  ..............................................

37

LOW TIRE PRESSURE WARNING LAMP
BLINKS ..............................................................

38

Description ..............................................................

38

Diagnosis Procedure  ..............................................

38

EASY FILL TIRE ALERT DOES NOT ACTI-
VATE ..................................................................

39

Description ..............................................................

39

Diagnosis Procedure  ..............................................

39

TIRE PRESSURE SENSOR ID REGISTRA-
TION CANNOT BE COMPLETED  .....................

41

Description ..............................................................

41

Diagnosis Procedure .............................................

41

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ............................

42

NVH Troubleshooting Chart ....................................

42

PERIODIC MAINTENANCE  .......................

43

ROAD WHEEL ...................................................

43

Inspection ................................................................

43

Wheel Balance Adjustment .....................................

43

Tire Rotation  ...........................................................

45

REMOVAL AND INSTALLATION ..............

46

ROAD WHEEL TIRE ASSEMBLY  ....................

46

Exploded View  ........................................................

46

Removal and Installation .........................................

46

Inspection ................................................................

46

TIRE PRESSURE SENSOR  ..............................

48

Exploded View  ........................................................

48

Removal and Installation .........................................

48

TIRE PRESSURE RECEIVER ...........................

50

Removal and Installation .........................................

50

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

51

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

51

Road Wheel  ............................................................

51

Tire Air Pressure  .....................................................

51

PRECAUTIONS

WT-3

< PRECAUTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009938040

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

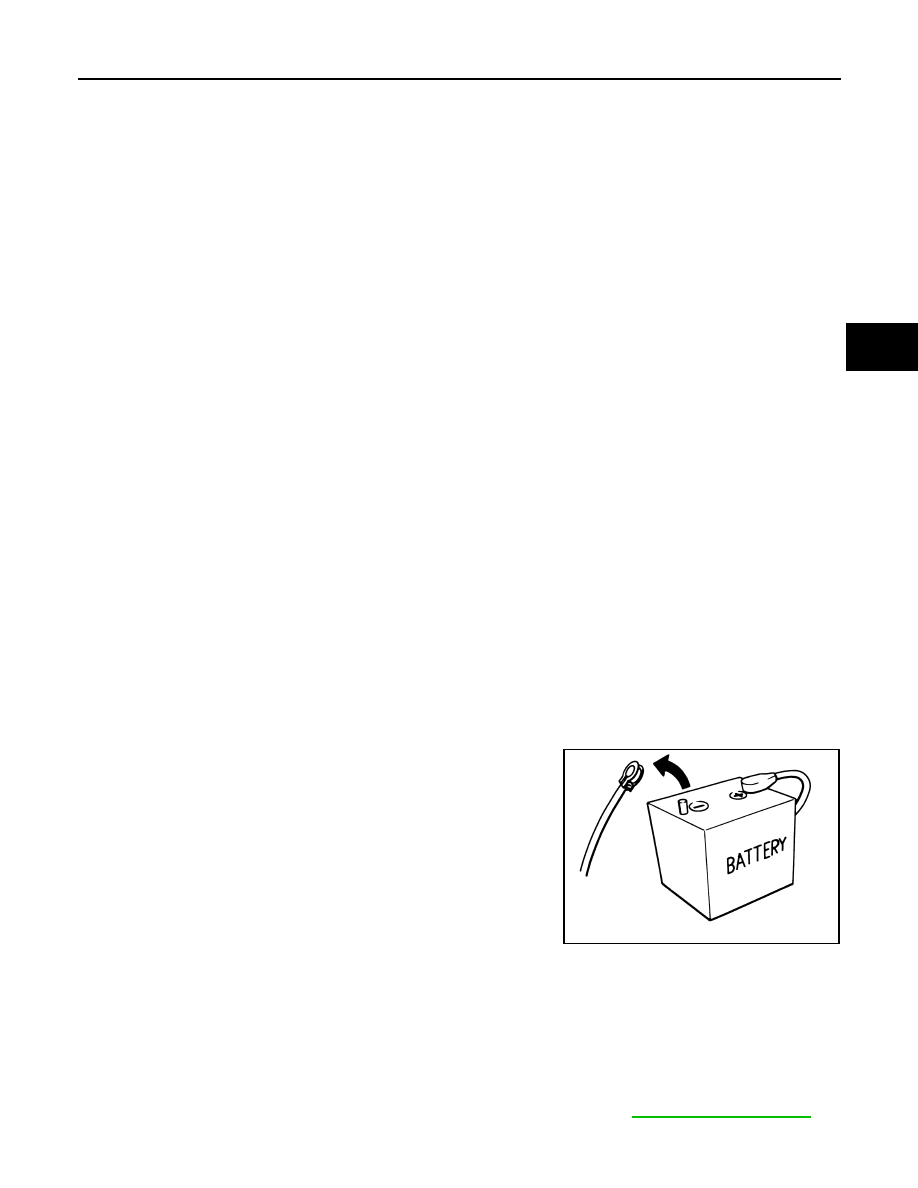

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000009938042

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

Service Notice and Precautions for TPMS

INFOID:0000000009653410

• Low tire pressure warning lamp blinks for 1min, then turns ON when occurring any malfunction except low

tire pressure. Erase the self-diagnosis memories for Tire Pressure Monitoring System (TPMS), or register
the ID to turn low tire pressure warning lamp OFF. For ID registration, refer to

WT-23, "Work Procedure"

.

SEF289H















Content   ..  1252  1253  1254  1255   ..
