Nissan Quest E52. Manual - part 1250

WCS-30

< ECU DIAGNOSIS INFORMATION >

BCM

BCM

List of ECU Reference

INFOID:0000000009650455

ECU

Reference

BCM

BCS-40, "Reference Value"

BCS-62, "Fail-safe"

BCS-62, "DTC Inspection Priority Chart"

BCS-63, "DTC Index"

WCS

WARNING CHIME SYSTEM

WCS-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

WARNING CHIME SYSTEM

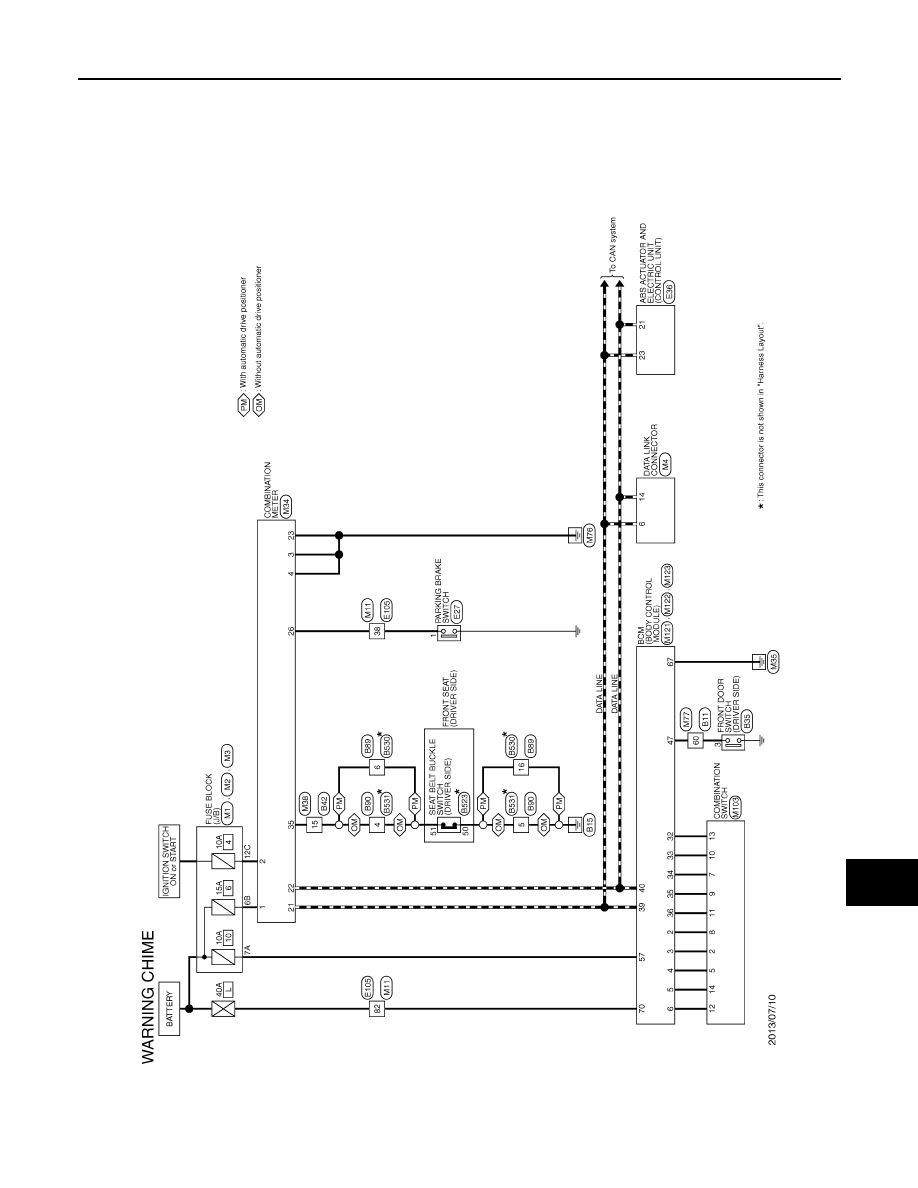

Wiring Diagram

INFOID:0000000009650456

JRNWC6717GB

WCS-32

< WIRING DIAGRAM >

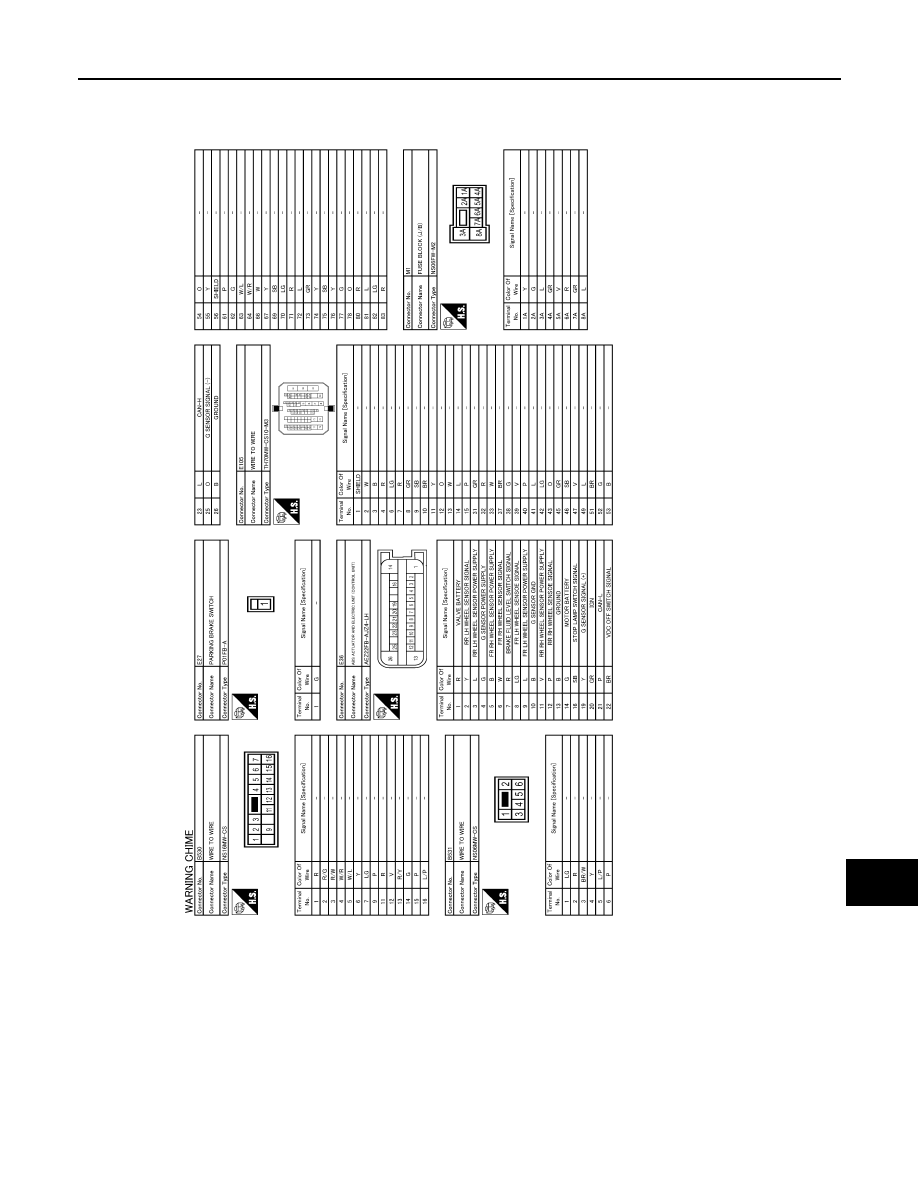

WARNING CHIME SYSTEM

JRNWC6718GB

WCS

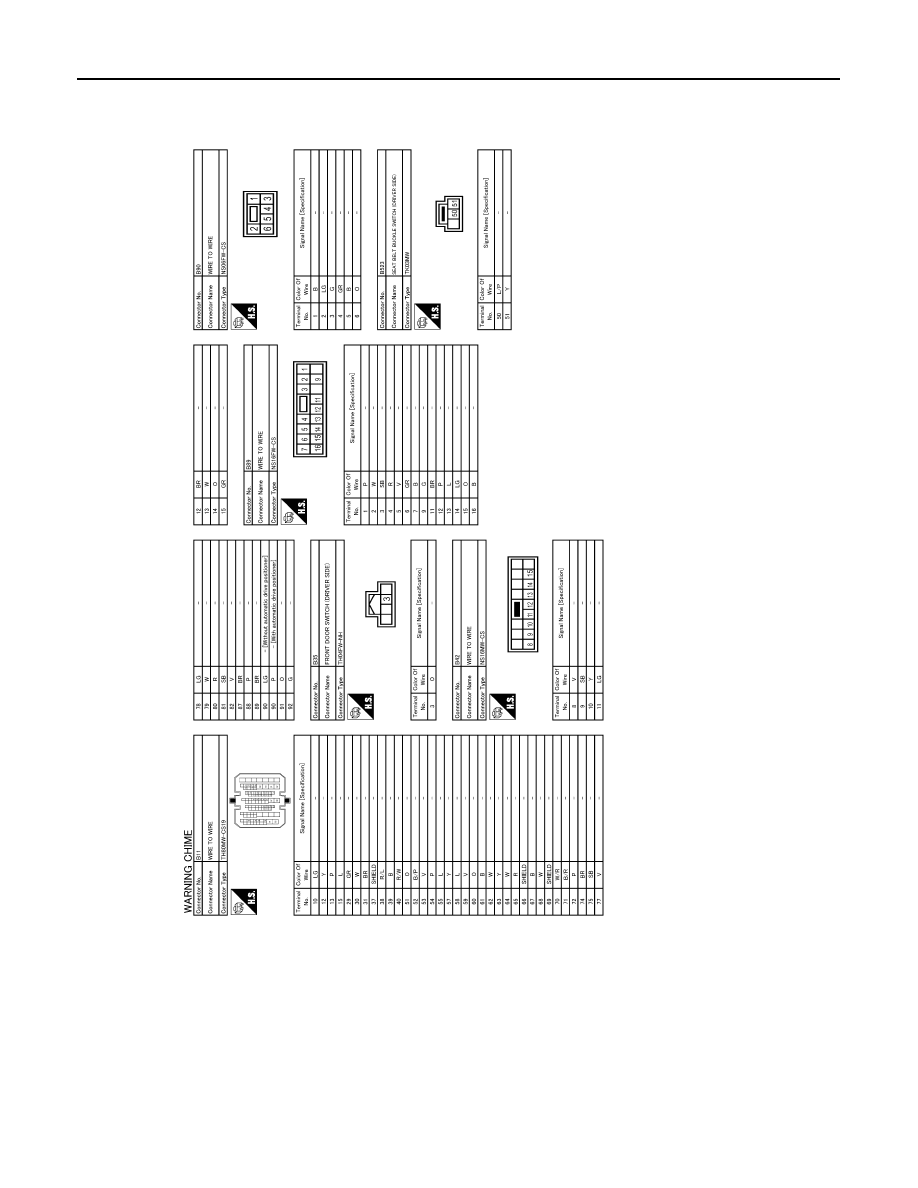

WARNING CHIME SYSTEM

WCS-33

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC6719GB
