SHIFT POSITION INDICATOR CIRCUIT

SHIFT POSITION INDICATOR CIRCUIT

Component Function Check

INFOID:0000000009650207

1.

CHECK SHIFT POSITION INDICATOR

1.

Start the engine.

2.

Check that correct selector lever position (“P”, “R”, “N”, “D”, “L”) is displayed as selector lever is moved
into each position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

TM-130, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009650208

1.

CHECK INPUT SIGNALS

With CONSULT

1.

Start the engine.

2.

Select “Data Monitor” in “TRANSMISSION”.

3.

Select “RANGE”.

4.

Check that correct selector lever position (“P”, “R”, “N”, “D”, “L”) is displayed as selector lever is moved
into each position.

Is the inspection result normal?

YES

>> INSPECTION END

NO-1 (The actual gear position changes, but the shift position indicator is not indicated.)>>Perform

“Self

Diagnostic Results” in “TRANSMISSION”.

NO-2 (The actual gear position and the indication on the shift position indicator do not coincide.)>>Perform

“Self Diagnostic Results” in “TRANSMISSION”.

NO-3 (Only a specific position or positions is/are not indicated on the shift position indicator.)>>Check

the

combination meter. Refer to

MWI-35, "CONSULT Function"

.

OVERDRIVE CONTROL SWITCH

TM-131

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

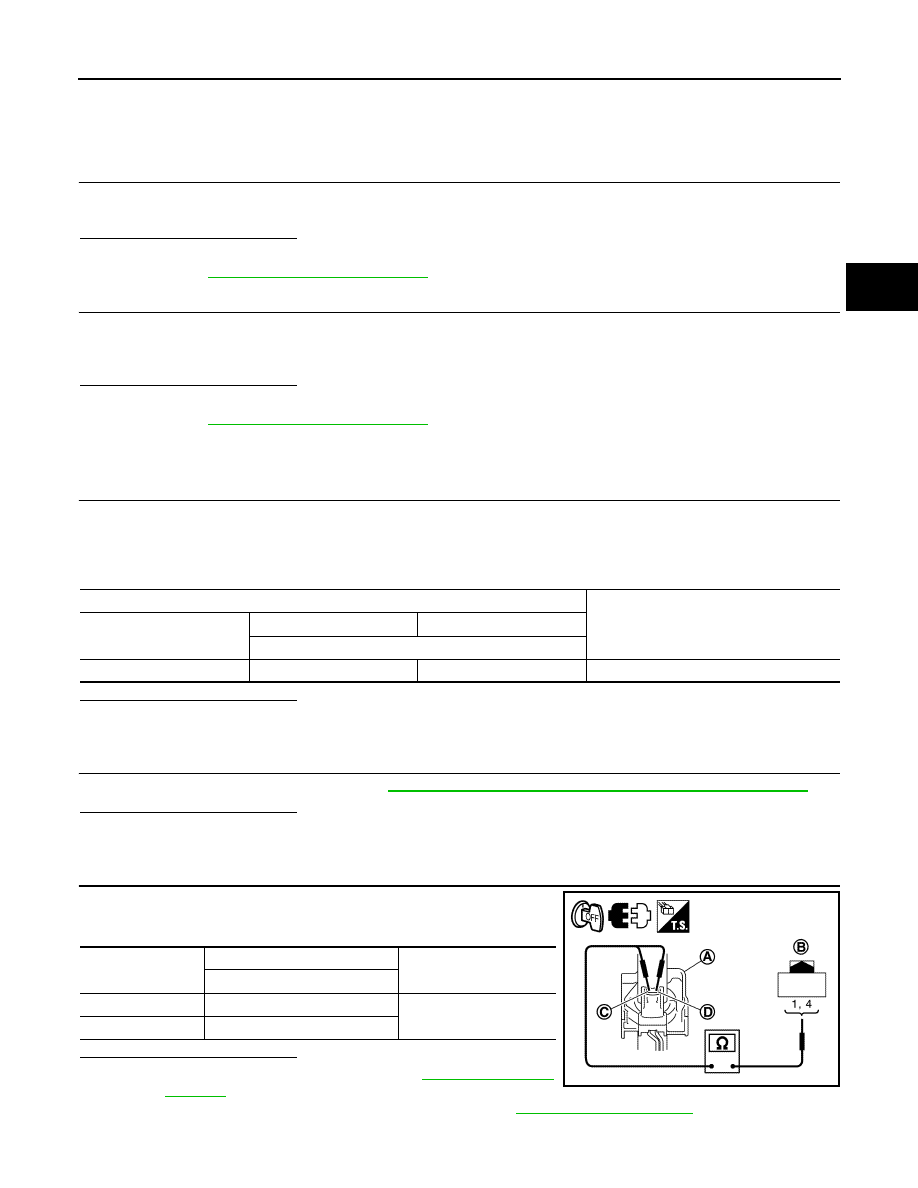

OVERDRIVE CONTROL SWITCH

Component Function Check

INFOID:0000000009650209

1.

CHECK O/D OFF INDICATOR LAMP

When ignition switch is turned ON, check that O/D OFF indicator lamp in combination meter illuminates during
2 seconds approximately.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Go to

TM-133, "Diagnosis Procedure"

.

2.

CHECK OVERDRIVE CONTROL SWITCH

1.

Shift the selector lever to “D” position.

2.

When overdrive control switch is operated, check that O/D OFF indicator lamp in combination meter illu-
minates/extinguishes.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Go to

TM-131, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009650210

1.

CHECK OVERDRIVE CONTROL SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect the CVT shift selector connector.

3.

Turn ignition switch ON.

4.

Check the voltage between CVT shift selector harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK OVERDRIVE CONTROL SWITCH

Check the overdrive control switch. Refer to

TM-132, "Component Inspection (Overdrive Control Switch)"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK CVT SHIFT SELECTOR HARNESS

Check the continuity between harness plate (A) and CVT shift selec-
tor (B).

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent

Incident"

.

NO

>> Replace the CVT shift selector assembly. Refer to

TM-154, "Exploded View"

.

CVT shift selector

Voltage (Approx.)

Connector

+

−

Terminal

M57

1

4

12 V

Harness plate

CVT shift selector

Continuity

Terminal

C

1

Existed

D

4

JSDIA2669GB

TM-132

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

OVERDRIVE CONTROL SWITCH

4.

CHECK GROUND CIRCUIT

Check the continuity between CVT shift selector harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace damaged parts.

5.

CHECK HARNESS BETWEEN CVT SHIFT SELECTOR AND COMBINATION METER

1.

Turn ignition switch OFF.

2.

Disconnect the combination meter connector.

3.

Check the continuity between CVT shift selector harness connector terminal and combination meter har-
ness connector terminal.

4.

Check continuity between CVT shift selector harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace damaged parts.

6.

CHECK COMBINATION METER INPUT SIGNAL

1.

Connect all of the disconnected connectors.

2.

Turn ignition switch ON.

3.

Select “Data Monitor” in “METER/M&A”.

4.

Select “O/D OFF SW”.

5.

Check that “O/D OFF SW” turns ON/OFF when overdrive control switch is operated. Refer to

MWI-40,

"Reference Value"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace the combination meter. Refer to

MWI-93, "Exploded View"

.

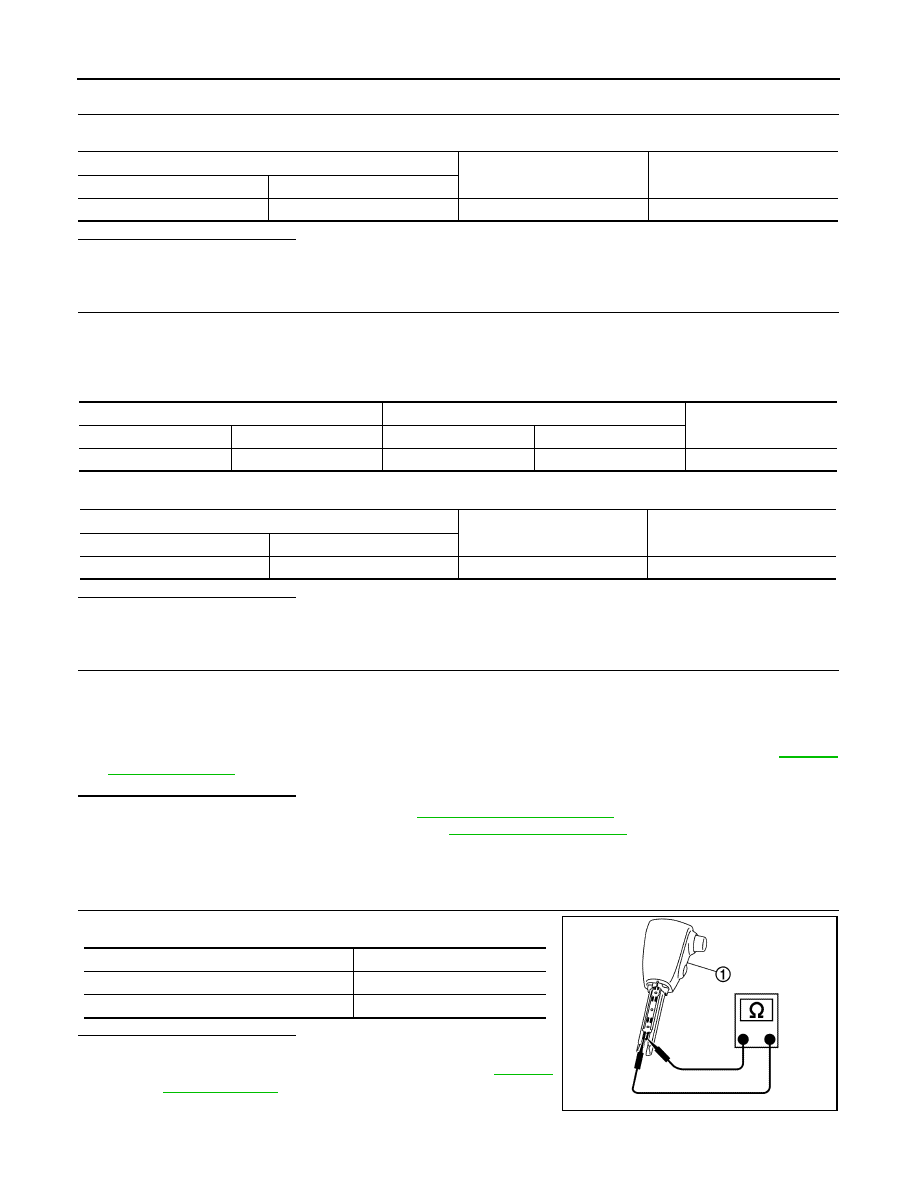

Component Inspection (Overdrive Control Switch)

INFOID:0000000009650211

1.

CHECK OVERDRIVE CONTROL SWITCH

Check the continuity between wires of select lever knob (1).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace the selector lever knob. Refer to

TM-154,

"Exploded View"

.

CVT shift selector

—

Continuity

Connector

Terminal

M57

4

Ground

Existed

CVT shift selector

Combination meter

Continuity

Connector

Terminal

Connector

Terminal

M57

1

M34

32

Existed

CVT shift selector

—

Continuity

Connector

Terminal

M57

1

Ground

Not existed

Condition

Continuity

Overdrive control switch is depressed

Existed

Overdrive control switch is released

Not existed

JSDIA2668ZZ

OD OFF INDICATOR LAMP

TM-133
