Nissan Quest E52. Manual - part 113

AV

BOSE AUDIO WITHOUT NAVIGATION

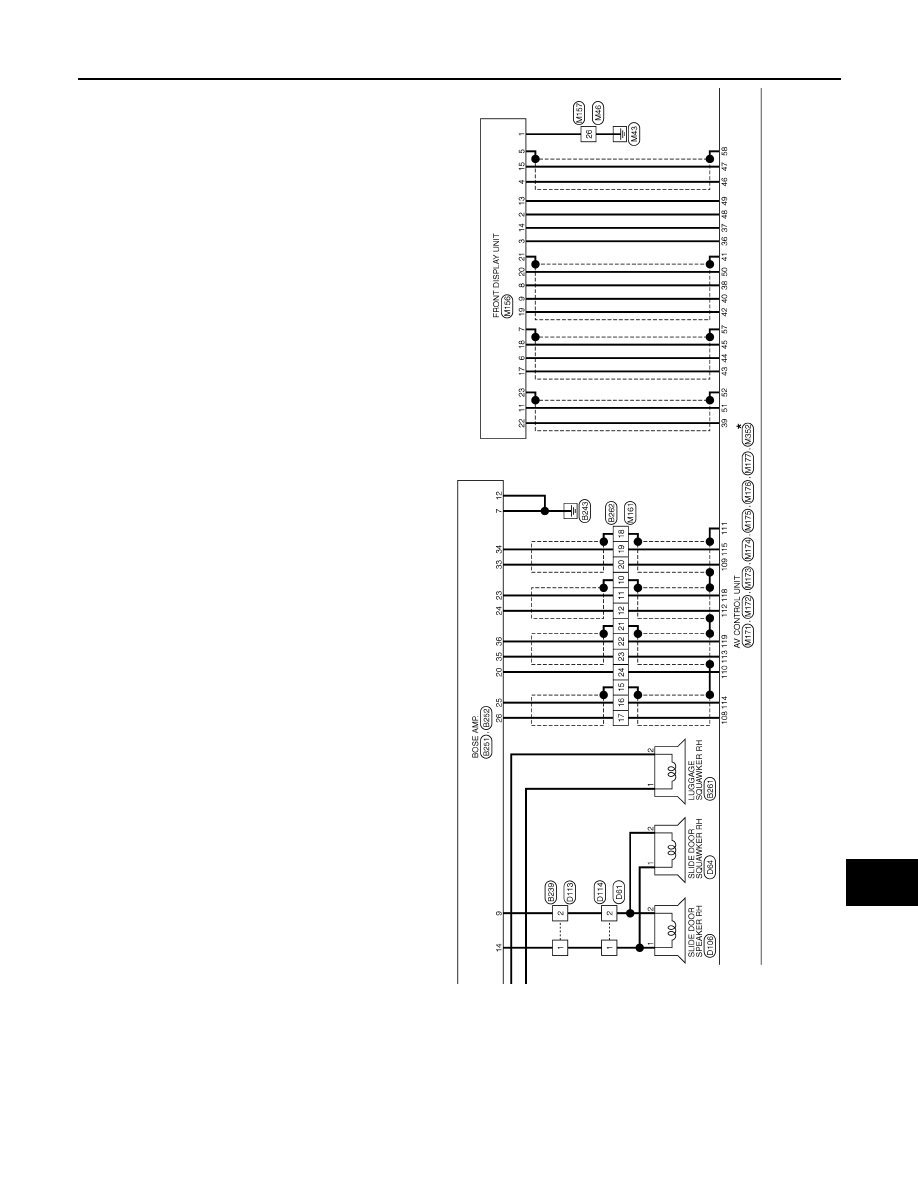

AV-331

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC6763GB

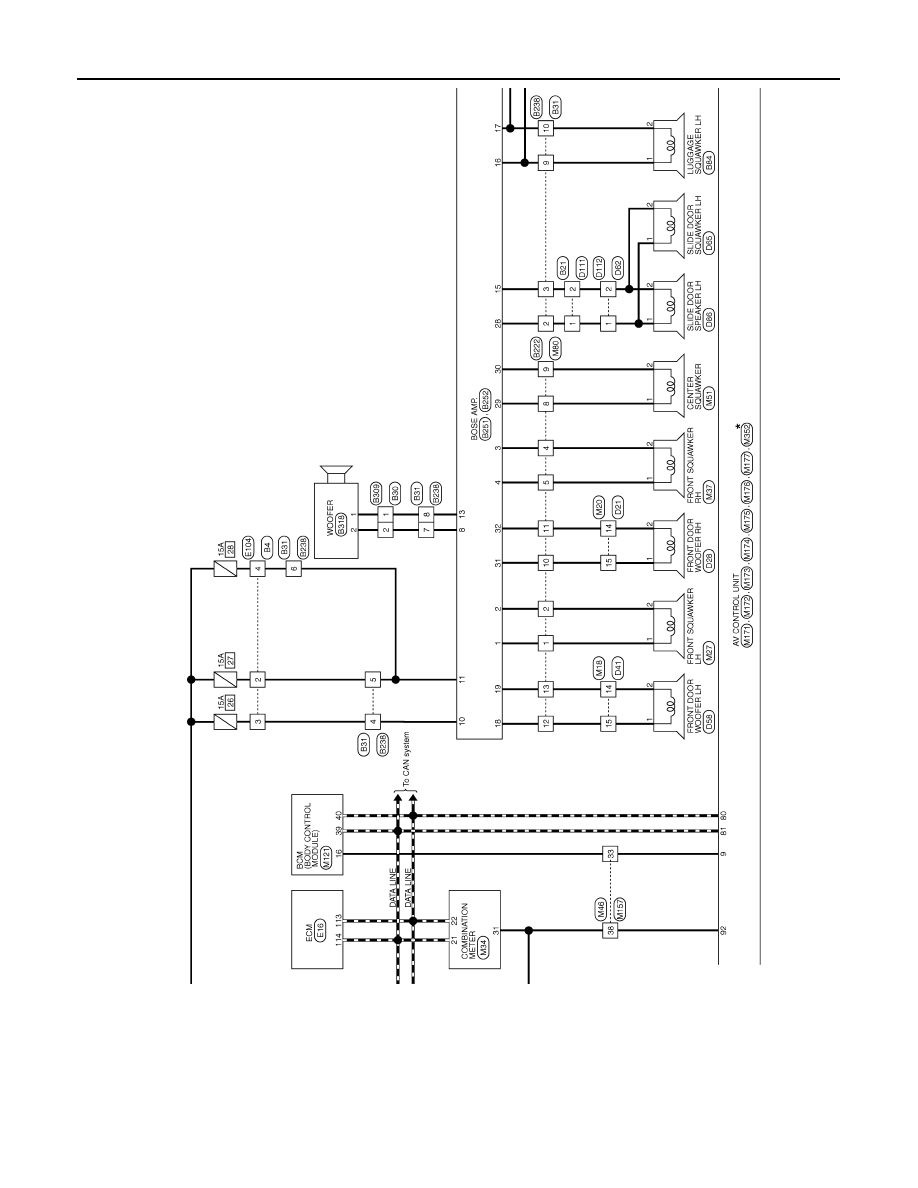

AV-332

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AUDIO WITHOUT NAVIGATION

JRNWC6764GB

AV

BOSE AUDIO WITHOUT NAVIGATION

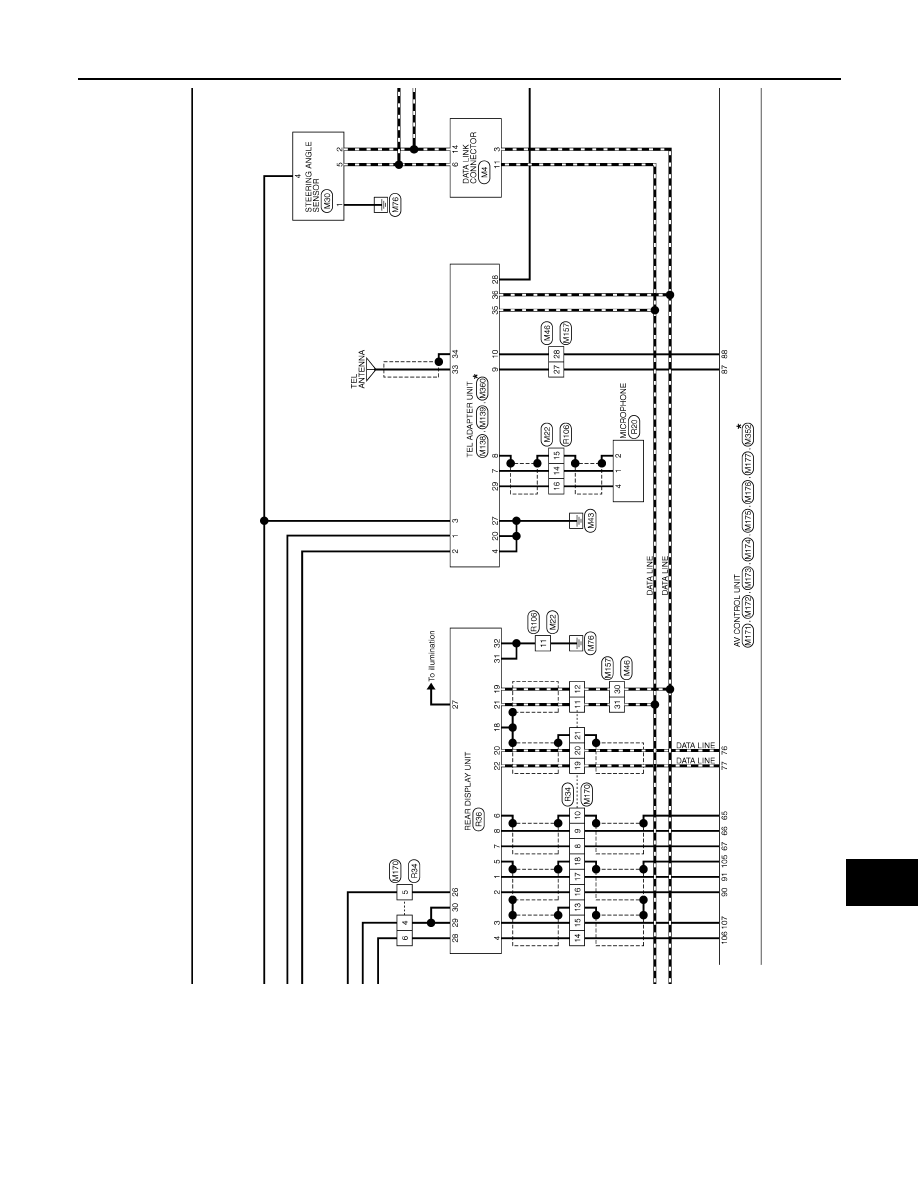

AV-333

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC6765GB

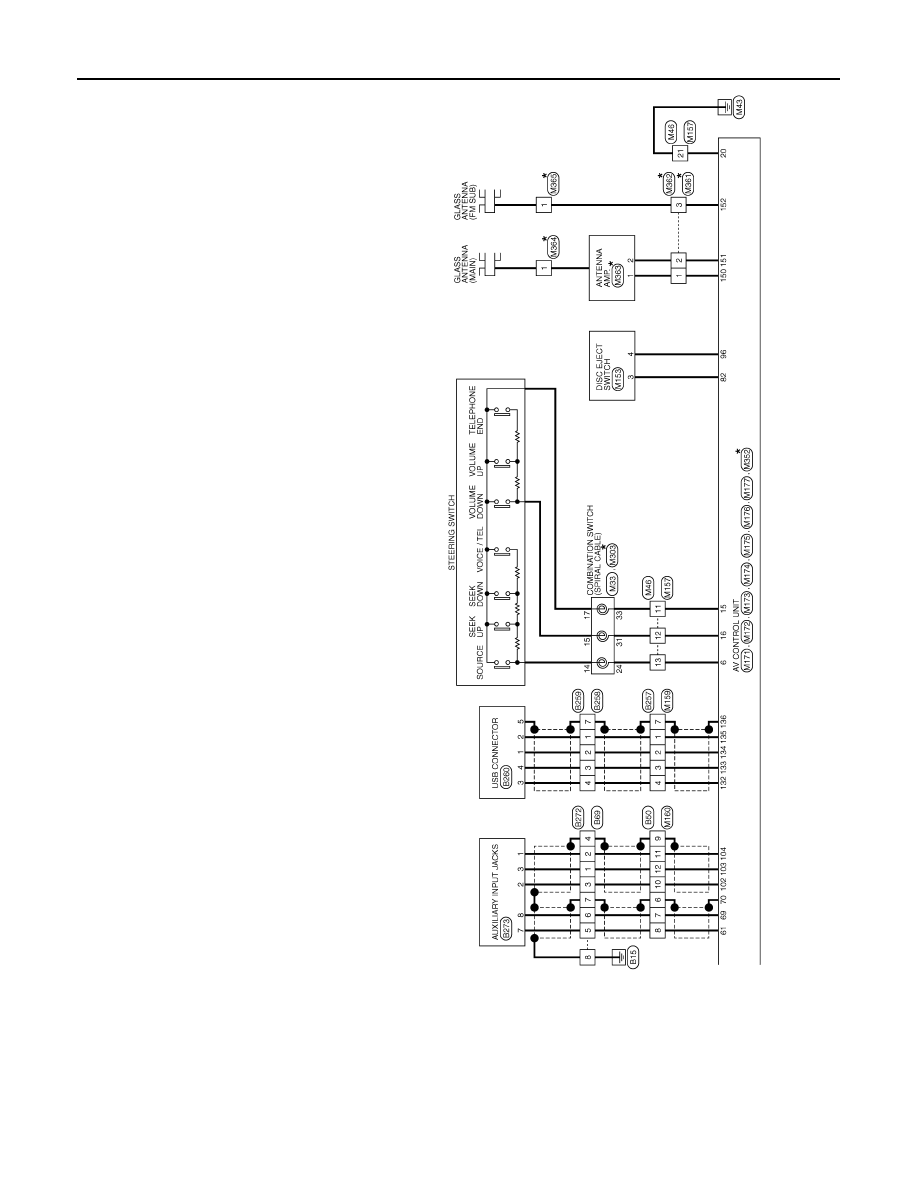

AV-334

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AUDIO WITHOUT NAVIGATION

JRNWC6766GB
