DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

AV-307

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

Description

INFOID:0000000009652140

 During on board diagnosis the diagnosis function of TEL adapter unit starts with the operation of the steering
switch and performs the diagnosis when ignition switch ACC.

On Board Diagnosis Function

INFOID:0000000009652141

HANDS-FREE PHONE SYSTEM ON BOARD DIAGNOSIS

 During on board diagnosis the diagnosis function of TEL adapter unit starts with the operation of the steering
switch and performs the diagnosis when ignition switch ACC.

ON BOARD DIAGNOSIS ITEM

The on board diagnosis has 3 modes: the self-diagnosis mode that performs the trouble diagnosis, the
speaker adaptation data deleting mode and the hands-free phone system initialization mode.

CAUTION:

• Perform the diagnosis with the vehicle stopped.
• Perform STEP2 if necessary.

Self-diagnosis results

Self-diagnosis mode reads out the self-diagnosis results.
NOTE:
• Error count is read out simultaneously when reading out the DTC name.
• The errors are read out continuously when some errors occur at the same time.

Self-diagnosis results

The Details of Error Count

The error count guides “0” when the error occurs. The next time it counts up “1” if it is normal with the ignition
switch ON. It continues the count up unless the initialization of hands-free phone system is performed.

STEP

MODE

Description

STEP1

Self-diagnosis

The self-diagnosis mode performs the microphone test and
the diagnosis of TEL adapter unit, TEL antenna and steering
unit, and then reads out the results with the sound and indi-
cates them on the display.

STEP2

Speaker adaptation data deleting

The speaker adaptation data deleting mode can delete the
speaker adaptation data.

Hands-free phone system initialization

Hands-free phone system initialization mode can perform
the initialization of hands-free phone system.

DTC

DTC name

Possible causes

DTC 10000

INTERNAL FAILURE

TEL adapter unit

DTC 01000

ANT. SHORT TO BATT OR OPEN

TEL antenna

DTC 00100

ANT. SHORT TO GROUND

DTC 00010

STEERING REMOTE BUTTON STUCK A

Steering switch

DTC 00001

STEERING REMOTE BUTTON STUCK B

DTC 00000

THERE ARE NO FAILURE RECORDS TO REPORT

AV-308

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

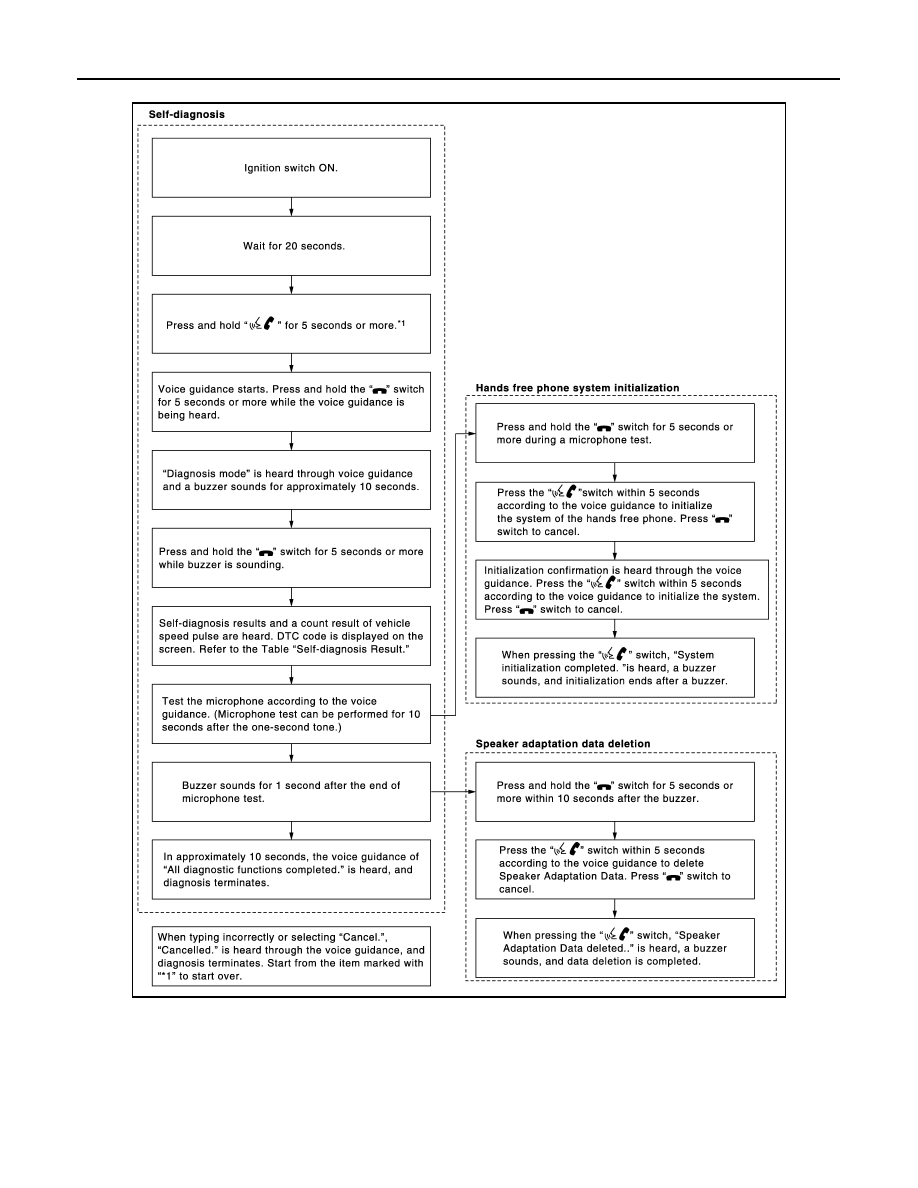

FLOW CHART OF TROUBLE DIAGNOSIS

JSNIA2498GB

AV

AV CONTROL UNIT

AV-309

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

AV CONTROL UNIT

Reference Value

INFOID:0000000009652142

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT MONITOR ITEM

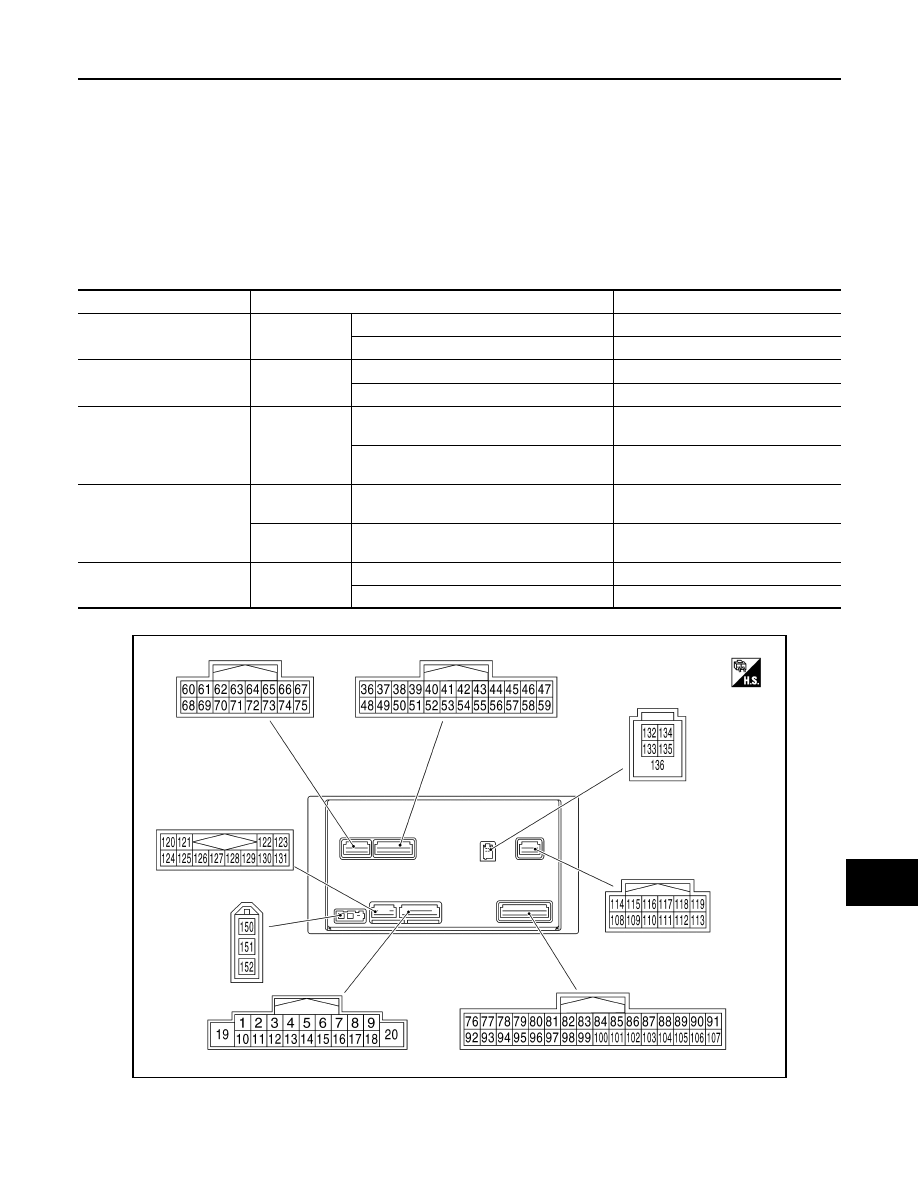

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Condition

Value/Status

VHCL SPD SIG

Ignition switch
ON

Vehicle speed > 0 km/h (0 MPH)

On

Vehicle speed = 0 km/h (0 MPH)

Off

PKB SIG

Ignition switch
ON

Parking brake is applied.

On

Parking brake is released.

Off

ILLUM SIG

Ignition switch
ON

Block the light from the auto light optical sen-
sor when the lighting switch is 1st or 2nd.

On

Expose the auto light optical sensor to light
when the lighting switch is OFF, 1st or 2nd.

Off

IGN SIG

Ignition switch
ON

On

Ignition switch
ACC

Off

REV SIG

Ignition switch
ON

Selector lever is in the R position

On

Selector lever is in any position other than R

Off

JSNIA5392ZZ

AV-310

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

Terminal

(Wire color)

Description

Condition

Standard

Reference value

(Approx.)

+

Signal name

Input/

Output

6

(L)

15

(GR)

Steering switch
signal A

Input

Ignition

switch

ON

Keep pressing
SOURCE switch.

0 - 3.3 V

 0 V

Keep pressing SEEK
UP switch.

0.7 V

Keep pressing SEEK
DOWN switch.

1.3 V

Keep pressing





switch

2.0 V

Except for above.

3.3 V

7

(O)

20

(B)

ACC power sup-
ply

Input

Ignition

switch

ACC

9.0 – 16.0 V

Battery voltage

9

(O)

20

(B)

Dimmer signal

Input

Ignition

switch

ON

Either of the following
conditions
• Lighting switch is OFF
• Lighting switch is 1st

or 2nd, and the area
around the vehicle is
bright (shine a light on
the optical sensor)

3.0 V or less

0 V

Lighting switch is 1st or
2nd, and the area
around the vehicle is
dark (block the light from
the optical sensor)

7.0 – 16.0 V

12.0 V

16

(P)

15

(GR)

Steering switch
signal B

Input

Ignition

switch

ON

Keep pressing VOL
DOWN switch.

0 – 3.3 V

0 V

Keep pressing VOL UP
switch.

0.7 V

Keep pressing



switch.

1.3 V

Except for above.

3.3 V

19

(SB)

20

(B)

Battery power
supply

Input

Ignition

switch

OFF

9.0 – 16.0 V

Battery voltage

36

(P)

37

(Y)

Signal VCC

Output

Ignition

switch

ACC

8.0 – 9.5 V

8.8 V

38

(G)

20

(B)

Horizontal syn-
chronizing (HP)
signal

Input

Ignition

switch

ON

Waveform of
1.0 V – 5.5 V
is input.

SKIB3601E
