Nissan Quest E52. Manual - part 105





AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-299

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

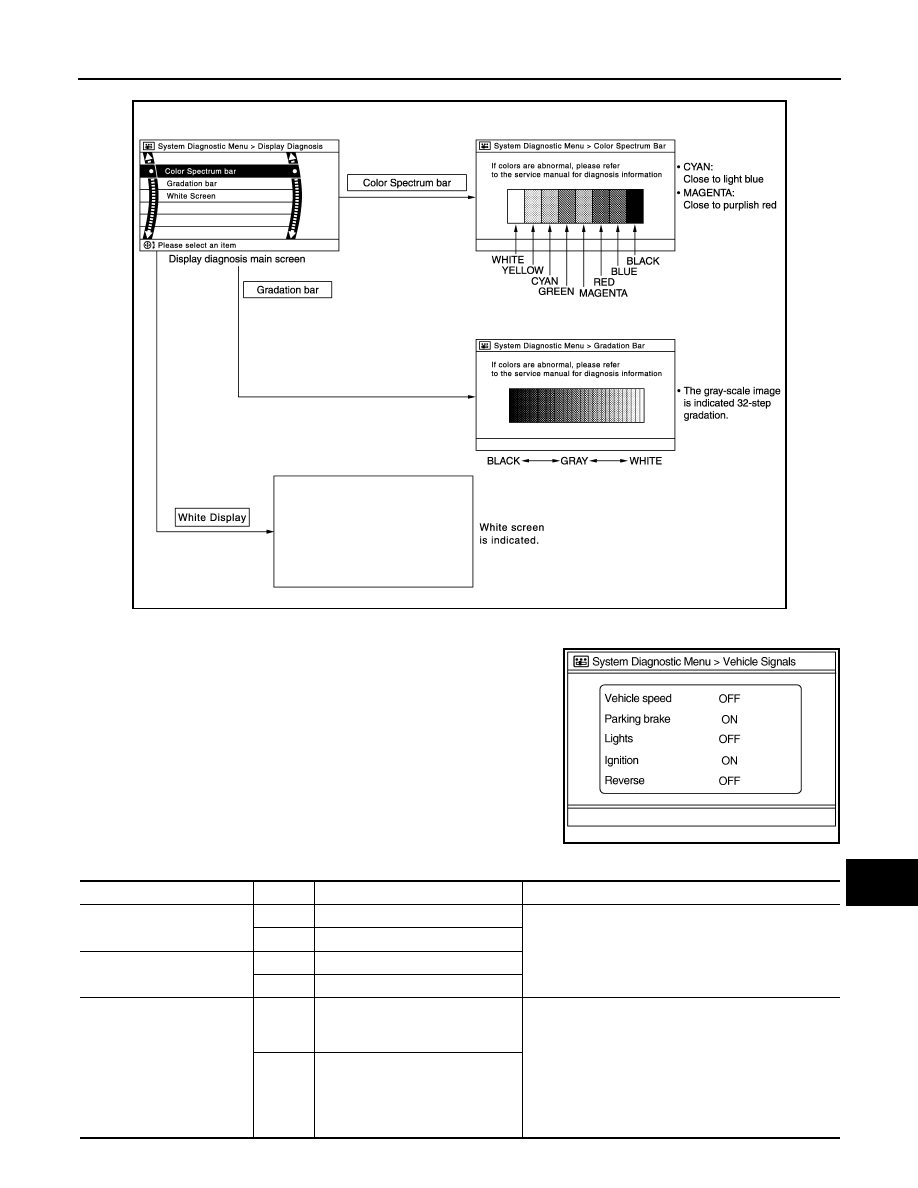

Display Diagnosis

Vehicle Signals

A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.

JSNIA2233GB

JSNIA0149GB

Diagnosis item

Display

Vehicle status

Remarks

Vehicle speed

ON

Vehicle speed > 0 km/h (0 MPH)

Changes in indication may be delayed. This is normal.

OFF

Vehicle speed = 0 km/h (0 MPH)

Parking brake

ON

Parking brake is applied.

OFF

Parking brake is released.

Lights

ON

Block the light from the auto light
optical sensor when the lighting
switch is 1st or 2nd.

OFF

Either of the following conditions
• Lighting switch is OFF
• Expose the auto light optical sen-

sor to light when the lighting
switch is 1st or 2nd.

AV-300

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

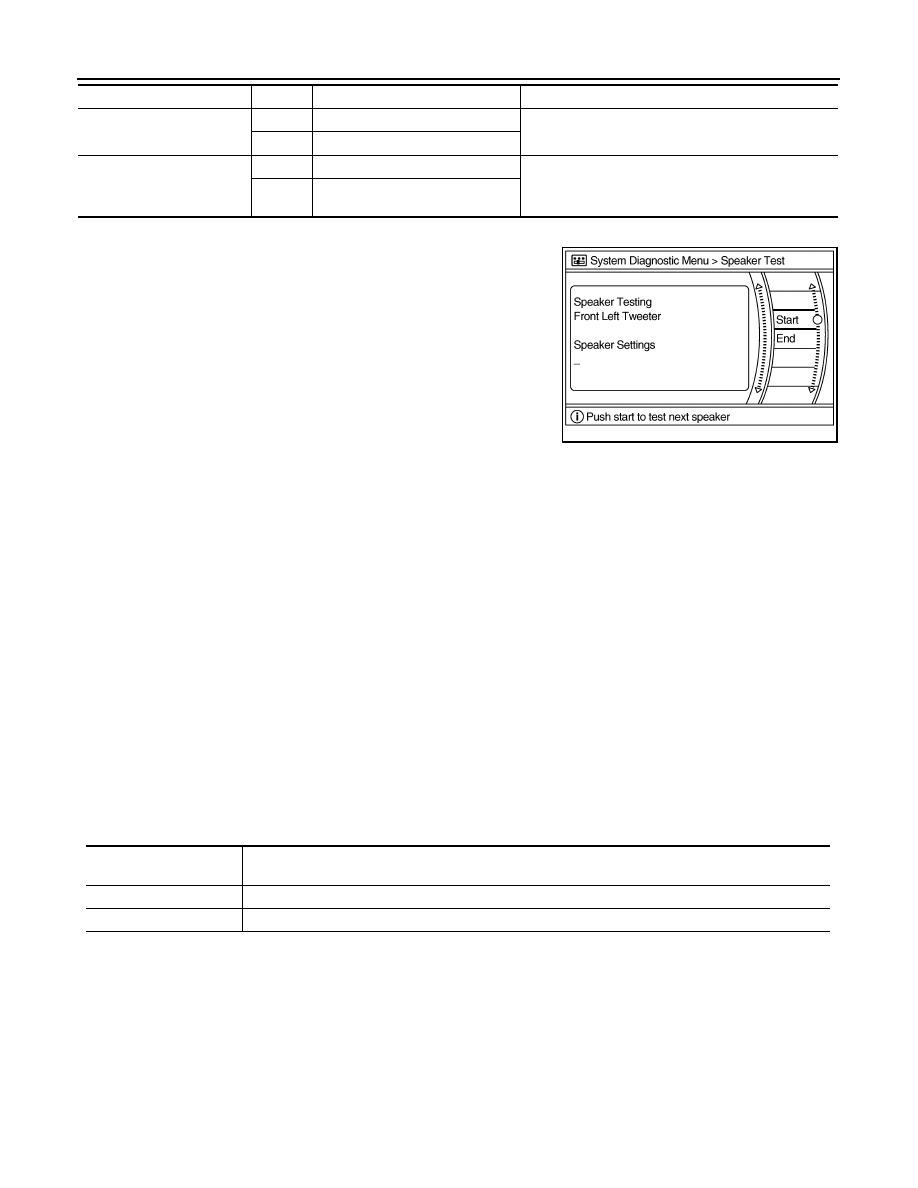

Speaker Test

Select “Speaker Test” to display the Speaker Diagnosis screen.
Press “Start” to generate a test tone in a speaker. Press “Start” again
to generate a test tone in the next speaker. Press “End” to stop the
test tones.

Climate Control

Refer to “HEATER & AIR CONDITIONING CONTROL SYSTEM” for details.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when “Self-diagnosis” is
selected until the self-diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned
ON and then no error has occurred until the self-diagnosis start. Check the “Error Record” to detect any error
that may have occurred before the self-diagnosis start because of this situation.
The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending
on the error item.

Count up method A

• The counter resets to 0 if an error occurs when ignition switch is turned ON. The counter increases by 1 if

the condition is normal at a next ignition ON cycle.

• The counter upper limit is 39. Any counts exceeding 39 are ignored.“ The counter can be reset (no error

record display) with the “Delete log” switch or CONSULT.

Count up method B

• The counter increases by 1 if an error occurs when ignition switch is ON. The counter will not decrease even

if the condition is normal at the next ignition ON cycle.

• The counter upper limit is 50. Any counts exceeding 50 are ignored. “ The counter can be reset (no error

record display) with the “Delete log” switch or CONSULT.

Ignition

ON

Ignition switch is ON

OFF

Ignition switch is in ACC position

Reverse

ON

Selector lever is in “R” position

Changes in indication may be delayed. This is normal.

OFF

Selector lever is in other than “R”
position

Diagnosis item

Display

Vehicle status

Remarks

JSNIA0150GB

Display type of occur-

rence frequency

Error history display item

Count up method A

CAN communication line, control unit (CAN), AV communication line, control unit (AV)

Count up method B

Other than the above

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-301

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

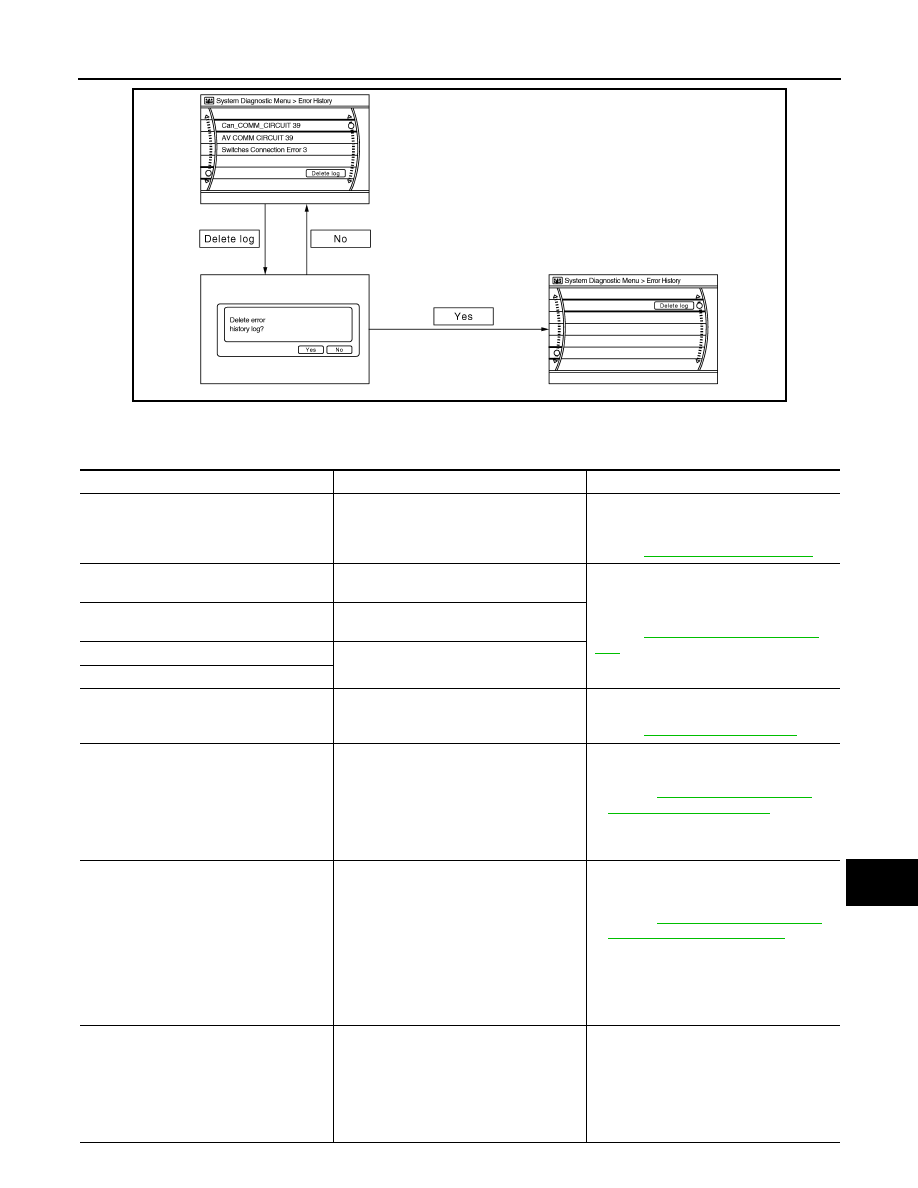

Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items

JSNIA0151GB

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT

CAN communication malfunction is detect-
ed.

Perform diagnosis with CONSULT, and
then repair the malfunctioning parts accord-
ing to the diagnosis results.
Refer to

AV-304, "CONSULT Function"

.

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detect-
ed.

Replace the AV control unit if the malfunc-
tion occurs constantly.
Refer to

AV-404, "Removal and Installa-

tion"

.

CONTROL UNIT (AV)

AV communication circuit initial diagnosis
malfunction is detected.

FLASH-ROM Error Of Control Unit

AV control unit malfunction is detected.

CAN Controller Memory Error

Steer. Angle Sensor Calibration

Neutral position adjustment of the steering
angle sensor is incomplete.

Adjust the neutral position of the steering
angle sensor.
Refer to

BRC-49, "Work Procedure"

.

Front Display Connection Error

When either one of the following items is
detected:
• front display unit power supply and

ground circuits malfunction is detected.

• malfunction is detected in communica-

tion circuits between AV control unit and
front display unit.

• Front display unit power supply and

ground circuits.
Refer to

AV-367, "FRONT DISPLAY

UNIT : Diagnosis Procedure"

.

• Communication circuits between AV con-

trol unit and front display unit.

XM Connection Error

When either one of the following items are
detected:
• satellite radio tuner power supply and

ground circuits are malfunctioning.

• communication circuits between AV con-

trol unit and satellite radio tuner are mal-
functioning.

• request signal circuit between AV control

unit and satellite radio tuner are malfunc-
tioning.

• Satellite radio tuner power supply and

ground circuit.
Refer to

AV-370, "SATELLITE RADIO

TUNER : Diagnosis Procedure"

.

• Communication circuit between AV con-

trol unit and satellite radio tuner.

• Request signal circuit between AV con-

trol unit and satellite radio tuner.

• AV COMM CIRCUIT
• Switches Connection Error

When either one of the following items is
detected:
• multifunction switch power supply and

ground circuits are malfunctioning.

• AV communication circuits between AV

control unit and multifunction switch are
malfunctioning.

• Multifunction switch power supply and

ground circuits.

• AV communication circuits between AV

control unit and multifunction switch.

AV-302

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

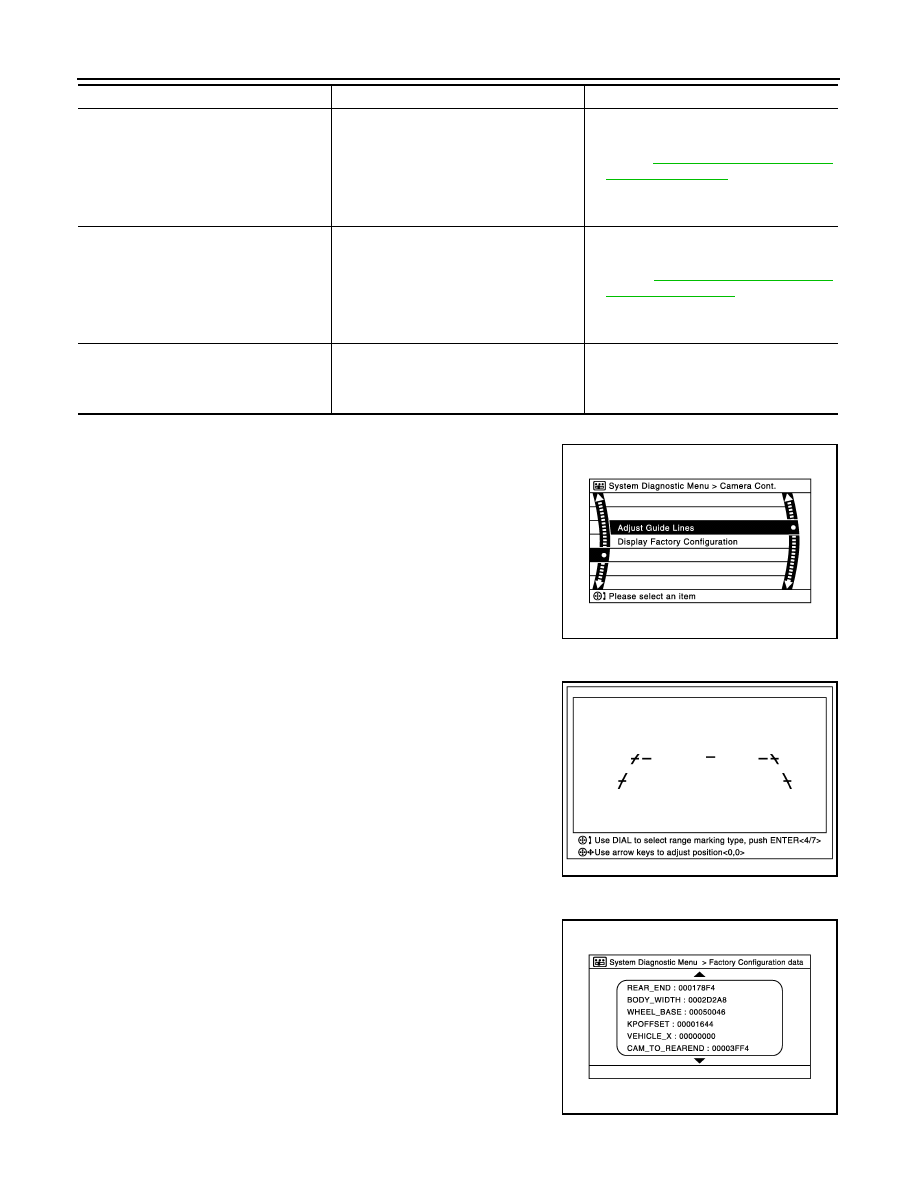

Camera Cont.

The two functions of “Correct Draw Line of Rear view Cam”, “Con-
firm Configuration” are available.

Adjust Offset of Rear view Camera

• Use this mode to adjust the guide line display position of the rear

view monitor if necessary after removing the rear view monitor
camera.

CAUTION:

After the adjustment, never perform other operations for one
minute.

Factory Configuration Confirmation

• Configuration stored in the AV control unit can be checked.

• AV COMM CIRCUIT
• H/F Unit Connection Error

When either one of the following items are
detected:
• TEL adapter unit power supply and

ground circuit are malfunctioning.

• AV communication circuits between AV

control unit and TEL adapter unit are
malfunctioning.

• TEL adapter unit power supply and

ground circuits.
Refer to

AV-371, "TEL ADAPTER UNIT :

Diagnosis Procedure"

.

• AV communication circuits between AV

control unit and TEL adapter unit.

• AV COMM CIRCUIT
• 2nd Display Connection Error

When either one of the following items are
detected:
• Rear display unit power supply and

ground circuits are malfunctioning.

• AV communication circuits between AV

control unit and rear display unit are mal-
functioning.

• Rear display unit power supply and

ground circuits.
Refer to

AV-368, "REAR DISPLAY UNIT

: Diagnosis Procedure"

.

• AV communication circuits between AV

control unit and rear display unit.

• AV COMM CIRCUIT
• Switches Connection Error
• H/F Unit Connection Error
• 2nd Display Connection Error

AV communication circuits between AV
control unit and multifunction switch are
malfunctioning.

AV communication circuits between AV
control unit and multifunction switch.

Error item

Description

Possible malfunction factor/Action to take

JSNIA2230ZZ

JSNIA2231ZZ

JSNIA2234ZZ
