FRONT SEAT (MANUAL SEAT)

SE-97

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

b.

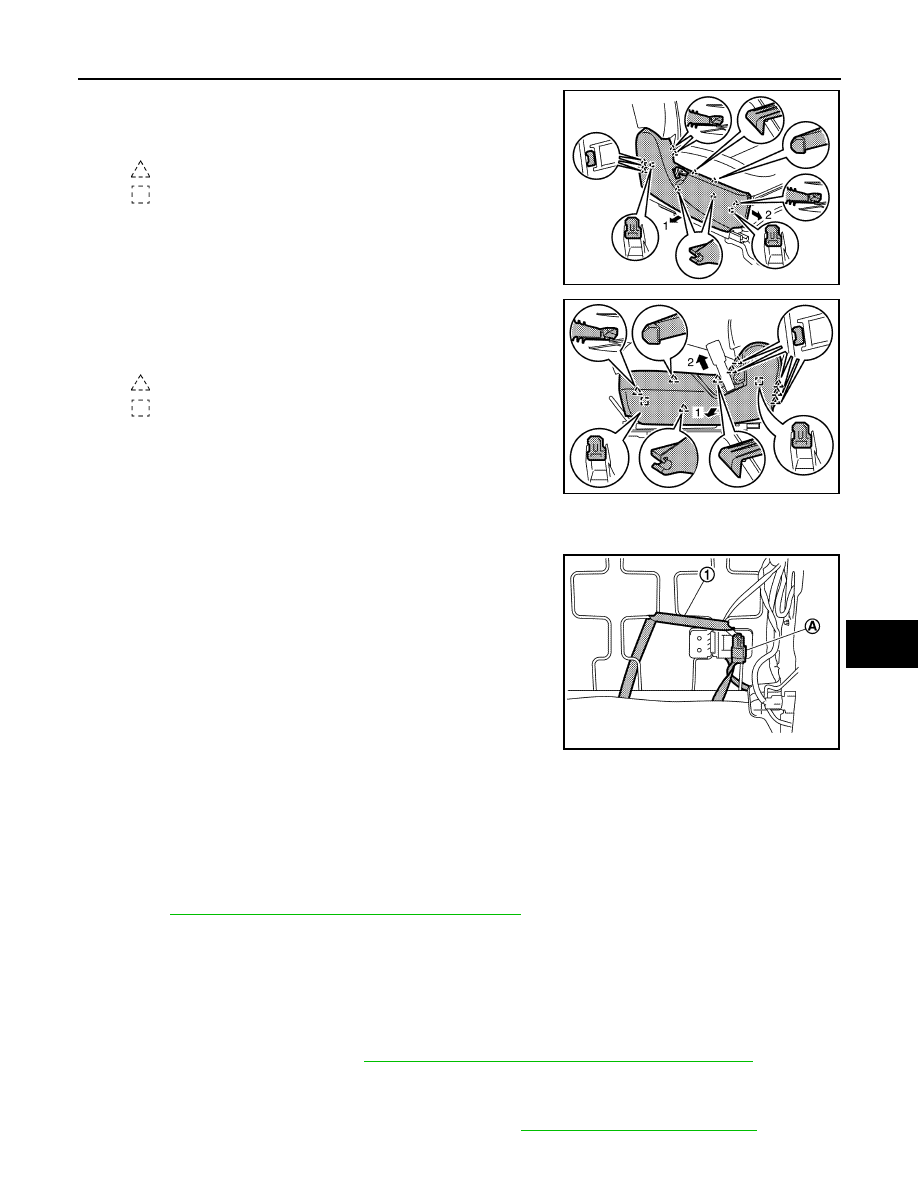

Pull seat cushion outer finisher toward seat front. Disengage
pawls and metal clips. Slide seat cushion outer finisher toward
seat front. Remove seat cushion outer finisher.

3.

Pull seat cushion inner finisher toward seat front. Disengage
pawls and metal clips. Slide seat cushion inner finisher upwards.
Remove seat cushion inner finisher.

4.

Remove seat cushion trim, seat cushion pad, and seat cushion heater unit (with heater seat only) from
seat frame & adjuster assembly.

a.

Disconnect seat cushion heater unit harness connector (A)
installed in the lower portion of seat cushion. (with heater seat
only.)

b.

Remove seatback lower carpet rubber band (1) installed in the
lower portion of seat cushion.

c.

Remove seat cushion trim, seat cushion pad, and seat cushion heater unit (with heater seat only) from
seat frame & adjuster assembly.

5.

Remove hog rings, and separate the seat cushion trim and seat cushion pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

6.

Separate the seat cushion pad and seat cushion heater unit. (with heater seat only)

7.

Remove seatback trim and seatback pad from seat frame & adjuster assembly.
Refer to

SE-90, "SEATBACK : Disassembly and Assembly"

.

8.

Remove reclining device cover.
• Disengage pawls and remove reclining device outer cover (front and rear).
• Disengage pawls and remove reclining device inner cover (front and rear).

9.

Remove following parts from seat frame & adjuster assembly.
• Remove lower outer finisher.
• Remove lower inner finisher.
• Remove seat belt buckle trim.
• Remove seat belt buckle. Refer to

SB-8, "SEAT BELT BUCKLE : Removal and Installation"

.

• Remove seatback board.
• Remove seatback felt.
• Remove seat harness from seat frame & adjuster assembly.
• Remove occupant detection system control unit. Refer to

SR-32, "Removal and Installation"

.

: Pawl

: Metal clip

JMJIA6220ZZ

: Pawl

: Metal clip

JMJIA6222ZZ

JMJIA6270ZZ

SE-98

< REMOVAL AND INSTALLATION >

FRONT SEAT (MANUAL SEAT)

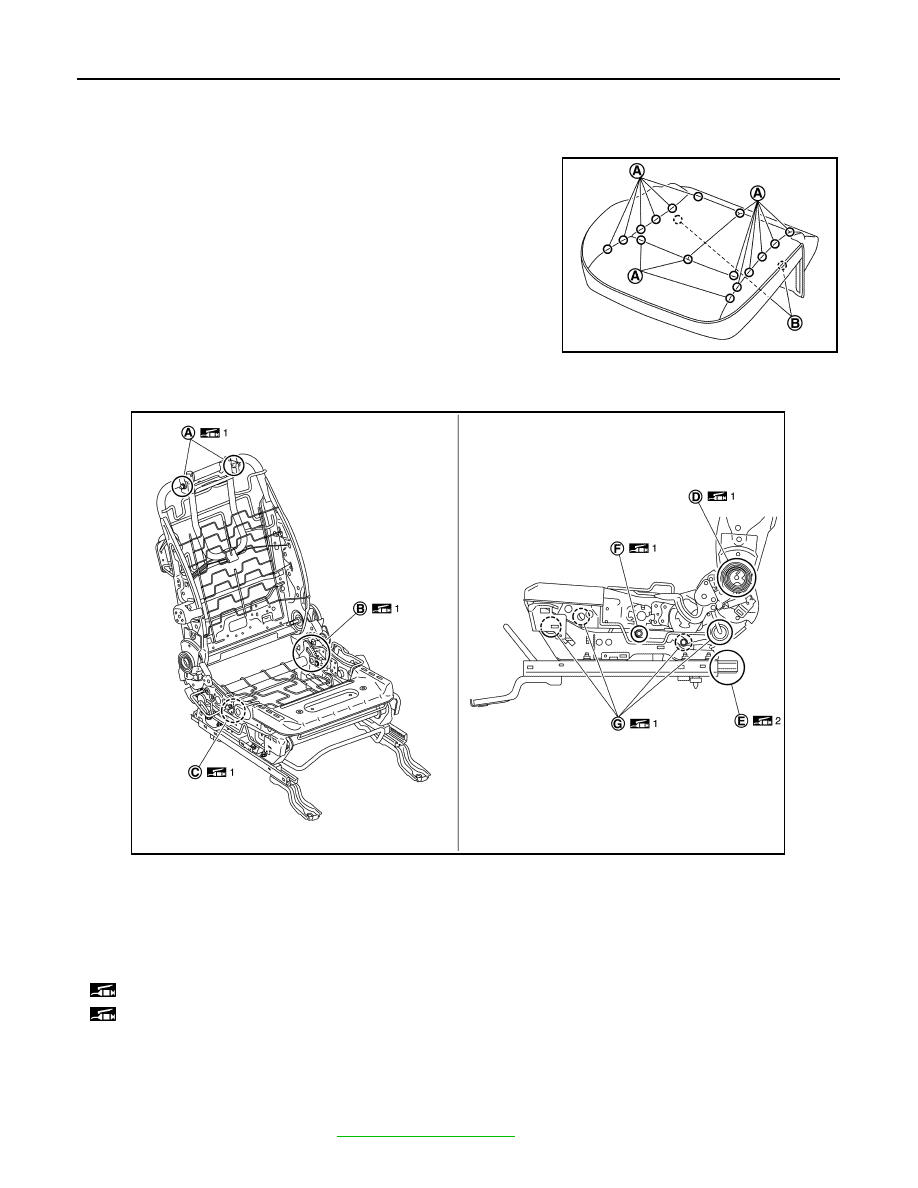

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

• Check seat cushion trim and seat cushion pad for damage. Replace with new part if necessary.
• Install seat cushion front hog rings (A) and seat cushion back

hog rings (B) to the specified positions.

• Check the following parts for lubrication. Apply grease if necessary.

• If crimping using a hog ring is unsuccessful, secure using a new hog ring.
• Check that harness route and harness clip installation position are in the specified positions.
• When harness clip is damaged, mark the clip position and replace damaged clip with a new one in

the original position.

• Tighten seat belt buckle anchor bolt to the specified torque.

For the specified torque, refer to

SE-85, "Exploded View"

.

JMJIA6224ZZ

A.

Active headrest rotation engage SP
bolt portion

B.

Rear lifter link sliding portion

C.

Sector gear sliding portion

D.

Recliner base core sliding portion

E.

Slide rail sliding portion

F.

Lifter lever and lifter link sliding por-
tion

G.

Seat lifter pipe (front and rear) crimp
sliding portion

1 : Heat-resistant and cold-resistant grease (Nippeco LLP or an equivalent)

2 : Heat-resistant and cold-resistant grease (RHEOGEL or an equivalent)

JMJIA6241ZZ

FRONT SEAT (POWER SEAT)

SE-99

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

FRONT SEAT (POWER SEAT)

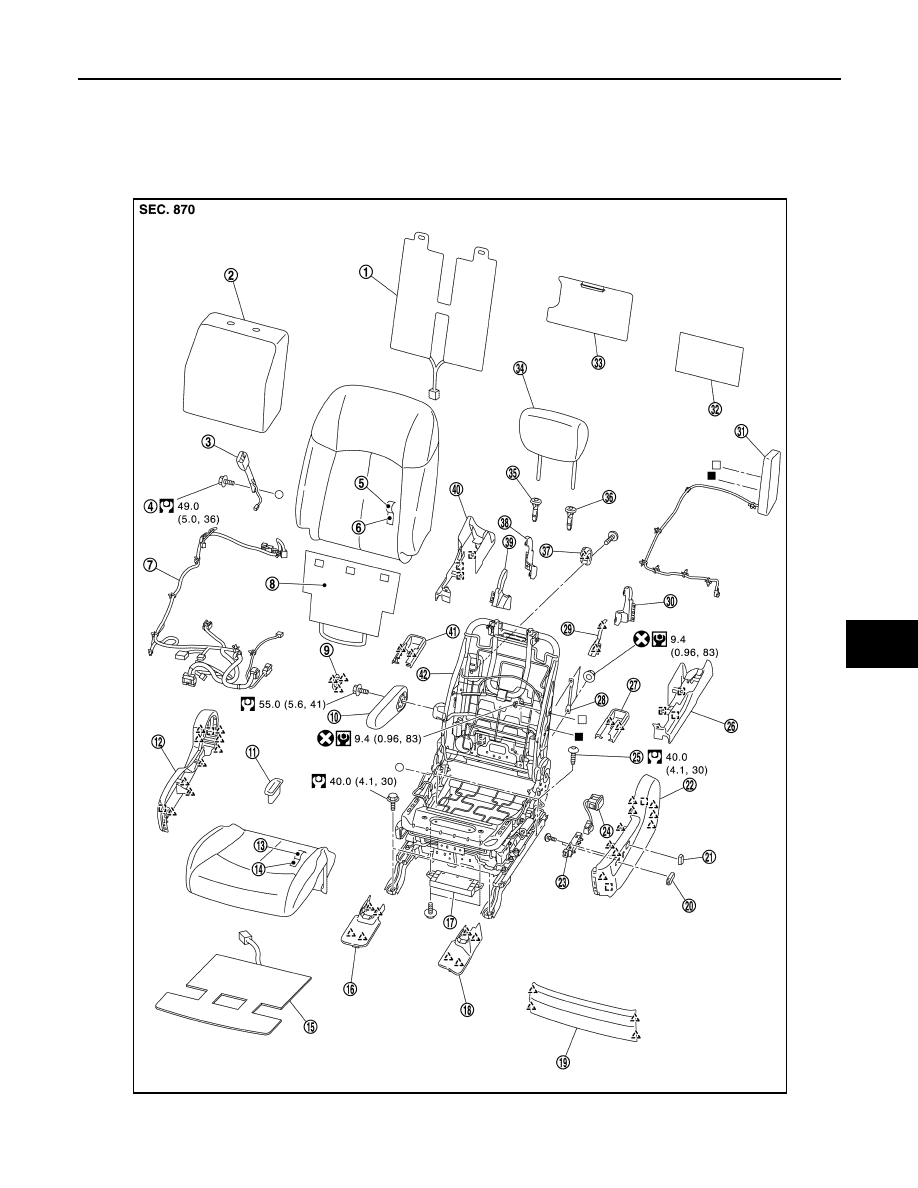

Exploded View

INFOID:0000000009652987

DRIVER SEAT

JMJIA6114GB

SE-100

< REMOVAL AND INSTALLATION >

FRONT SEAT (POWER SEAT)

PASSENGER SEAT

1.

Seatback heater unit

2.

Seatback silencer

3.

Seat belt buckle

4.

Anchor bolt

5.

Seatback trim

6.

Seatback pad

7.

Seat harness assembly

8.

Seatback lower carpet

9.

Armrest cap

10. Armrest assembly

11.

Seat belt buckle trim

12. Seat cushion inner finisher

13. Seat cushion trim

14. Seat cushion pad

15. Seat cushion heater unit

16. Seat slide front inner cover

17. Seat control unit

18. Seat slide front outer cover

19. Seat cushion finisher

20. Seat slide & lifter switch knob

21. Seat reclining switch knob

22. Seat cushion outer finisher

23. Seat switch assembly

24. Lumber support switch assembly

25. TORX bolt

26. Lower outer finisher

27. Seat slide rear outer cover

28. Side air bag rod

29. Reclining device outer cover (front)

30. Reclining device outer cover (rear)

31. Side air bag module

32. Seatback felt

33. Seatback board

34. Headrest

35. Headrest holder (free)

36. Headrest holder (locked)

37. Seatback hook assembly

38. Reclining device inner cover (rear)

39. Reclining device inner cover (front)

40. Lower inner finisher

41. Seat slide rear inner cover

42. Seat frame & adjuster assembly

: Pawl

: Metal clip

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)
