Nissan Quest E52. Manual - part 1065





FRONT SEAT (MANUAL SEAT)

SE-89

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

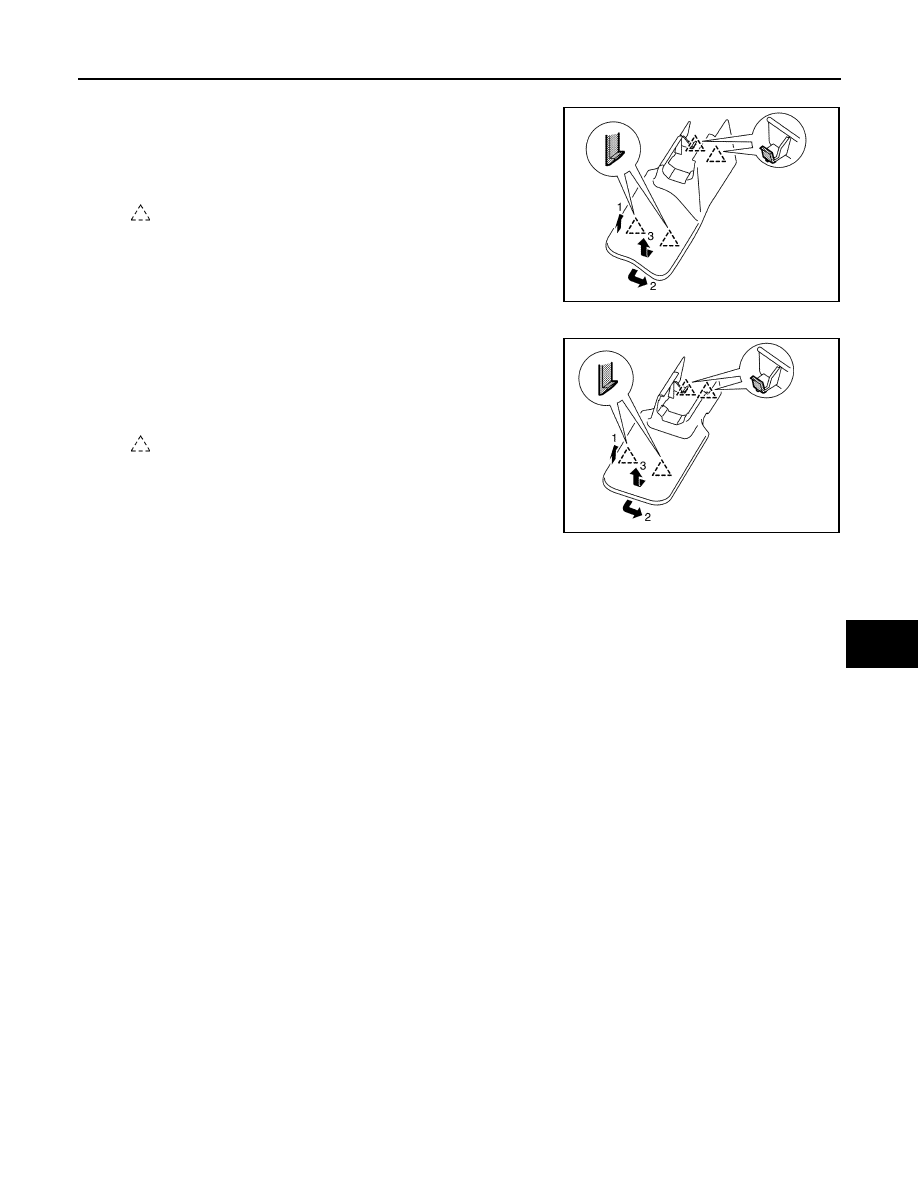

8.

Remove seat slide front outer cover.

a.

Disengage pawls on the front side of seat slide front outer cover.

b.

Disengage pawls on the rear side of seat slide front outer cover.

c.

Slide seat slide front outer cover to the front side while lifting it
upward to remove.

9.

Remove seat slide front inner cover.

a.

Disengage pawls on the front side of seat slide front inner cover.

b.

Disengage pawls on the rear side of seat slide front inner cover.

c.

Slide seat slide front inner cover to the front side while lifting it
upward to remove.

10. Remove front outer mounting bolt.

11. Remove front inner mounting bolt.
12. Operate seat reclining lever and set the seatback vertically.

13. Disconnect seat cushion lower harness connector, and then remove harness fixing clips.

WARNING:

Never insert foreign materials, such as a screwdriver, into air bag module connector. (This is to
prevent accidental activation caused by static electricity.)

CAUTION:

Before performing removal operation, check the installation position of harness connectors and
harness fixing clamps.

14. Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• Before installing seat, check that sliding rail inner and outer are locked in the same position.
• Before tightening bolts, check that the carpet is not caught in bolt holes on mounting portion.
• Always fix the harness fixing clamp in position.
• When connecting the connector, be sure to raise lock, and then push lock into the connector to fix.

Check that the lock is engaged securely after connecting the connector.

: Pawl

JMJIA6118ZZ

: Pawl

JMJIA6119ZZ

SE-90

< REMOVAL AND INSTALLATION >

FRONT SEAT (MANUAL SEAT)

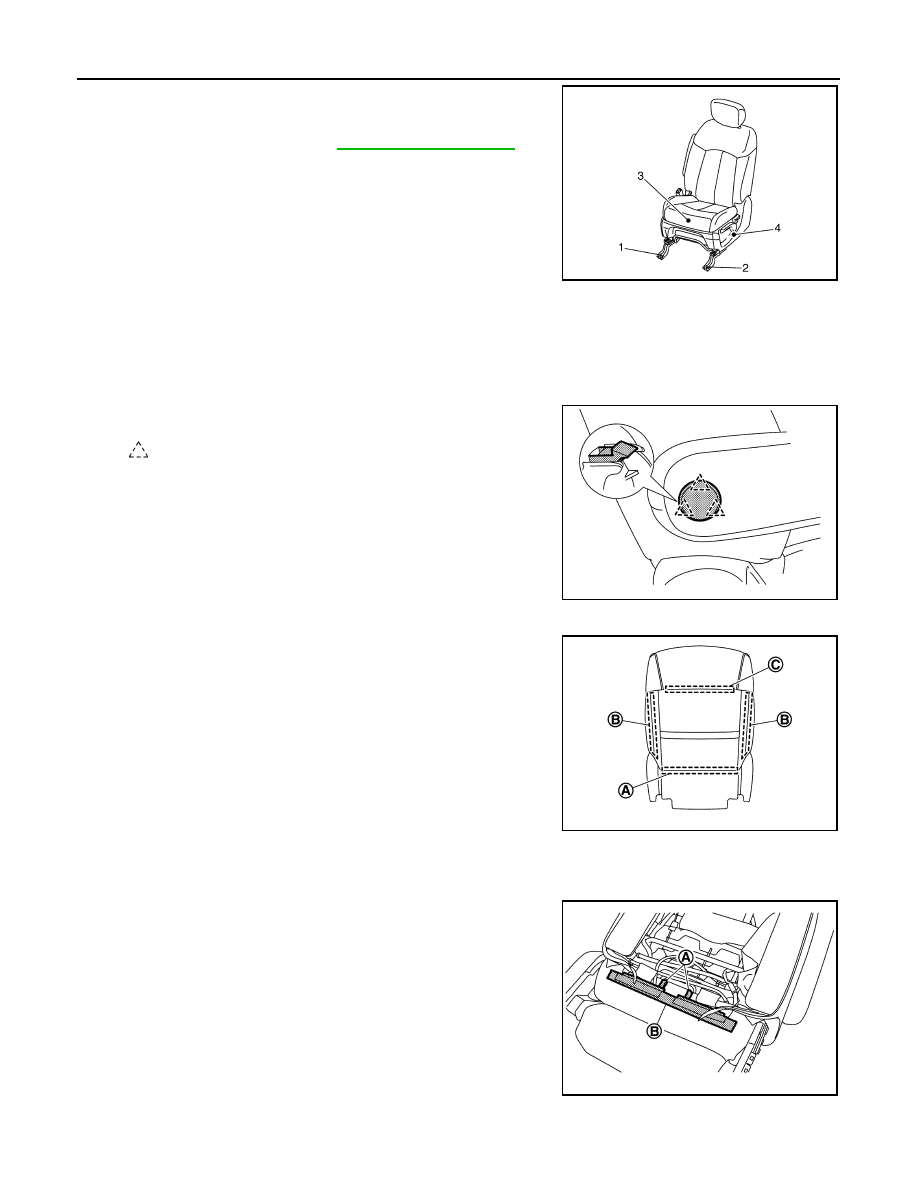

• When installing, tighten mounting bolts to the specified

torque according to the numerical order as shown in the fig-
ure, starting from front inner mounting bolt.
For the specified torque, refer to

SE-85, "Exploded View"

.

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000009652985

DISASSEMBLY

1.

Remove armrest assembly.

a.

Disengage pawls and remove armrest cap.

b.

Remove mounting bolt, and remove armrest assembly.

2.

Remove the seatback retainer (A), and then open seatback fas-
tener (B).

3.

Roll up seatback trim, and then remove seatback retainer (C).

4.

Remove side air bag module.

a.

Remove seatback lower carpet from the seatback trim retainer.

b.

Remove seatback trim retainer (A) and (B).

c.

Remove seat cushion lower side air bag module harness connector clip and side air bag module harness
clip.

JMJIA6120ZZ

: Pawl

JMJIA4975ZZ

JMJIA6243ZZ

JMJIA6267ZZ

FRONT SEAT (MANUAL SEAT)

SE-91

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

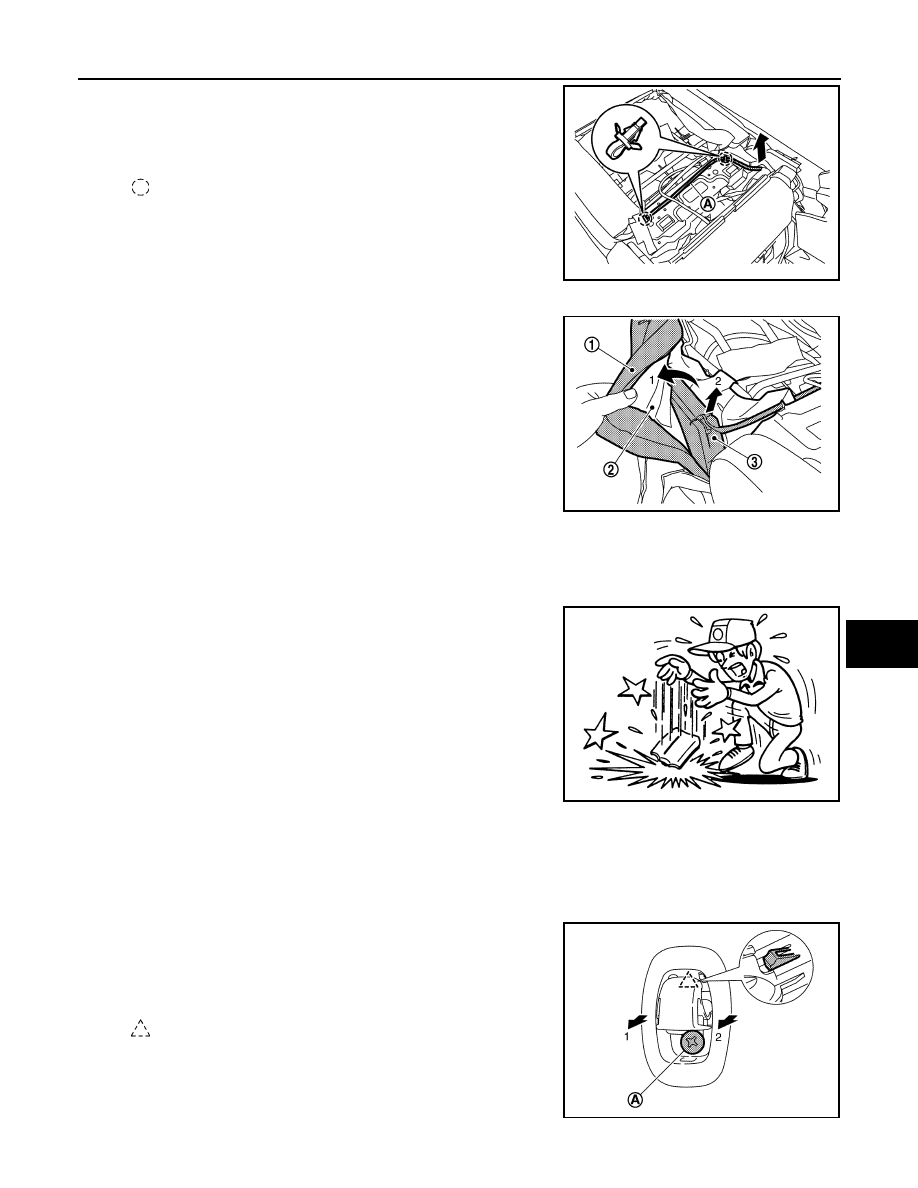

d.

Remove side air bag module harness clips from the seat frame
& adjuster assembly.

e.

Pull out side air bag module harness (A) from the side or reclin-
ing device finisher.

f.

Remove mounting nuts, and then remove side air bag rod from the seat frame & adjuster assembly.

g.

Pull up seatback pad (1) as shown in the figure and secure work
space. Remove side air bag module (3) from the inner cloth (2).

CAUTION:

• Never damage seatback trim or inner cloth (reinforcement cloth).
• Check direction if side air bag module.
• Never disassemble and check inflator. Side air bag module must never be disassembled.
• To prevent damage to the parts, never impact the side air

bag module.

• Replace the side air bag module if it is dropped or sus-

tains an impact.

• To prevent accidental explosion, never expose the side air bag module to temperatures more

than 90

°

C (194

°

F).

• Place air bag module as a unit with side air bag deployment surface facing upward (stud volts

facing downward). (This is to prevent accidental deployment.)

5.

Remove seatback hook assembly.

a.

Rotate seatback hook to the position where fixing screw (A) can
be removed, and then remove screw.

b.

Pull seatback hook assembly forward, disengage pawl, and then
remove seatback hook assembly from the seatback.

: Clip

JMJIA6248ZZ

JMJIA6249ZZ

PHIA1183J

: Pawl

JMJIA4730ZZ

SE-92

< REMOVAL AND INSTALLATION >

FRONT SEAT (MANUAL SEAT)

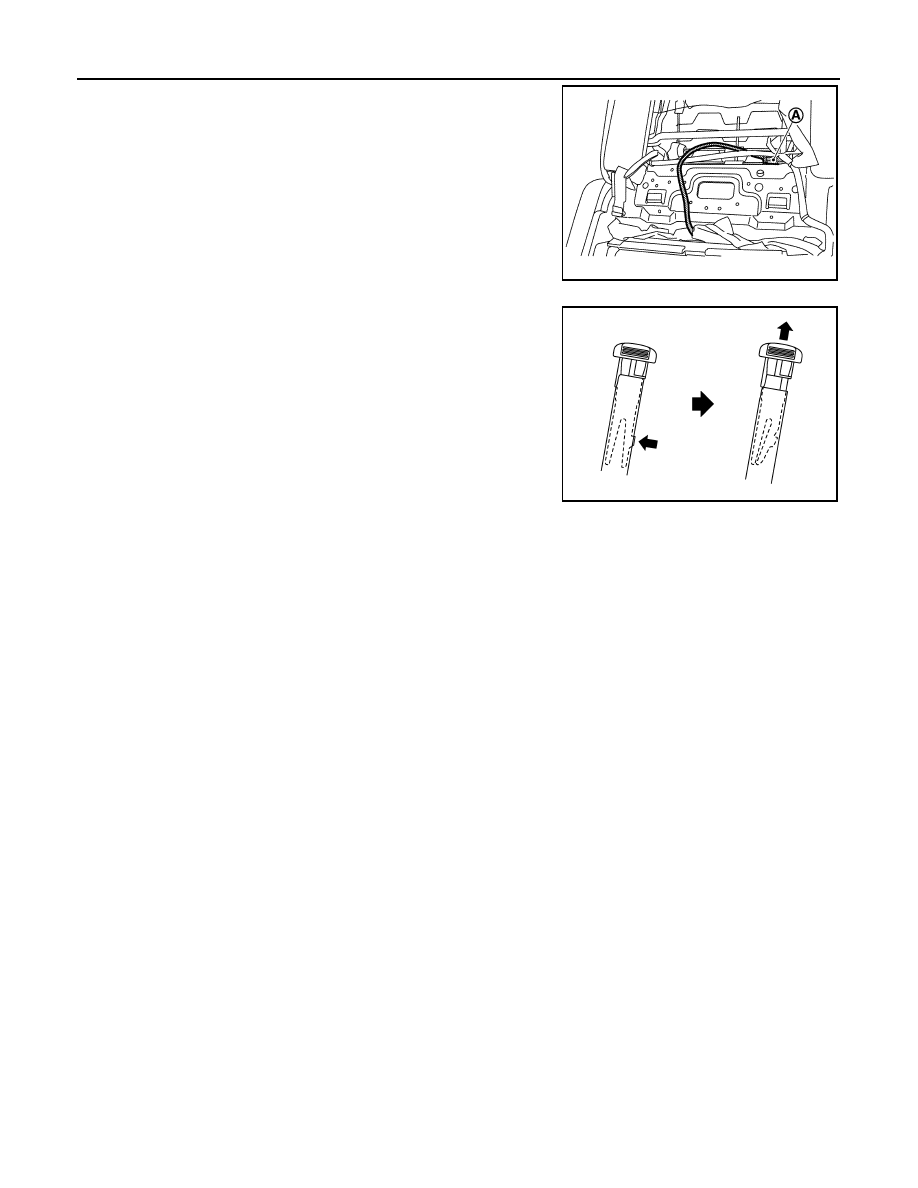

6.

Disconnect seatback heater unit harness connector (A). (with
heater seat only)

7.

Remove the headrest holder from the seatback while pressing
the pawls as shown by the arrows in the figure.

CAUTION:

Before installing headrest holder check its orientation.
(Front/rear and right/left)

8.

Remove seatback trim, seatback pad and seatback heater unit (with heater seat only) from seat frame &
adjuster assembly.

9.

Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

10. Separate the seatback pad and seatback heater unit. (with heater seat only)

11. Remove seatback silencer from seat frame & adjuster assembly.

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

• Check the following parts for lubrication. Apply grease if necessary.

JMJIA6268ZZ

JMJIA4073ZZ
