Nissan Quest E52. Manual - part 1012

PWO-36

< REMOVAL AND INSTALLATION >

[AC 120 V OUTLET]

AC 120 V OUTLET

AC 120 V OUTLET

Removal and Installation

INFOID:0000000009651894

REMOVAL

1.

Remove center console upper finisher. Refer to

IP-28, "Removal and Installation"

.

2.

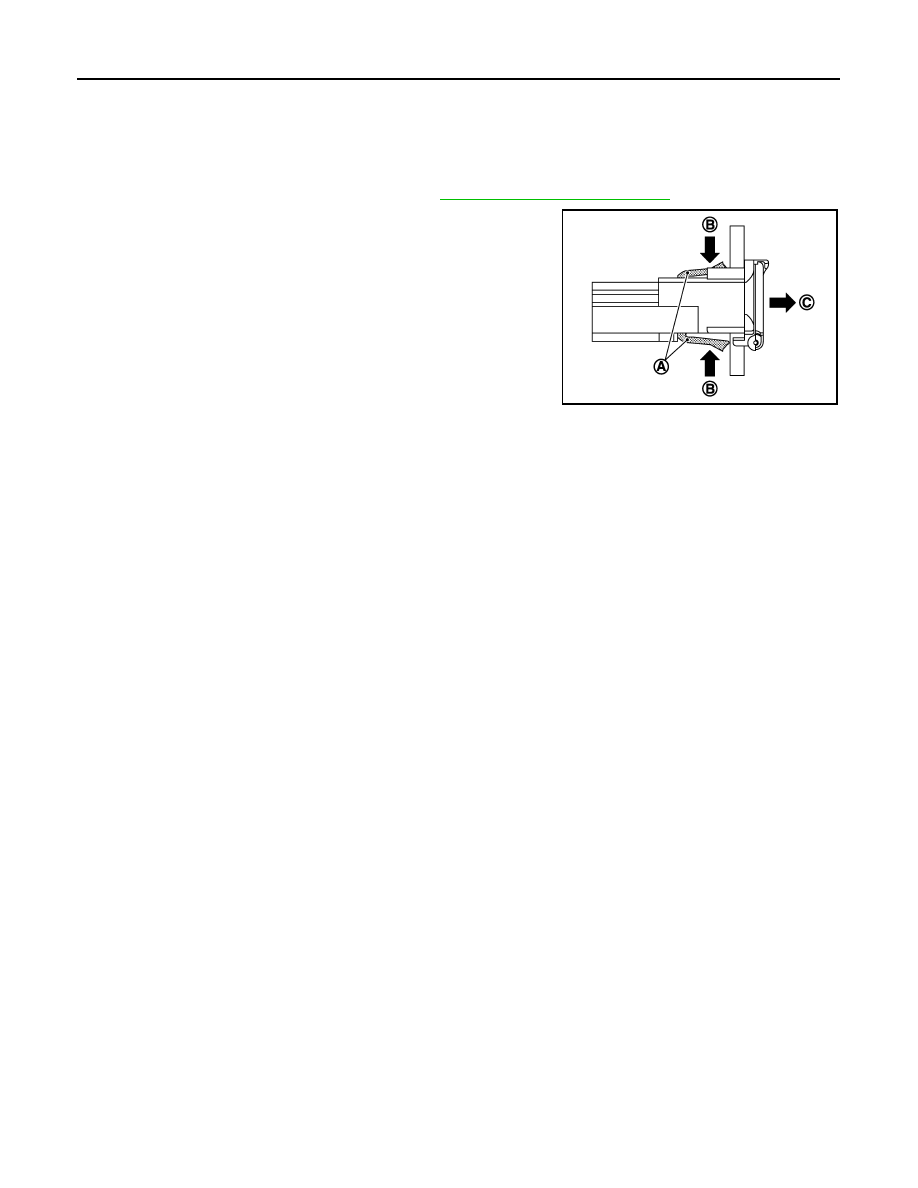

Press pawl (A) in direction (B) from the back of center console
upper finisher to remove AC 120 V outlet in direction (C).

INSTALLATION

Install in the reverse order of removal.

JSMIA0458ZZ

PWO

SERVICE DATA AND SPECIFICATIONS (SDS)

PWO-37

< SERVICE DATA AND SPECIFICATIONS (SDS)

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

AC 120 V Power Outlet

INFOID:0000000009651895

Rated voltage

AC 120 V

Maximum electric capacity

150 W or less (Total)

Maximum current

1.25 A or less (Total)

RAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

RAX

A

B

RAX

N

O

P

CONTENTS

REAR AXLE

PREPARATION ............................................

2

PREPARATION ...................................................

2

Commercial Service Tools  ........................................

2

SYMPTOM DIAGNOSIS  ...............................

3

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

3

NVH Troubleshooting Chart  ......................................

3

PERIODIC MAINTENANCE ..........................

4

REAR WHEEL HUB  ............................................

4

Inspection ..................................................................

4

REMOVAL AND INSTALLATION  ................

5

REAR WHEEL HUB AND HOUSING  ................

5

Exploded View ..........................................................

5

Removal and Installation  ..........................................

6

Inspection .................................................................

7

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

8

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

8

Wheel Bearing  ..........................................................

8

RAX-2

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009650472

Tool name

Description

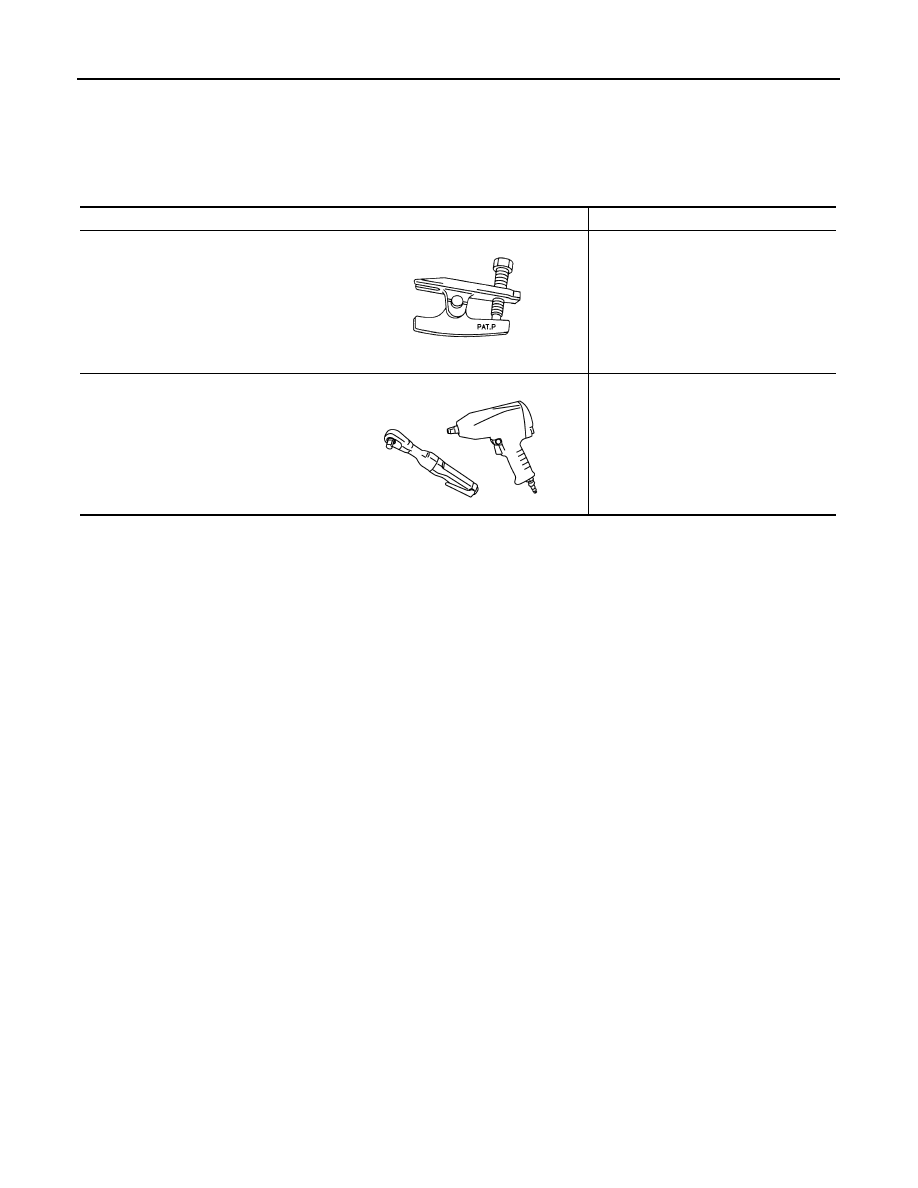

Ball joint remover

• Removing ball joint for suspension arm
• Removing hub bolt

Power tool

Loosening bolts and nuts

NT146

PBIC0190E
