AV

COMPONENT PARTS

AV-279

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

•

φ

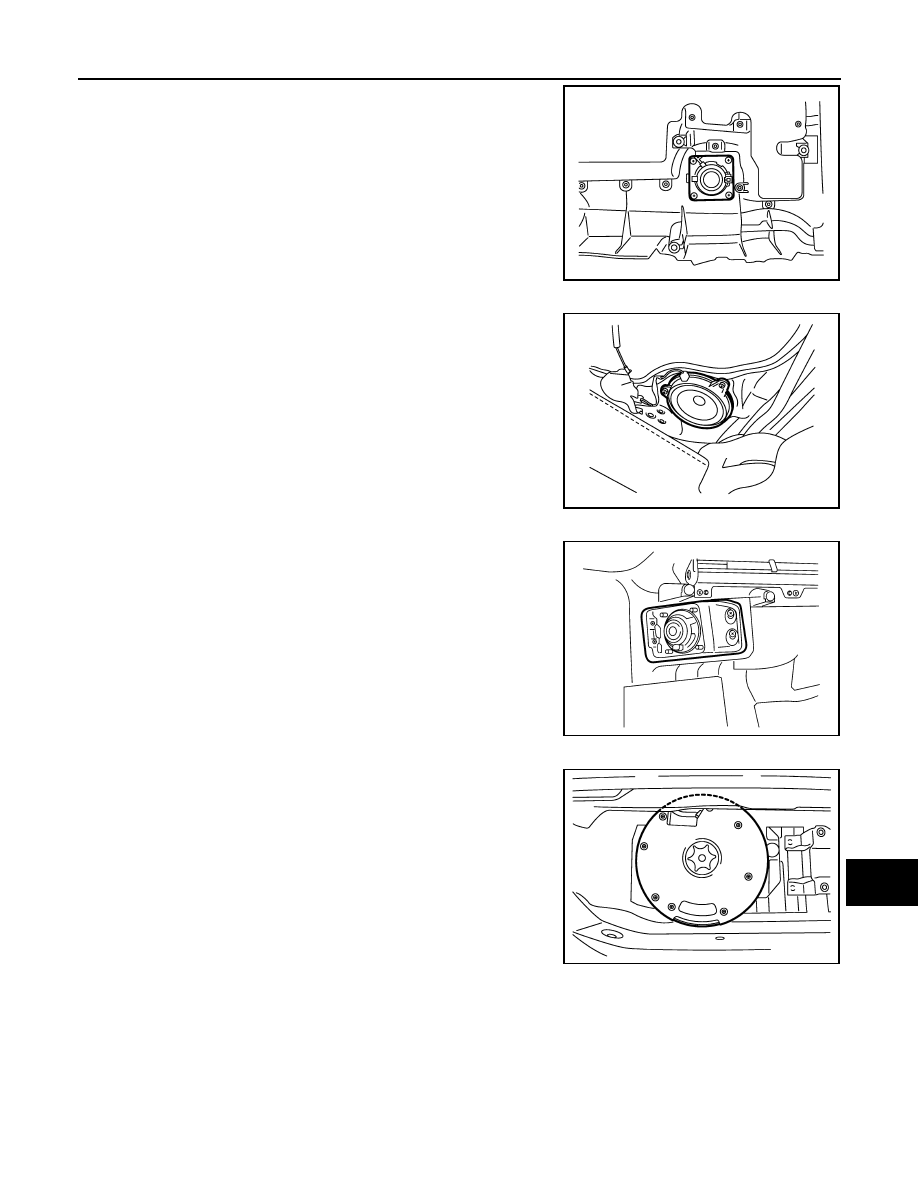

 8 cm (3 in) squawker is located at the lower part of the front of

the slide door.

• Sound signal is input from the BOSE amp. to output high and mid

range sounds.

SLIDE DOOR SPEAKER

•

φ

 16 cm speaker is located at the lower part of the back of the slide

door.

• Sound signal is input from the BOSE amp. to output high, mid, and

low range sounds.

LUGGAGE SQUAWKER

•

φ

 8 cm (3 in) squawker is installed to the side of luggage room.

• Sound signal is input from the BOSE amp. to output high and mid

range sounds.

WOOFER

• Woofer integral with the enclosure is located in the luggage floor

box to improve the sound-field characteristics of the bass range.

• Composed of two woofers and a woofer amp.
• The woofer is activated when receiving a woofer amp. ON signal

from the BOSE amp.

Rated input

: 7.6 W

Maximum
input

: 22.5 W

Impedance

: 3.6

Ω

JSNIA3409ZZ

Rated input

: 12.9 W

Maximum
input

: 38.5 W

Impedance

: 2.1

Ω

JSNIA3405ZZ

Rated input

: 7.6 W

Maximum
input

: 22.5 W

Impedance

: 3.6

Ω

JSNIA3406ZZ

JSNIA3407ZZ

AV-280

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

COMPONENT PARTS

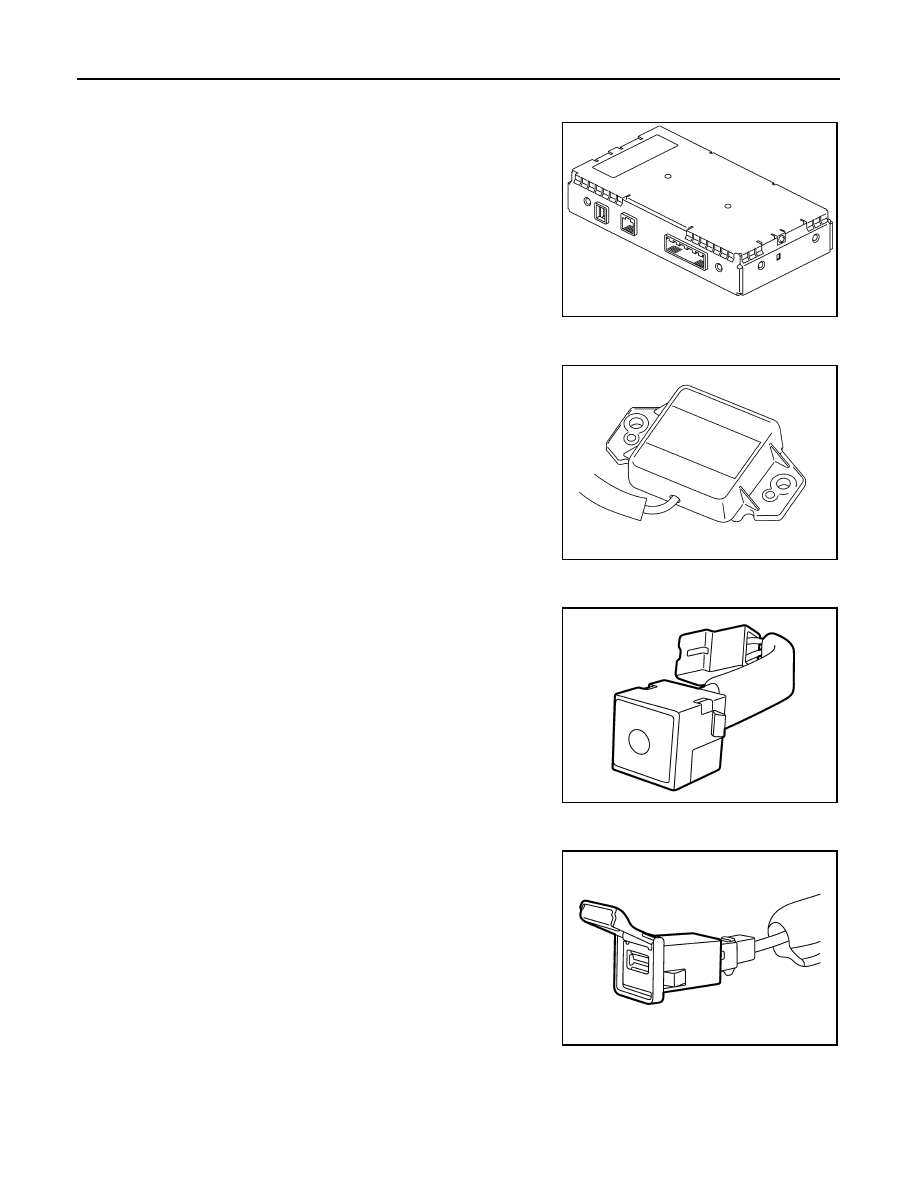

TEL Adapter Unit

INFOID:0000000009652123

• Inputs the TEL voice signal from TEL antenna and outputs it to the

AV control unit.

• It is connected with the AV control unit via AV communication and

controlled with the AV control unit.

TEL Antenna

INFOID:0000000009652124

Receives the TEL voice signal from cellular phone and outputs it to
the TEL adapter unit.

Microphone

INFOID:0000000009652125

• The voice control/TEL microphone is installed on the left side of

the map lamp assembly.

• The power is supplied from the TEL adapter unit to the micro-

phone, transmitting sound signals to the TEL adapter unit at the
voice control or during hands-free phone communication.

USB Connector

INFOID:0000000009652126

• USB connector is installed to the console box.
• iPod

®

 and USB memory can be connected to the AV control unit.

JSNIA4236ZZ

JSNIA4237ZZ

JPNIA1448ZZ

JPNIA1447ZZ

AV

COMPONENT PARTS

AV-281

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

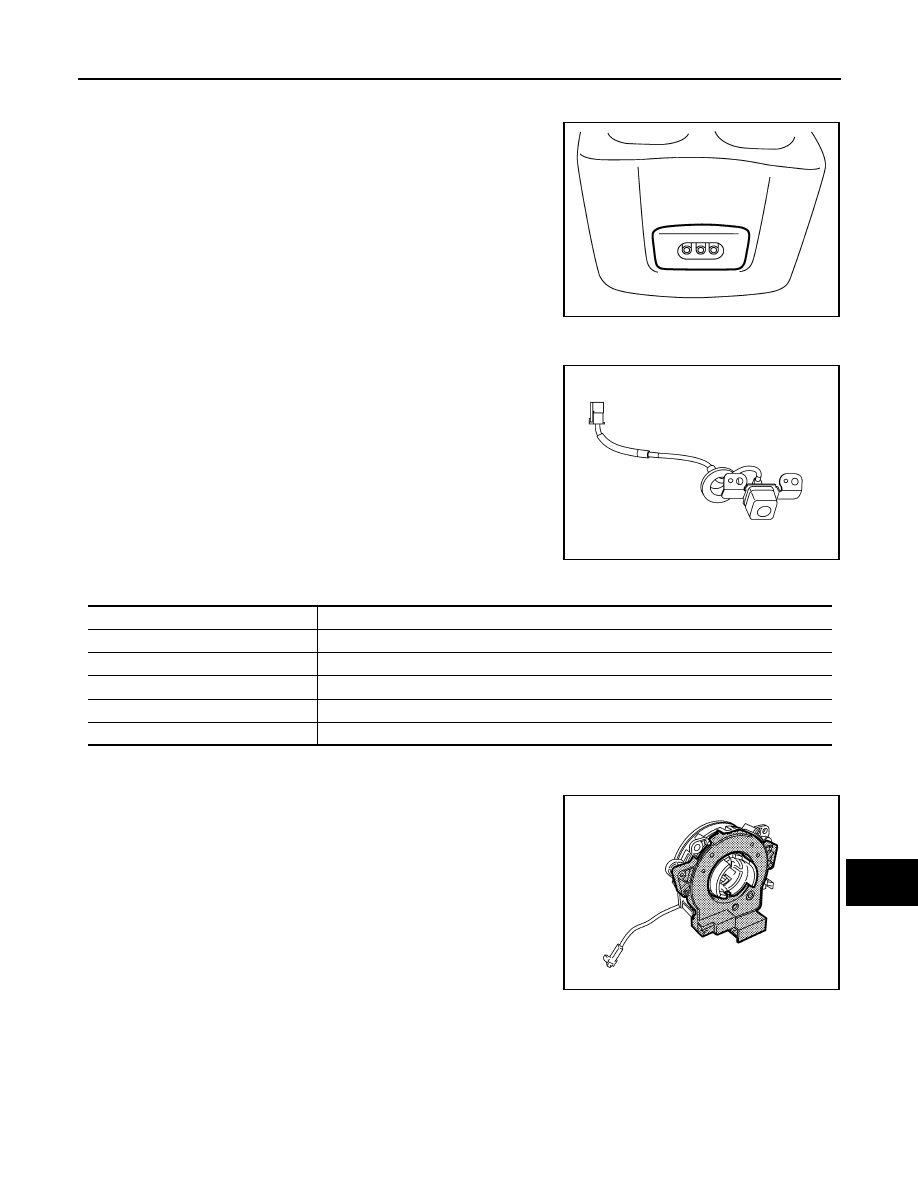

Auxiliary Input Jacks

INFOID:0000000009652127

• Installed to the rear of center console.
• Sound signals and image signals from the external equipment are

transmitted to the AV control unit.

Rear View Camera

INFOID:0000000009652128

• The rear view camera is installed to the back door finisher.
• Super-small CCD camera (color) using CCD

*

 for the image pickup

element is adopted.

• With the mirror processing function, a mirror image is sent as if it is

viewed by a rear view mirror.

• Power for the camera is supplied from the AV control unit, and the

image at the rear of the vehicle is sent to the AV control unit.

NOTE:
*: Abbreviation of Charge Coupled Device. CCD can turn incident
light from the lens into electrons and memorize the image like a
photo.

Specification

Steering Angle Sensor

INFOID:0000000009652129

• Steering sensor is installed to the spiral cable.
• Steering angle sends the steering signal necessary for predictive

course line of the rear view monitor function to the AV control unit
via CAN communication.

Antenna amp, Radio Antenna, and Antenna Feeder

INFOID:0000000009652130

RADIO ANTENNA

• AM/FM radio main antenna is located on the right rear side window glass and FM radio sub antenna on the

left rear side window glass.

JSNIA3417ZZ

JSNIA6373ZZ

Manufacturer name

Panasonic corporation

Image pickup element

1/4-inch interline CCD color

Effective number of pixels

Approx. 250,000 pixels (510

×

 492)

Minimum brightness

2 lx

Angle of view

H: 137

°

 V: 92

°


With mirror processing function

JSNIA1571ZZ

AV-282

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

COMPONENT PARTS

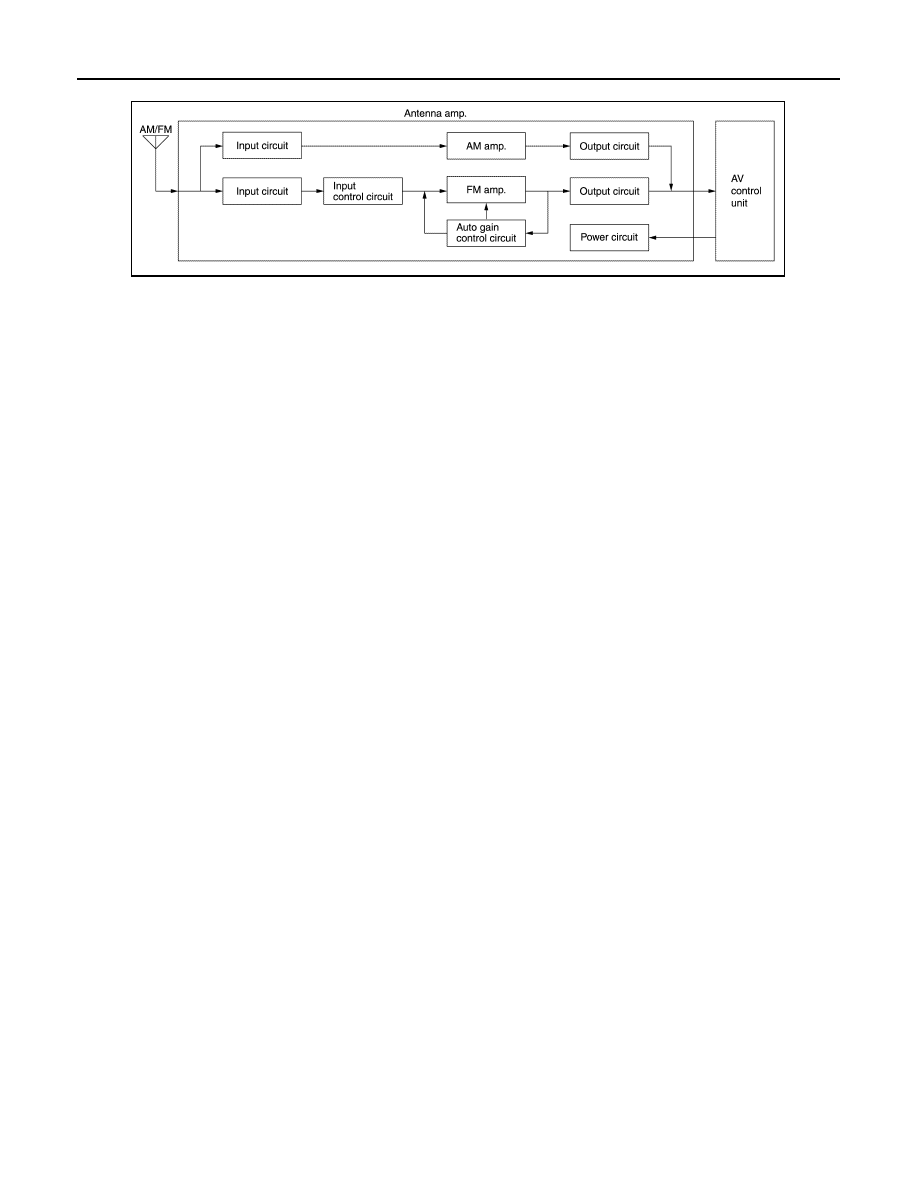

• The AM/FM radio main antenna path has an antenna amp. to obtain sufficient reception power.

CAUTION:

Affixing any mirror-type window films or metallic items (e.g. commercial antenna) on the rear side win-
dow glass causes a reduction in the radio receiver sensitivity.

JSNIA4204GB
