DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-63

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.

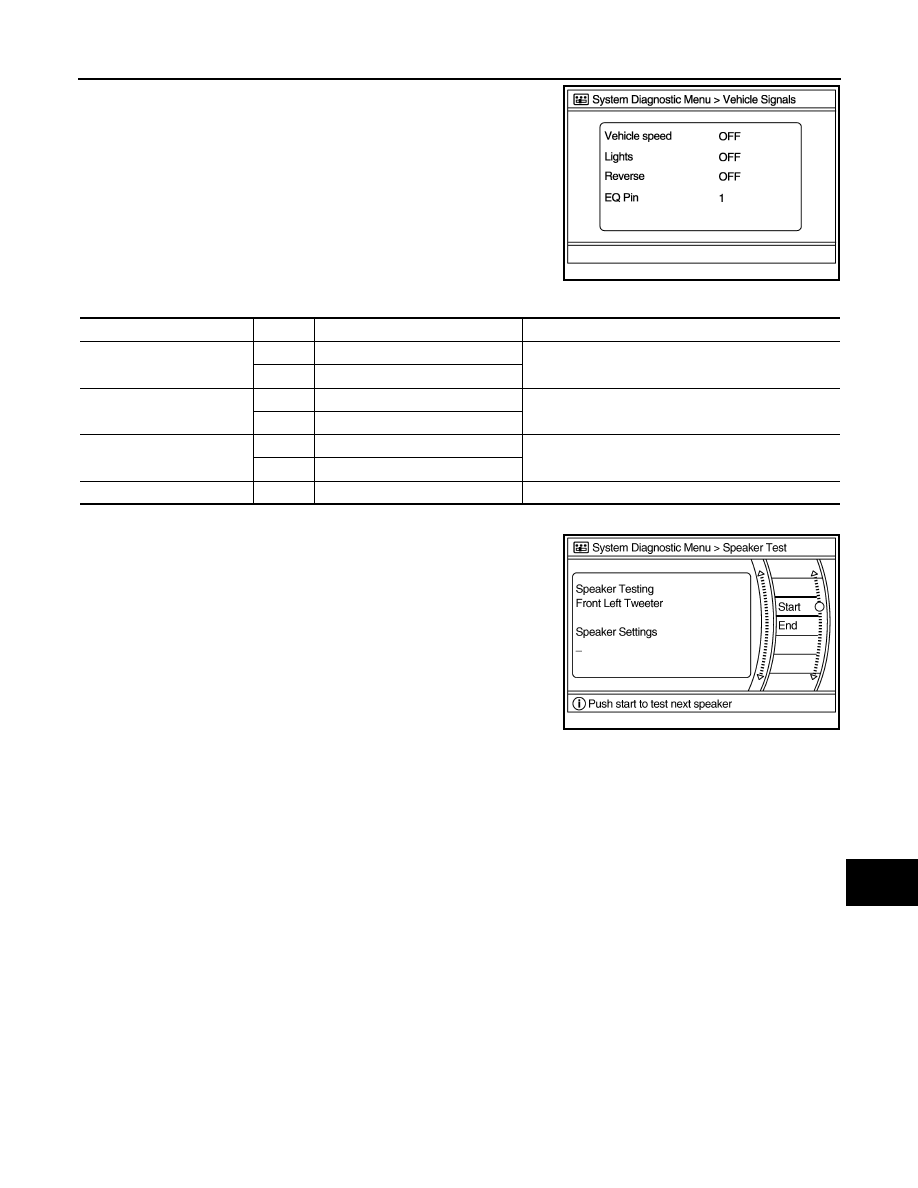

Speaker Test

Select “Speaker Test” to display the Speaker Diagnosis screen.
Press “Start” to generate a test tone in a speaker. Press “Start” again
to generate a test tone in the next speaker. Press “End” to stop the
test tones.

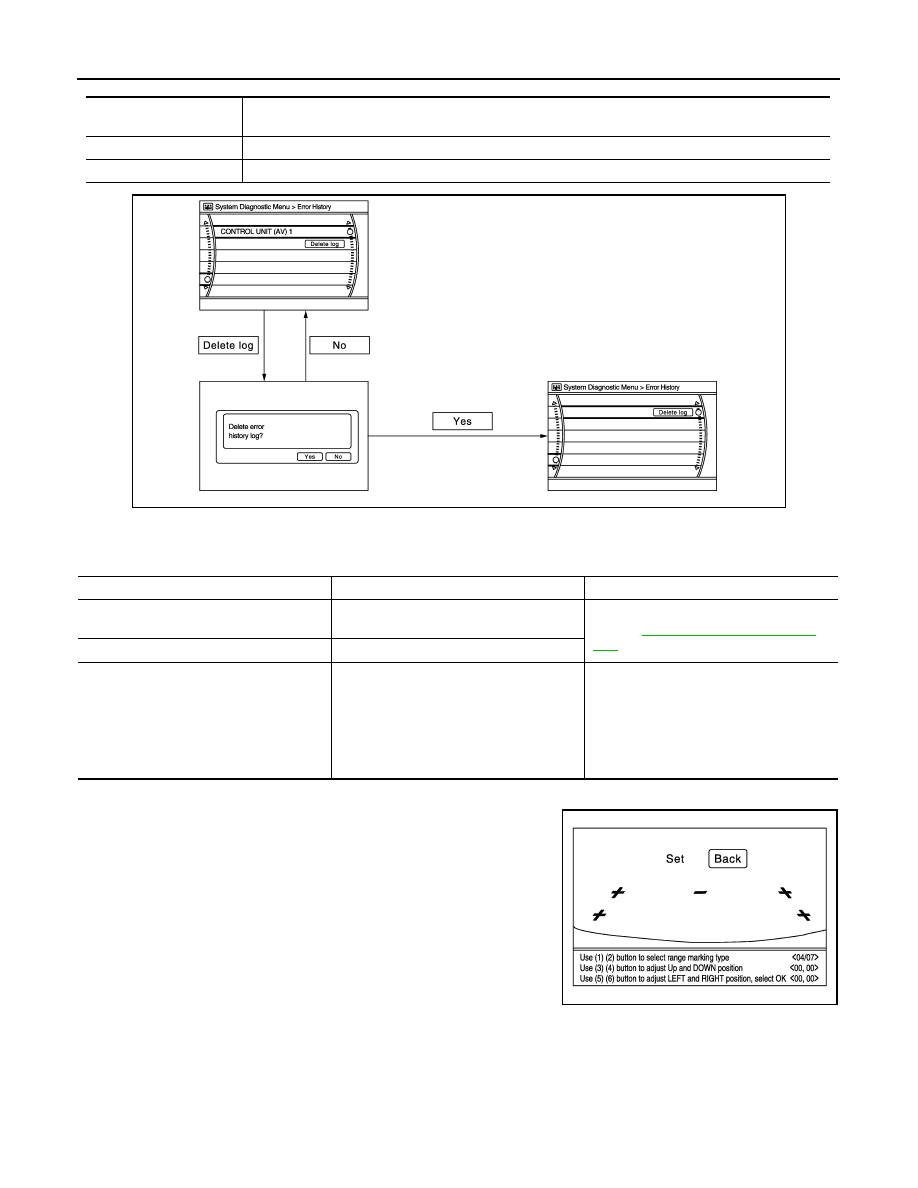

Error History

The self-diagnosis results are judged depending on whether any error occurs from when “Self-diagnosis” is
selected until the self-diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned
ON and then no error has occurred until the self-diagnosis start. Check the “Error Record” to detect any error
that may have occurred before the self-diagnosis start because of this situation.
The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending
on the error item.

Count up method A

• The counter is set to 40 if an error occurs. 1 is subtracted from the counter if the condition is normal at a next

ignition ON cycle.

• The counter lower limit is 1. The counter can be reset (no error record display) with the “Delete log” switch.

Count up method B

• The counter increases by 1 if an error occurs when ignition switch is ON. The counter will not decrease even

if the condition is normal at the next ignition ON cycle.

• The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error

record display) with the “Delete log” switch.

JSNIA3318ZZ

Diagnosis item

Display

Vehicle status

Remarks

Vehicle speed

ON

Vehicle speed > 0 km/h (0 MPH)

Changes in indication may be delayed. This is normal.

OFF

Vehicle speed = 0 km/h (0 MPH)

Lights

ON

Lighting switch is ON

OFF

Lighting switch is OFF

Reverse

ON

Shift position is in “R”

Changes in indication may be delayed. This is normal.

OFF

Shift position is in other than “R”

EQ Pin

2

Status of EQ profile selection signal

 ”2” is displayed for this vehicle.

JSNIA0150GB

AV-64

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

DIAGNOSIS SYSTEM (AUDIO UNIT)

Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items

Camera System

Use this mode to adjust the guide line display position of the rear
view monitor if necessary after removing the rear view camera.

AV COMM Diagnosis

Display type of occur-

rence frequency

Error history display item

Count up method A

AV communication line, CONTROL UNIT (AV)

Count up method B

CAN Controller Memory Error

JSNIA2807GB

Error item

Description

Possible malfunction factor/Action to take

CONTROL UNIT (AV)

AV communication circuit initial diagnosis
malfunction is detected.

Replace the audio unit.
Refer to

AV-112, "Removal and Installa-

tion"

.

CAN Controller Memory Error

Audio unit malfunction is detected.

• AV COMM CIRCUIT
• H/F Unit Connection Error

When either one of the following items is
detected:
• TEL adapter unit power supply and

ground circuits are malfunctioning.

• AV communication circuits between au-

dio unit and TEL adapter unit are mal-
functioning.

• TEL adapter unit power supply and

ground circuits.

• AV communication circuits between au-

dio unit and TEL adapter unit.

JSNIA1876ZZ

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-65

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

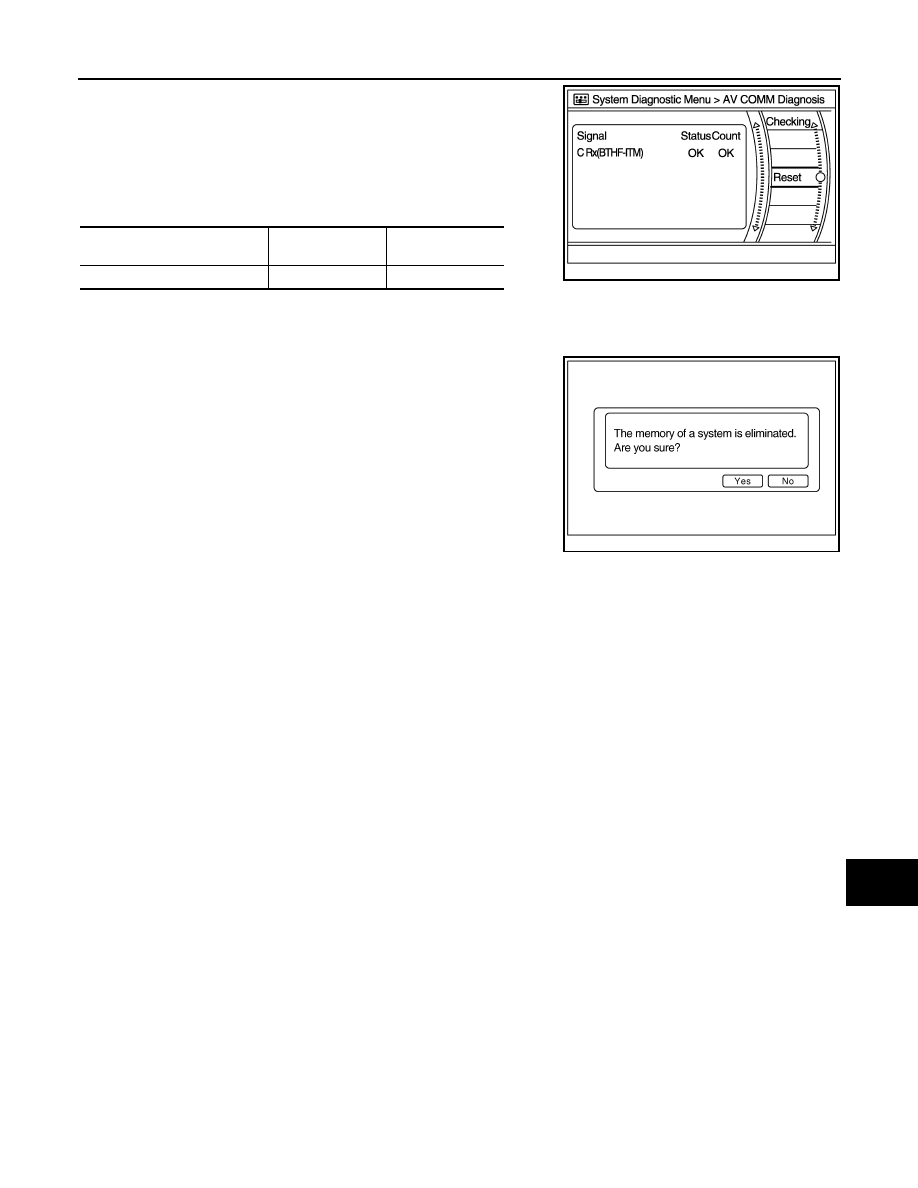

• Displays the communication status between audio unit (master

unit) and each unit.

• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if “Reset” is pressed.

NOTE:
“???” indicates UNKWN.

Initialize Settings

Deletes data stored from the audio unit.

Items

Status

(Current)

Counter

(Past)

C Rx(BTHF-ITM)

OK / ???

OK / 0 – 39

JSNIA2813ZZ

JSNIA0155GB

AV-66

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

Description

INFOID:0000000009651935

 During on board diagnosis the diagnosis function of TEL adapter unit starts with the operation of the steering
switch and performs the diagnosis when ignition switch ACC.

On Board Diagnosis Function

INFOID:0000000009651936

HANDS-FREE PHONE SYSTEM ON BOARD DIAGNOSIS

 During on board diagnosis the diagnosis function of TEL adapter unit starts with the operation of the steering
switch and performs the diagnosis when ignition switch ACC.

ON BOARD DIAGNOSIS ITEM

The on board diagnosis has 3 modes: the self-diagnosis mode that performs the trouble diagnosis, the
speaker adaptation data deleting mode and the hands-free phone system initialization mode.

CAUTION:

• Perform the diagnosis with the vehicle stopped.
• Perform STEP2 if necessary.

Self-diagnosis results

Self-diagnosis mode reads out the self-diagnosis results.
NOTE:
• Error count is read out simultaneously when reading out the DTC name.
• The errors are read out continuously when some errors occur at the same time.

Self-diagnosis results

The Details of Error Count

The error count guides “0” when the error occurs. The next time it counts up “1” if it is normal with the ignition
switch ON. It continues the count up unless the initialization of hands-free phone system is performed.

STEP

MODE

Description

STEP1

Self-diagnosis

The self-diagnosis mode performs the microphone test and
the diagnosis of TEL adapter unit, TEL antenna and steering
unit, and then reads out the results with the sound and indi-
cates them on the display.

STEP2

Speaker adaptation data deleting

The speaker adaptation data deleting mode can delete the
speaker adaptation data.

Hands-free phone system initialization

Hands-free phone system initialization mode can perform
the initialization of hands-free phone system.

DTC

DTC name

Possible causes

DTC 10000

INTERNAL FAILURE

TEL adapter unit

DTC 01000

ANT. SHORT TO BATT OR OPEN

TEL antenna

DTC 00100

ANT. SHORT TO GROUND

DTC 00010

STEERING REMOTE BUTTON STUCK A

Steering switch

DTC 00001

STEERING REMOTE BUTTON STUCK B

DTC 00000

THERE ARE NO FAILURE RECORDS TO REPORT
