SEAT MEMORY SWITCH

Removal and Installation

INFOID:0000000009649710

REMOVAL

1.

Remove front door finisher. Refer to

INT-14, "Removal and

Installation"

.

2.

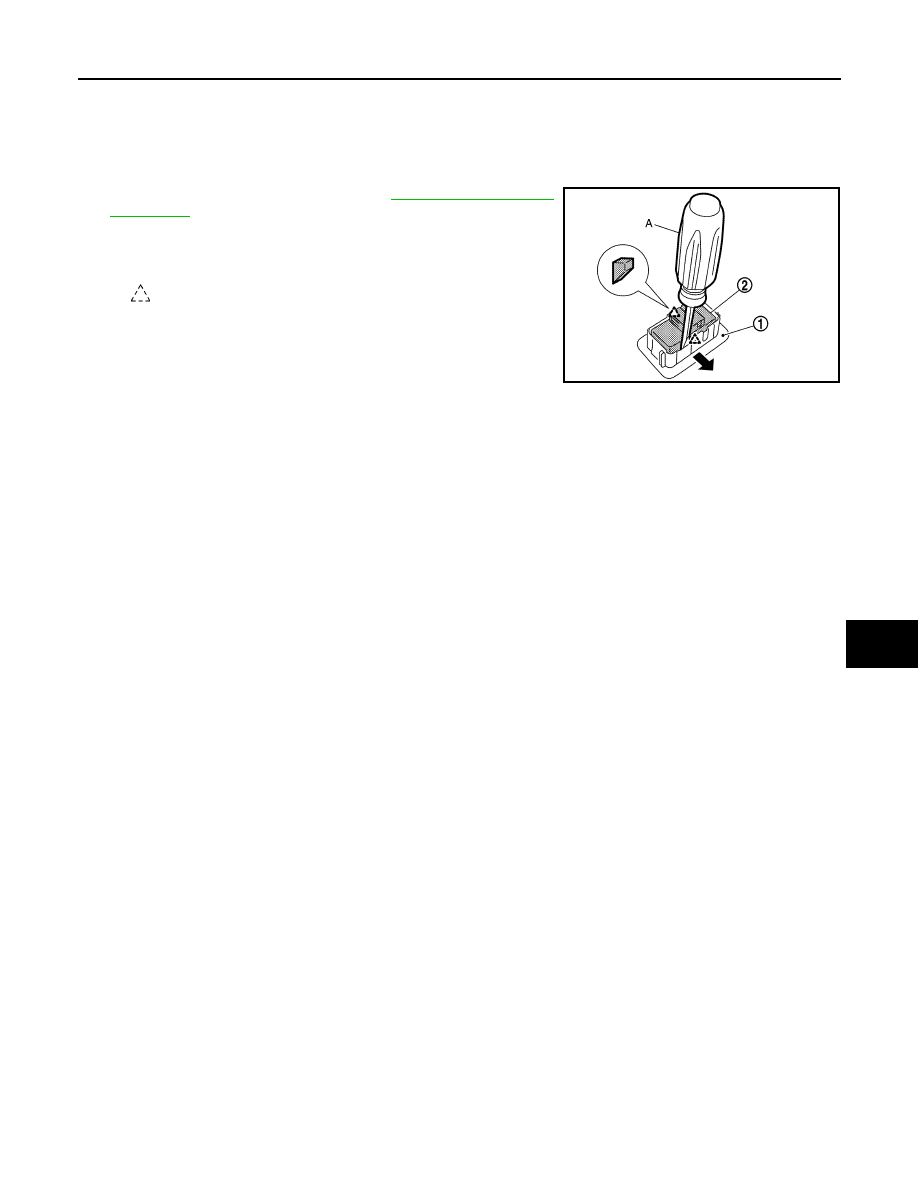

Press pawls and remove seat memory switch (1) from switch fin-
isher (1) using remover tool (A).

INSTALLATION

Install in the reverse order of removal.

:

Pawl

JMJIA4724ZZ

ADP-114

< REMOVAL AND INSTALLATION >

POWER SEAT SWITCH

POWER SEAT SWITCH

Removal and Installation

INFOID:0000000009649711

REMOVAL

1.

Remove seat cushion outer finisher. Refer to

SE-108, "SEAT

CUSHION : Disassembly and Assembly"

.

2.

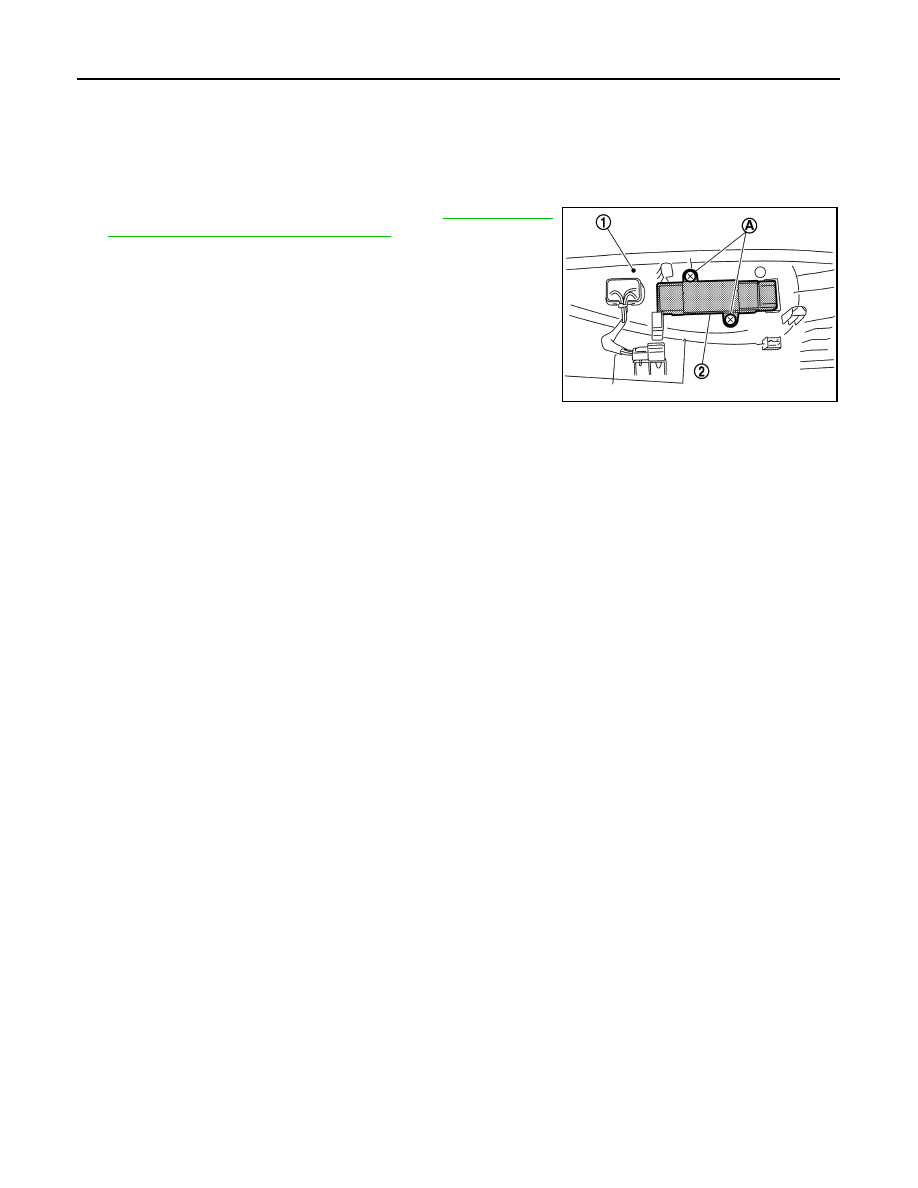

Remove screws (A), and then remove power seat switch (2)
from seat cushion outer finisher (1).

INSTALLATION

Install in the reverse order of removal.

JMJIA6179ZZ
